  1. Home
  2. › ECO-DIM.07 Led dimmer Zigbee Basic push/turn 0-200W
Brand:
EcoDim
Article code:
ECO-DIM.07 Zigbee Basic
EAN:
8719322372147
SKU:
ECO-DIM.07 Zigbee Basic
Video
Hier verkrijgbaar
Alle downloads

Product description

Zigbee-certified
✓ Suitable for most Zigbee home automation systems
Touchlink support
✓ Voice support (via Google Assistant/Amazon Alexa)
✓ 0-200W LED
✓ Suitable for all A-brands of cover material
✓ Optimal dimmability & light stability
MIN adjustment & Automatic MAX detection
✓ Protection against overload & interference signals
✓ Installation with existing 2 wires (no neutral wire required)

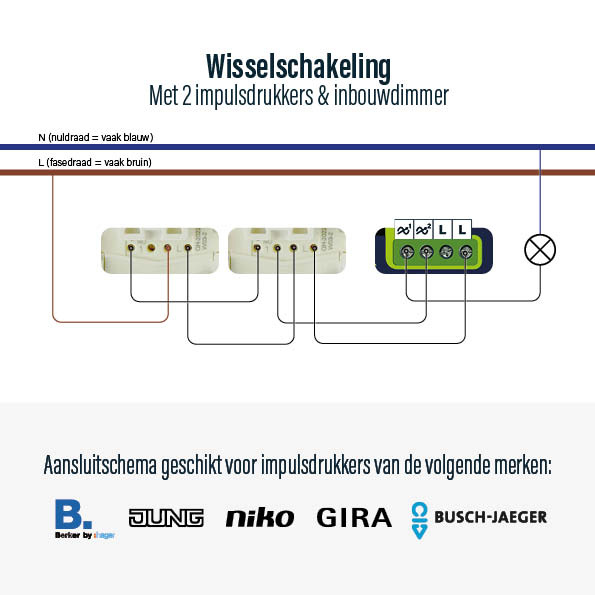

Suitable for two-way switching with pulse push-button or wireless Zigbee switch
Silent dimming
Soft-start system
Supplied with fittings



General information

Article number: ECO-DIM.07 Zigbee Basic
Article number 2BA: ECO-DIM.07-ZGB-BASIC

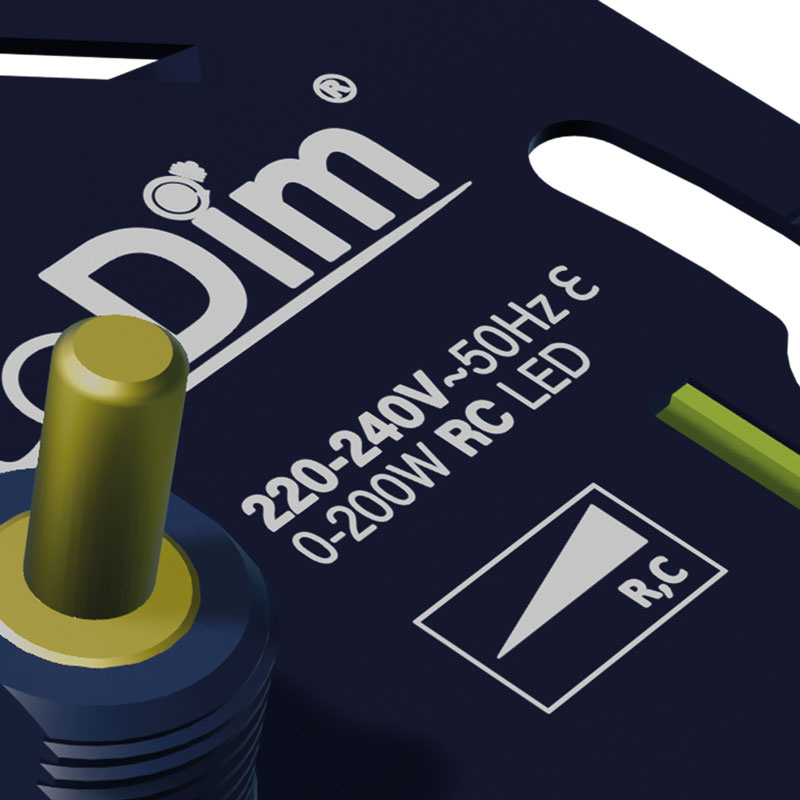

Type of LED dimmer: Trailing Edge / Phase Cut / R,C
Power: 0-200 Watt LED
Control: Push and turn and Zigbee home automation system
Packaging: Individually packed

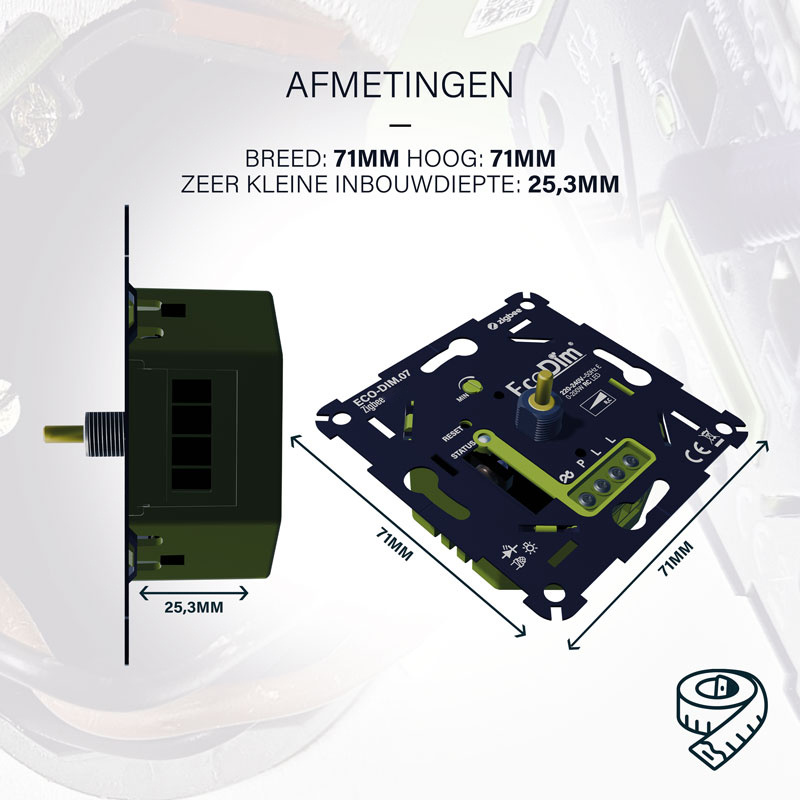

Dimensions in mm: outer size of basic element: 70,9 x 70,9 x 25,3mm
Hallmarks: CE, RoHS
Protocol: Zigbee 3.0

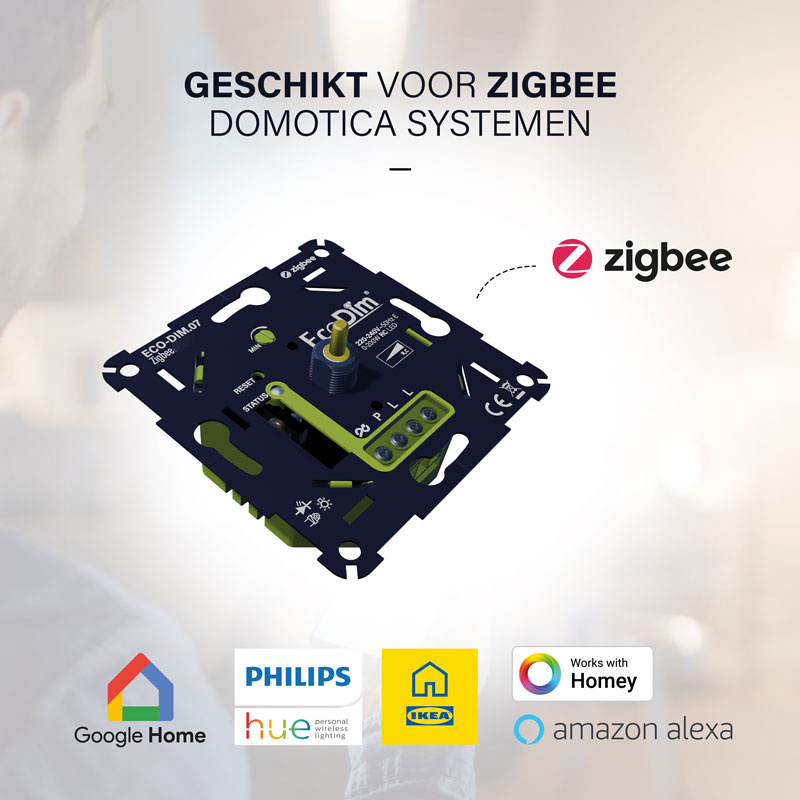

Suitable home automation systems

  • Google Assistant/Home (via Zigbee hub)
  • Amazon Alexa
  • Philips Hue
  • Homey
  • Futurehome
  • Trust (Klikaanklikuit)
  • Aduro smart
  • Aeotec SmartThings
  • WINK
  • IKEA Dirigera

Not suitable

  • TRÅDFRI (can be linked to an IKEA remote control using Touchlink)

Suitable brands of cover material

  • Berker by Hager
  • Busch-Jaeger
  • Gira
  • JUNG
  • Kopp
  • Merten by Schneider
  • Niko
  • PEHA

Not suitable

  • Merten 57xx
  • Dimmer knob with D-shaped hole, such as Wintop, Plieger, GAMMA Everest
  • Dimmer knob with click system/clamp fixing, such as Busch-Jaeger 6540-7 and Niko XXX-31003

Suitable lamps

  • Led lamps 230V* (max. 200W)
  • Incandescent lamps (max. 300W)
  • Halogen lamps 230V (max. 300W)
  • Low-voltage lamps with electronic transformer/RC, such as LED lamps with transformer (max. 300W)
*Provided the lamps operate on phase cut/trailing edge.

Product specifications

Brand: EcoDim
Power (wattage): 0-200 watt LED
Voltage (input): 230V
Dimming technology: Smart dimmer Trailing Edge / Phase cut / R,C
Operation: Push/swivel switch
Dimensions in mm (outer dimensions frame): N/A
Installation dimensions in mm (fits any flush-mounted box): 70,9 x 70,9 x 25,3mm
Packaging: Each
Warranty: 2 years
Article number: ECO-DIM.07 Zigbee Basic
Item number 2BA: ECO-DIM.07-ZGB-BASIC
Download manual: https://cdn.webshopapp.com/shops/68389/files/349021535/eco-dim07-zigbee-basic-manual.pdf
Philips HUE manual: https://cdn.webshopapp.com/shops/68389/files/374326127/handleiding-eco-dim-zigbee-dimmers-koppelen-met-ph.pdf
Datasheet
