Brand:
EcoDim
Article code:
ECO-DIM.03
EAN:
8719322374578
SKU:
ECO-DIM.03
Video
Hier verkrijgbaar
Alle downloads

Product description

✓ 0-500 Watt LED RC / 0-200 Watt LED RL

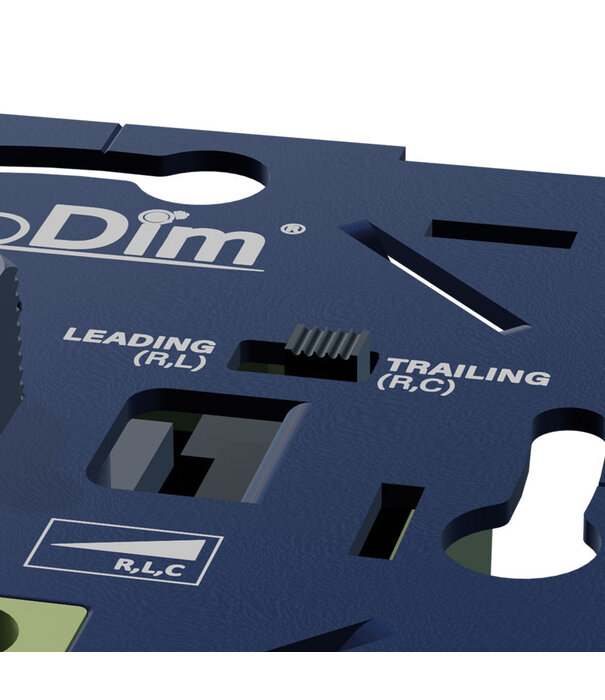

✓ Universal: leading edge / trailing edge (RLC)
✓ Suitable for all A-brands of cover material
✓ Optimal dimmability & light stability
✓ Overload protection & interference signal protection
✓ Manual MIN adjustment & automatic MAX detection
✓ Silent dimming
✓ Soft-start system
✓ Small mounting depth
✓ Suitable for two-way switching & cross switching
✓ Daisy chain connection possible (double L-port)

General information

Article number: ECO-DIM.03
LED dimmer type: Trailing Edge & Leading Edge / R,L,C

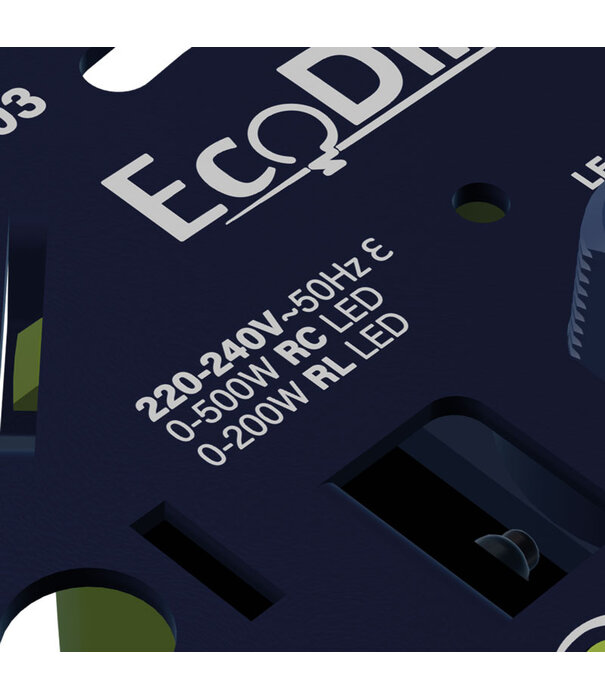

Power: 0-500 Watt LED RC / 0-200 Watt LED RL
Control: Push/ turn
Packaging: Individually packaged

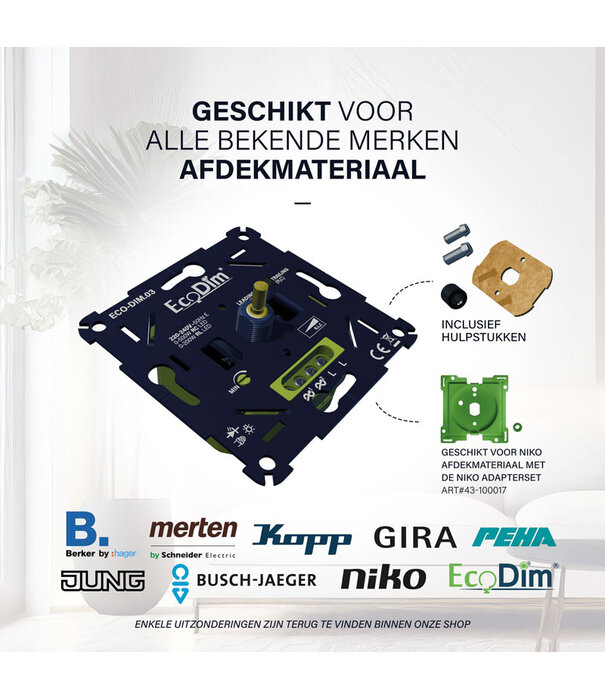

Suitable brands of cover material

  • Berker by Hager
  • Busch-Jaeger (except 6540-7X)
  • Gira
  • JUNG
  • Kopp
  • Merten by Schneider 51XX and System M
  • Niko XXX-31003 (provided use of Niko adapter) and XXX-31000
  • PEHA

Not suitable:

  • Busch-Jaeger 6540-7
  • Merten D-Life
  • Niko PR20
  • Dimmer knob with D-shaped hole, like Wintop, Plieger, GAMMA Everest

Suitable lamps

  • Led lamps 230V (max. 500W)
  • Incandescent lamps (max. 400W)
  • Halogen lamps 230V (max. 400W)
  • Low-voltage lamps with electronic transformer, such as LED lamps with transformer (max. 400W)

Product specifications

Brand: EcoDim
Power (wattage): 0-500 Watt LED RC / 0-200 Watt LED RL
Voltage (input): 230V
Dimming technology: Leading edge & trailing edge (RLC)
Operation: Push/swivel switch
Dimensions in mm (outer dimensions frame): 84x84

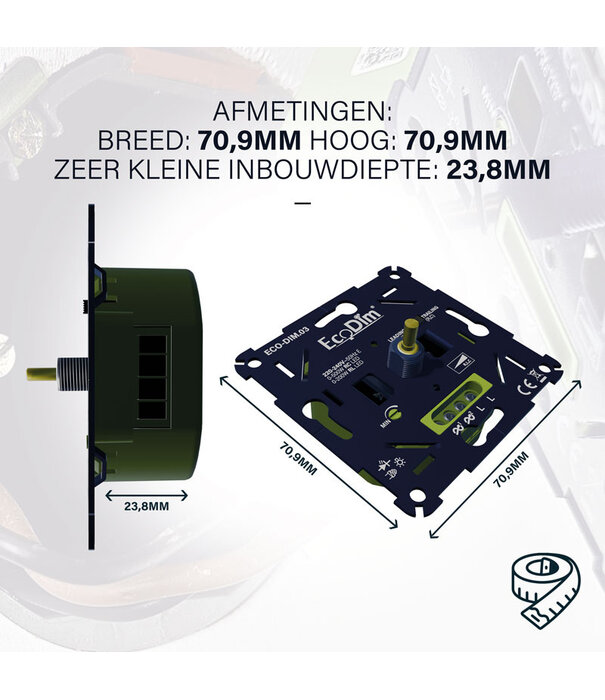

Installation dimensions in mm (fits any flush-mounted box): 70,9x70,9x23,8
Packaging: Each
Warranty: 2 years
Article number: ECO-DIM.03
Item number 2BA: ECO-DIM.03
Download manual: https://cdn.webshopapp.com/shops/68389/files/455305237/eco-dim03-handleiding-nl-de-en-print.pdf
Philips HUE manual:
Datasheet
