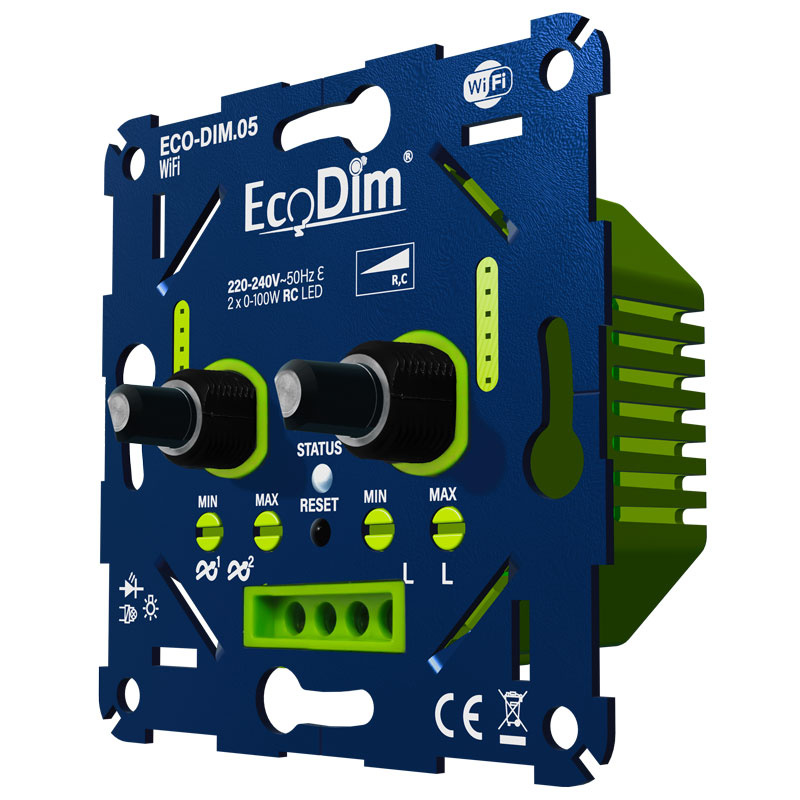

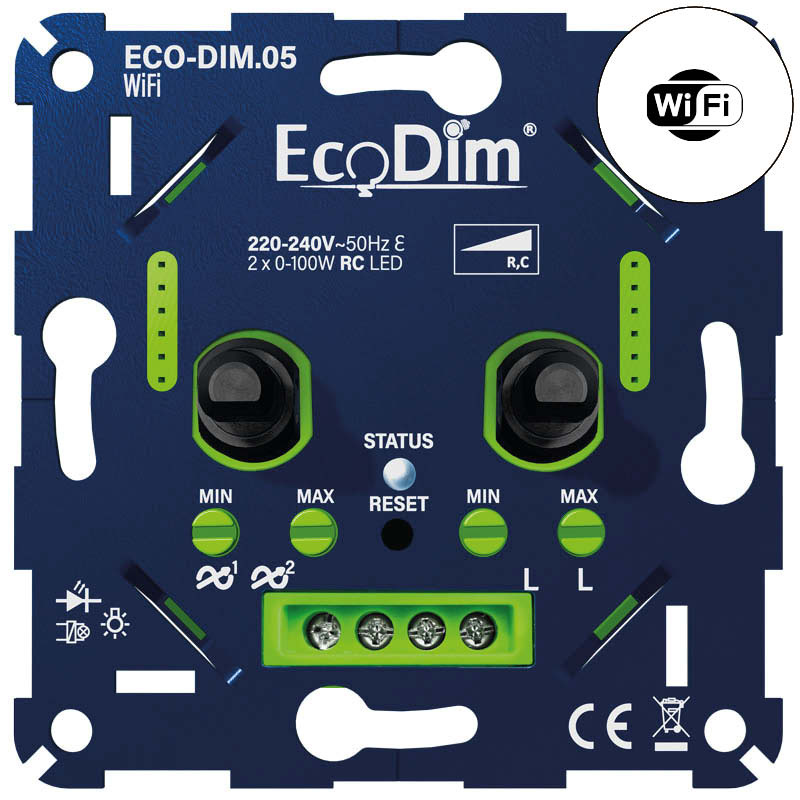

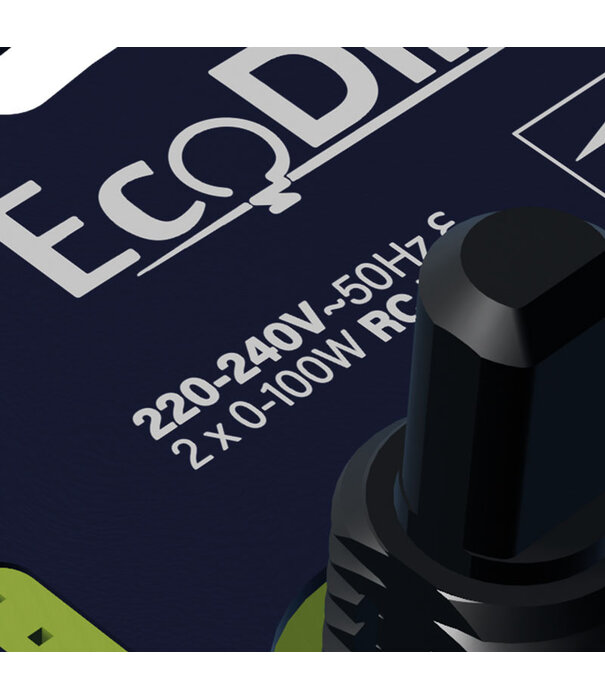

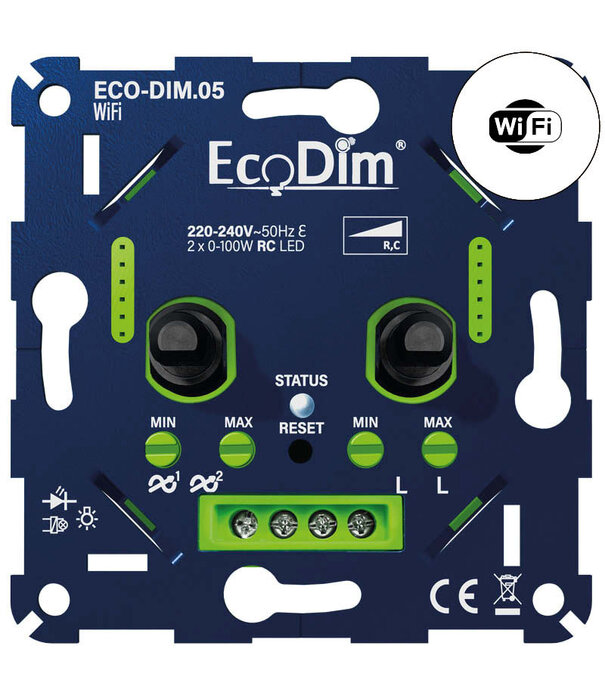

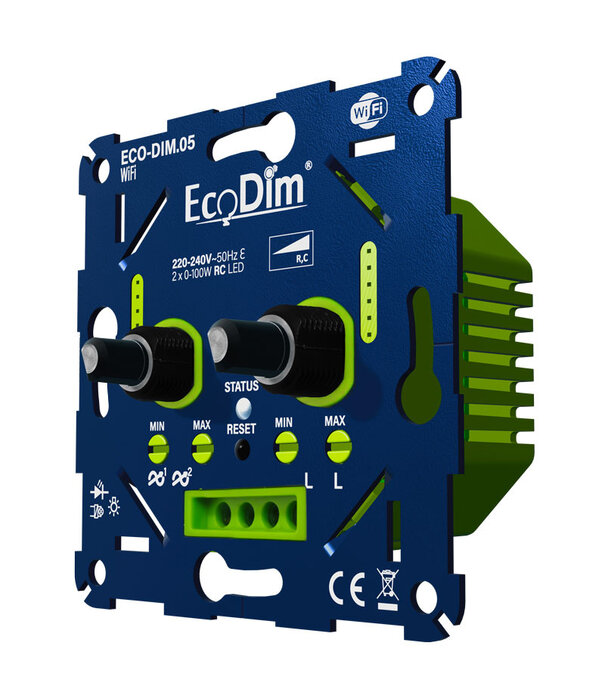

ECO-DIM.05 WiFi led dimmer duo 2x 0-100W phase cut (RC)

  1. Home
  2. ECO-DIM.05 WiFi led dimmer duo 2x 0-100W phase cut (RC)
Brand:
EcoDim
Article code:
ECO-DIM.05 WiFi
EAN:
8719322373571
SKU:
ECO-DIM.05 WiFi
Video
Hier verkrijgbaar
Alle downloads

Product description

✓ WiFi
✓ 2x 0-100W LED
✓ Compatible with most WiFi smarthome apps (Tuya)
✓ Voice support (via Google Assistant/Amazon Alexa)
✓ Optimal dimmability & light stability
✓ MIN & MAX adjustments
✓ Overload & interference protection
✓ Silent dimming
✓ Soft-start system
✓ Small mounting depth

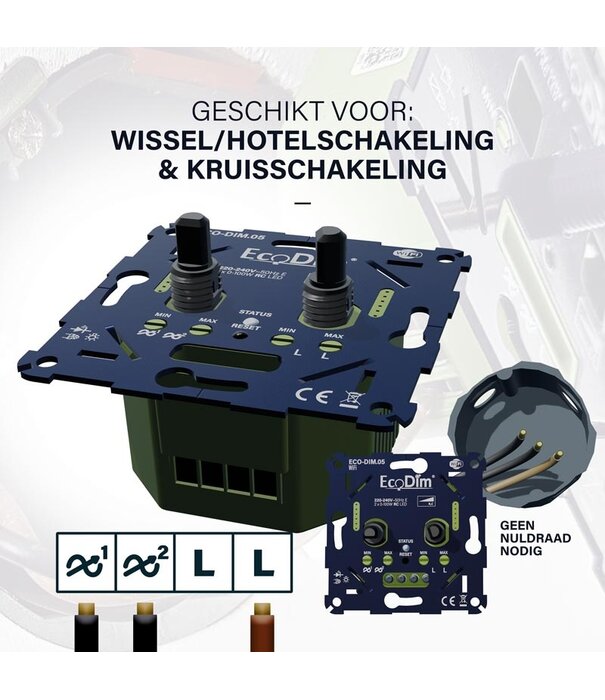

✓ Installation with existing 2 wires (no neutral wire required)
✓ Suitable for all dimmer switches with D-shaped hole
✓ Suitable for surface-mounted boxes & flush-mounted boxes with screw holes
✓ Matching cover material for each brand available

General information

Item number: ECO-DIM.05 WiFi
Article number 2BA: ECO-DIM.05-WIFI
LED dimmer type: Trailing Edge / Phase cut / R,C
Power: 2x 0-100 Watt LED
Control: Push and turn and WiFi home automation system
Packaging: Individually packed
Protocol: WiFi 2.4 GHz


Suitable smarthome apps

  • Google Assistant
  • Amazon Alexa
  • Google Home
  • Nedis
  • Trust
  • Woox
  • Hombli
  • Homeylux
  • Calex
  • Kruidvat
  • LSC Smart connect (Action)

Suitable cover brands

Suitable for all brands of duo cover material with D-shaped hole.

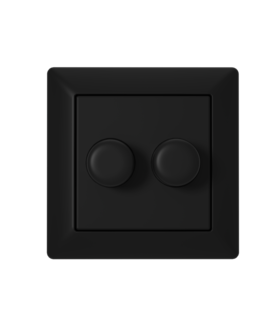

If existing cover material does not have a D-shaped hole, we also offer dimmer buttons (incl. central plate & frame) which fit into existing (single and multiple) frames.

  • Berker by Hager
  • Busch-Jaeger
  • Gira
  • JUNG
  • Merten by Schneider
  • PEHA

Suitable lamps

  • Led lamps 230V* (max. 2x 100W)
  • Incandescent lamps (max. 100W)
  • Halogen lamps 230V (max. 100W)
  • Low-voltage lamps with electronic transformer, such as LED lamps with transformer (max. 100W)
* Provided the lamps operate on a phase cut / trailing edge LED dimmer.

Product specifications

Brand: EcoDim
Power (wattage): 2x 0-100W
Voltage (input): 220 - 240V
Dimming technology: Phase cut-off / RC / Tronic
Operation: Push/swivel switch & WiFi
Dimensions in mm (outer dimensions frame): N/A
Installation dimensions in mm (fits any flush-mounted box): 70x70x33.7mm
Packaging: Each
Warranty: 2 years
Article number: ECO-DIM.05 WiFi
Item number 2BA: ECO-DIM.05-WIFI
Download manual: https://cdn.webshopapp.com/shops/68389/files/443414125/eco-dim05-wifi-handleiding-nl-de-en-web.pdf
Philips HUE manual:
Datasheet
