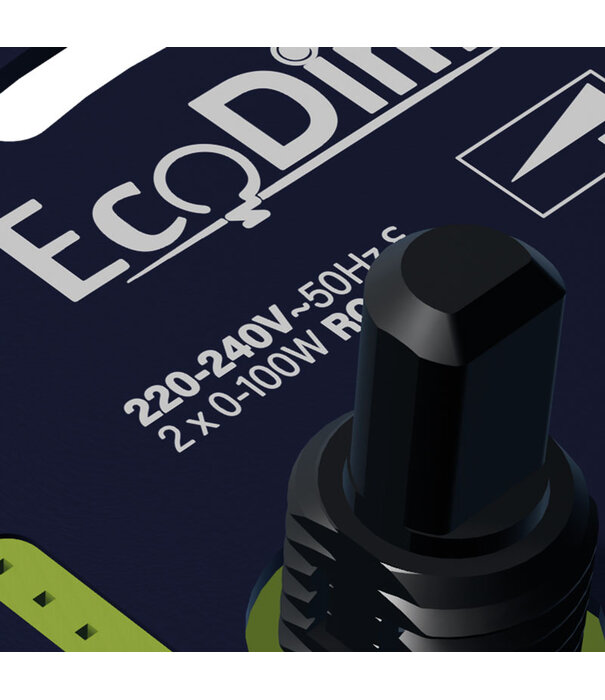

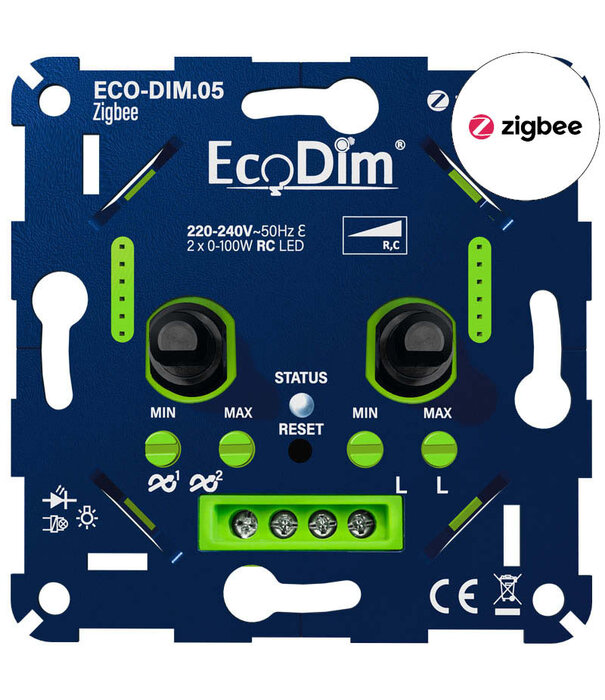

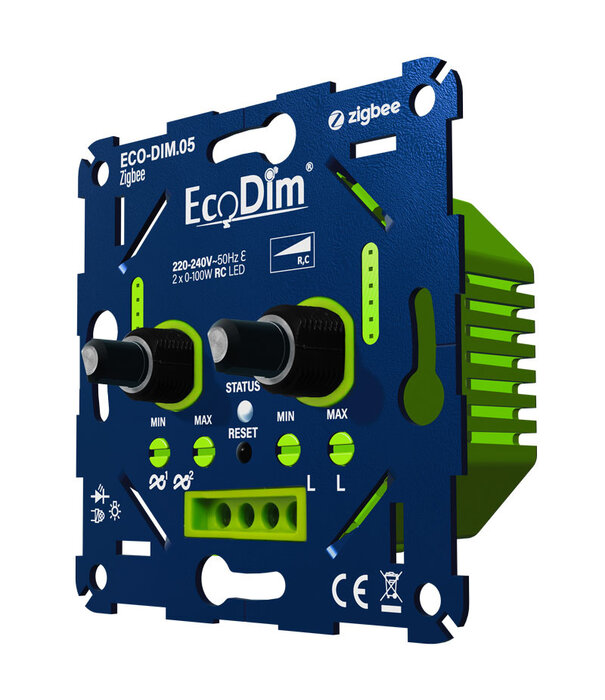

ECO-DIM.05 Zigbee led dimmer duo 2x 0-100W phase cut (RC)

  1. Home
  2. ECO-DIM.05 Zigbee led dimmer duo 2x 0-100W phase cut (RC)
Brand:
EcoDim
Article code:
ECO-DIM.05 Zigbee
EAN:
8719322372734
Video
Hier verkrijgbaar
Alle downloads

Product description

✓ Zigbee certified
2x 0-100W LED
✓ Suitable for most Zigbee home automation systems
Touchlink support
✓ Voice support (via Google Assistant/Amazon Alexa)
✓ Optimal dimmability & light stability
MIN & MAX adjustments
✓ Overload & interference protection
Silent dimming
Soft-start system
Small mounting depth

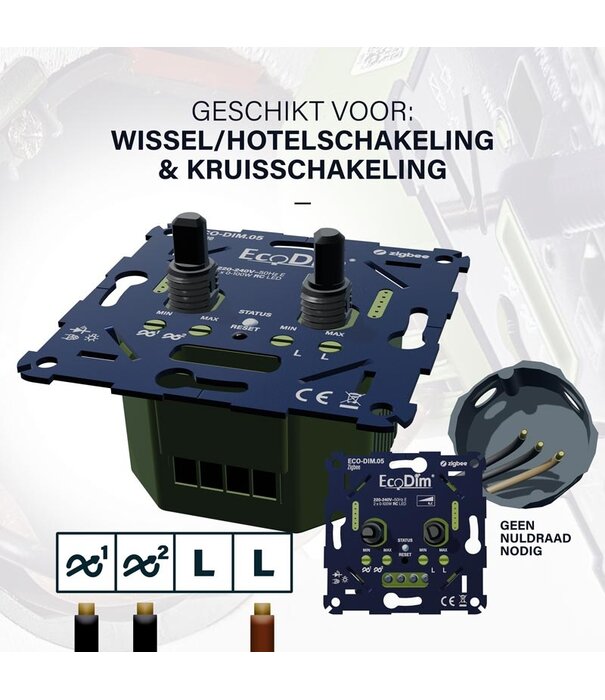

✓ Installation with existing 2 wires (no neutral wire required)

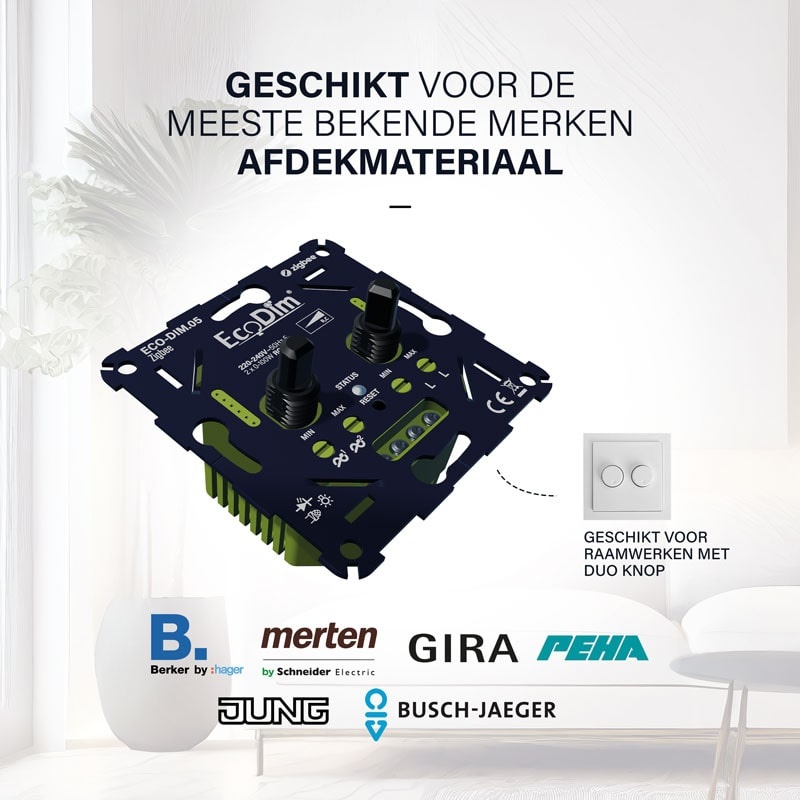

Suitable for all dimmer switches with D-shaped hole
Suitable for surface-mounted boxes & flush-mounted boxes with screw holes

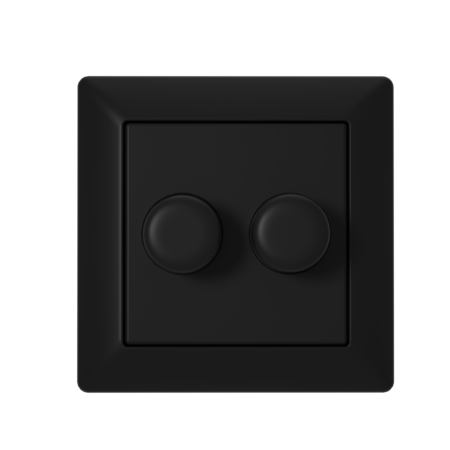

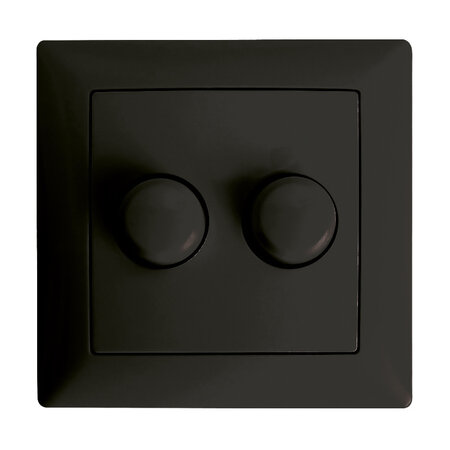

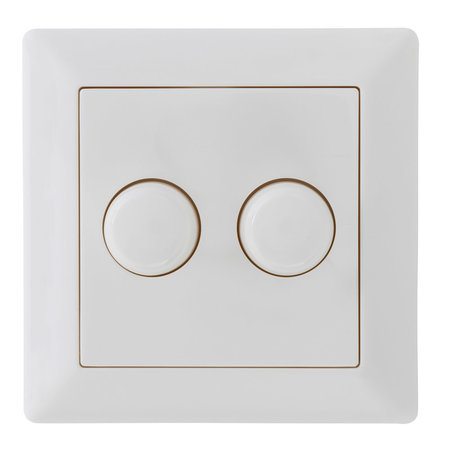

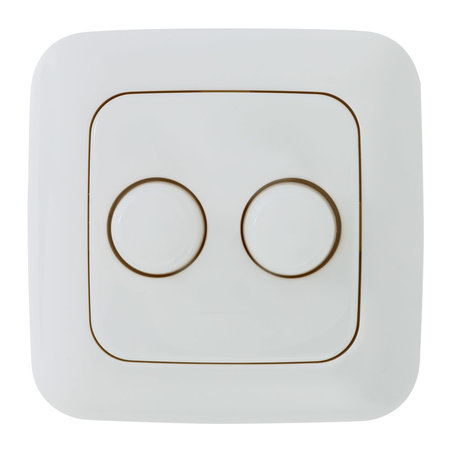

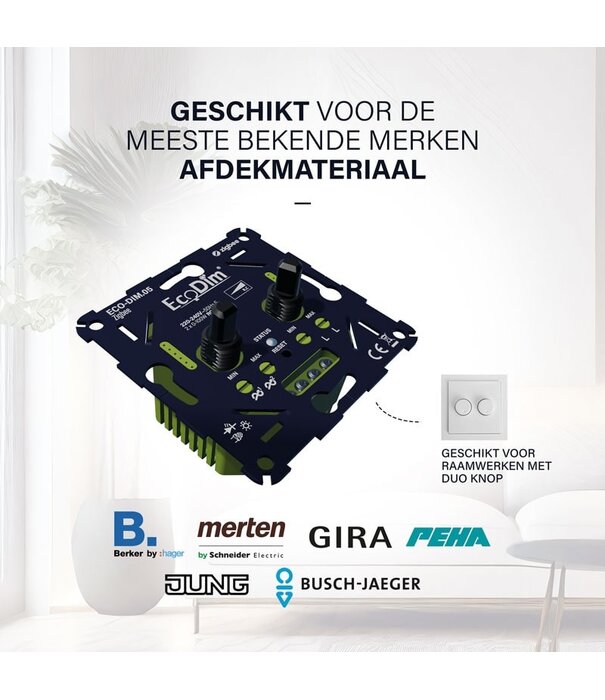

✓ Matching cover material for each brand available



General information

Article number: ECO-DIM.05 Zigbee
Article number 2BA: ECO-DIM.05-ZGB
LED dimmer type: Trailing Edge / Phase Cut / R,C
Power: 2x 0-100 Watt LED
Control: Push and turn and Zigbee home automation system
Packaging: Individually packaged
Protocol: Zigbee 3.0


Suitable home automation systems

  • Google Assistant/Home (via Hue, Homey)
  • Amazon Alexa (via Hue, Homey)
  • Philips Hue
  • Homey

Not suitable

  • TRÅDFRI (can be linked to IKEA remote control using Touchlink)
  • Trust (KlikAanKlikUit, we are working on it, currently only suitable for single dimmers)

Suitable lamps

  • Led lamps 230V* (max. 2x 100W)
  • Incandescent lamps (max. 100W)
  • Halogen lamps 230V (max. 100W)
  • Low-voltage lamps with electronic transformer, such as LED lamps with transformer (max. 100W)
* Provided the lamps operate on a phase cut / trailing edge led dimmer.

Product specifications

Brand: EcoDim
Power (wattage): 2x 0-100W

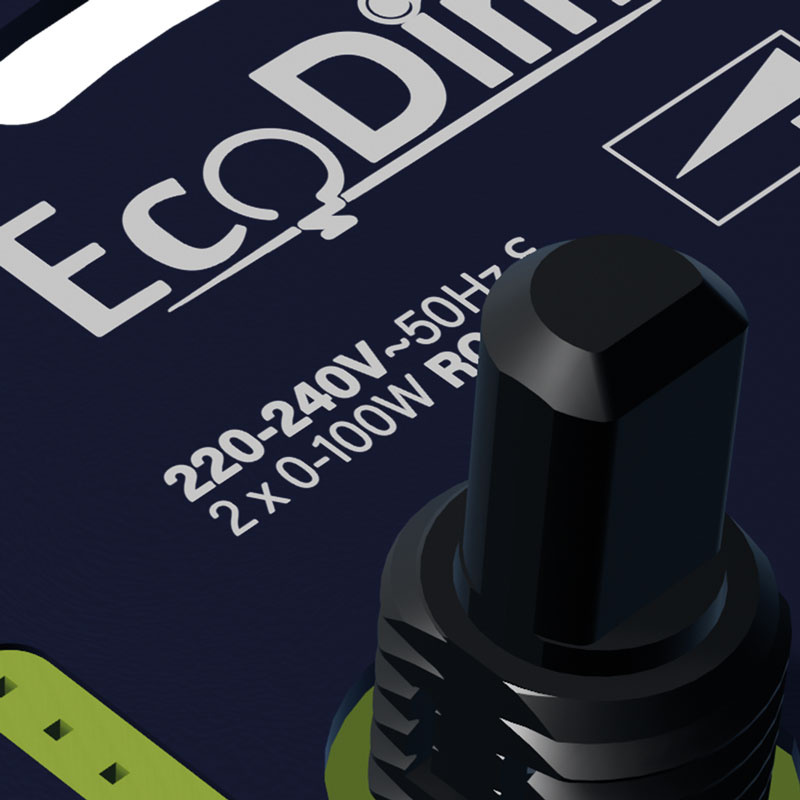

Voltage (input): 220 - 240V
Dimming technology: Phase cut-off / RC / Tronic
Operation: Push/swivel switch & Zigbee
Dimensions in mm (outer dimensions frame): N/A

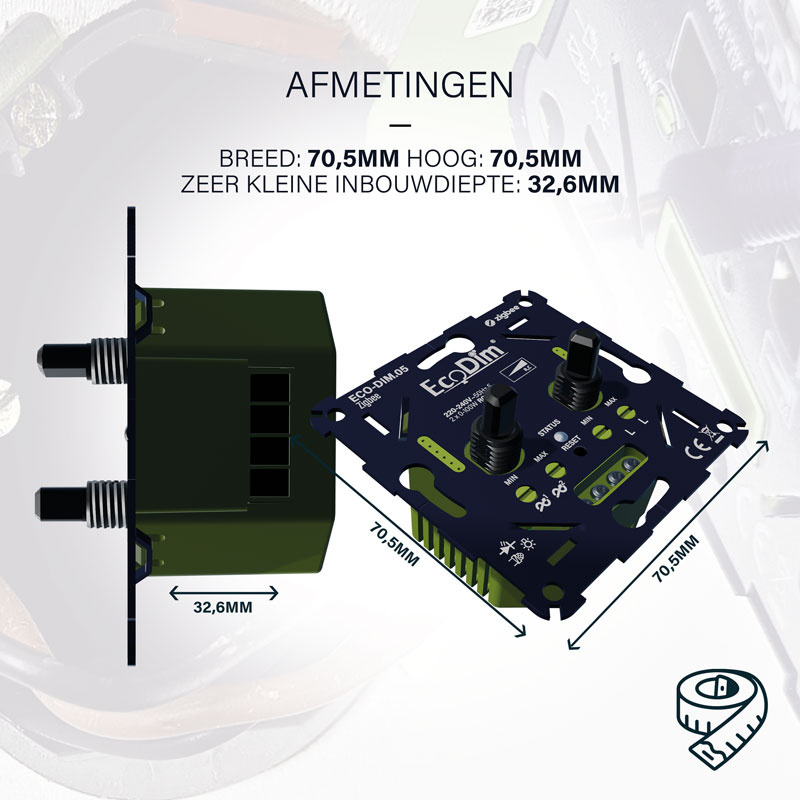

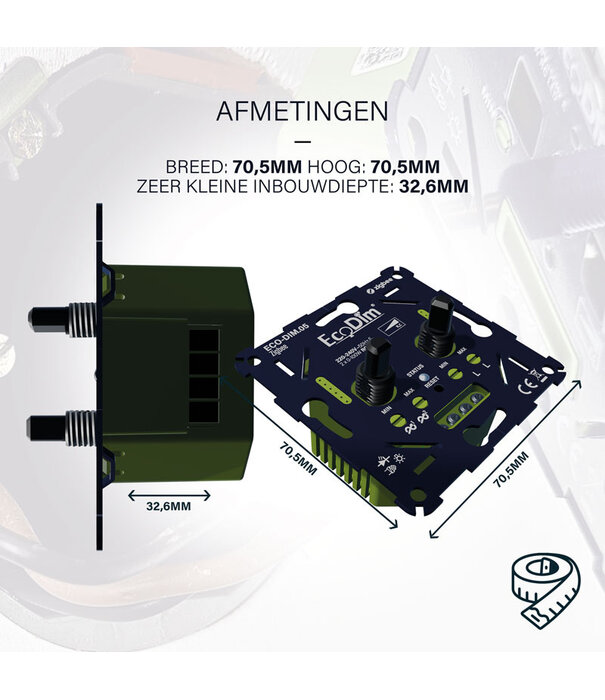

Installation dimensions in mm (fits any flush-mounted box): 70x70x33.7mm
Packaging: Each
Warranty: 2 years
Article number: ECO-DIM.05 Zigbee
Item number 2BA: ECO-DIM.05-ZGB
Download manual: https://cdn.webshopapp.com/shops/68389/files/373944306/eco-dim05-manual.pdf
Philips HUE manual: https://cdn.webshopapp.com/shops/68389/files/374326127/handleiding-eco-dim-zigbee-dimmers-koppelen-met-ph.pdf
Datasheet
