Brand:
EcoDim
Article code:
ECO-DIM.06 Z-Wave
EAN:
8719322372420
SKU:
ECO-DIM.06 Z-Wave
Hier verkrijgbaar
Alle downloads

Product description

✓ Z-Wave certified
✓ Suitable for all Z-Wave home automation apps
✓ Voice support (via Google Assistant or Amazon Alexa)
✓ Consumption meter
✓ 0-100W LED
✓ Optimal dimmability & light stability
✓ MIN adjustment & Automatic MAX detection
✓ Protection against interference signals
Silent dimming
Soft-start system
Plug & Play

General information

  • Article number: ECO-DIM.06 Z-Wave
  • Article number: ECO-DIM.06-ZWV
  • LED dimmer type: Trailing Edge / Phase Cut / R,C
  • Power consumption: 0-100 Watt LED
  • Control: Push and turn and home automation system
  • Packaging: Individually packed
  • Frequentie: 868 MHz

Suitable lamps

  • Led lamps 230V* (max. 100W)
  • Incandescent lamps (5-200W)
  • Halogen lamps 230V (5-200W)
  • Low-voltage lamps with electronic transformer, such as LED lamps with transformer (max. 100W)
* Provided the lamps operate on a phase cut / trailing edge led dimmer.

Product specifications

Brand: EcoDim
Power (wattage): 0-100W RC
Voltage (input): 220 - 240V
Dimming technology: Phase cut-off / RC / Tronic
Operation: Push/swivel switch

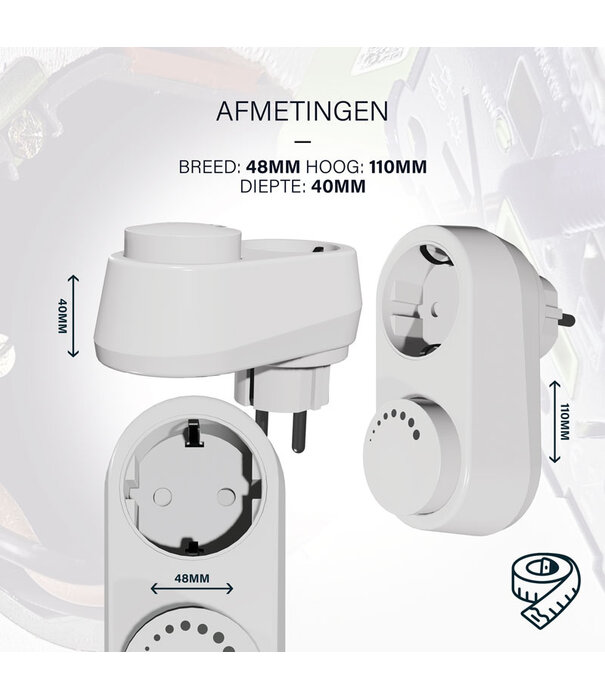

Dimensions in mm (outer dimensions frame): 110mm x 48mm x 40mm
Installation dimensions in mm (fits any flush-mounted box): N/A
Packaging: Each
Warranty: 2 years
Article number: ECO-DIM.06 Z-Wave
Item number 2BA: ECO-DIM.06-ZWV
Download manual Datasheet
