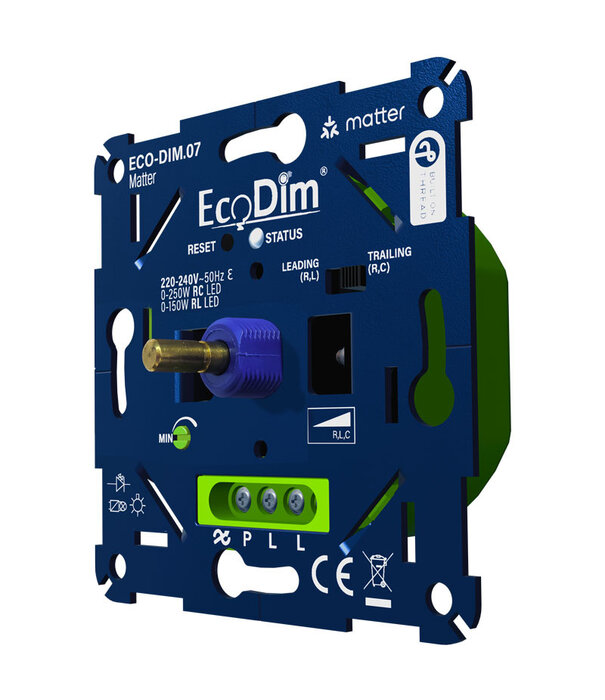

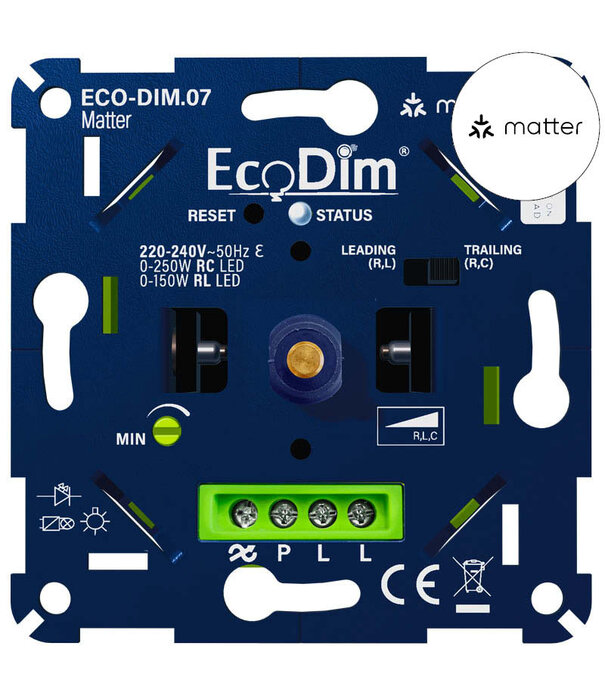

ECO-DIM.07 Led dimmer Matter push/turn 0-250W RLC

  1. Home
  2. ECO-DIM.07 Led dimmer Matter push/turn 0-250W RLC
Article code:
ECO-DIM.07 Matter
ECO-DIM.07 Matter
Hier verkrijgbaar
Alle downloads

Product description

✓ Matter certified
✓ Universal: 0-250W (RC)/ 0-150W (RL) LED
✓ Suitable for most Matter home automation
✓ Voice control (via Google Assistant/Amazon Alexa)
✓ Suitable for all well-known covering plates
✓ Small installation depth
✓ Optimal dimmability & light stability
✓ MIN adjustment & Automatic MAX detection
✓ Protection against overload, overheating & interference signals
✓ Silent dimming
✓ Soft-start system

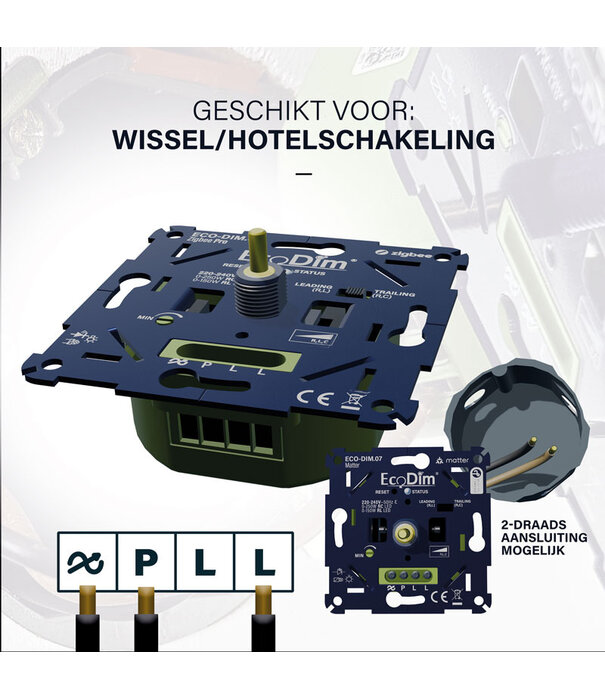

✓ 2-wire connection (no neutral or bypass required)
✓ Suitable for two-way switching with a pulse switch
✓ Phase wire loop-trough possible (Double L-port)


General information

Article number: ECO-DIM.07 Matter
Article number 2BA: ECO-DIM.07-MATTER

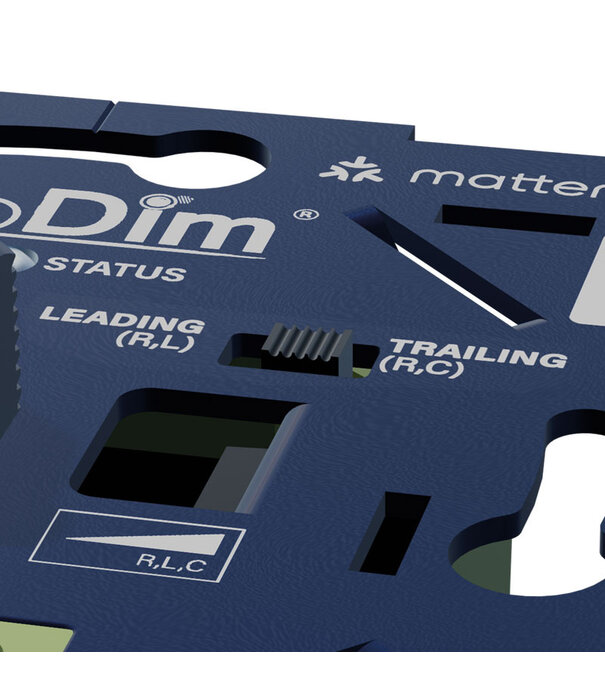

LED dimmer type: Trailing Edge & Leading Edge / RLC

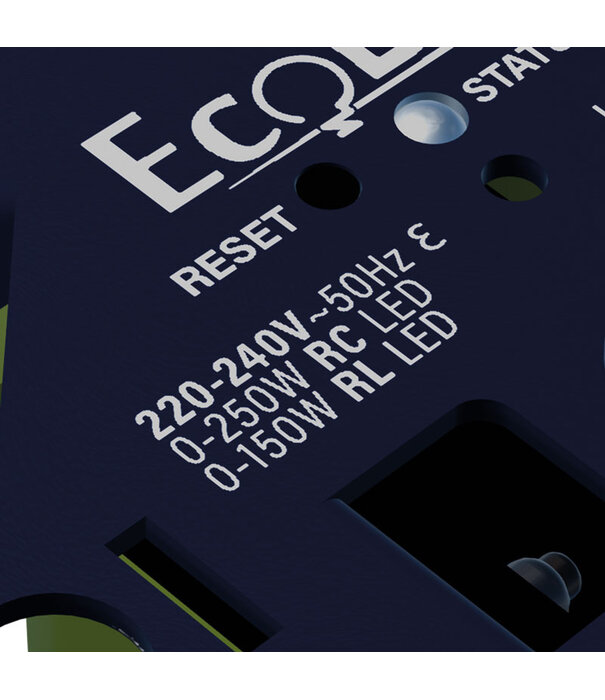

Power: 0-250 Watt RC LED / 0-150 Watt RL LED
Operation: Push/Rotary and Matter home automation systems
Packaging: Individually packed

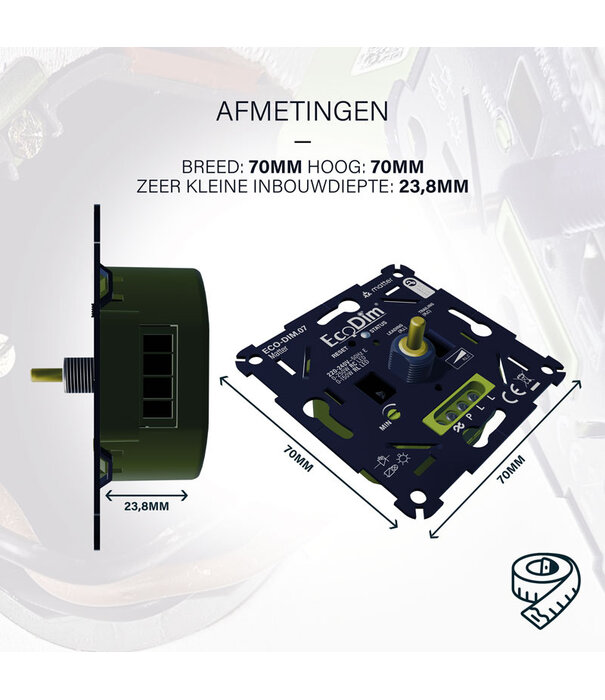

Dimensions in mm: Outer dimensions of basic element: 70.9x 70.9 x 23.8 mm
Hallmarks: CE
Protocol: Matter over Thread
Frequency: 2.4 GHz


Supporting brands including:

  • Apple Homekit
  • Philips Hue
  • IKEA Dirigera
  • Google Home
  • Amazon Alexa
  • Samsung SmartThings
  • Homey
  • And many more...

Suitable cover material brands

  • Berker by Hager
  • Busch-Jaeger (except 6540-7X)
  • Gira
  • JUNG
  • Kopp
  • Merten by Schneider 51XX and System M
  • Niko XXX-31003 (provided that a Niko adapter is used) and XXX-31000
  • PEHA

Not suitable:

  • Busch-Jaeger 6540-7
  • Merten D-Life
  • Niko PR20
  • Dimmer knob with D-shaped hole, such as Wintop, Plieger, GAMMA Everest


Suitable lamps

  • Led lamps 230V (max. 250W)
  • Incandescent lamps (max. 300W)
  • Halogen lamps 230V (max. 300W)
  • Low-voltage lamps with electronic transformer/RC, such as LED lamps with transformer (max. 300W)

Product specifications

Brand: EcoDim
Power (wattage): 0-250W LED
Voltage (input): 230V
Dimming technology: Leading edge and Trailing edge (RLC)
Operation: Push/swivel switch
Dimensions in mm (outer dimensions frame): -
Installation dimensions in mm (fits any flush-mounted box): 70,9x70,9x23,8
Packaging: Each
Warranty: 2 years
Article number: ECO-DIM.07 Matter
Item number 2BA: ECO-DIM.07-Matter
