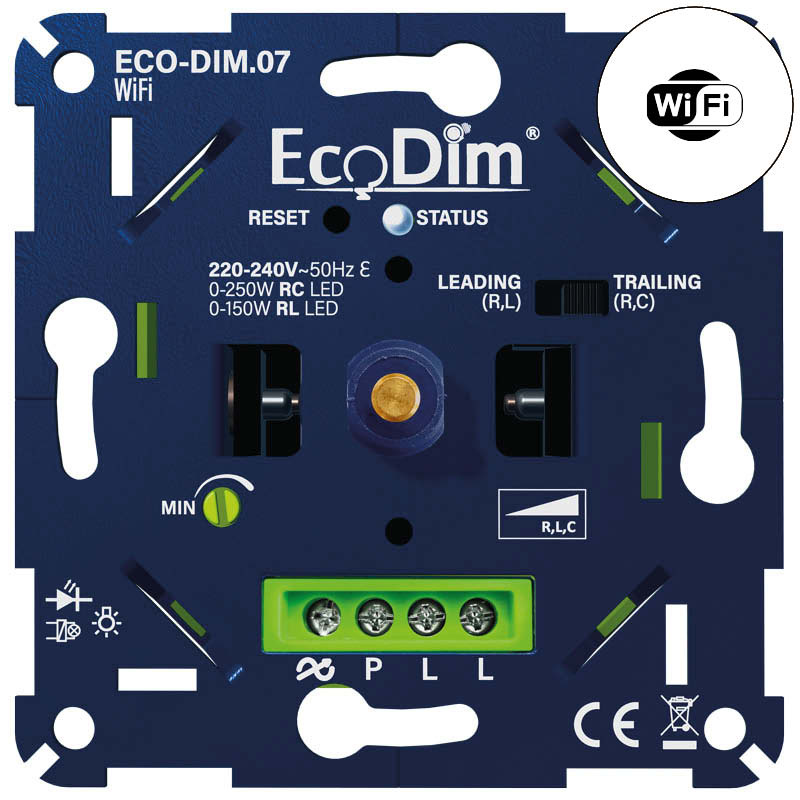

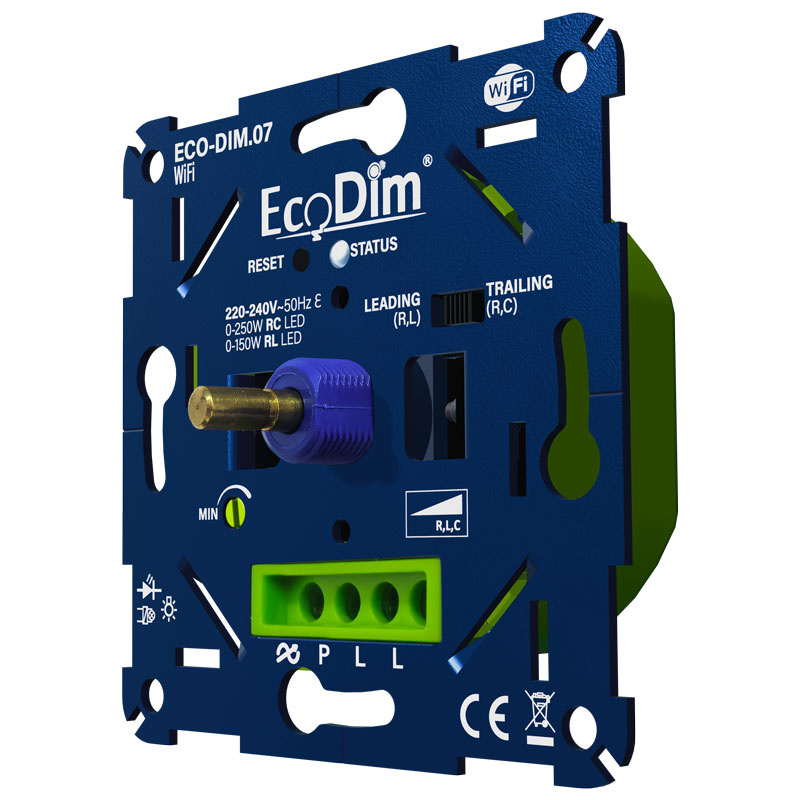

ECO-DIM.07 Led dimmer WiFi push/swivel 0-250W

  1. Home
  2. ECO-DIM.07 Led dimmer WiFi push/swivel 0-250W
Article code:
Hier verkrijgbaar
Alle downloads

Product description

✓ WiFi
✓ Compatible with most WiFi smarthome apps (Tuya)
✓ Voice support (via Google Assistant/Amazon Alexa)
✓ 0-250W RC/0-150W RL LED
✓ RLC (phase on and phase off)
✓ Suitable for all A-brands of cover material
✓ Optimal dimmability & light stability
✓ User-friendly MIN adjustment & Automatic MAX detection
✓ Protection against overload, overheating & interference signals
✓ Small mounting depth
✓ 2-wire connection (no neutral or bypass required)
✓ Suitable for two-way switching with momentary-action switch
✓ Through-connection of phase wire possible (double L-gate)
✓ Silent dimming
✓ Soft-start system
✓ TÜV certified

General information

Article number: ECO-DIM.07 WiFi
Article number 2BA: ECO-DIM.07-WIFI
Type of led dimmer: Trailing edge and leading edge / R,L,C
Power: 0-250W (RC)/ 0-150W (RL) LED
Control: Push/ turn and WiFi apps
Packaging: Packed by piece
Dimensions in mm: External dimensions of basic element: 71x71mm
Recessed depth: 24,6 mm
Hallmarks: CE, RoHS, TÜV
Protocol: WiFi 2.4 GHz

Suitable smarthome apps

  • Google Assistant/Home
  • Amazon Alexa
  • Nedis
  • Trust
  • Woox
  • Hombli
  • Homeylux
  • Calex
  • Kruidvat
  • LSC Smart connect (Action)

Suitable cover brands

  • Berker by Hager
  • Busch-Jaeger (except 6540-7X)
  • Gira
  • JUNG
  • Kopp
  • Merten by Schneider 51XX and System M
  • Niko XXX-31003 (provided you use Niko adapter) and XXX-31000
  • PEHA

Not suitable:

  • Busch-Jaeger 6540-7
  • Merten D-Life
  • Niko PR20
  • Dimmer knob with D-shaped hole, such as Wintop, Plieger, GAMMA Everest

Suitable lamps

  • Led lamps 230V (max. 250W, minimum 2 pieces)
  • Incandescent lamps (max. 300W)
  • Halogen lamps 230V (max. 300W)
  • Low-voltage lamps with electronic transformer/RC, such as LED lamps with transformer (max. 300W)

Product specifications

Brand: EcoDim
Power (wattage): 0-250W (RC)/ 0-150W (RL) LED
Voltage (input): 220 - 240V
Dimming technology: Phase cut-off & cut-on (RLC)
Operation: Push/swivel switch & WiFi
Dimensions in mm (outer dimensions frame): 84x84 (please note, order separately)
Installation dimensions in mm (fits any flush-mounted box): 70,9x70,9x23,8mm
Packaging: Each
Warranty: 2 years
Article number: ECO-DIM.07 WiFi
Item number 2BA: ECO-DIM.07-WIFI
Download manual:
Philips HUE manual:
