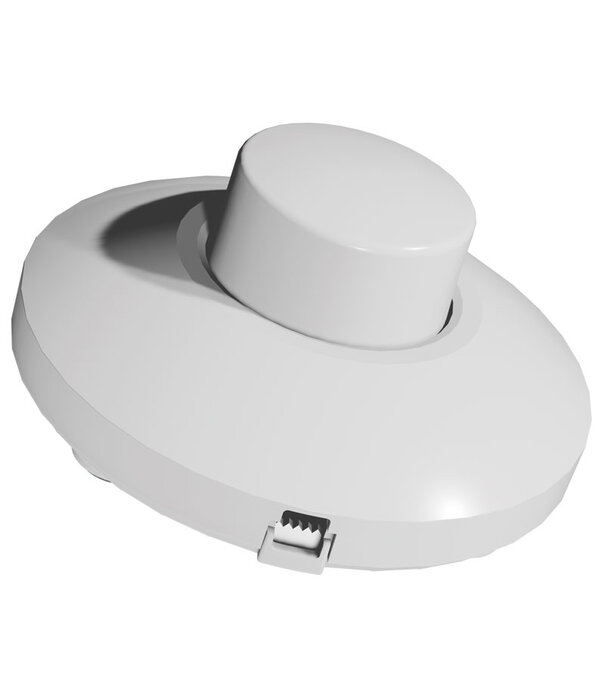

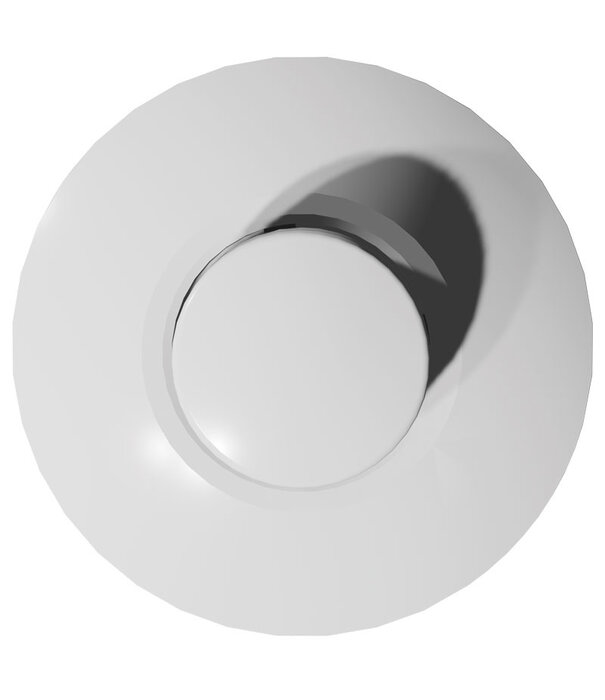

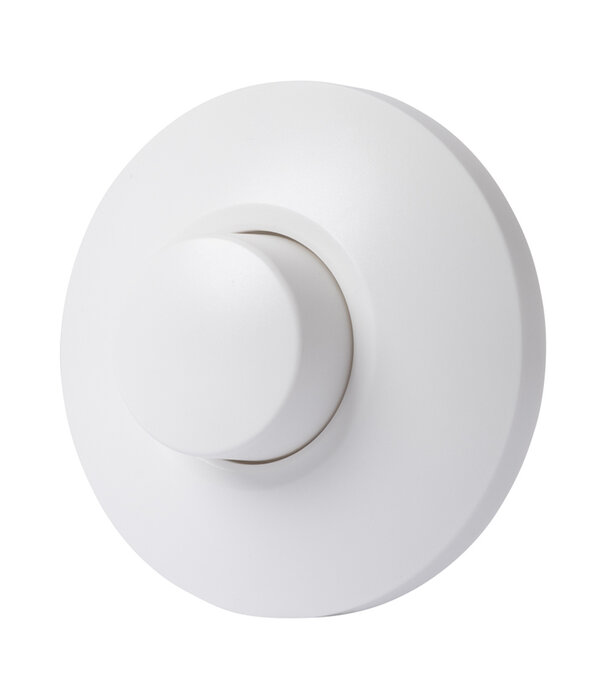

ECO-DIM.09 (W) Led floor dimmer 0-50W white

  1. Home
  2. ECO-DIM.09 (W) Led floor dimmer 0-50W white
Brand:
EcoDim
Article code:
ECO-DIM.09 (W)
EAN:
8719322371096
SKU:
ECO-DIM.09 (W)
Hier verkrijgbaar
Alle downloads

Product description

✓ 0-50W LED
Phase cut-off (RC)
Optimal dimmability & light stability

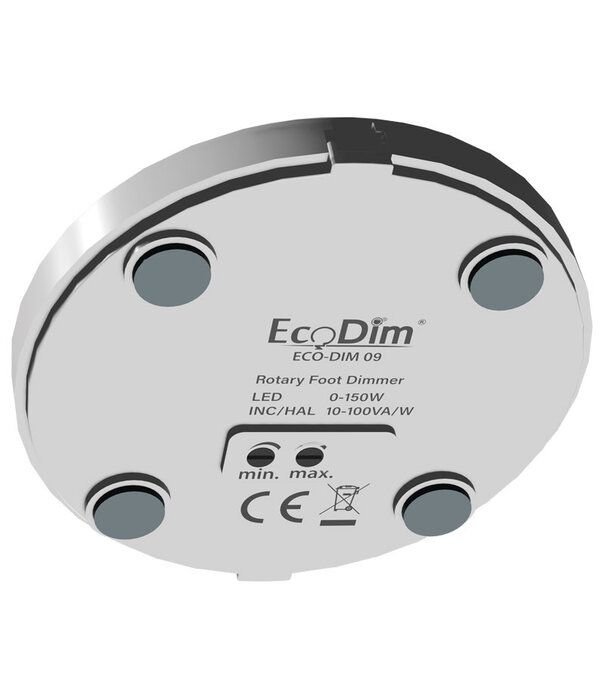

MIN & MAX adjustment
Protection against overload, overheating & interference
Silent dimming
Soft-start system



General information

Article number: ECO-DIM.09 (W)
Article number 2BA: ECO-DIM.09W
Type led dimmer: Trailing Edge / Phase cut / R,C
Power: 0-50 Watt LED
Control: Press/rotate
Packaging: Individually packaged

Suitable lamps

  • Led lamps 230V* (0-50W)
  • Incandescent lamps (10-100W)
  • Halogen lamps 230V (10-100W)

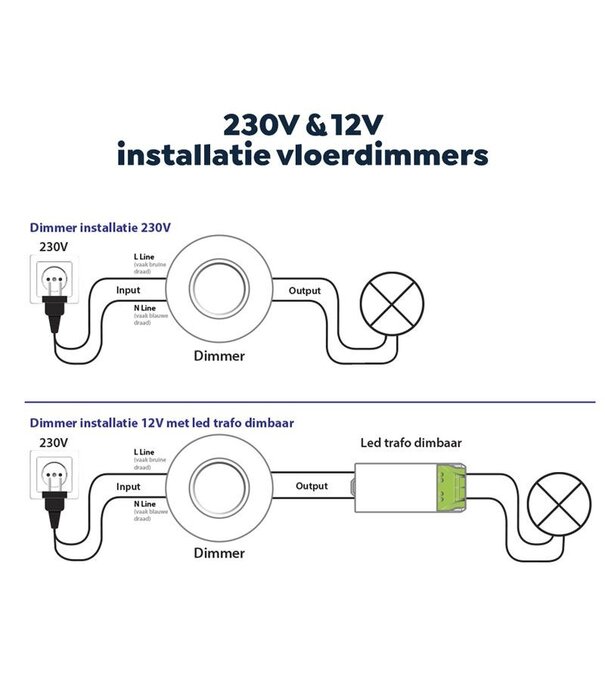

  • Low-voltage lamps with electronic transformer, such as LED lamps with transformer (0-50W)
* Provided the lamps operate on a phase cut / trailing edge led dimmer.

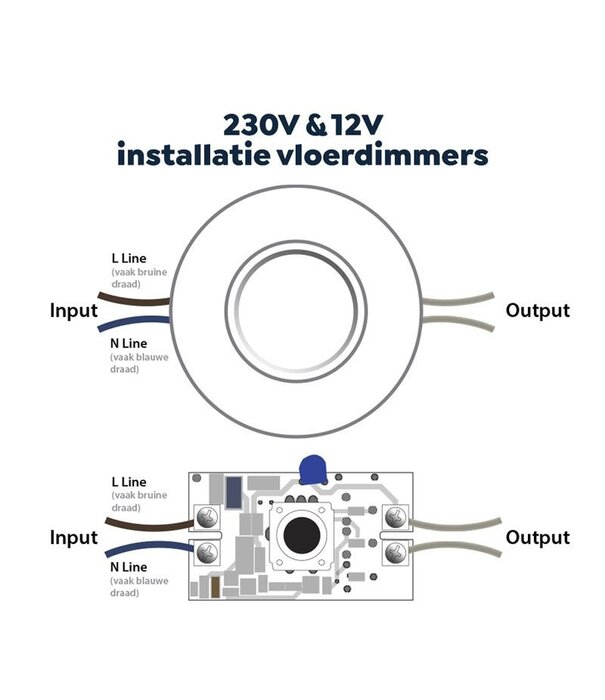

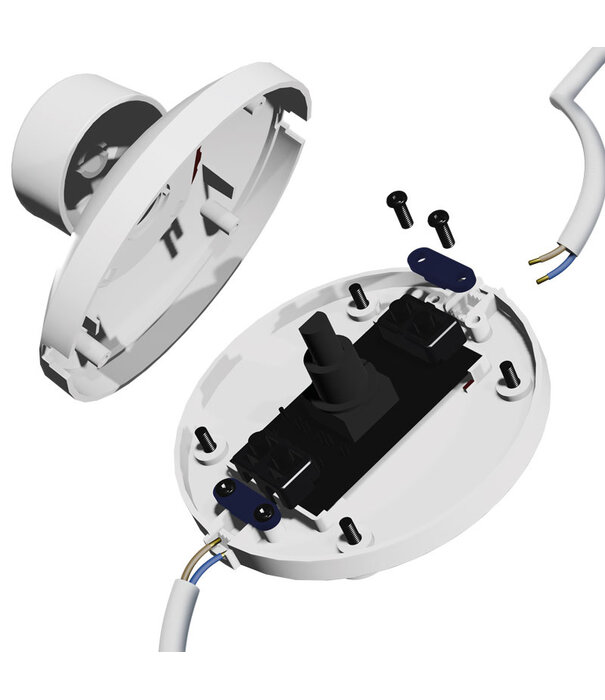

Supplied without cord. Self-connecting to your lamp cord / power cord.

Product specifications

Brand: EcoDim
Power (wattage): 0-50W/VA
Voltage (input): 220-240VAC
Dimming technology: Phase cut-off (trailing edge)
Operation: Push/swivel switch

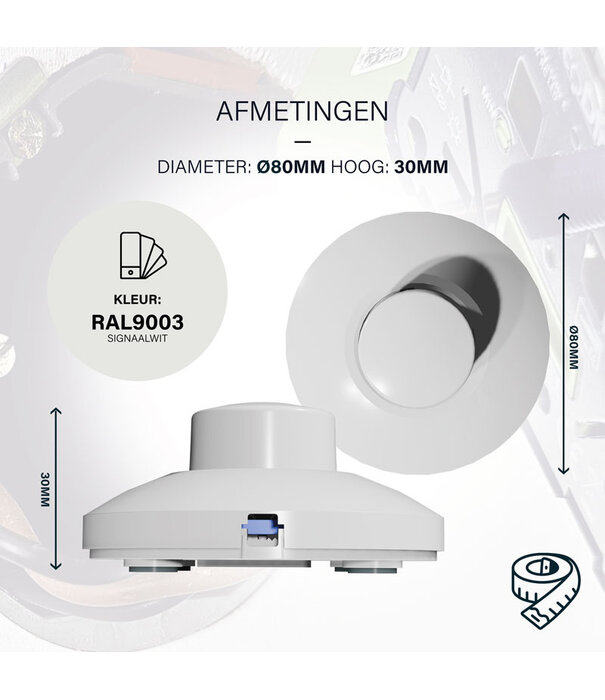

Dimensions in mm (outer dimensions frame): ⌀80mm x 30mm
Installation dimensions in mm (fits any flush-mounted box): N/A
Packaging: Each
Warranty: 2 years
Article number: ECO-DIM.09 (W)
Item number 2BA: ECO-DIM.09W
Download manual: https://cdn.webshopapp.com/shops/68389/files/320645004/eco-dim09-nl-en-de.pdf
Philips HUE manual:
Datasheet
