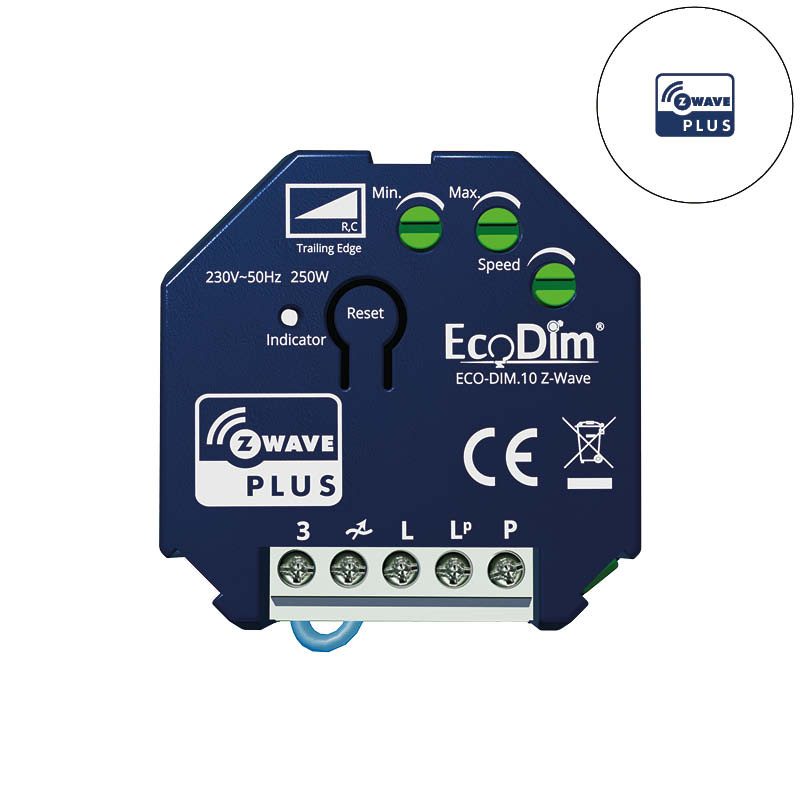

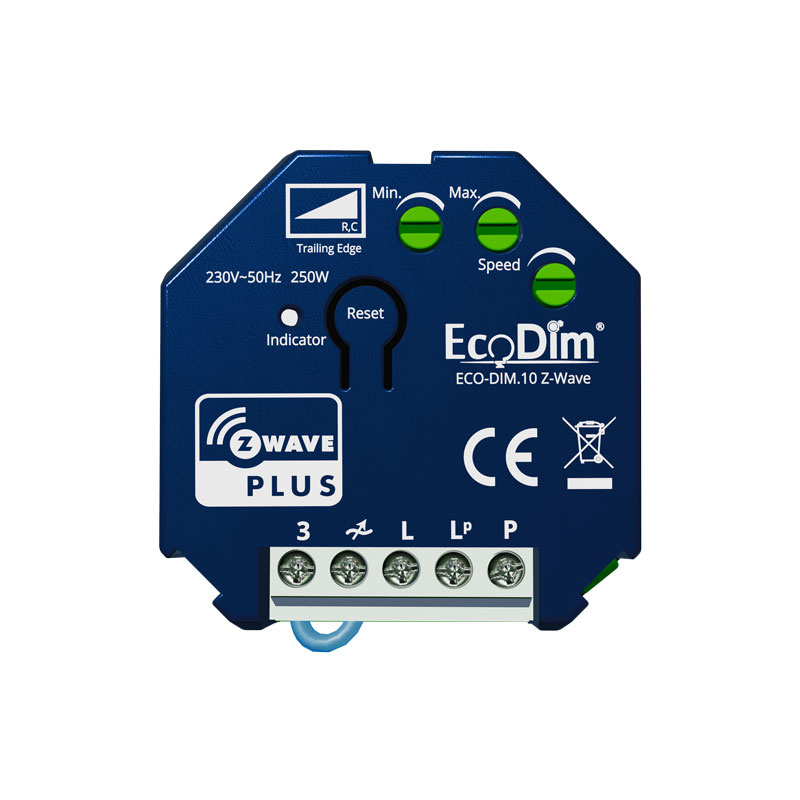

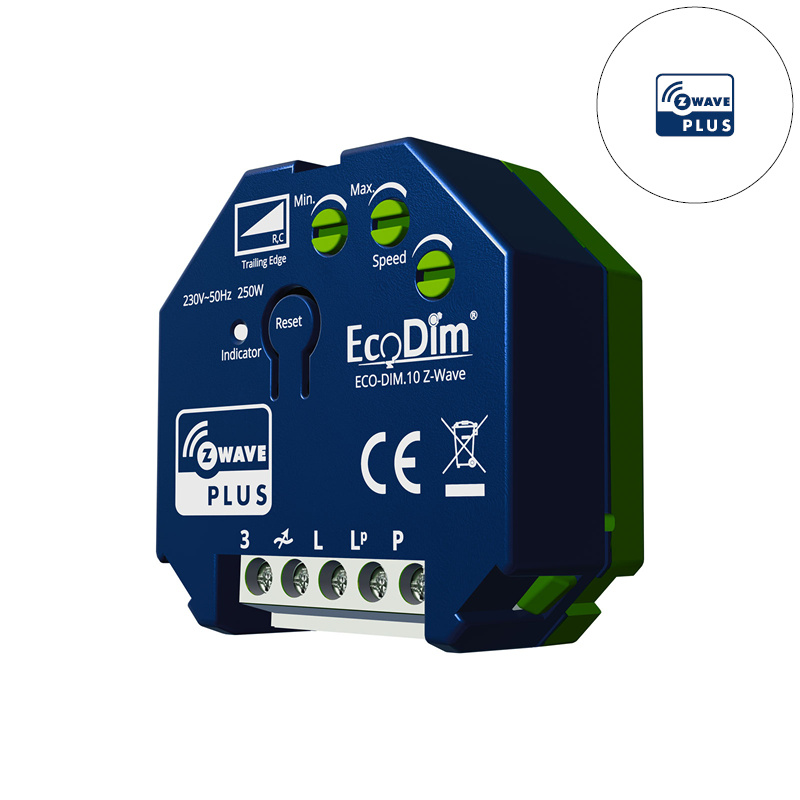

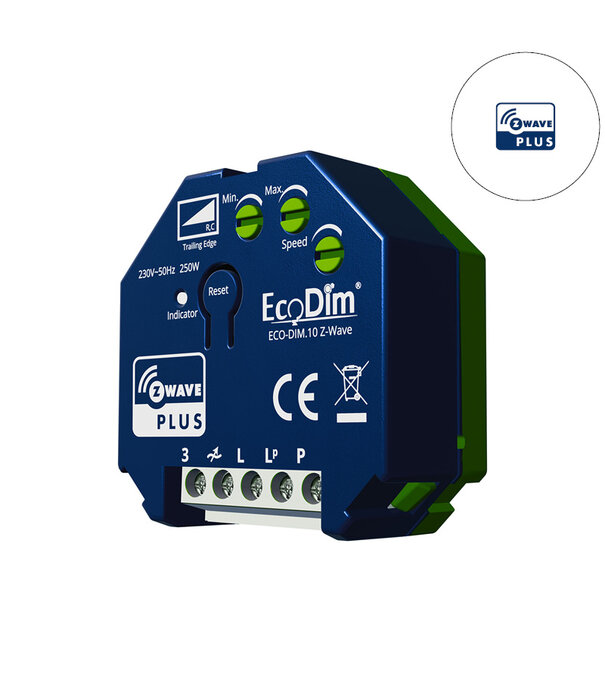

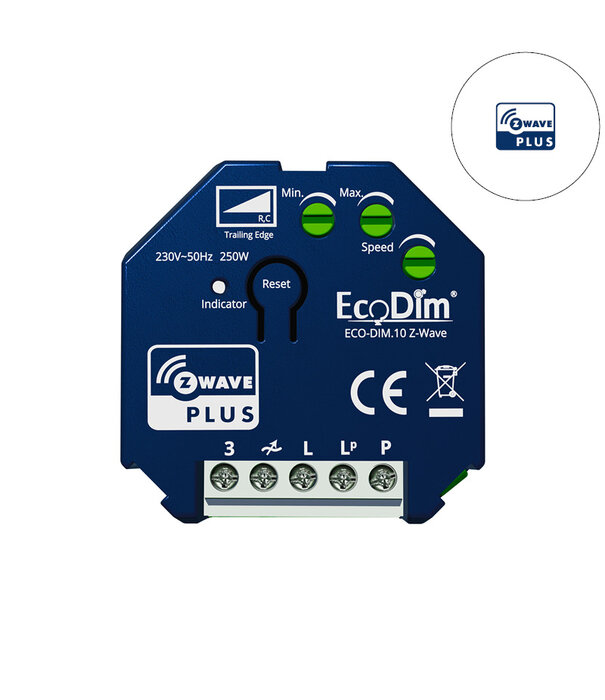

ECO-DIM.10 Z-Wave led dimmer module 250W

  1. Home
  2. ECO-DIM.10 Z-Wave led dimmer module 250W
Article code:
ECO-DIM.10 Z-Wave
ECO-DIM.10 Z-Wave
Hier verkrijgbaar
Alle downloads

Product description

Z-Wave certified
Suitable for all Z-Wave home automation systems
✓ Touchlink support
✓ Voice support (via Google Assistant/Amazon Alexa)
✓ 0-250W LED
✓ Optimal dimmability & light stability
✓ MIN, MAX and Speed adjustment
✓ Overload & interference protection

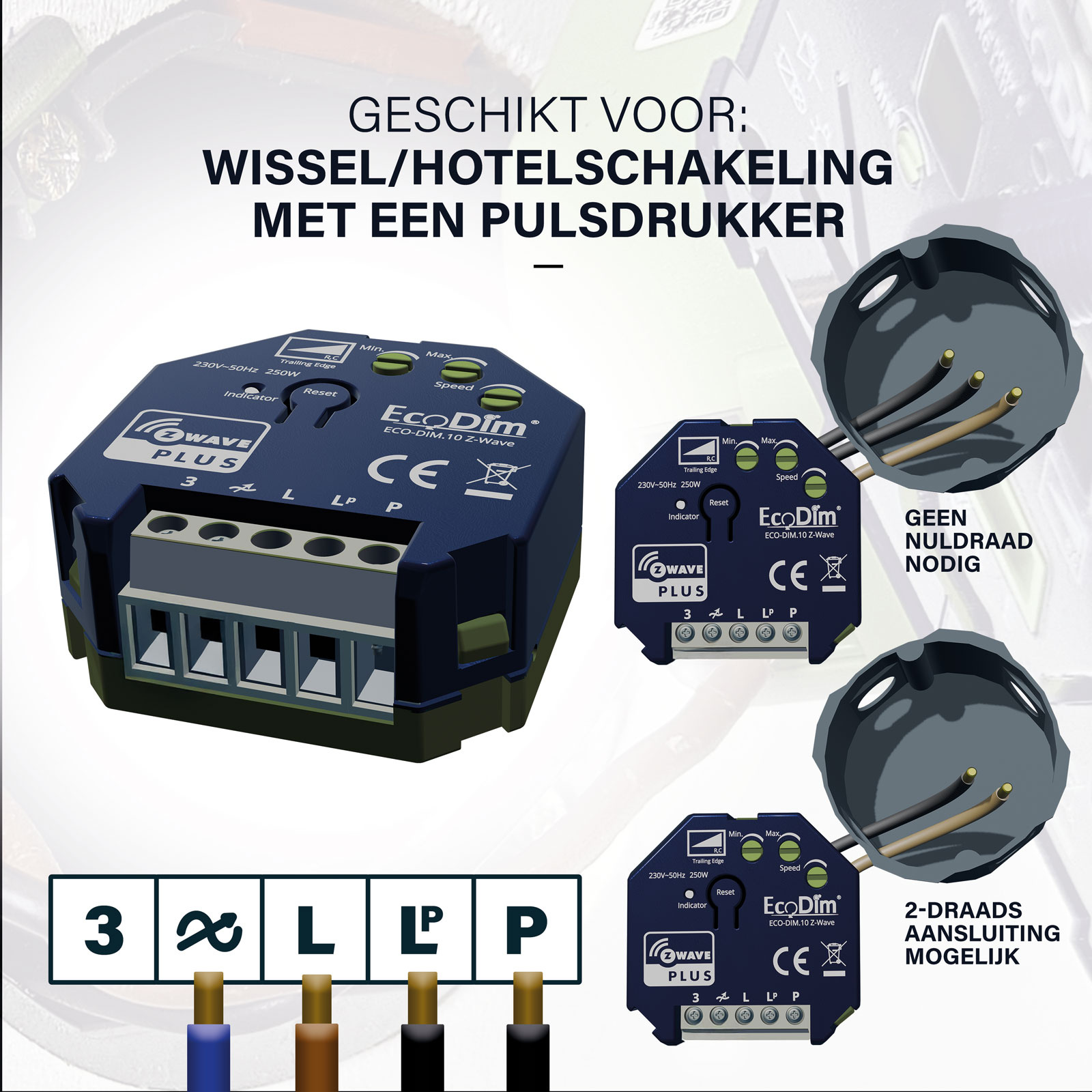

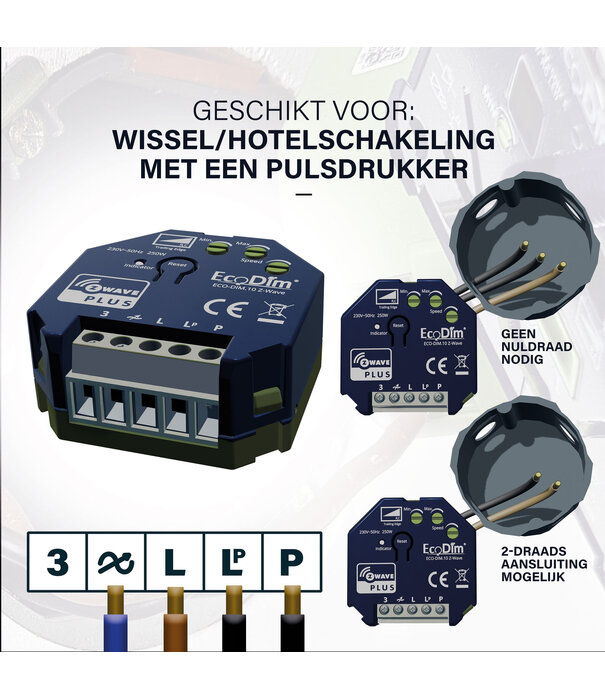

✓ Installation with existing 2 wires (optional3rd/null wire connection)

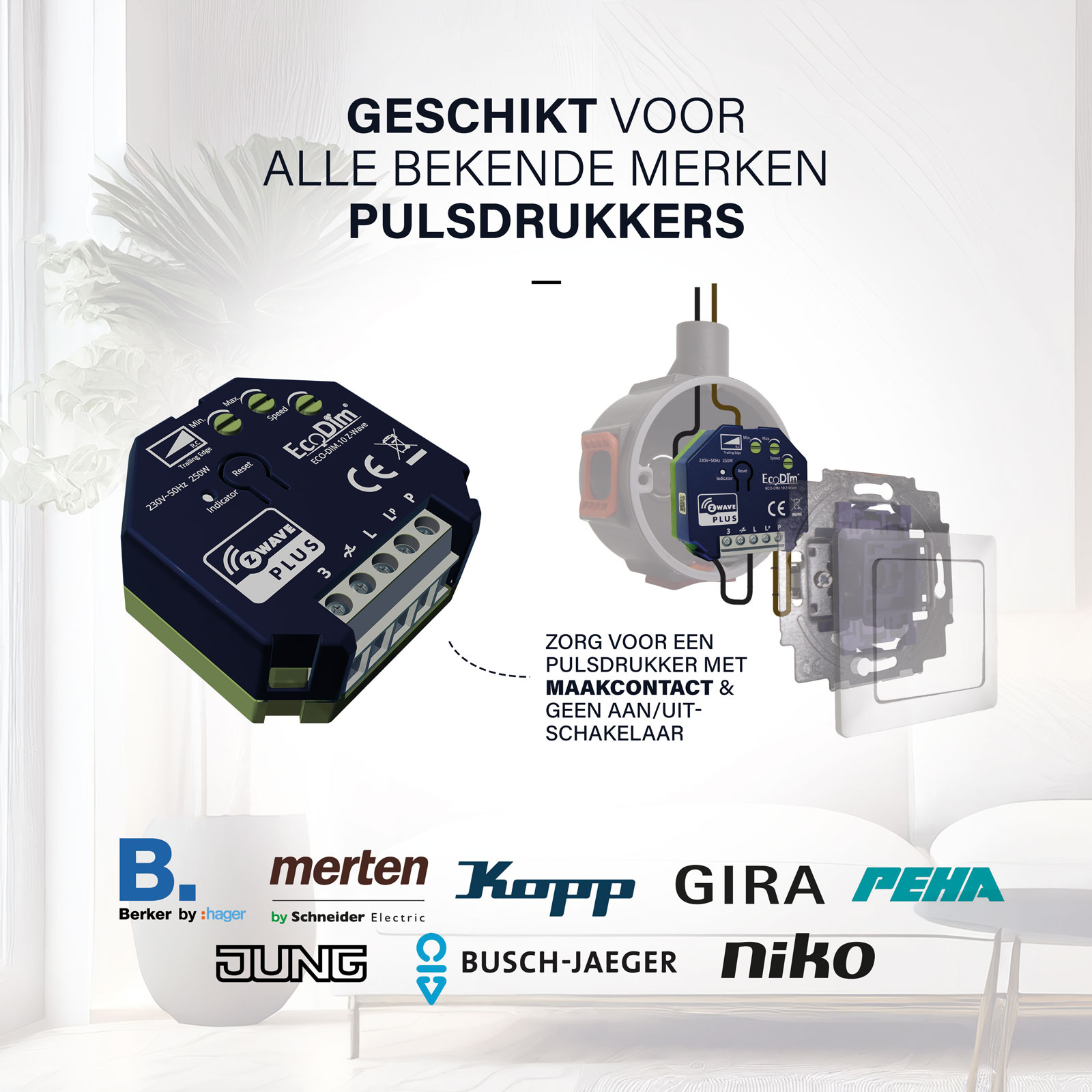

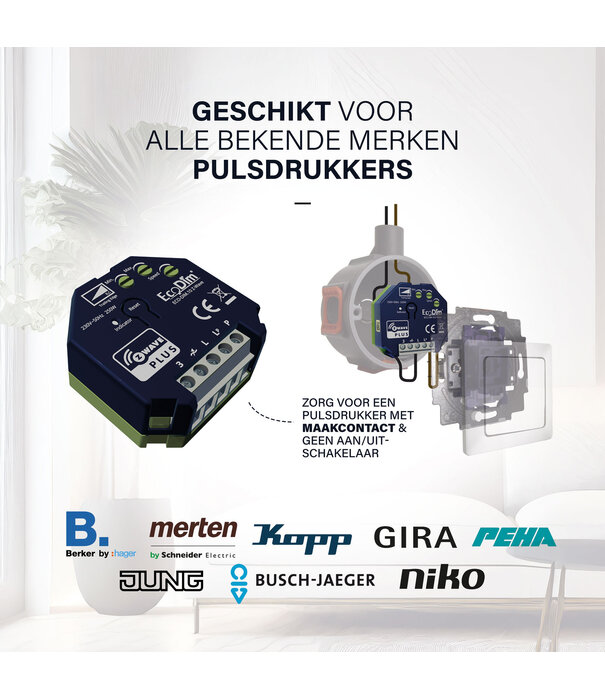

Suitable for two-way switching with momentary-action switch or wireless switch
Silent dimming
Soft-start system


General information

  • Article number: ECO-DIM.10 Z-Wave
  • Article number 2BA: ECO-DIM.10-ZWV
  • LED dimmer type: Trailing Edge / Phase cut / R,C
  • Power consumption: 0-250 Watt LED
  • Control: Via push-button sensor or Z-Wave home automation system
  • Packaging: Individually packed
  • Dimensions in mm: 45.1*45.1*19.8mm
  • Hallmarks: CE, RoHS
  • Protocol: Z-Wave Plus
  • Frequentie: 868 MHz

Suitable home automation systems

    • Google Assistant/Home (via Z-Wave hub)
    • Homey
    • FIBARO
    • homee
    • Futurehome
    • WINK

Suitable lamps

  • Led bulbs 230V* (max. 250W, minimum 2 pcs)
  • Incandescent lamps (max. 300W)
  • Halogen lamps 230V (max. 300W)
  • Low-voltage lamps with electronic/RC transformer, such as LED lamps with transformer (max. 250W)
*Provided the lamps operate on phase cut/trailing edge.

Product specifications

Brand: EcoDim
Power (wattage): 0-200W LED
Voltage (input): 230V
Dimming technology: Smart dimmer Trailing Edge / Phase cut / R,C
Operation: Pulse switch and home automation system
Dimensions in mm (outer dimensions frame): 45.1*45.1*19.8mm
Installation dimensions in mm (fits any flush-mounted box): 45.1*45.1*19.8mm
Packaging: Each
Warranty: 2 years
Article number: ECO-DIM.10 Z-Wave
Item number 2BA: ECO-DIM.10-ZWV
