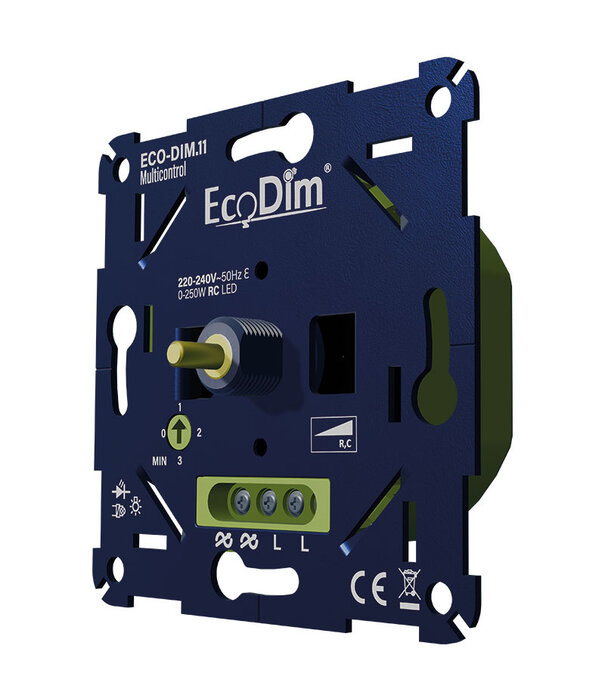

Duo pack ECO-DIM.11 Multicontrol led dimmer universal 0-250W (RC)
€--,--
Duo pack ECO-DIM.11 Multicontrol led dimmer universal 0-250W (RC)
Art.nr: ECO-DIM.11 2pack
EAN: 8719322374561
Product information
Description

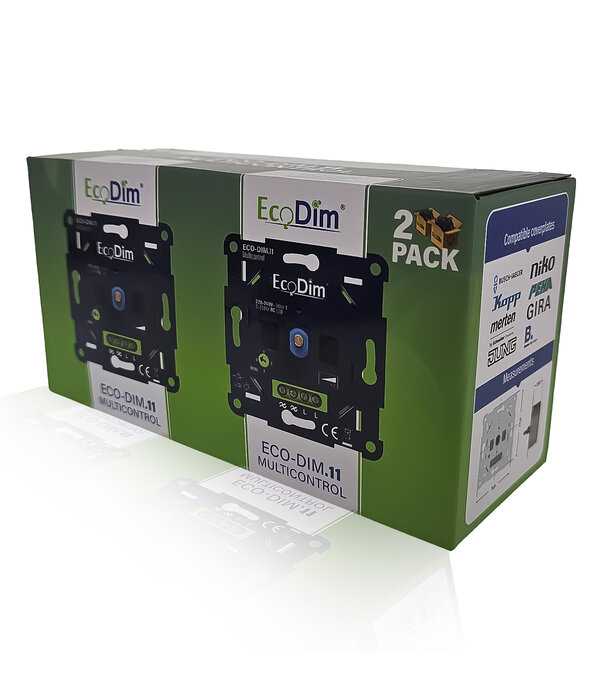

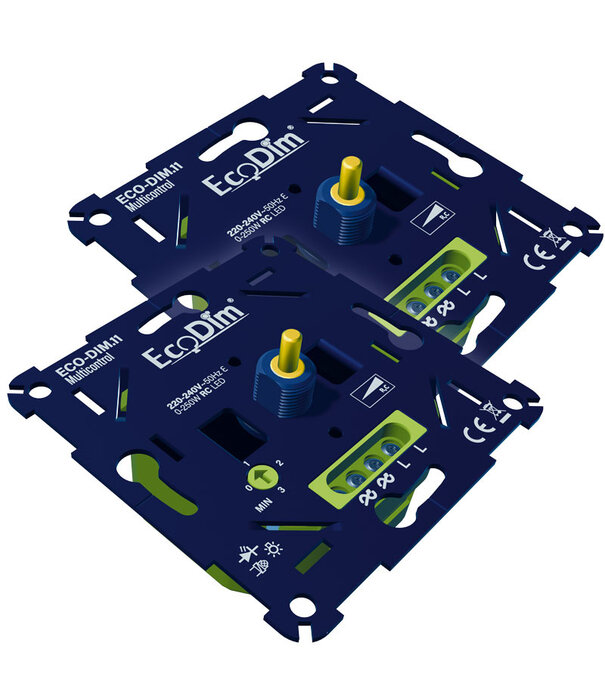

✓ Package with two ECO-DIM.11 LED dimmers
✓ Suitable for two-way switching with multiple dimmers
✓ 0-250W LED
✓ Phase cut-off (RC)
✓ Suitable for all A-brands of cover material
✓ Small mounting depth
✓ Optimal dimmability & light stability

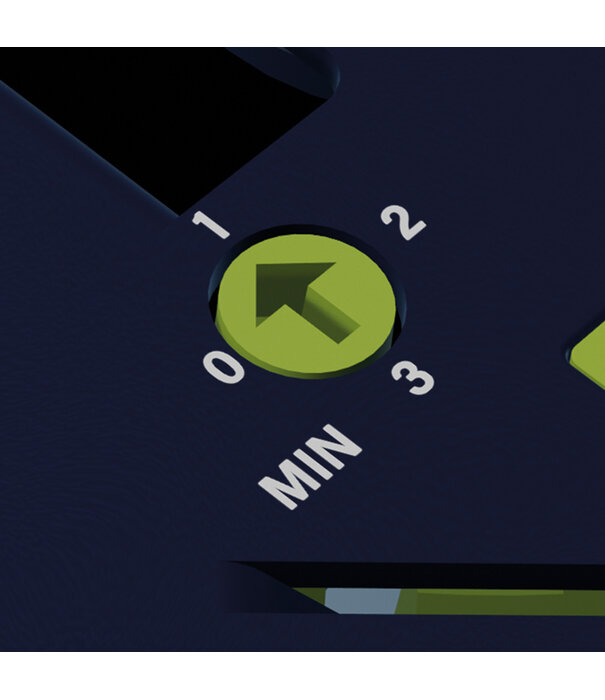

✓ MIN adjustment & automatic MAX detection
✓ Strong metal pin
✓ Protection against overload, overheating & interference signals
✓ Installation with existing 2 wires (no neutral wire required)
✓ Silent dimming
✓ Soft-start system
✓ Supplied with fittings
General information
Article number: ECO-DIM.11
LED dimmer type: Trailing Edge / Phase cut / R,C
Power consumption: 0-250 Watt LED RC
Control: Push/ turn
Packaging: Individually packed
Dimensions: 70.9x70.9x23.8mm
Suitable brands of cover material
- Berker by Hager
- Busch-Jaeger (except 6540-7X)
- Gira
- JUNG
- Kopp
- Merten by Schneider 51XX and System M
- Niko XXX-31003 (provided that a Niko adapter is used) and XXX-31000
- PEHA
Not suitable:
- Busch-Jaeger 6540-7
- Merten D-Life
- Niko PR20
- Dimmer knob with D-shaped hole, such as Wintop, Plieger, GAMMA Everest
Suitable lamps
- Led lamps 230V (max. 250W)
- Incandescent lamps (max. 300W)
- Halogen lamps 230V (max. 300W)
- Low-voltage lamps with electronic transformer, such as LED lamps with transformer (max. 250W)

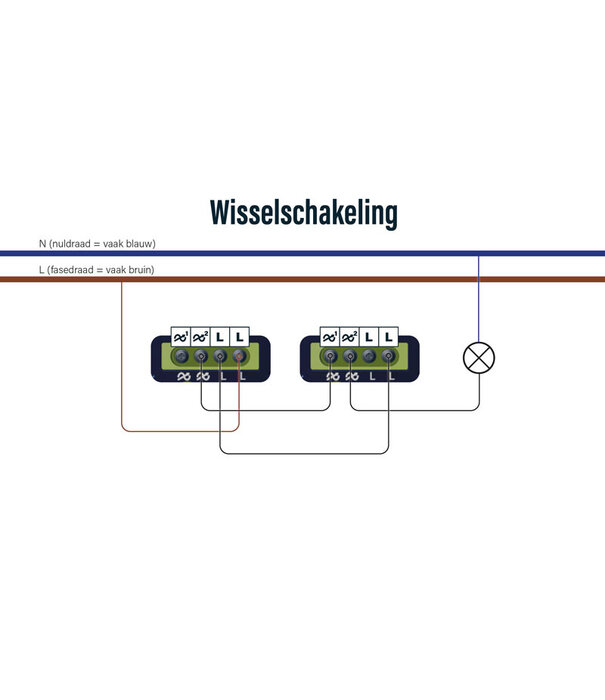

Note: This dimmer is suitable for installation as standalone or in two-way switching with several ECO-DIM.11 dimmers. It is not possible to use on/off switches, pulse switches or other types of dimmers in the changeover circuit. Therefore, use an ECO-DIM.11 at all switching points.
Article number: ECO-DIM.11 2pack
SKU: ECO-DIM.11-DUO
Tax: 21%
Specifications
| Brand | EcoDim |
| Power (wattage) | 0-250W LED (RC) |
| Voltage (input) | 220 - 240V |
| Dimming technology | Phase cut-off / RC / Tronic |
| Operation | Push/swivel switch |
| Dimensions in mm (outer dimensions frame) | N/A |
| Installation dimensions in mm (fits any flush-mounted box) | 70.9x70.9x23.8mm |
| Packaging | Two |
| Warranty | 2 years |
| Article number | ECO-DIM.11 2pack |
| Item number 2BA | ECO-DIM.11-2pack |
| Philips HUE manual |
