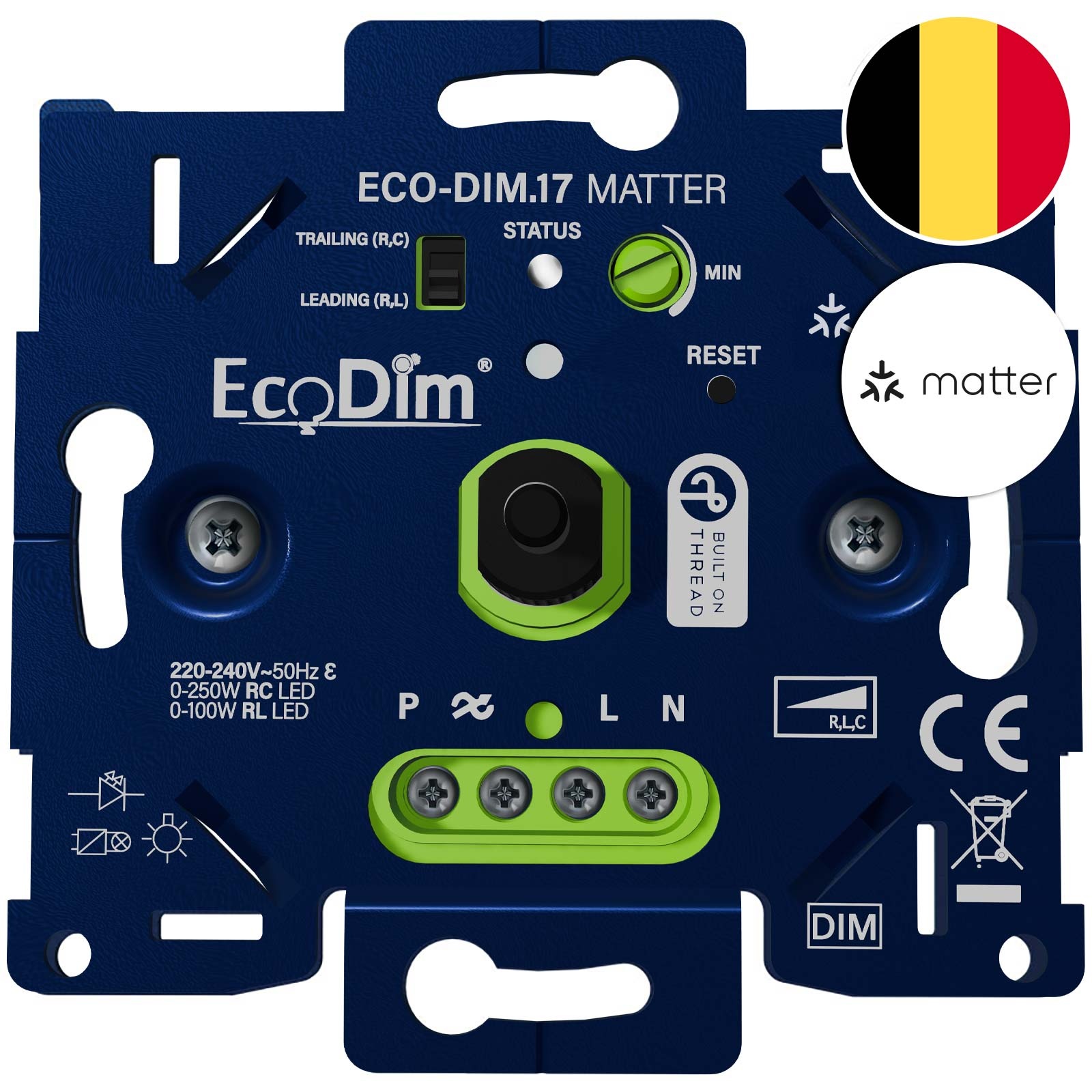

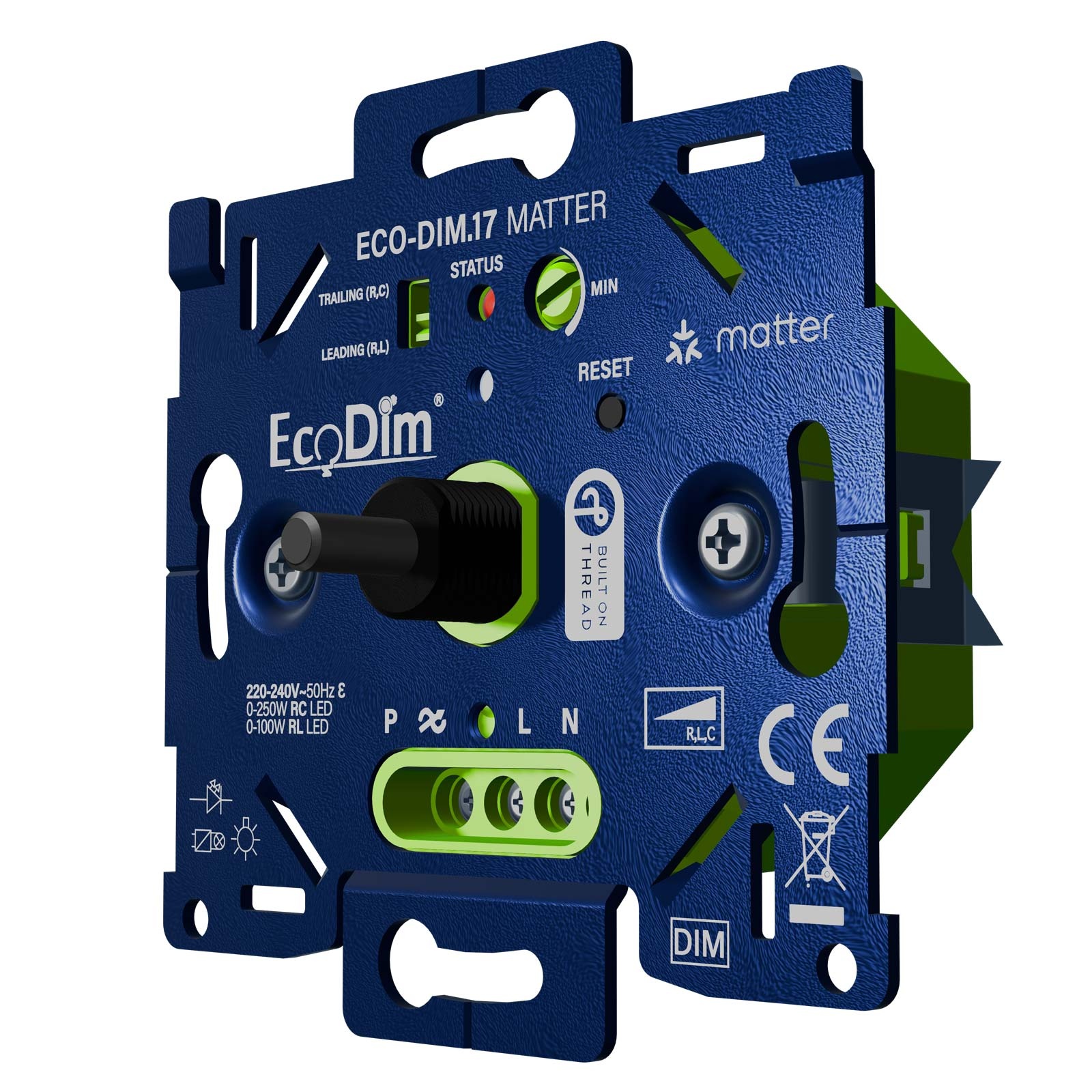

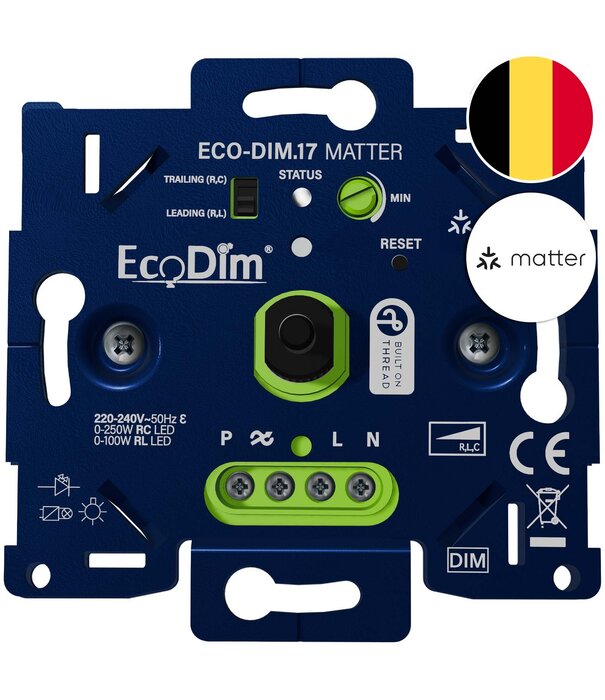

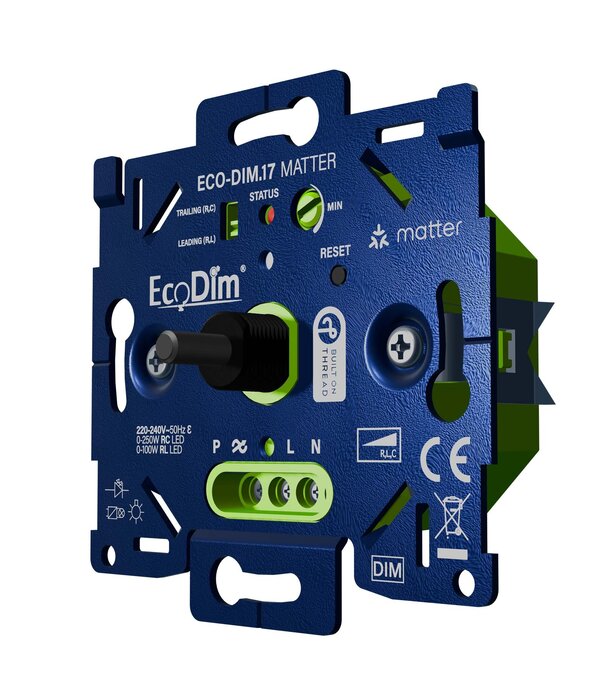

ECO-DIM.17 Led dimmer Matter pressure/turn 0-250W (RLC)

✓ Matter over Thread certified
✓ RLC: 0-250W (RC) / 0-100W (RL) LED
✓ Compatible with most Matter home automation systems
✓ Voice support (via Google Assistant/Amazon Alexa)

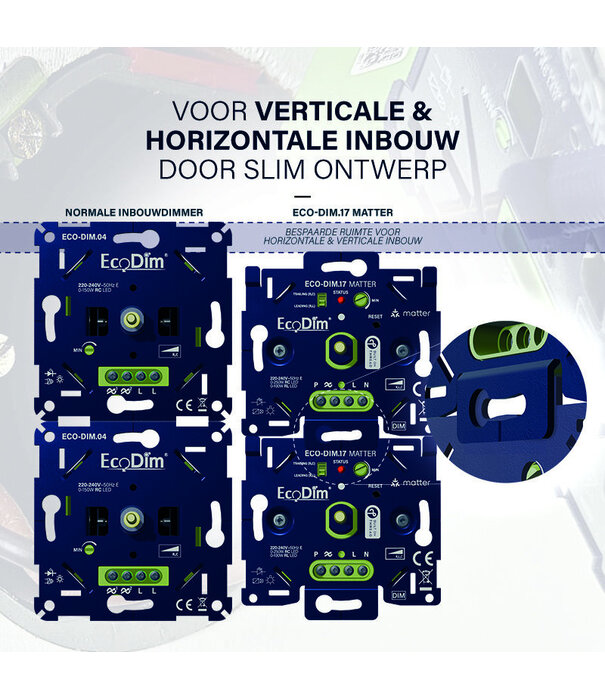

✓ Suitable for horizontal and vertical installation
✓ Suitable for all known brands of cover material (including Niko xxx-31000 and xxx-310003)
✓ Small build-in depth (23,8mm)
✓ Strong metal pin

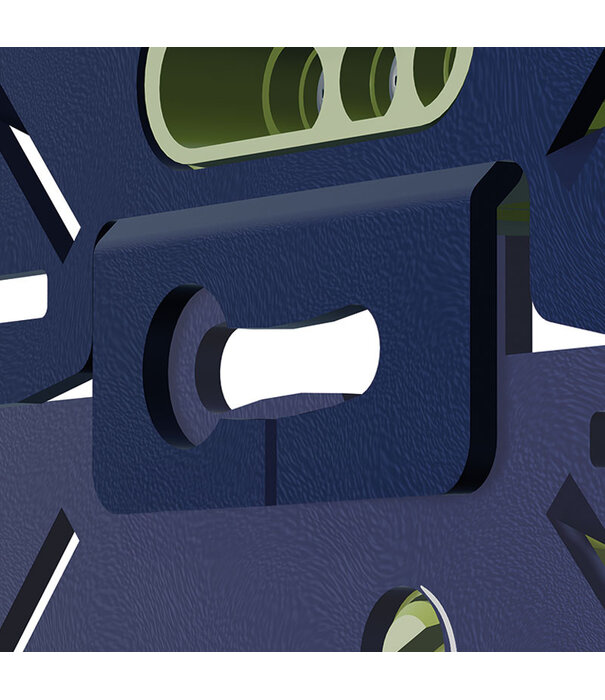

✓ Screw and claw fastening (supplied with recessed clamps)
✓ Protection against overload, overheating & interference signals
✓ Silent dimming
✓ Soft-start system
✓ Suitable for Helia, Legrand & all German brands of recessed boxes
✓ Installation with existing 2 wires (no neutral wire required)
✓ Suitable for two-way switching with momentary-action switch

General information

• Item number: ECO-DIM.17 Matter
• Article number 2BA: ECO-DIM.17-MATTER

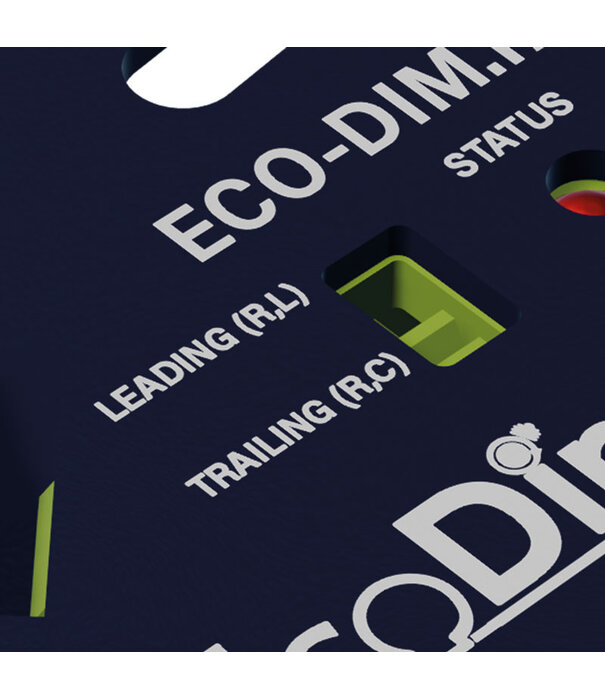

• Type led dimmer: Trailing edge and leading edge / R,L,C

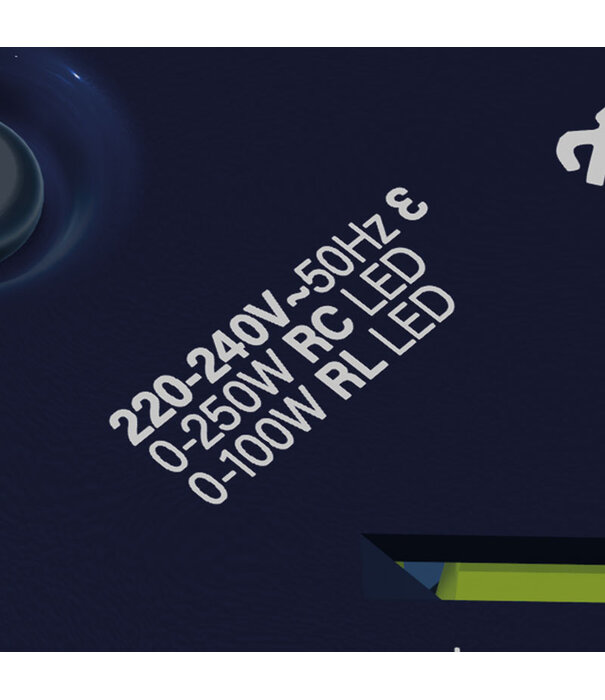

• Power: 0-250W (RC)/ 0-100W (RL) LED
• Operation: Push/ turn and Matter domotics
• Packaging: Individually packed
• Dimensions in mm: Outside dimensions of basic element: 70x71mm
• Recessed depth: 23,8mm
• Hallmarks: CE
• Protocol: Matter over Thread
• Frequency: 2.4 GHz

Suitable smarthome apps

To control the Matter dimmer, you need to have a Thread Border Router in your possession. The following devices have a Thread Border Router.

• HomePod 2023
• HomePod mini (all models)
• Apple TV 4K (2nd generation)
• Apple TV 4K (3rd generation with 128GB storage)
• Homey Pro
• Nanoleaf Shapes, Lines and Essentials
• Amazon Eero 6 / 6 Pro / Beacon
• Google Nest Hub (2nd generation)*
• Google Nest Hub Max*
• Google Nest WiFi*
• Amazon Echo (4th generation)
• SmartThings Hub v3 / SmartThings Station

*Works in Google only as a toggle switch.

Suitable cover material brands

• Berker by Hager
• Busch-Jaeger (except 6540-7X)
• Gira
• JUNG
• Kopp
• Merten by Schneider 51XX and System M
• Niko XXX-31003 (if using Niko adapter, supplied as standard) and XXX-31000
• PEHA

Not suitable:

• Busch-Jaeger 6540-7
• Merten D-Life
• Niko PR20
• Dimmer knob with D-shaped hole, such as Wintop, Plieger, GAMMA Everest

Suitable lamps

• Led lamps 230V phase cut-off (max. 250W)
• Led lamps 230V phase cut-off (max. 150W)
• Incandescent lamps (max. 300W)
• Halogen lamps 230V (max. 300W)
• Low-voltage lamps with electronic transformer/RC, such as LED lamps with transformer (max. 300W)
