ECO-DIM.22 (W) Display dimmer Zigbee white 250W (RC)

✓ Display dimmer
✓ Insight into real-time consumption
✓ Set dim level to the exact percentage
✓ Luxurious appearance
✓ White (RAL9016)
✓ Zigbee certified (equipped with Zigbee 3.0 chip)
✓ Suitable for Zigbee home automation
✓ Touchlink support (connect switches directly without a hub)
✓ Voice support (via Google Assistant/Amazon Alexa)
✓ Up to 250W LED
✓ Suitable for leading brands of cover material (correct centre plate available)
✓ Optimal dimmability & light stability
✓ MIN & MAX settings (adjustable via display)
✓ Protection against overload, overheating & interference signals
✓ Installation using existing 2-wire wiring (no neutral wire required, although this is necessary if a power consumption monitor is required).
✓ Suitable for two-way switching with pulse switch or wireless Zigbee switch
✓ Silent dimming
✓ Soft-start system

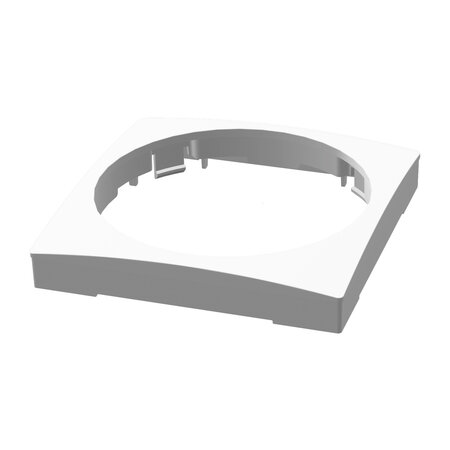

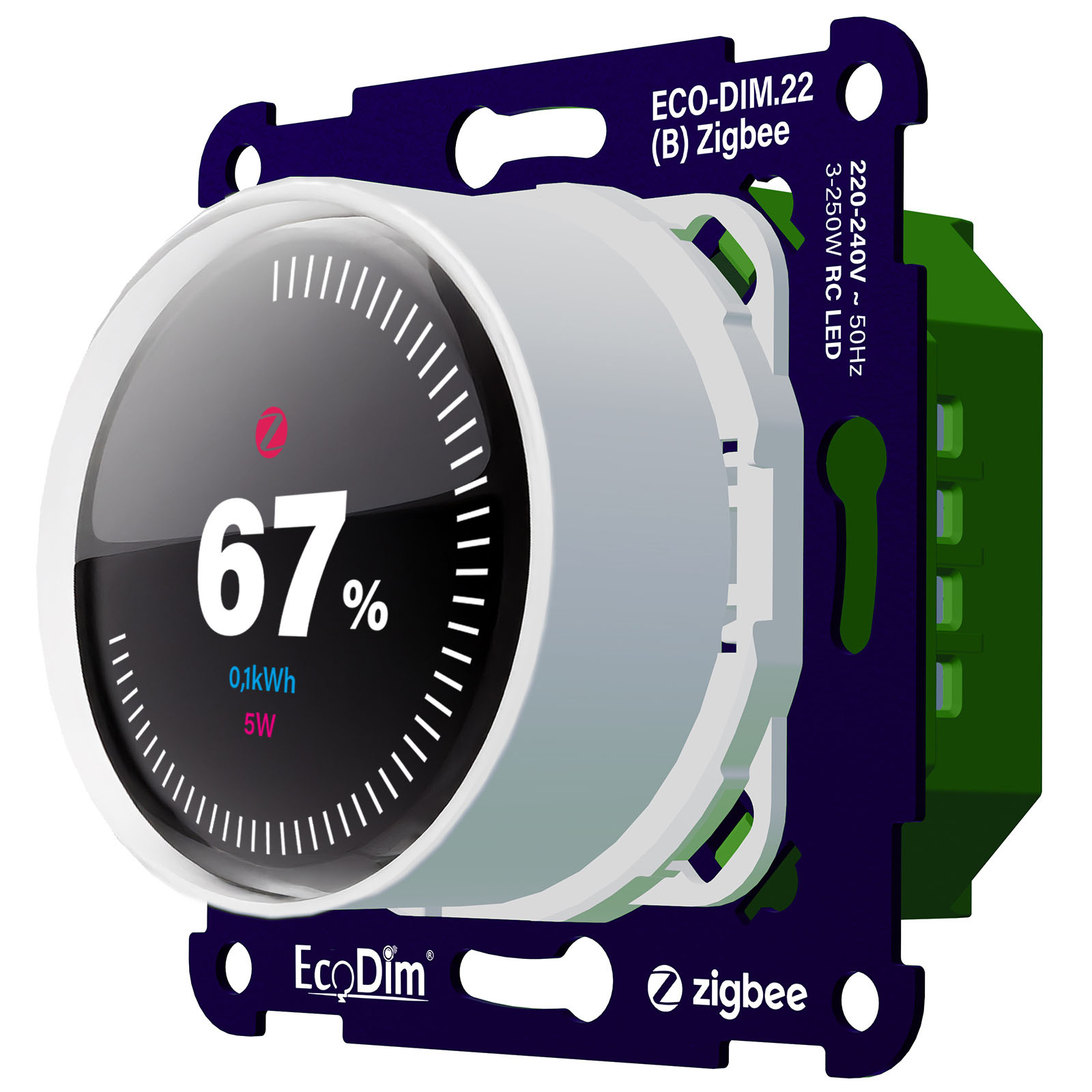

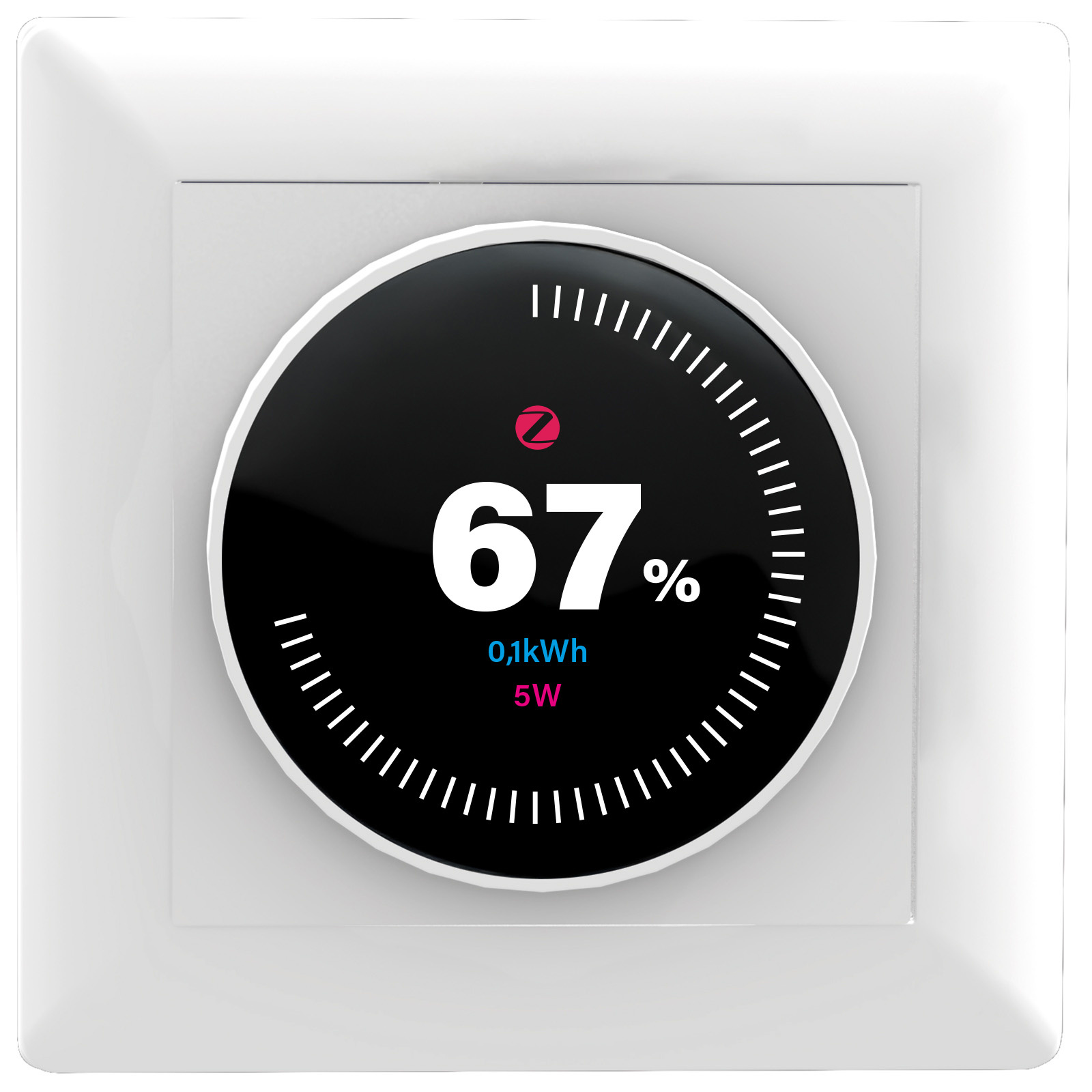

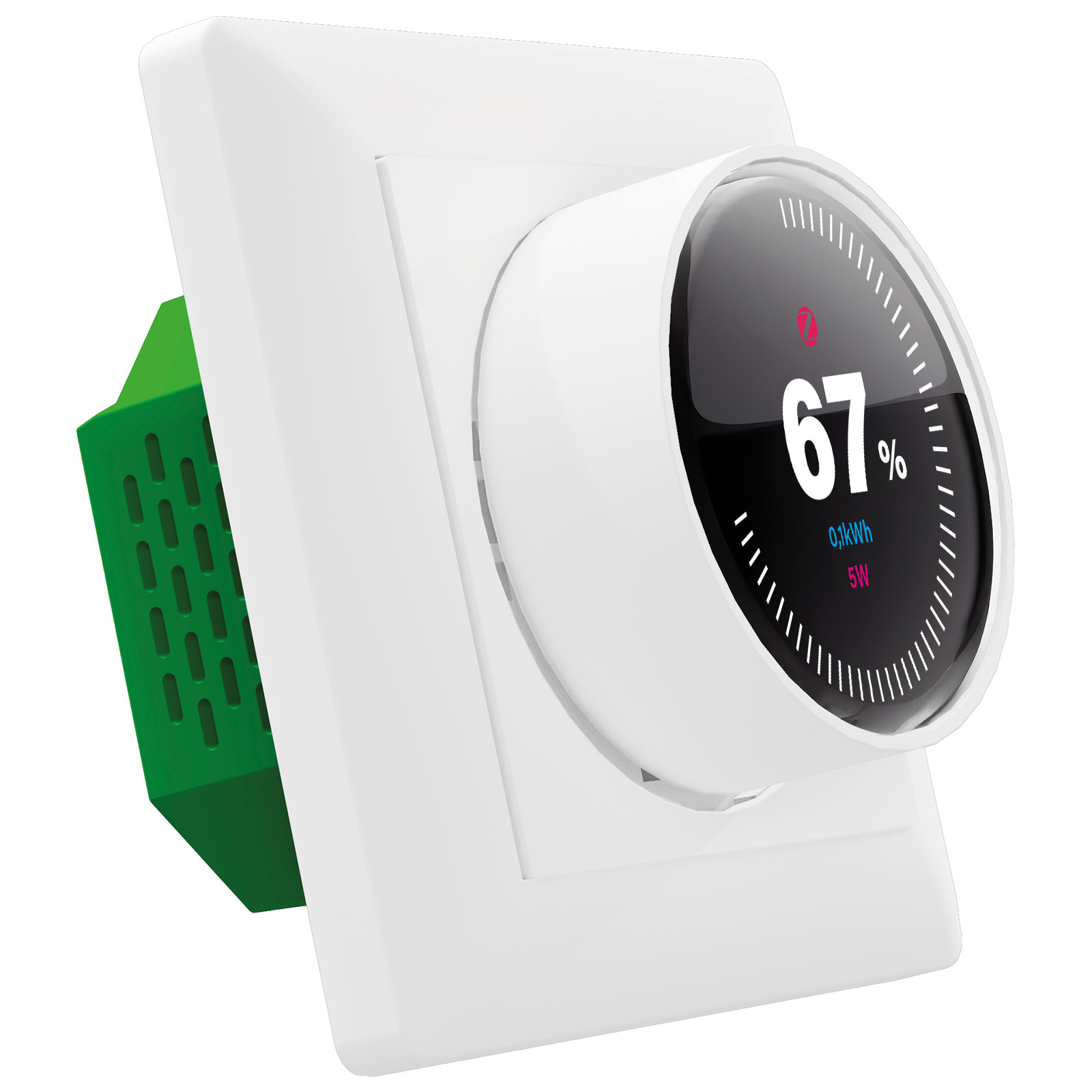

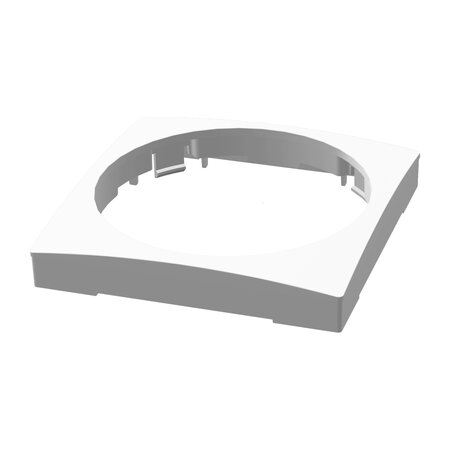

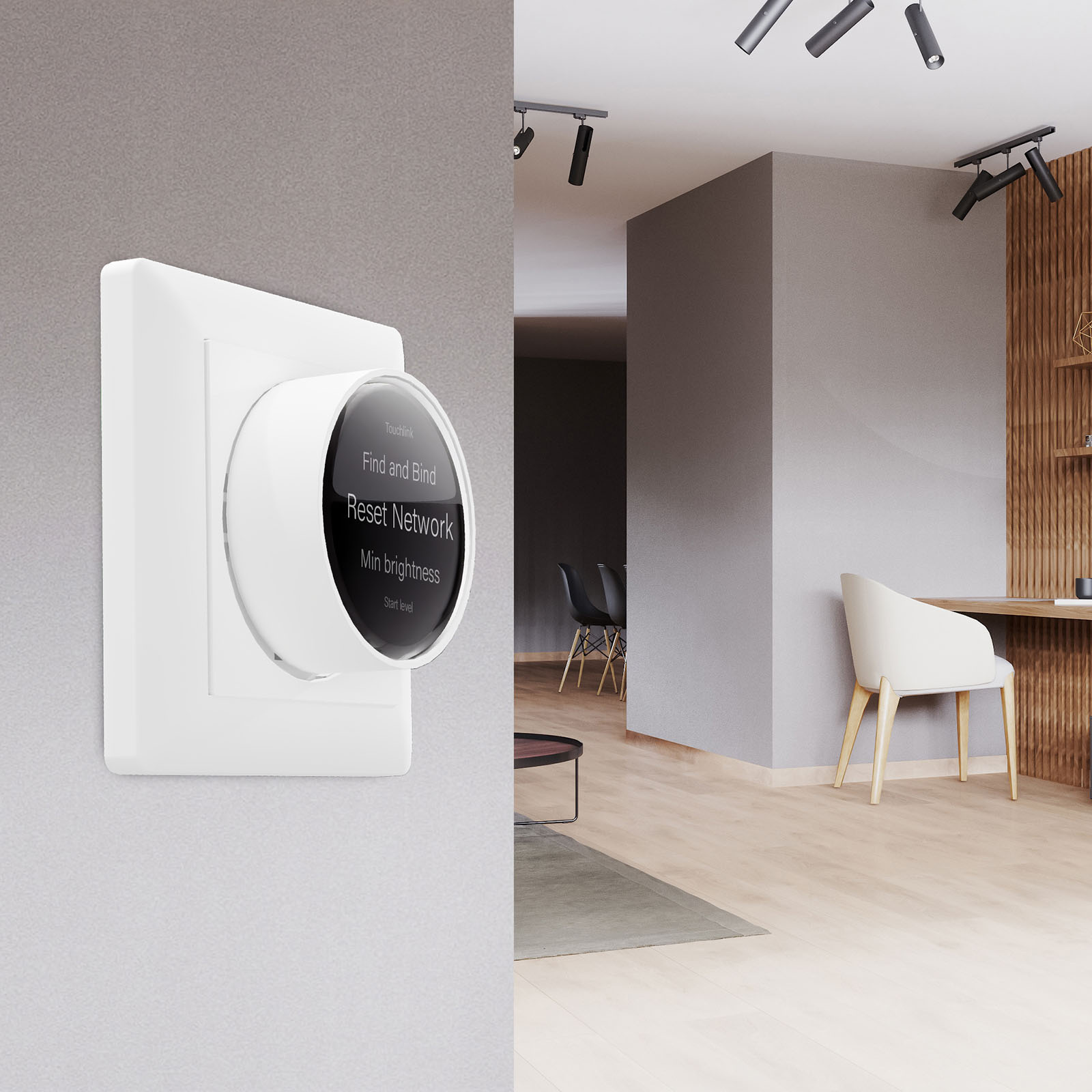

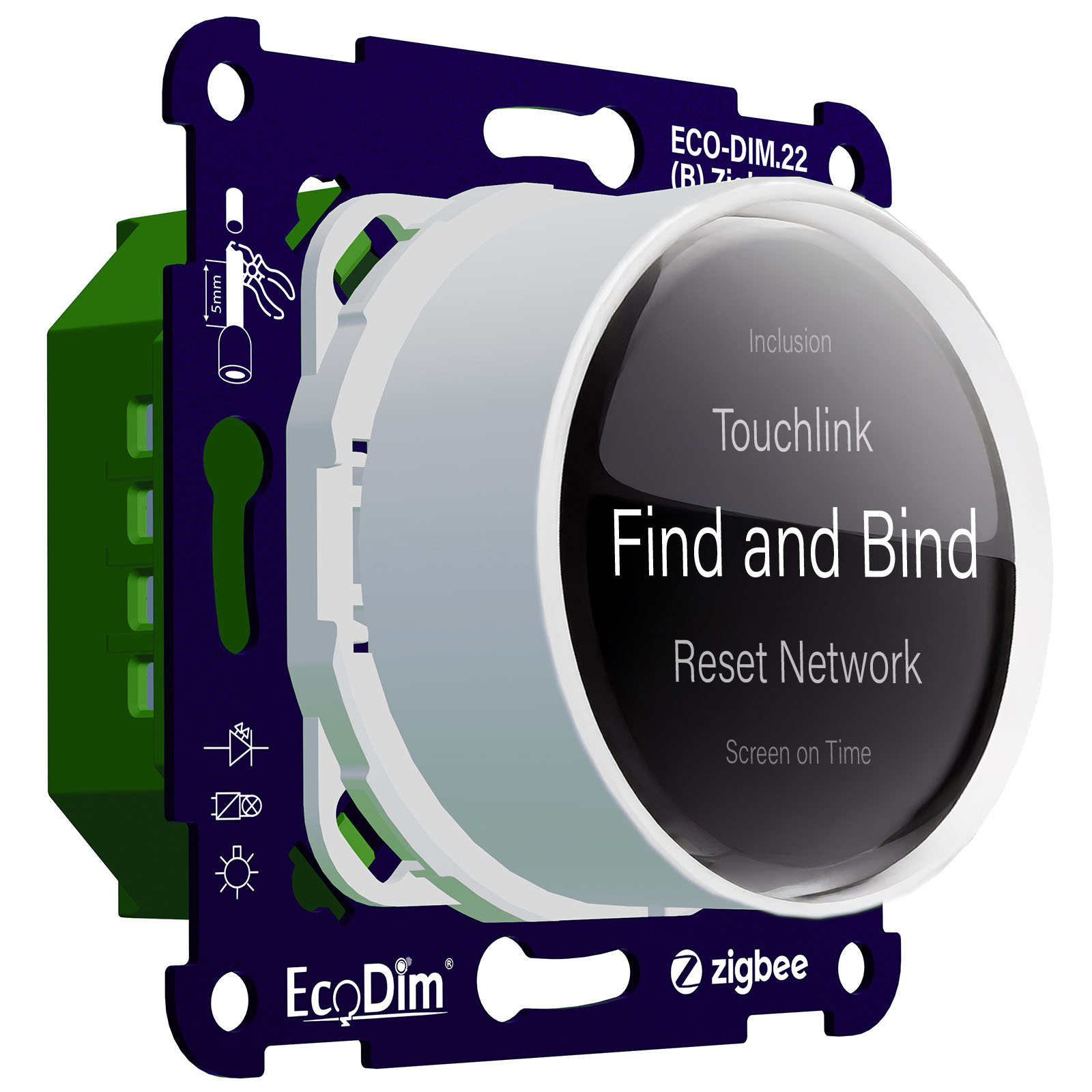

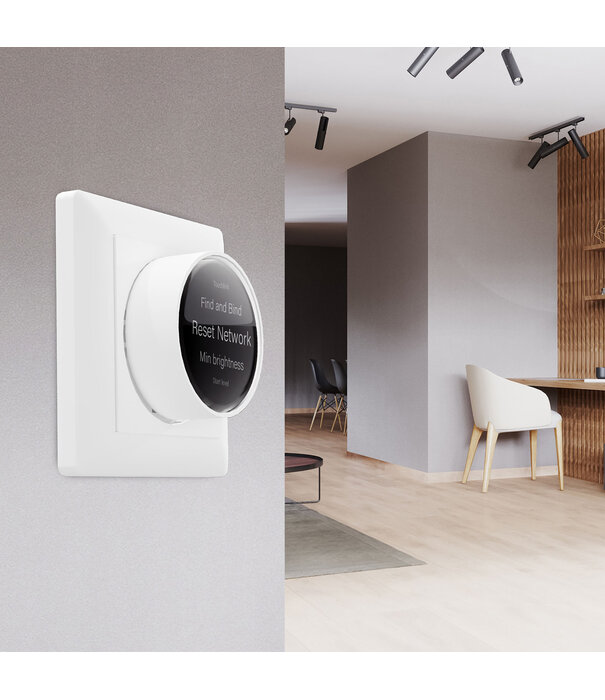

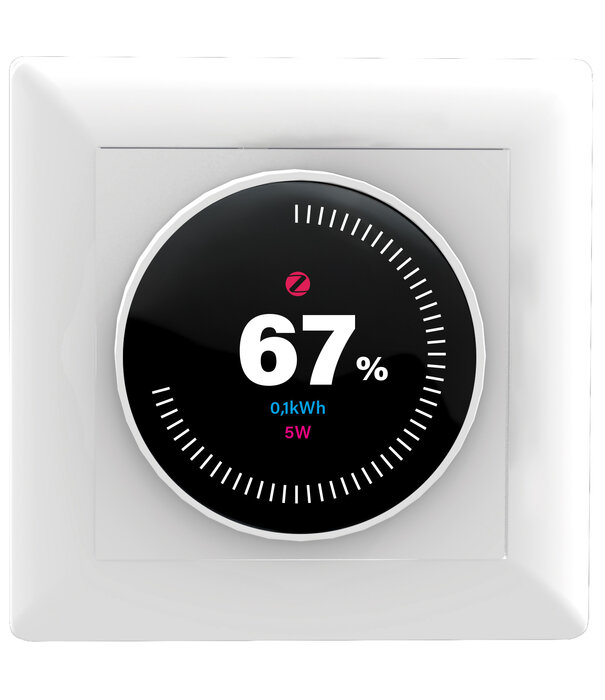

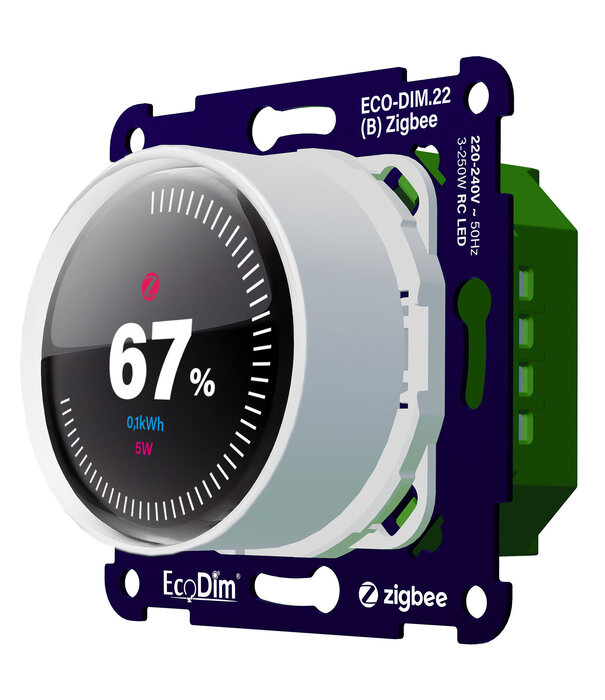

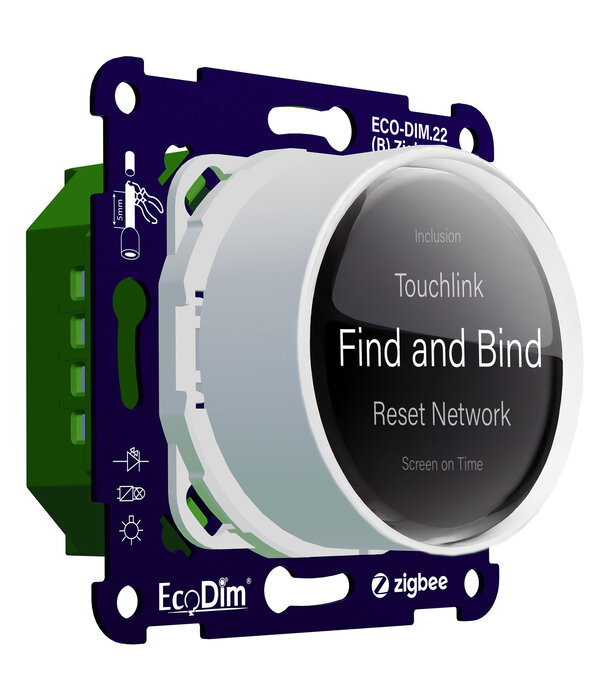

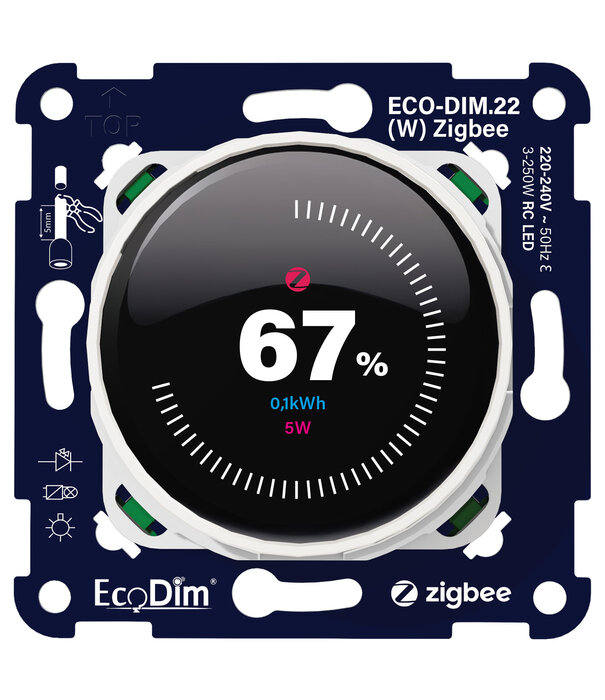

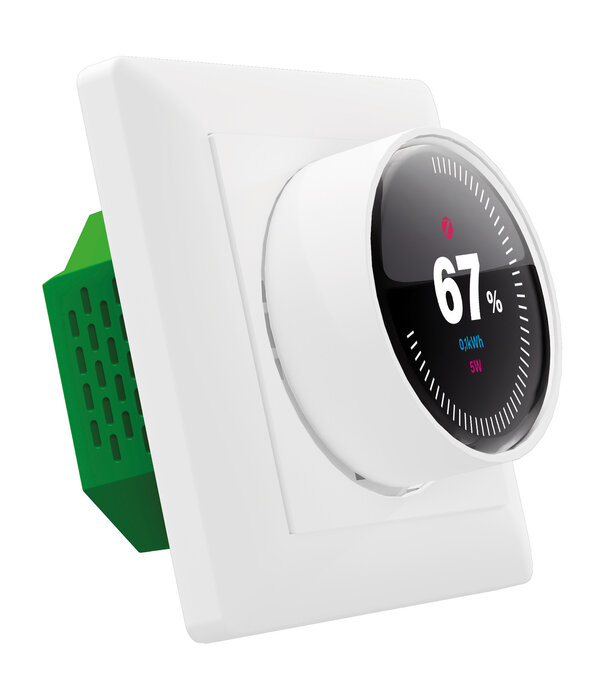

The white ECO-DIM.22 Zigbee display dimmer is a dimmer with a luxurious look. This dimmer has a screen on which you can read information. This display shows, among other things, the dimming level accurate to the nearest per cent. In addition, this dimmer also displays the current consumption of the connected light source. Dimming is done by turning the knob. You can also set all other settings for this dimmer via the display: the start percentage at which the lamp switches on, the MIN and MAX settings, the brightness of the screen, Touchlink mode and Find and bind mode. Like a traditional EcoDim dimmer, this dimmer can be connected with two wires. The dimmer fits into frames from Busch-Jaeger, GIRA, Jung and EcoDim. To do this, you will need to purchase the correct central plate. These are available with this dimmer.

General information

• Item number: ECO-DIM.22 Zigbee (W)
• Item number 2BA: ECO-DIM.22-ZGB-W
• Type of LED dimmer: Trailing Edge / Phase cut-off / R,C
• Power: Up to 250 Watt LED
• Operation: Push/turn, display and Zigbee home automation system
• Packaging: Packaged individually
• Dimensions in mm: external dimensions of base element: 70x70mm
• Installation depth: 31mm
• Certifications: CE. RoHS
• Protocol: Zigbee 3.0
• Frequency: 2.4 GHz, 868/915 MHz

Compatible home automation systems

• Google Home/Nest (via Zigbee hub)
• Amazon Alexa
• Philips Hue
• Homey
• Futurehome
• KlikAanKlikUit
• Aduro smart
• Samsung SmartThings
• WINK
• IKEA Dirigera

Not compatible

• TRÅDFRI (can be connected to IKEA remote control using Touchlink)

Suitable cover frame brands

• Busch-Jaeger Balance SI (if purchased with accompanying central plate)
• GIRA (if purchased with accompanying central plate)
• JUNG (if purchased with accompanying central plate)
• EcoDim

Suitable bulbs

• LED bulbs 230V* (max. 250W)
• Incandescent bulbs (max. 250W)
• Halogen bulbs 230V (max. 250W)
• Low-voltage bulbs with electronic transformer/RC, such as LED bulbs with transformer (max. 250W)

*Provided the bulbs operate on trailing edge.
