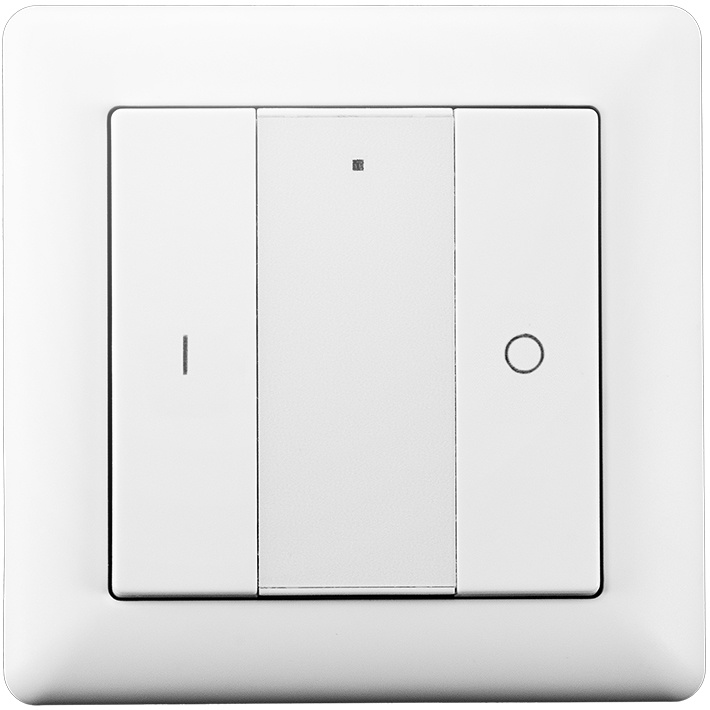

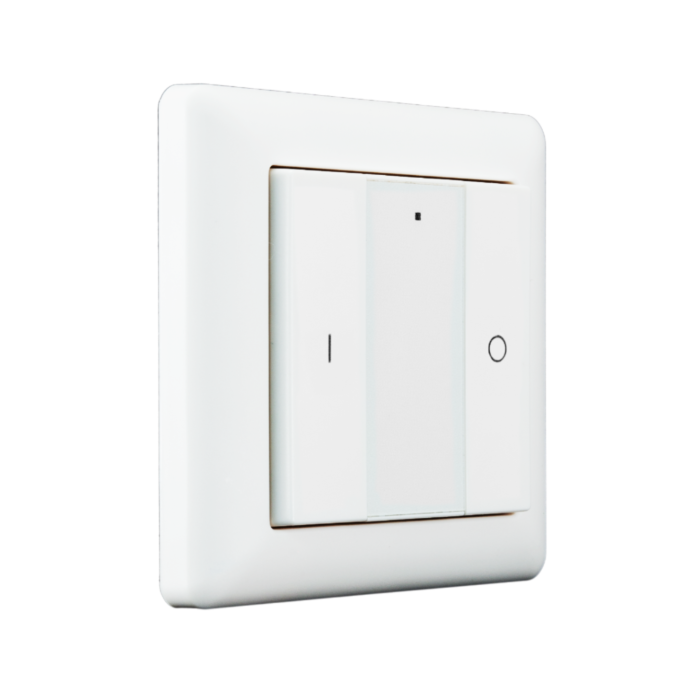

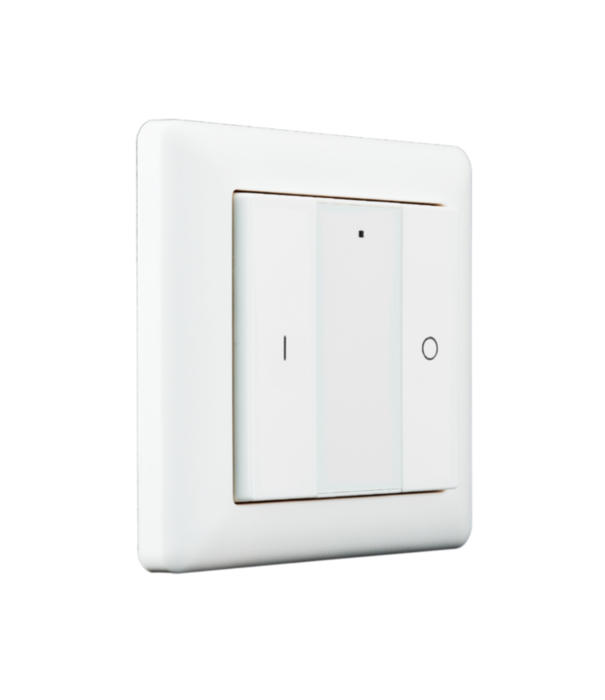

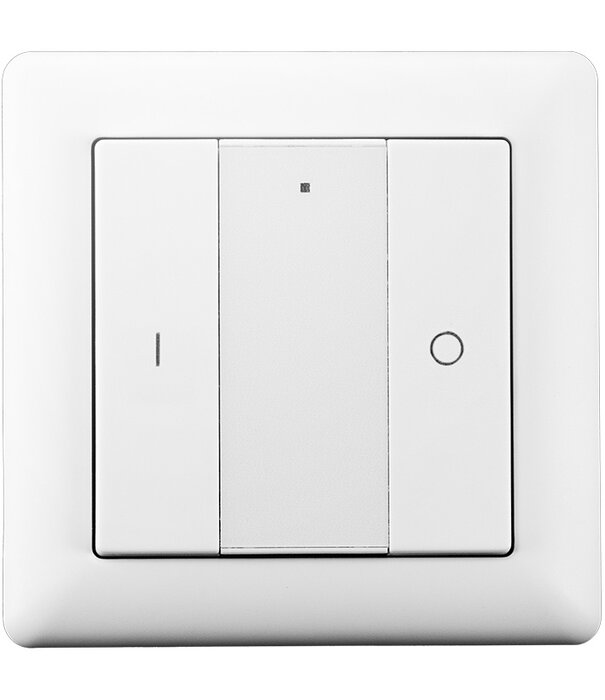

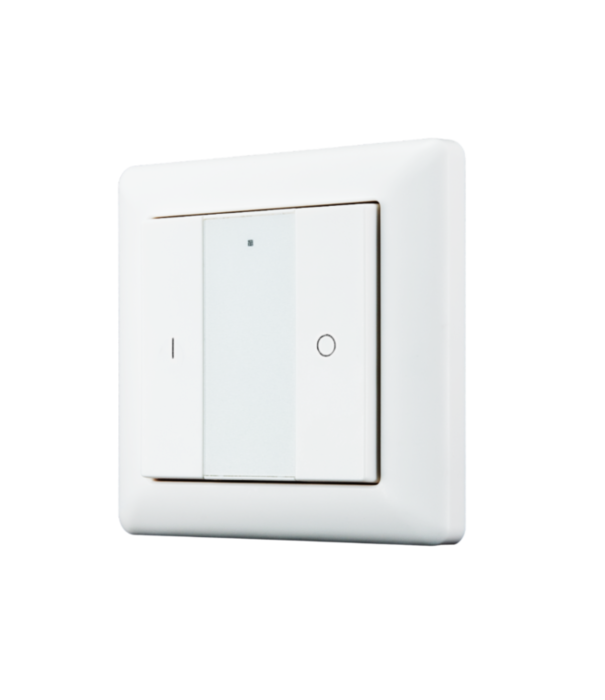

ED-10010 Wireless switch Zigbee 1 group white

Easy installation with wireless switch(s)
✓ Universal design, can also be used with GIRA system 55
Long battery life
✓ Flexible mounting (with both screws and tape)

This EcoDim wireless smart switch can be placed anywhere you want with double-sided tape. So you do not need any wiring for this. This wireless switch/wall transmitter can control one group with an on/off function. A dimming function is also available, but the smart device this switch is connected to must support a dimming function. The smart switch is battery-powered and makes contact via a Zigbee signal.

This wireless Zigbee switch in white is suitable for smart lighting and can be combined with the supplied mounting frame or various switch ranges from Berker, Gira, JUNG and Merten:

• Berker: S1, B1, B3, B7 Glass
• Gira: Standard 55, E2, E3, 55, Event, Esprit
• JUNG: A500, Aplus
• Merten: M-Smart, M-Arc, M-Plan

The wireless Zigbee switch can easily be connected to popular Zigbee home automation systems, including Homey (version 5.0 or later), Philips Hue and Trust, making it ideal for the wireless control of smart lighting and Zigbee dimmers.

Technical specifications

• Protocol: Zigbee
• Chip: Zigbee 3.0

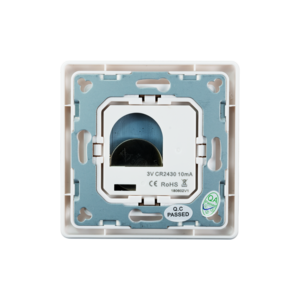

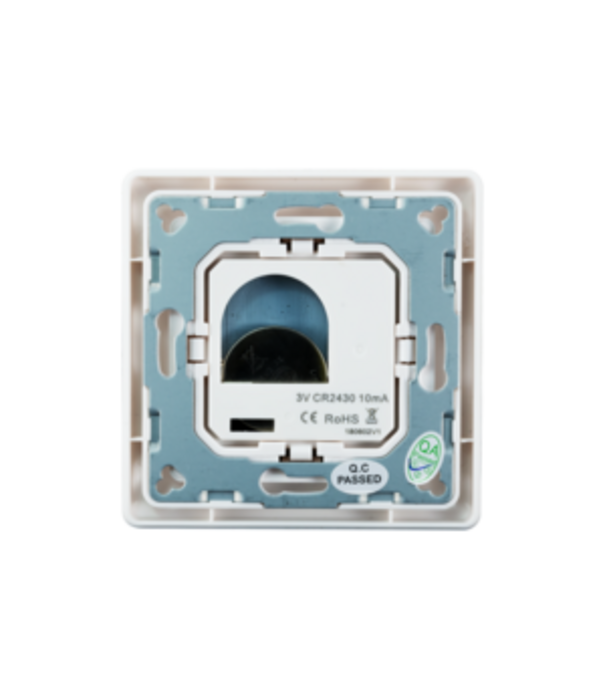

• Power supply: Wireless 1 x CR2450 battery
• Control: 1 group using two buttons
• Operating temperature: 0 - 40°C
• Transmission range: approximately 30 metres
• IP value: IP 20

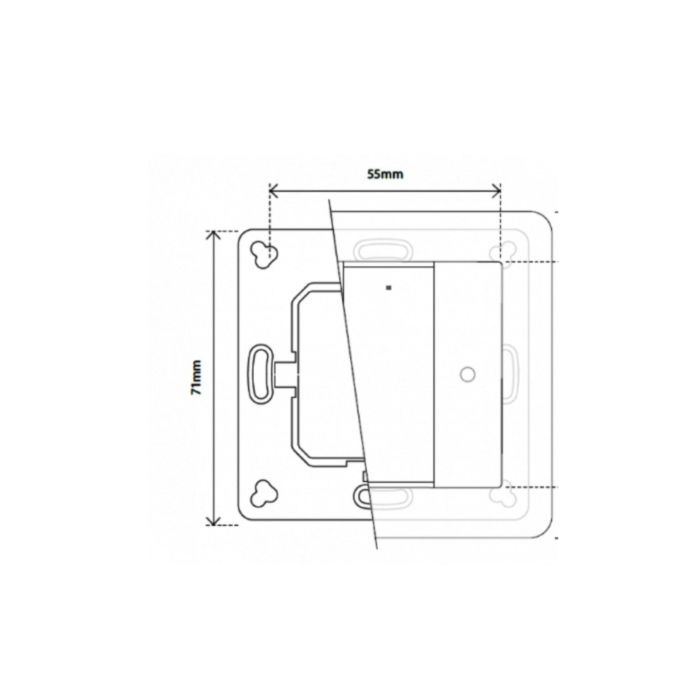

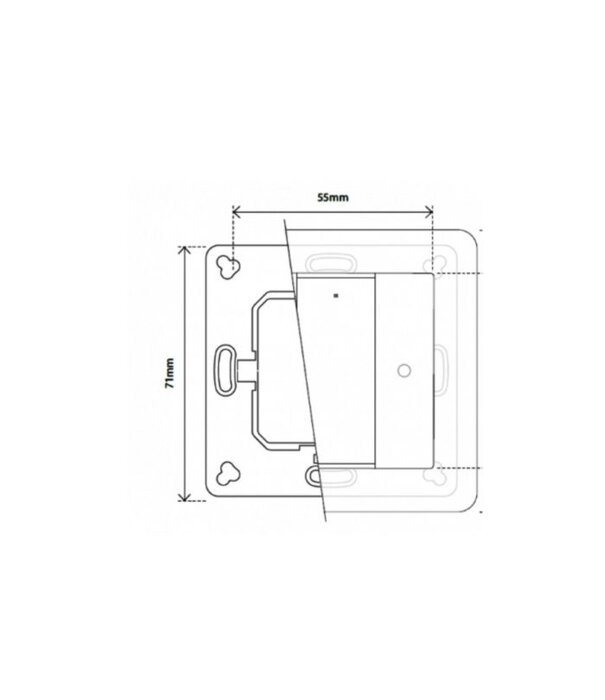

• Dimensions: (LxWxH) 80,5 x 80,5 x 14,7 mm
• Hallmarks: CE, RoHS 2011/65/EU
• Frequentie: 2,4 GHz, 868/915 MHz

Suitable home automation systems

• Google Assistant/Home (via Zigbee hub)
• Amazon Alexa
• Philips Hue
• Homey (version 5.0)
• Innr
• Futurehome
• Trust (KlikAanKlikUit)
• AduroSmart
• Aeotec SmartThings
• WINK
• IKEA Dirigera
