ED-10011 Wireless switch Zigbee 1 group black

  1. Home
  2. ED-10011 Wireless switch Zigbee 1 group black
Brand:
EcoDim
Article code:
ED-10011
EAN:
8719322371324
Hier verkrijgbaar
Alle downloads

Product description

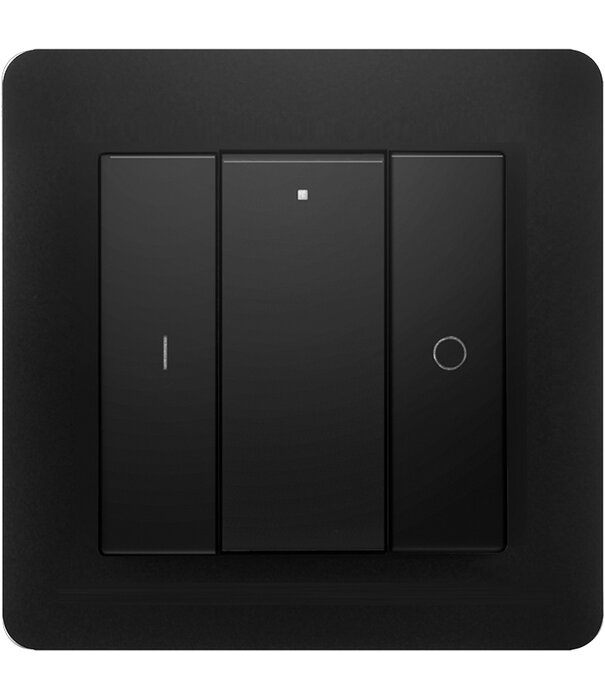

Easy installation with wireless switch(s)
✓ Universal design, can also be used with GIRA system 55
Long battery life
✓ Flexible mounting (with both screws and tape)

This EcoDim wireless switch can be placed anywhere you want with double-sided tape. No wiring is required. This wireless switch can control one group with an on/off function. A dimming function is also available, but the smart device this switch is connected to must support a dimming function. The switch is battery-powered and makes contact via a Zigbee signal.

This wireless switch comes in the colour black and can be used in a GIRA 55 system in addition to its own recessed window. The wireless switch can be loaded into well-known Zigbee home automation systems such as Homey (from version 5.0), Philips Hue and Trust.

Technical specifications

  • Protocol: Zigbee
  • Chip: Zigbee 3.0

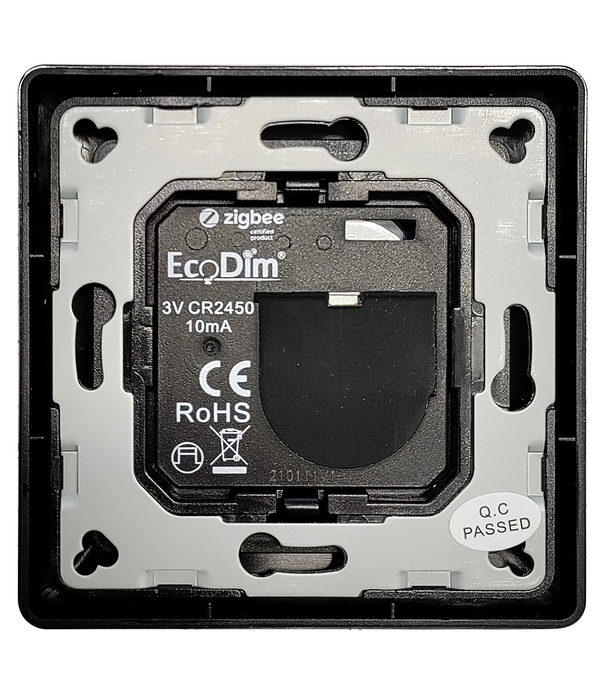

  • Power supply: Wireless 1 x CR2450 battery
  • Control: 1 group with two buttons
  • Operating temperature: 0 - 40°C
  • Transmission range: approximately 30 metres
  • IP value: IP 20
  • Dimensions: (LxWxH) 80,5 x 80,5 x 14,7 mm
  • Hallmarks: CE, RoHS 2011/65/EU

Suitable home automation systems

  • Google Assistant/Home (via Zigbee hub)
  • Amazon Alexa
  • Philips Hue
  • Homey (version 5.0)
  • Innr
  • Futurehome
  • Trust (KlikAanKlikUit)
  • AduroSmart
  • Aeotec SmartThings
  • WINK

Product specifications

Brand: EcoDim
Power (wattage): N/A
Voltage (input): 1x CR2450 battery
Dimming technology: N/A
Operation: Two buttons / Zigbee 3.0
Dimensions in mm (outer dimensions frame): 80,5 x 80,5 x 14,7
Installation dimensions in mm (fits any flush-mounted box): N/A
Packaging: Each
Warranty: 2 years
Article number: ED-10011
Item number 2BA: ED-10011
Download manual: https://cdn.webshopapp.com/shops/68389/files/380208238/wandschakelaar-draadloos-zigbee-1-zone-nl-handleid.pdf
Philips HUE manual: https://cdn.webshopapp.com/shops/68389/files/380208129/handleiding-ecodim-zigbee-schakelaar-1-groep-phili.pdf
Datasheet
