ED-10015 Wireless switch Zigbee 4 groups black

Easy installation with wireless switch(s)
✓ Universal design, can also be used with GIRA system 55
Long battery life
✓ Flexible mounting (with both screws and tape)

This EcoDim wireless switch can be placed anywhere you want with double-sided tape. No wiring is required. This wireless switch can control four groups wirelessly with an on/off function. A dimming function is also available, but the smart device this switch is connected to must support a dimming function. The smart switch is battery-powered and makes contact via a Zigbee signal.

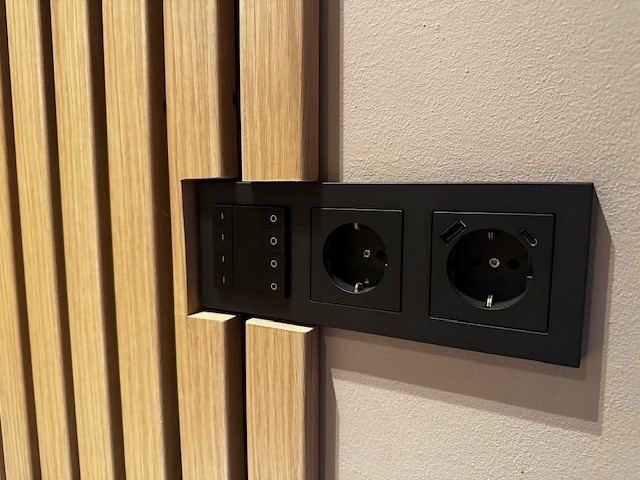

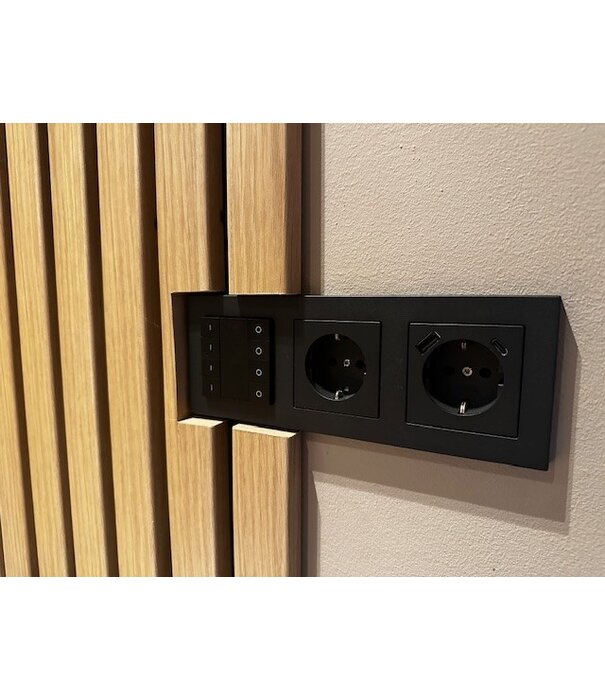

This wireless smart switch comes in the colour black and can be used in a GIRA 55 system in addition to its own recessed window. The wireless switch can be loaded into well-known Zigbee home automation systems such as Homey (from version 5.0), Philips Hue and Trust.

Technical specifications

• Protocol: Zigbee
• Chip: Zigbee 3.0

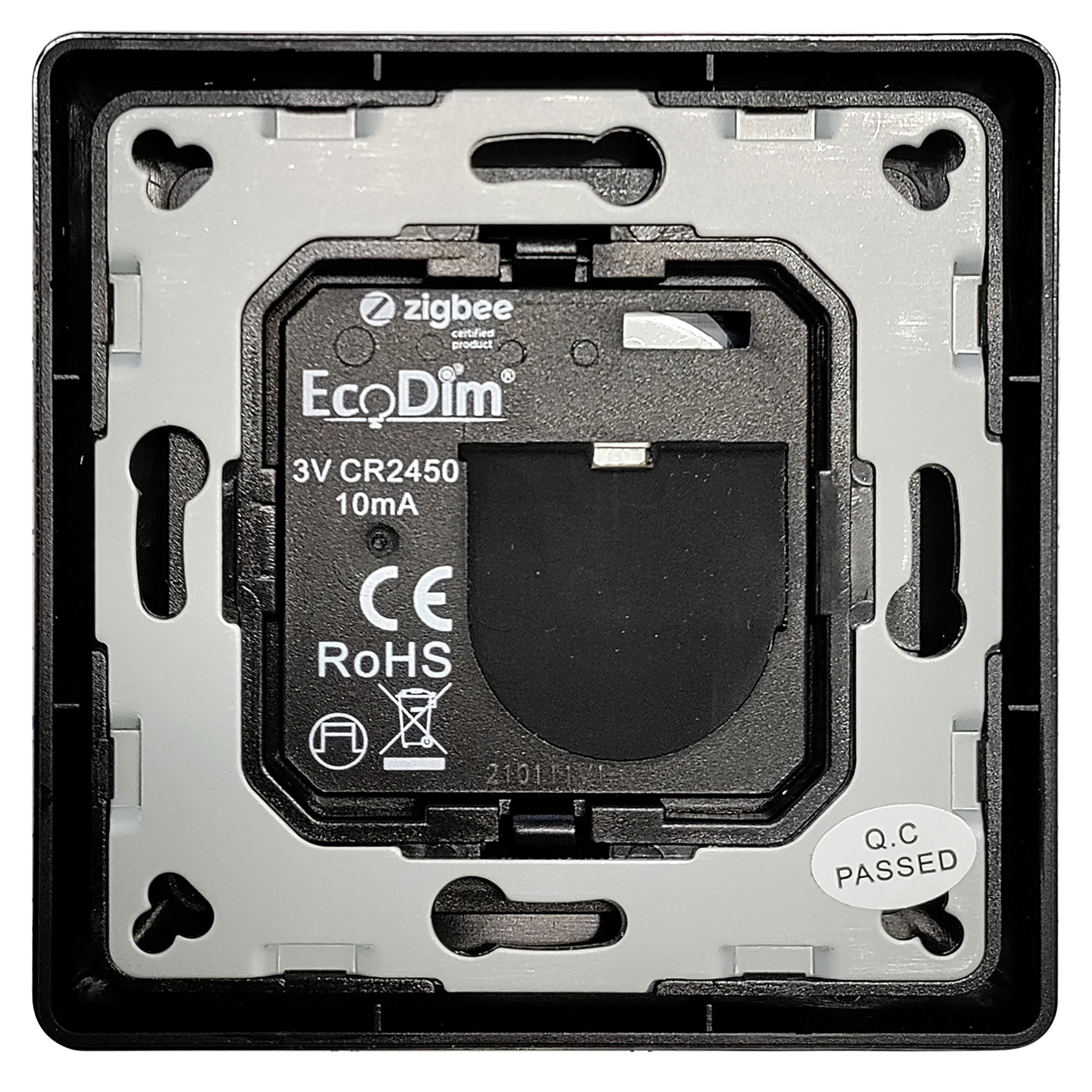

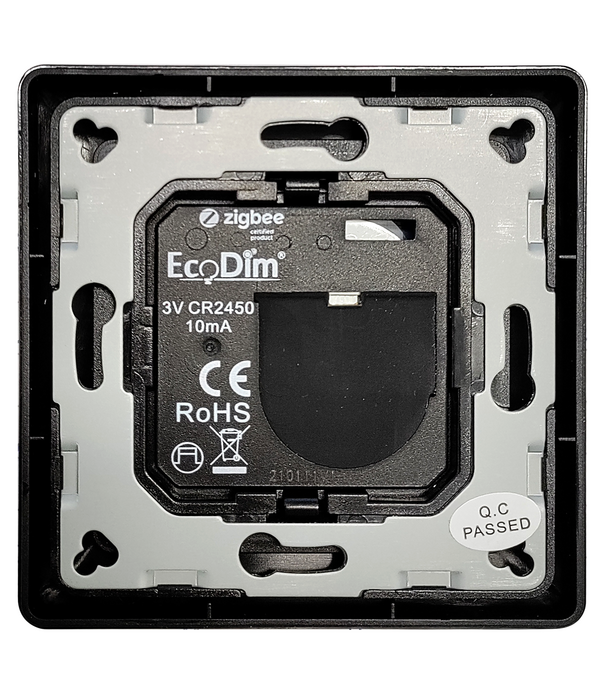

• Power supply: Wireless 1 x CR2450 battery
• Control: 4 groups via eight buttons
• Operating temperature: 0 - 40°C
• Transmission range: approximately 30 metres
• IP value: IP 20
• Dimensions: (LxWxH) 80,5 x 80,5 x 14,7 mm
• Hallmarks: CE, RoHS 2011/65/EU
• Frequentie: 2,4 GHz, 868/915 MHz

Suitable home automation systems

• Google Assistant/Home (via Zigbee hub)
• Amazon Alexa
• Philips Hue
• Homey (version 5.0)
• Innr
• Futurehome
• Trust (KlikAanKlikUit)
• AduroSmart
• Aeotec SmartThings
• WINK
• IKEA Dirigera
