ED-10025 Led recessed spotlight small recessed depth IP54 dim to warm, square, white, 75mm

  1. Home
  2. ED-10025 Led recessed spotlight small recessed depth IP54 dim to warm, square, white, 75mm
Brand:
EcoDim
Article code:
ED-10025
EAN:
8719322372109
Hier verkrijgbaar
Alle downloads

Product description

Small mounting depth (23 mm)
IP54 (splash-proof, suitable for bathrooms)
✓ Dimmable up to 5%

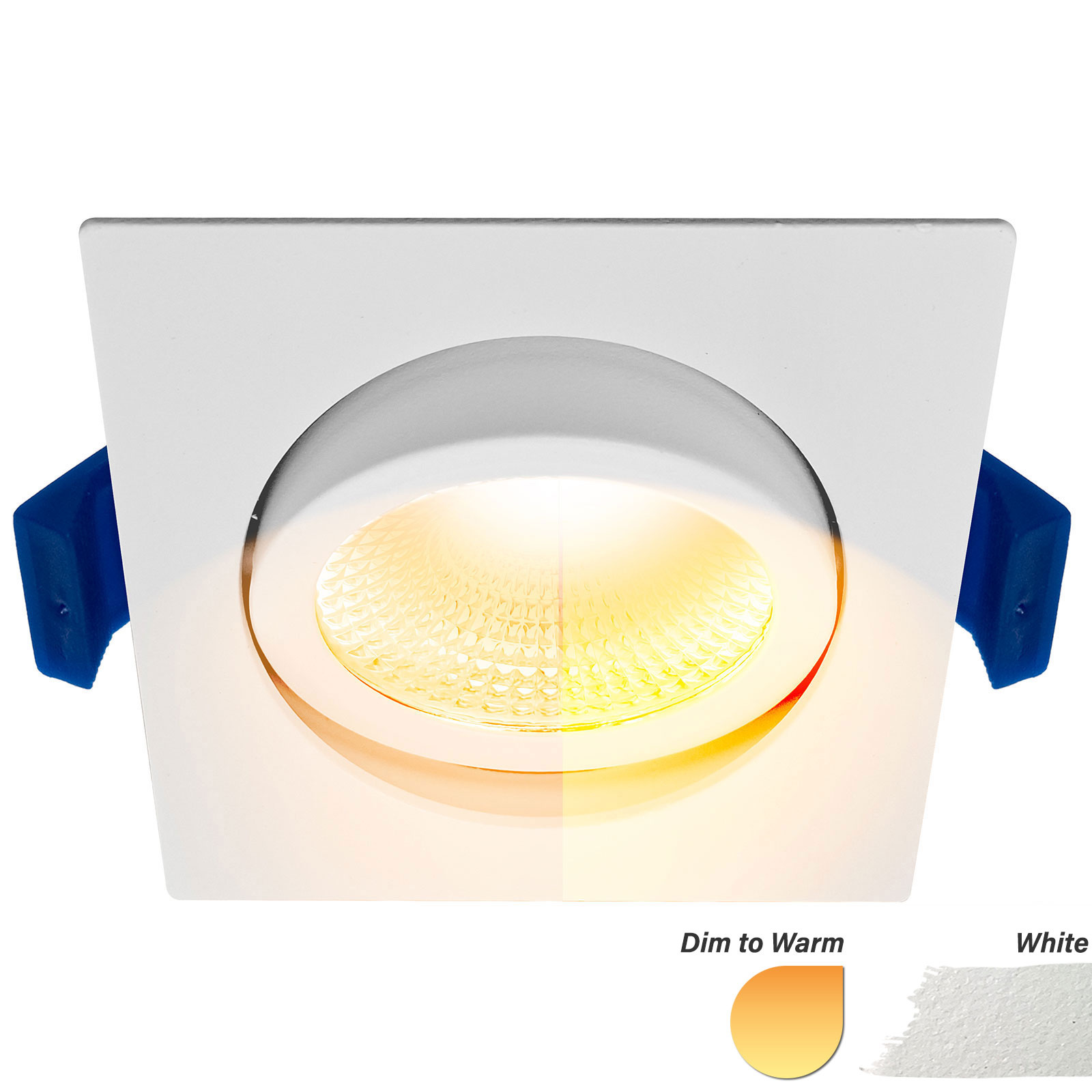

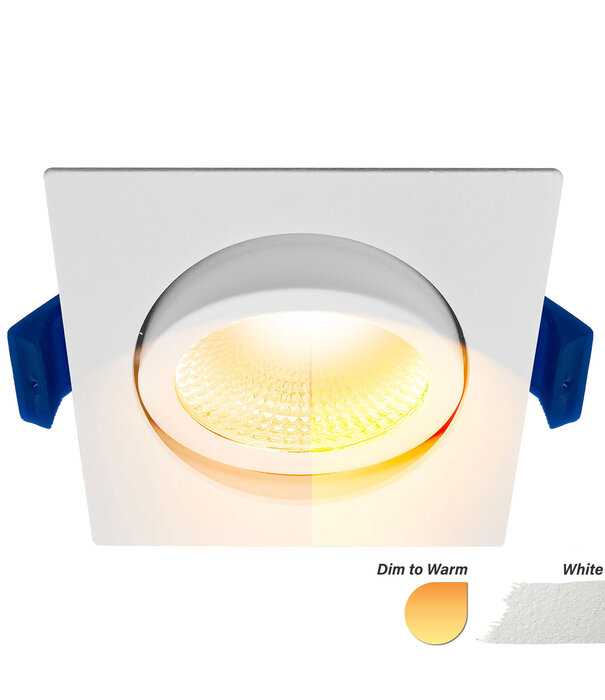

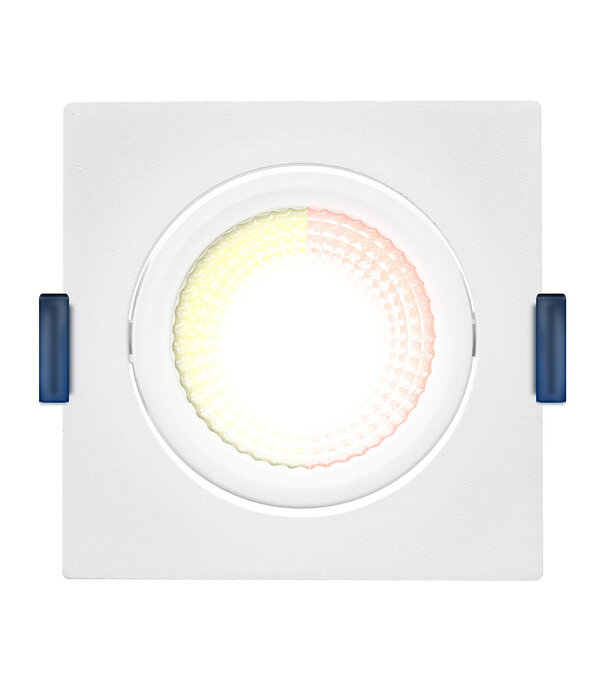

✓ Dim to warm (2000K-3000K)

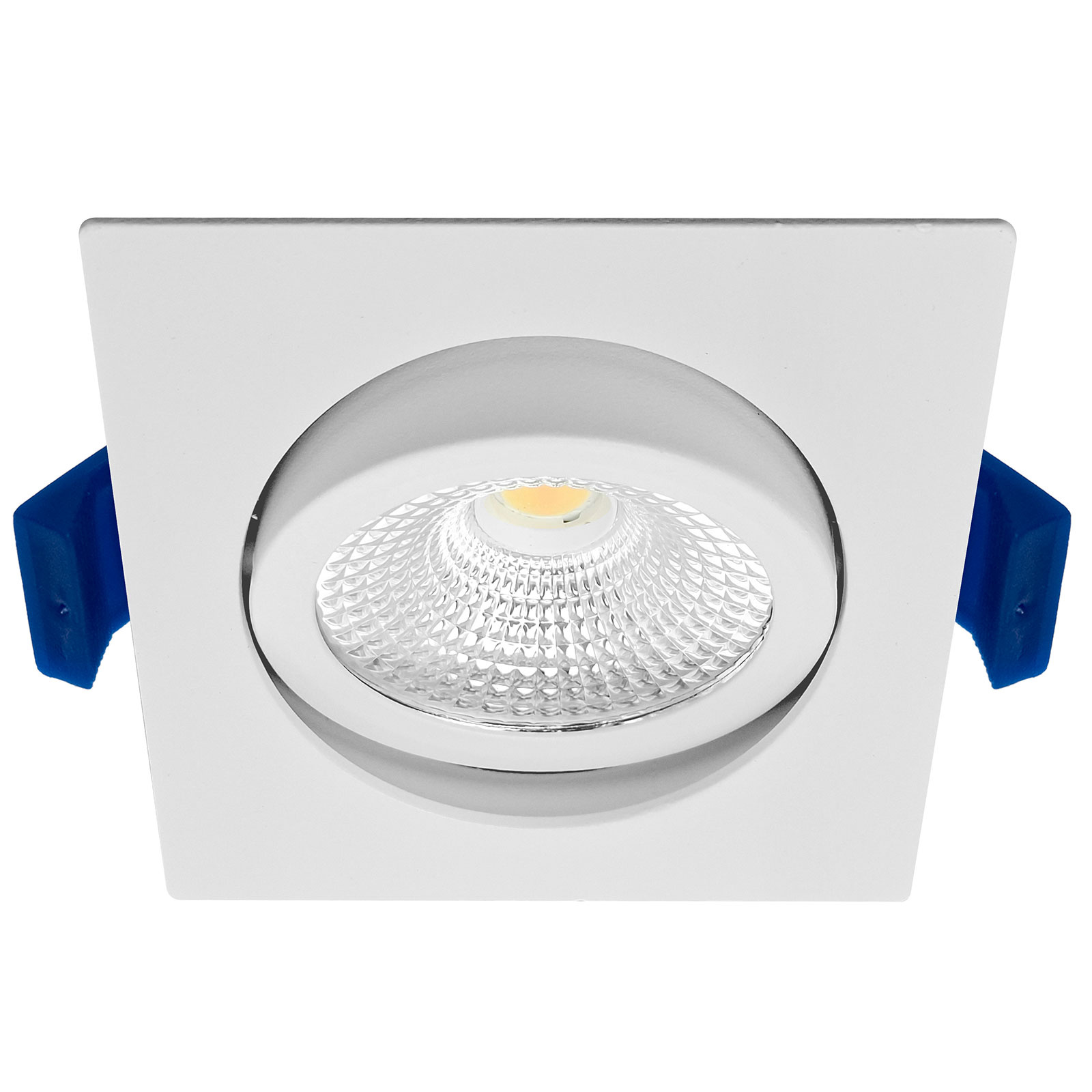

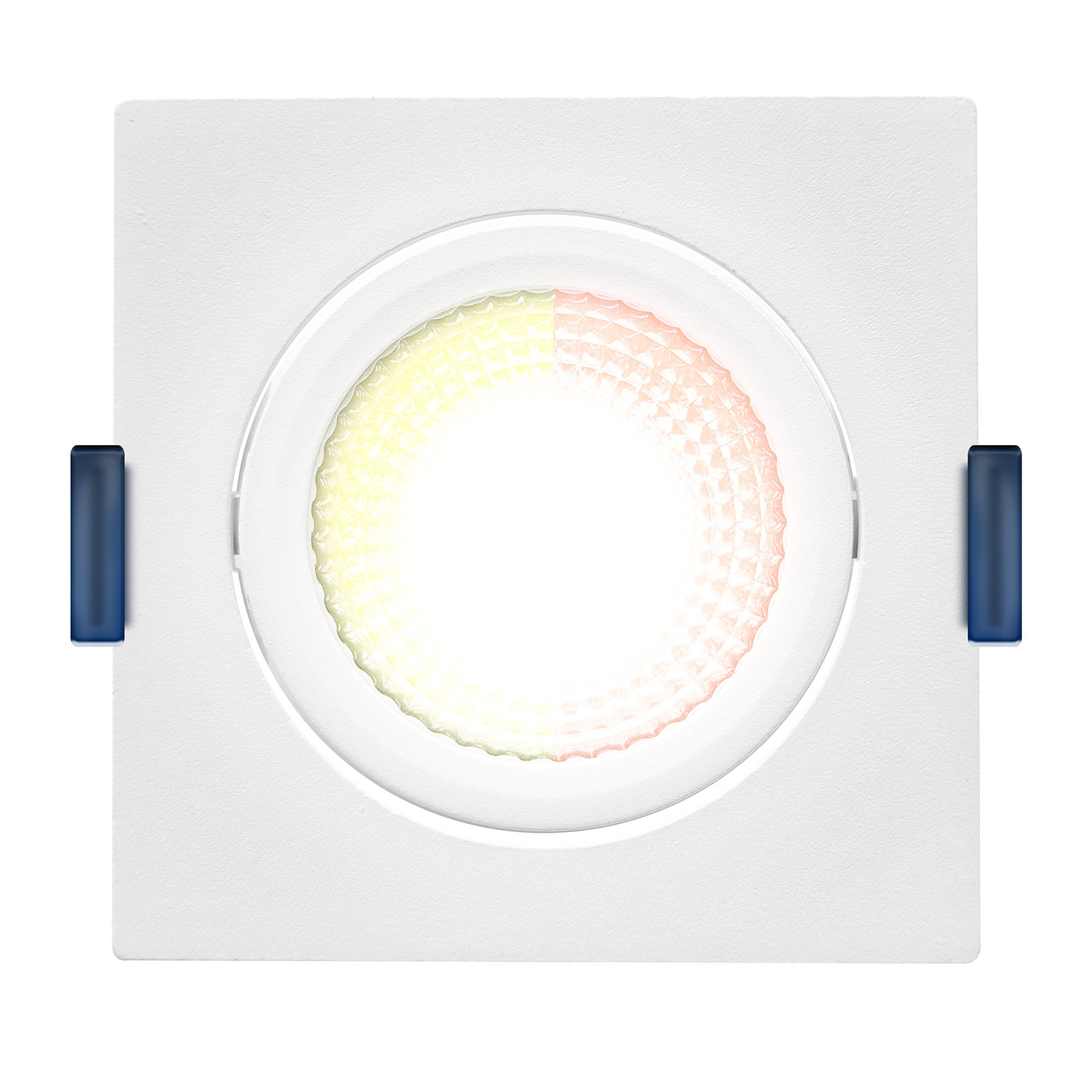

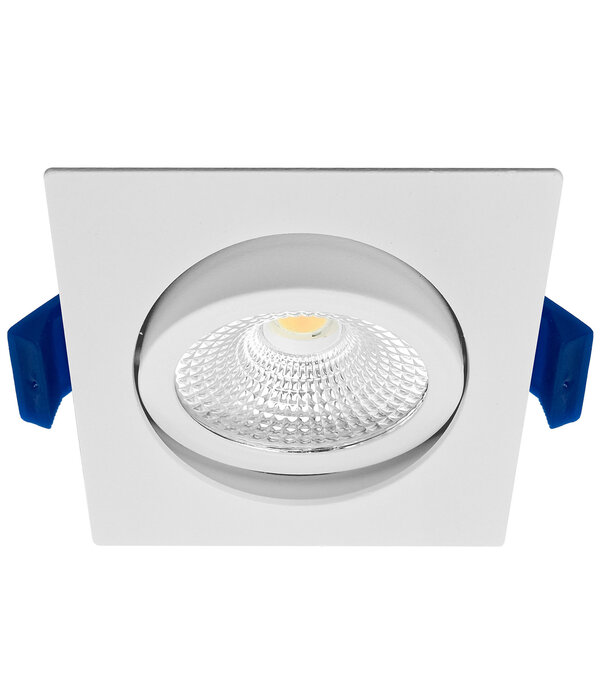

Matt white, square
Tiltable
✓ Good light distribution (60⁰)
COB chip & Reflective Technology
✓ High colour fastness (CRI≥95)
✓ Transformer included (can be connected to 230V)
✓ Simple & safe 2-wire daisy-chaining
✓ 90% savings

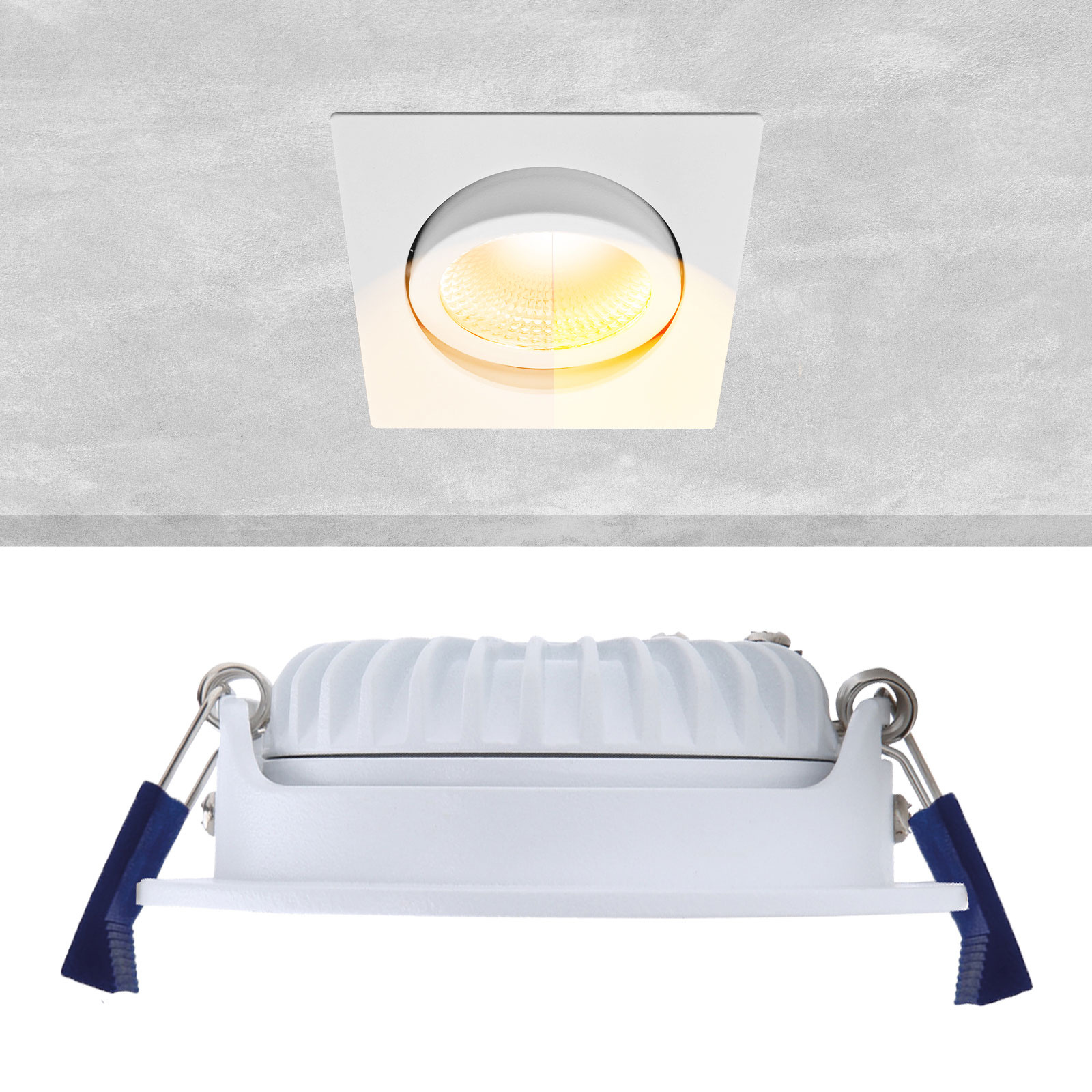

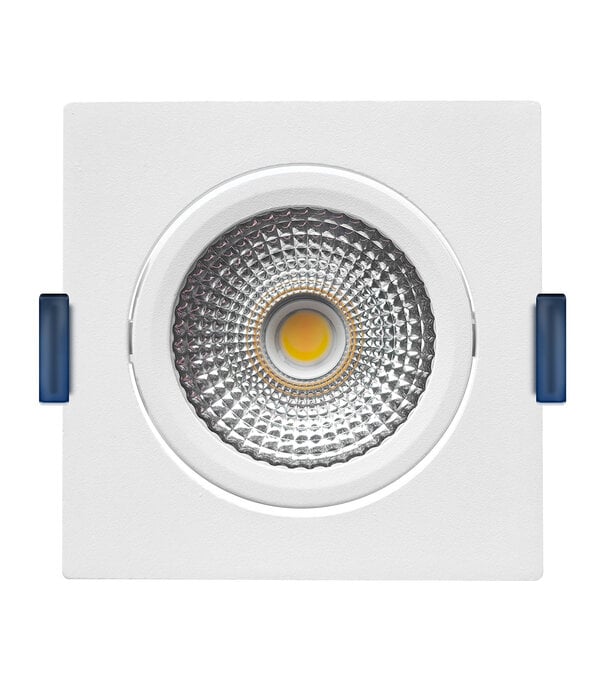

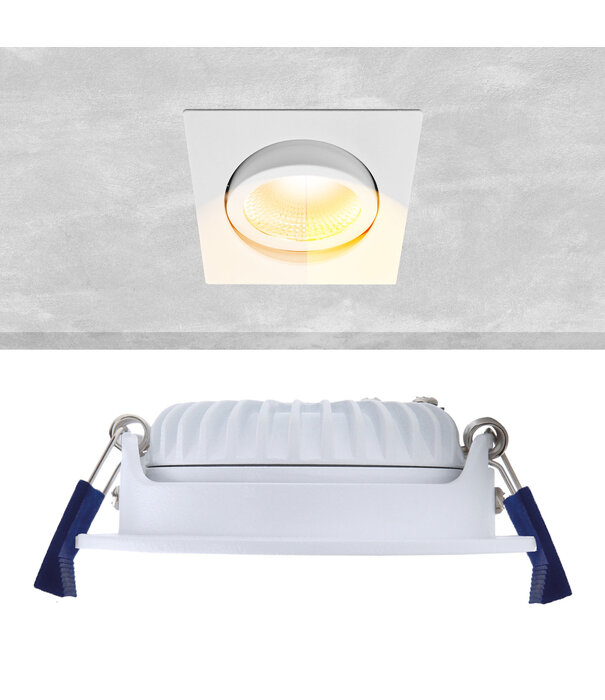

This square white LED recessed spot is splash-proof (IP54, suitable for bathroom) and a small recessed depth of only 23mm. Unique are the excellent dimmability and the compact junction box with double clamp connector (for 2x phase and 2x neutral wire) for easy and safe parallel connection. A special feature is the 'dim to warm' light colour. This makes the light colour 'warmer' as you dim, namely from 3000K-2000K.

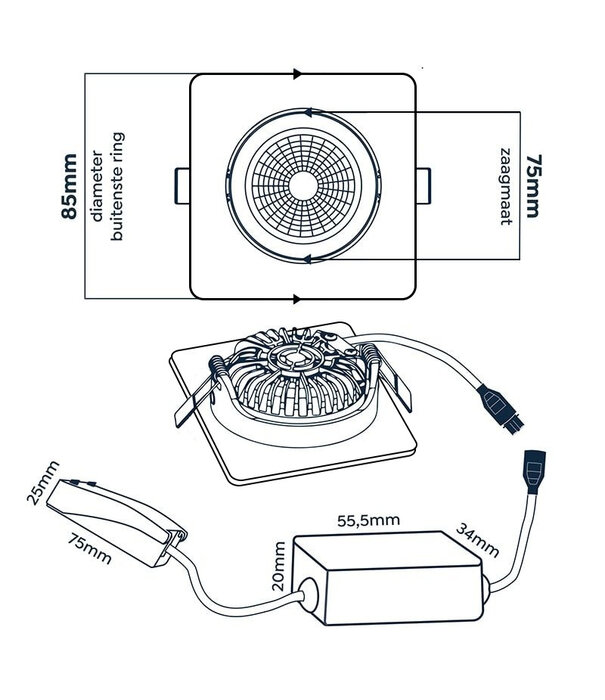

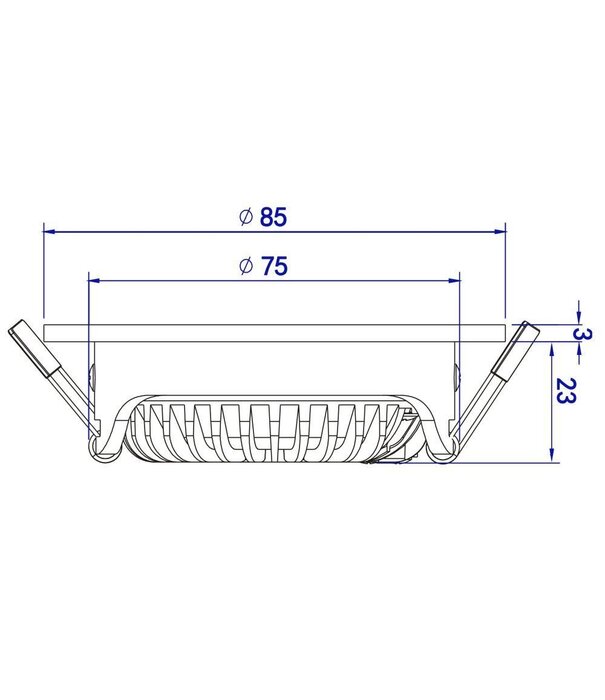

Cutting size: Ø75mm
Outer edge: Ø85mm
Recessed depth: 23mm

Spot light source: Ø45mm

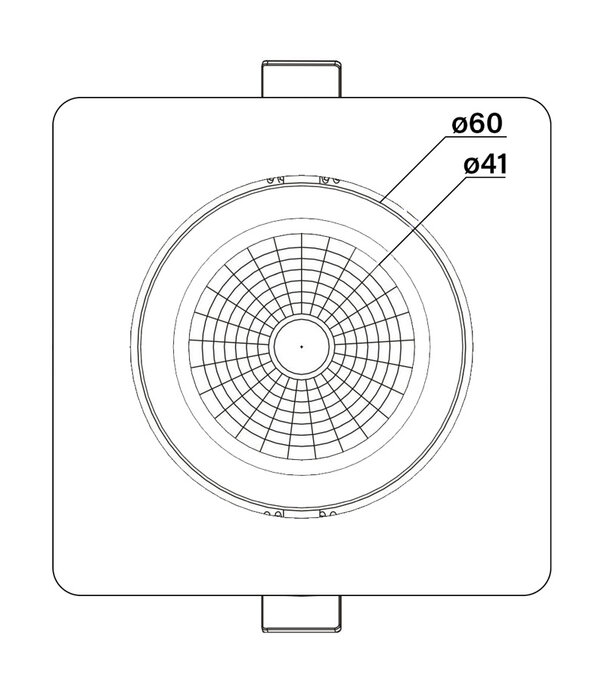

Spot incl. tilting ring: Ø60mm

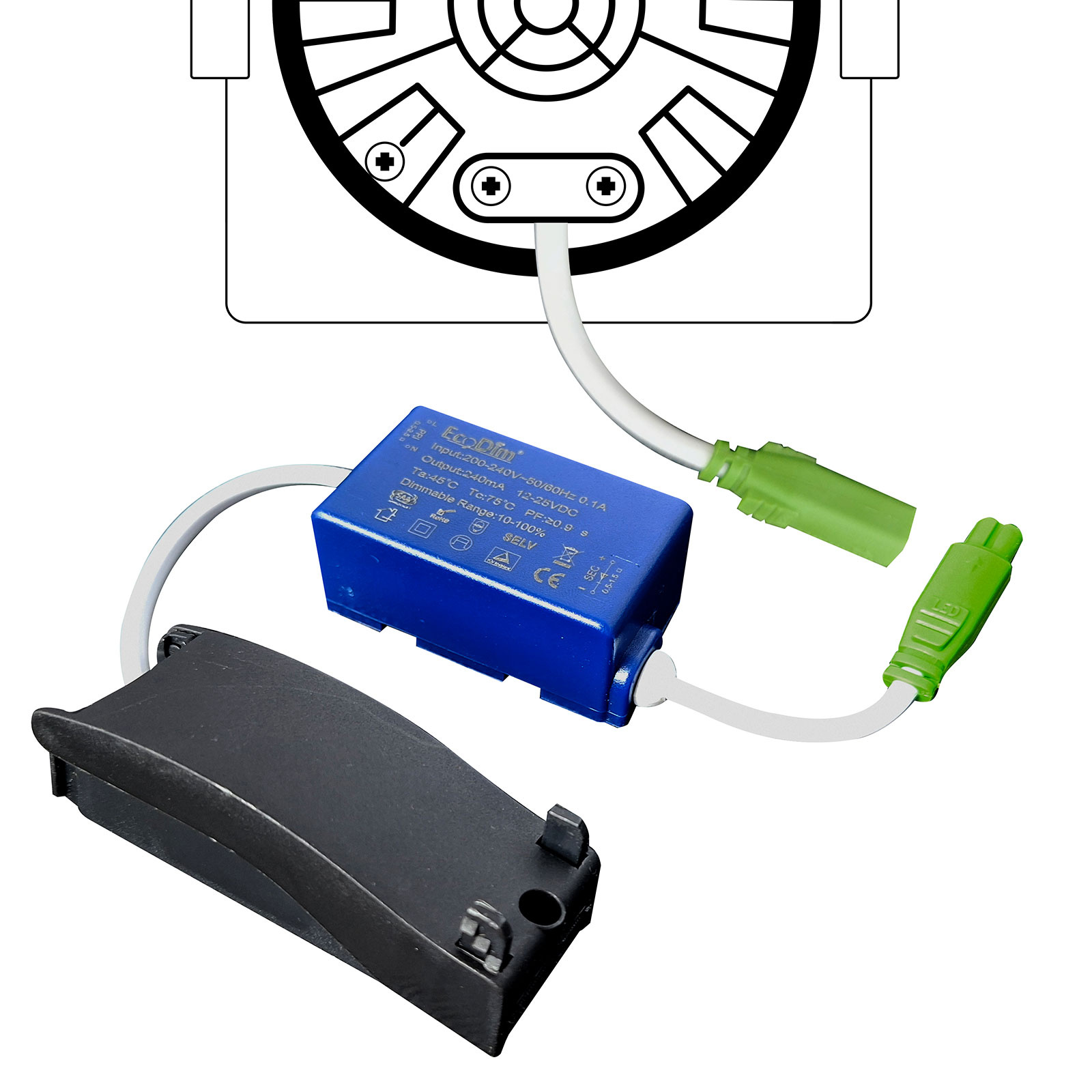

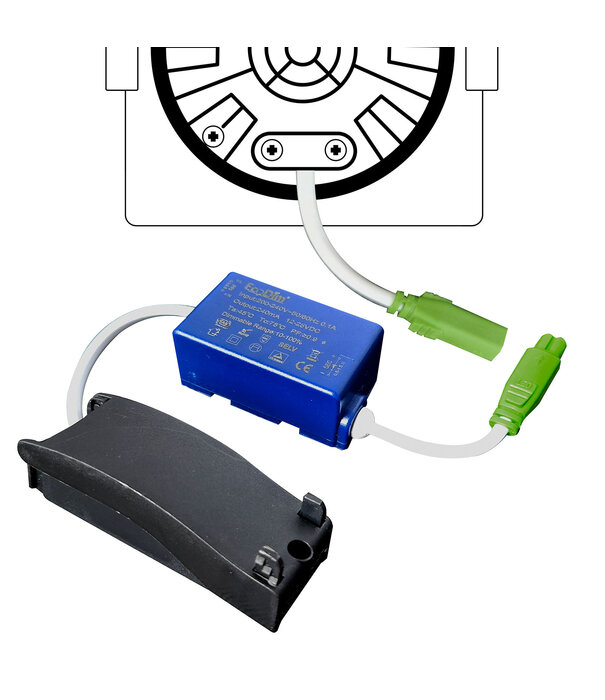

Supplied LED transformer:
Length: 95mm
Width: 38mm
Depth: 22mm

Input 220-240VAC / Output 14-25VDC
Connectable directly to 230V.

Product specifications

Brand: EcoDim
Power (wattage): 5 watts
Voltage (input): 220 - 240V
Dimming technology: Phase cut-off / RC / Tronic
Operation: N/A
Dimensions in mm (outer dimensions frame): N/A
Installation dimensions in mm (fits any flush-mounted box): N/A
Packaging: Each
Warranty: 2 years
Article number: ED-10025
Item number 2BA: ED-10025
Download manual: https://cdn.webshopapp.com/shops/68389/files/389156933/20210430-handleiding-a4-ondiepe-inbouwspots.pdf
Philips HUE manual:
Datasheet
