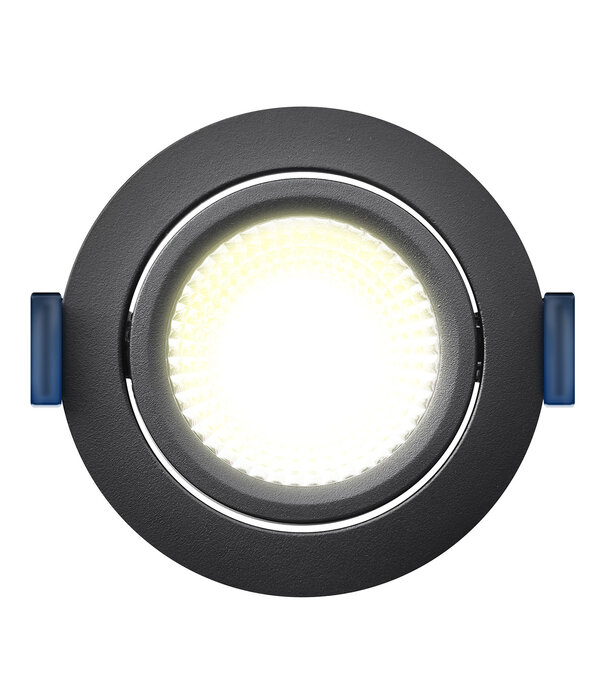

ED-10029 Led recessed spotlight small recessed depth IP54 warm white, round, black, 75mm

  1. Home
  2. ED-10029 Led recessed spotlight small recessed depth IP54 warm white, round, black, 75mm
Brand:
EcoDim
Article code:
ED-10029
EAN:
8719322372185
Hier verkrijgbaar
Alle downloads

Product description

Small mounting depth (23 mm)
IP54 (splash-proof, suitable for bathrooms)
Dimmable up to 5%

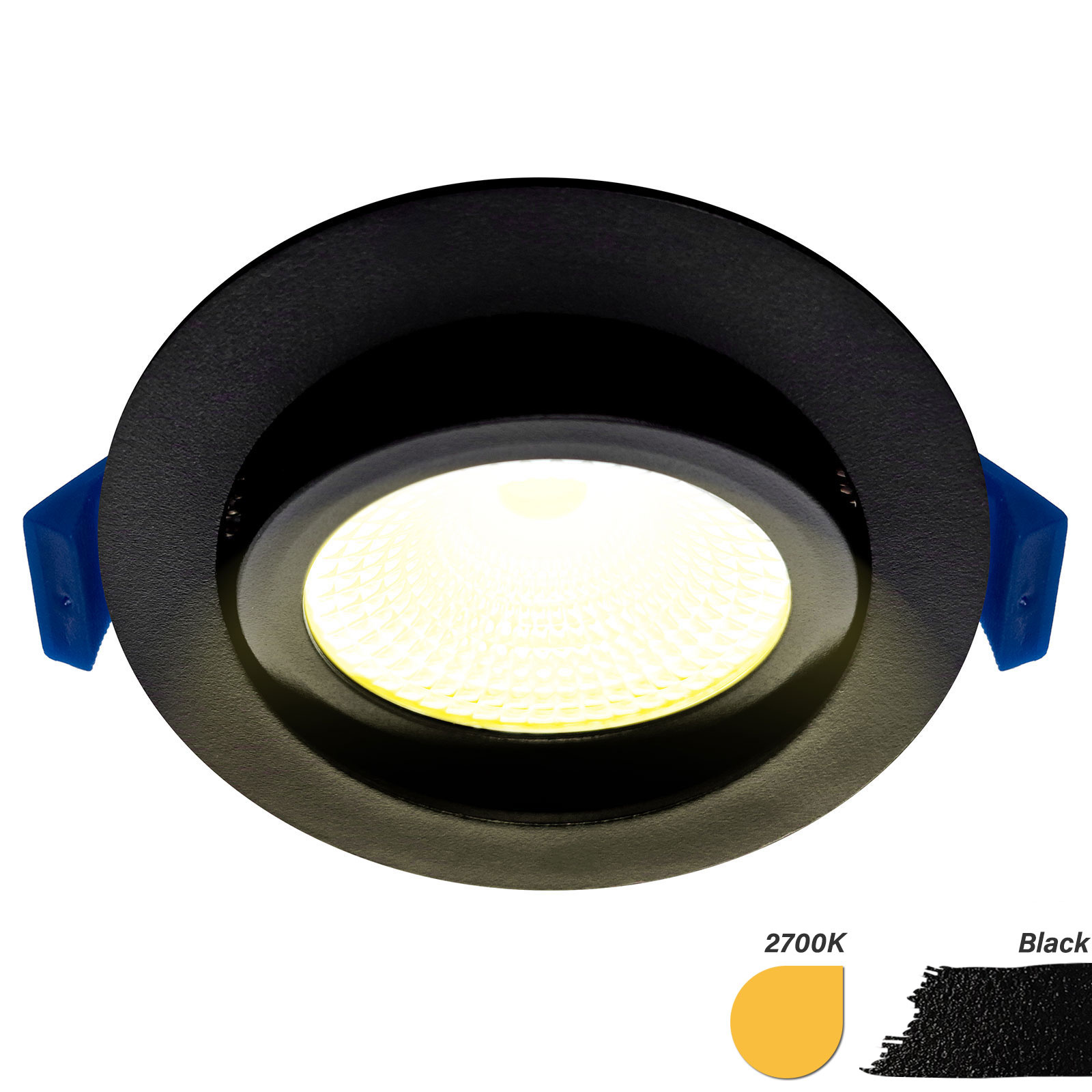

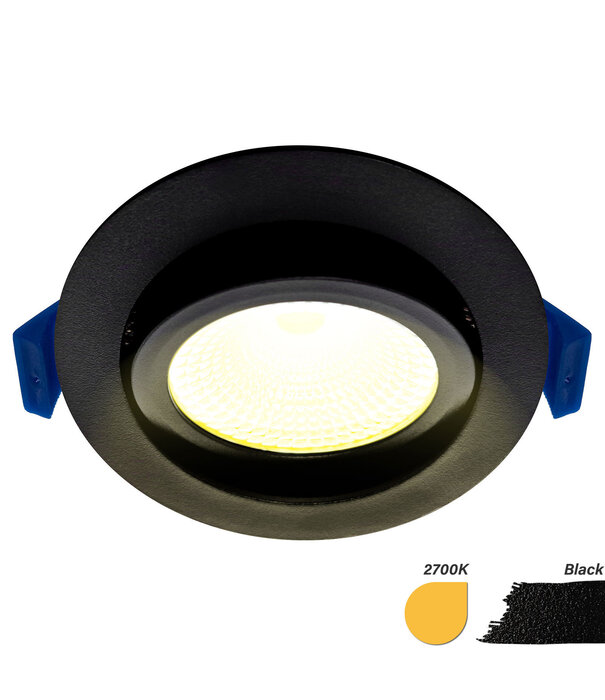

Warm white (2700K)

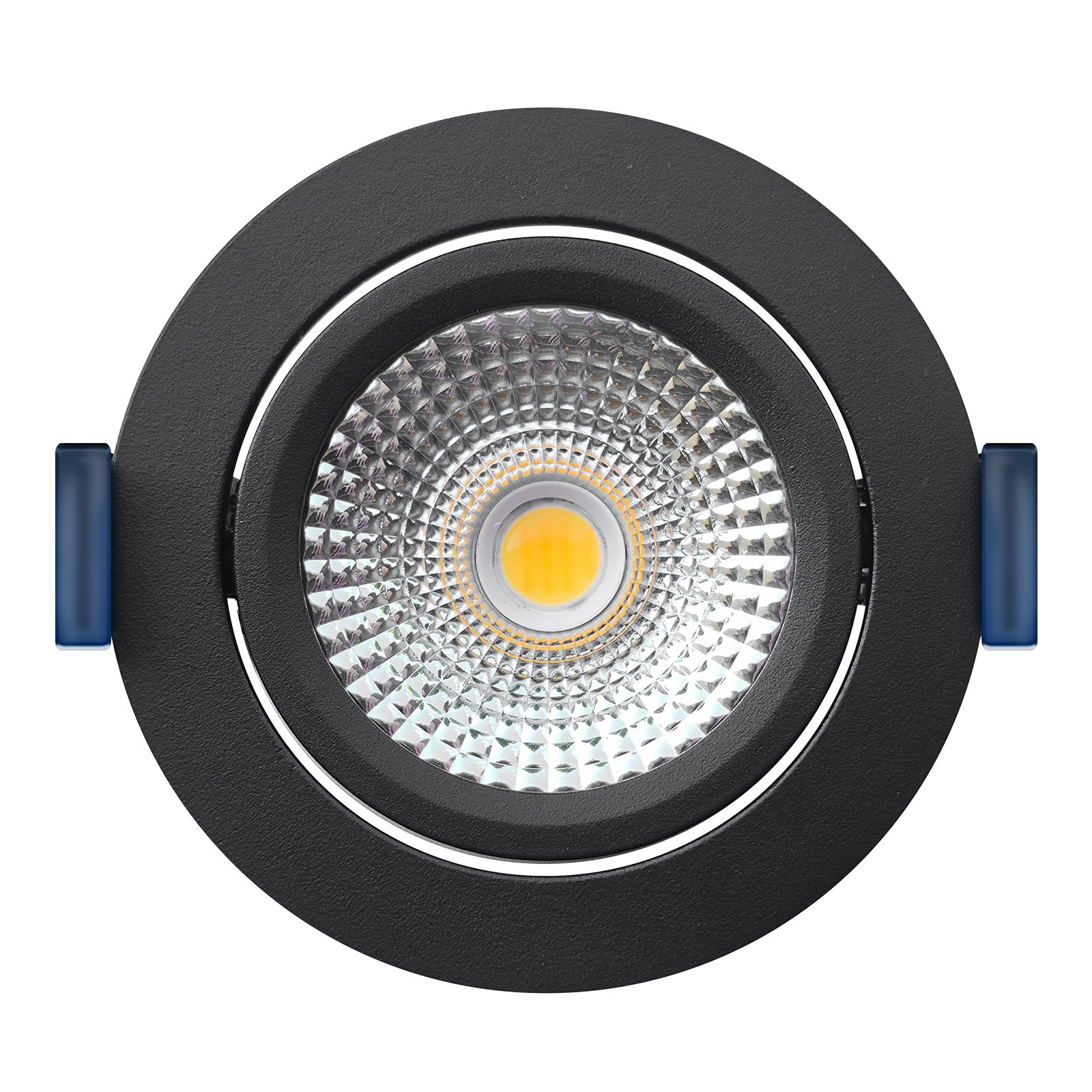

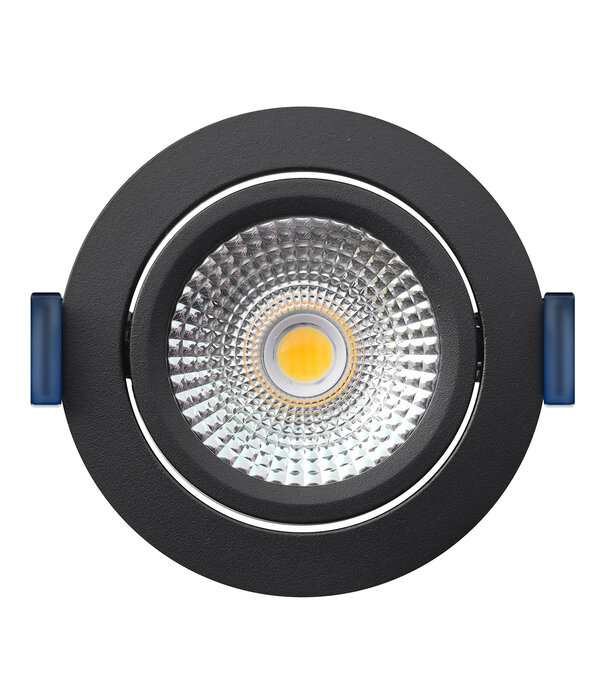

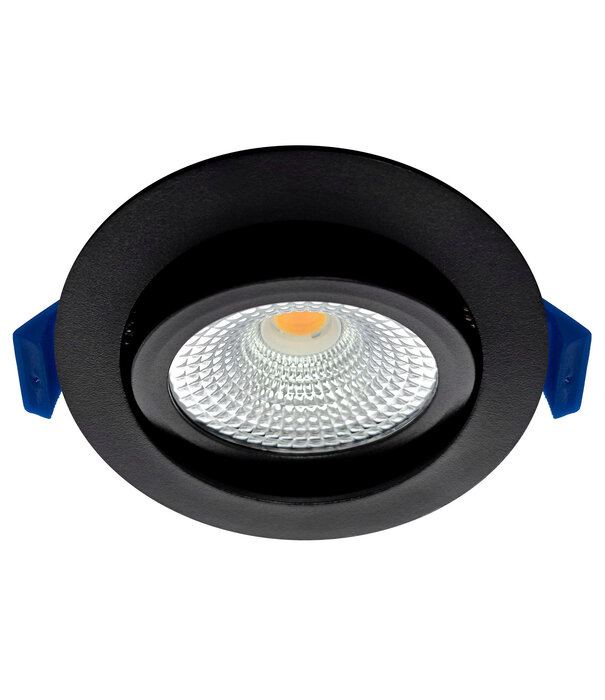

✓ Matt black, round
Tiltable
✓ Good light distribution (60⁰)
COB chip & Reflective Technology
High colour fastness (CRI95)
✓ Transformer included (can be connected to 230V)
✓ Simple & safe 2-wire daisy-chaining
✓ 90% savings

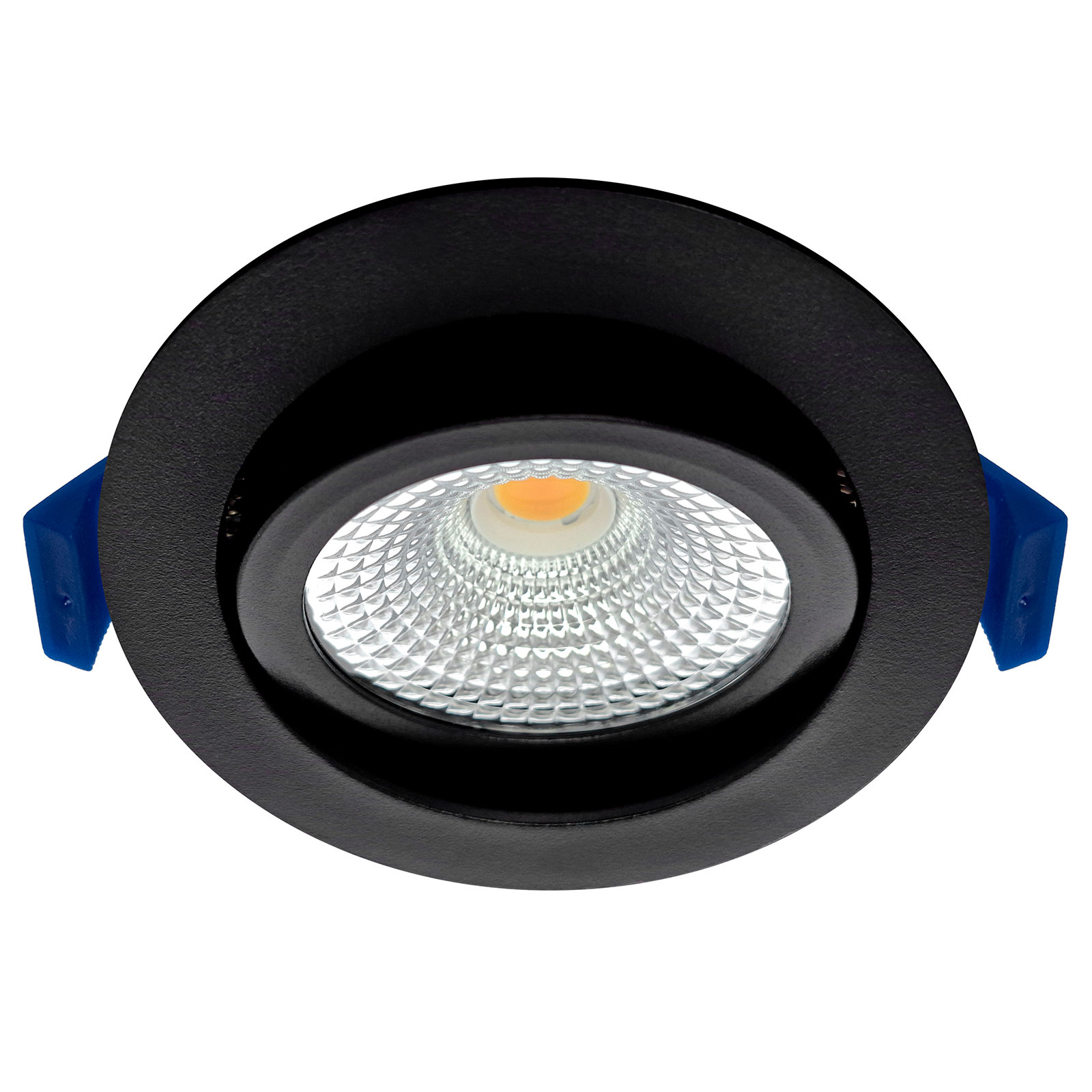

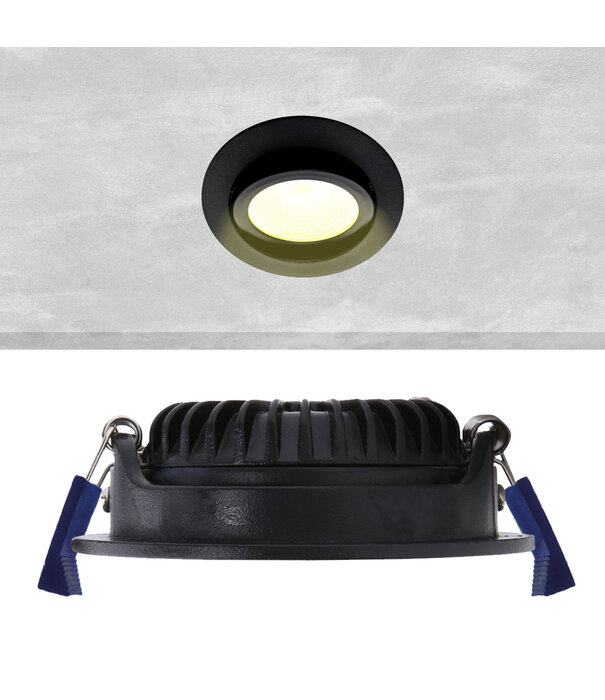

Key features of this black, round LED downlight are its IP54 value (splash-proof), its small recessed depth (23 mm) and its excellent dimmability. Unique is the compact junction box with double clamp connector for easy and safe parallel connection. Excellent dimmability with all EcoDim LED dimmers.

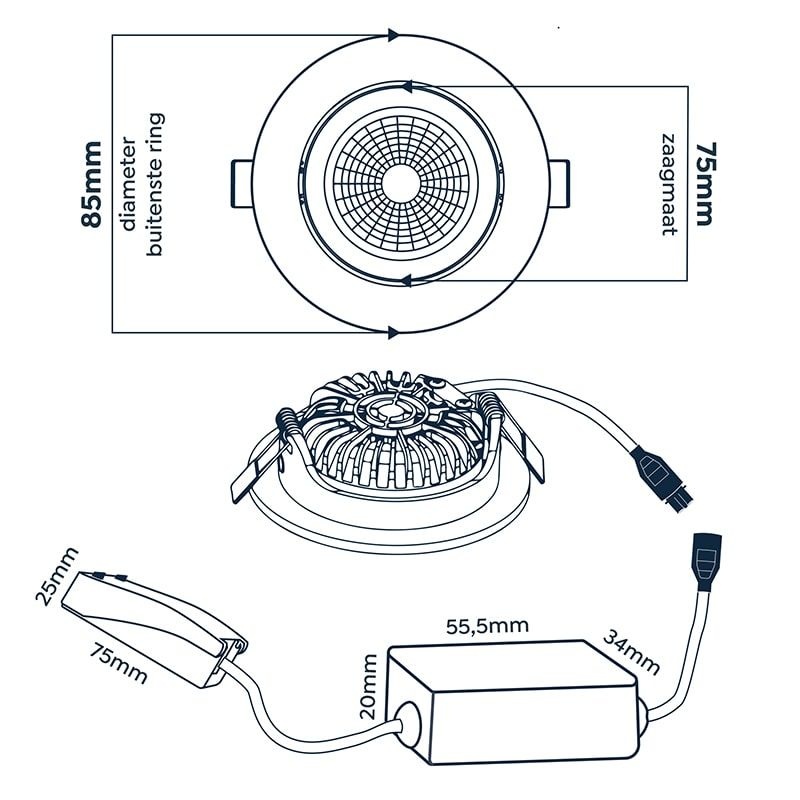

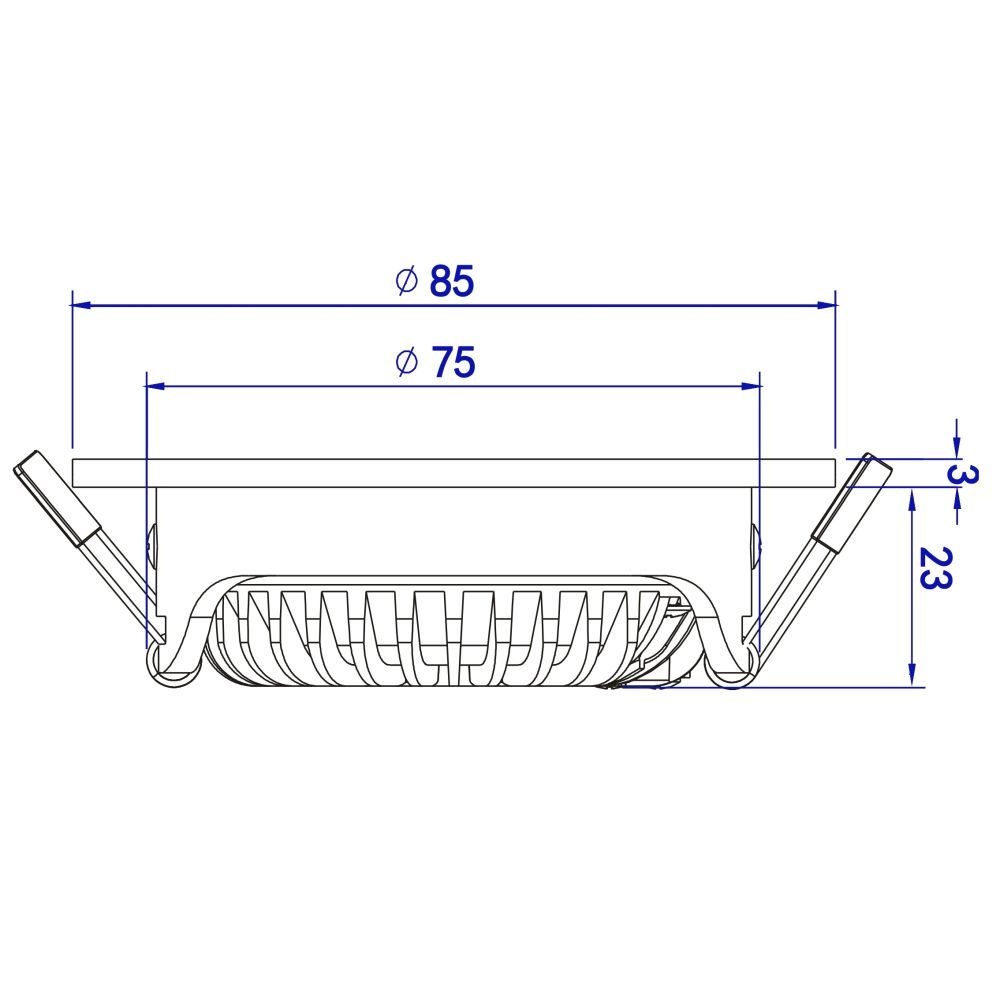

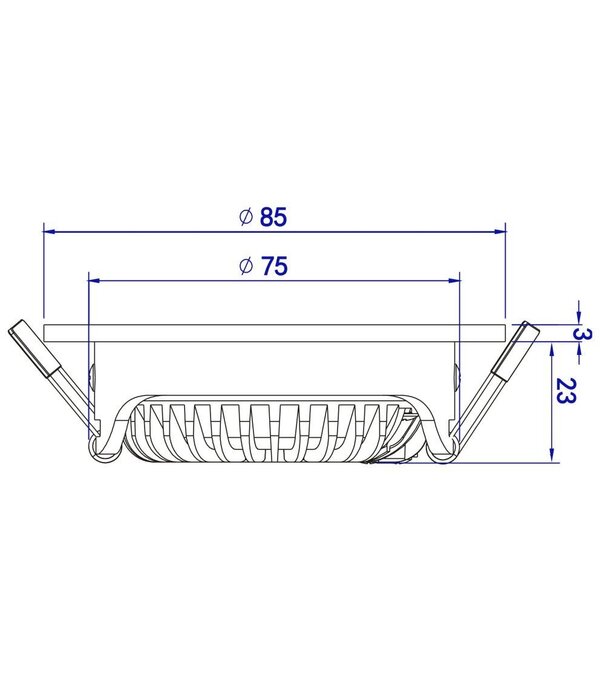

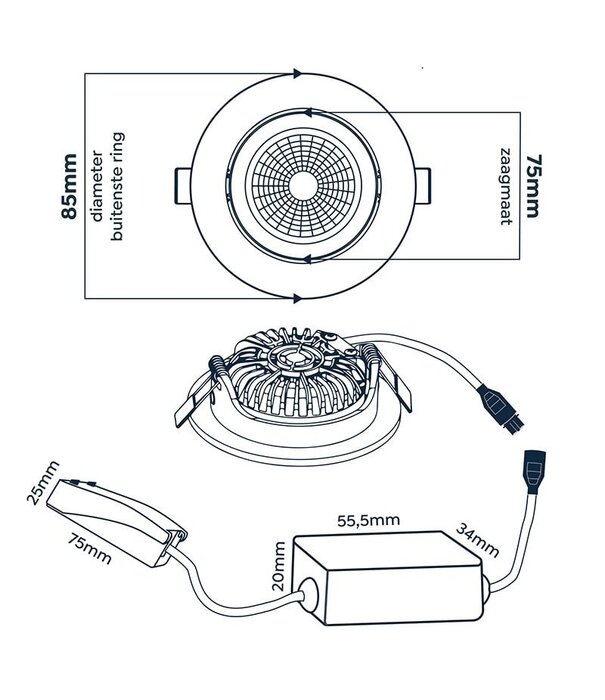

Cutting size: Ø75mm
Outer edge: Ø85mm

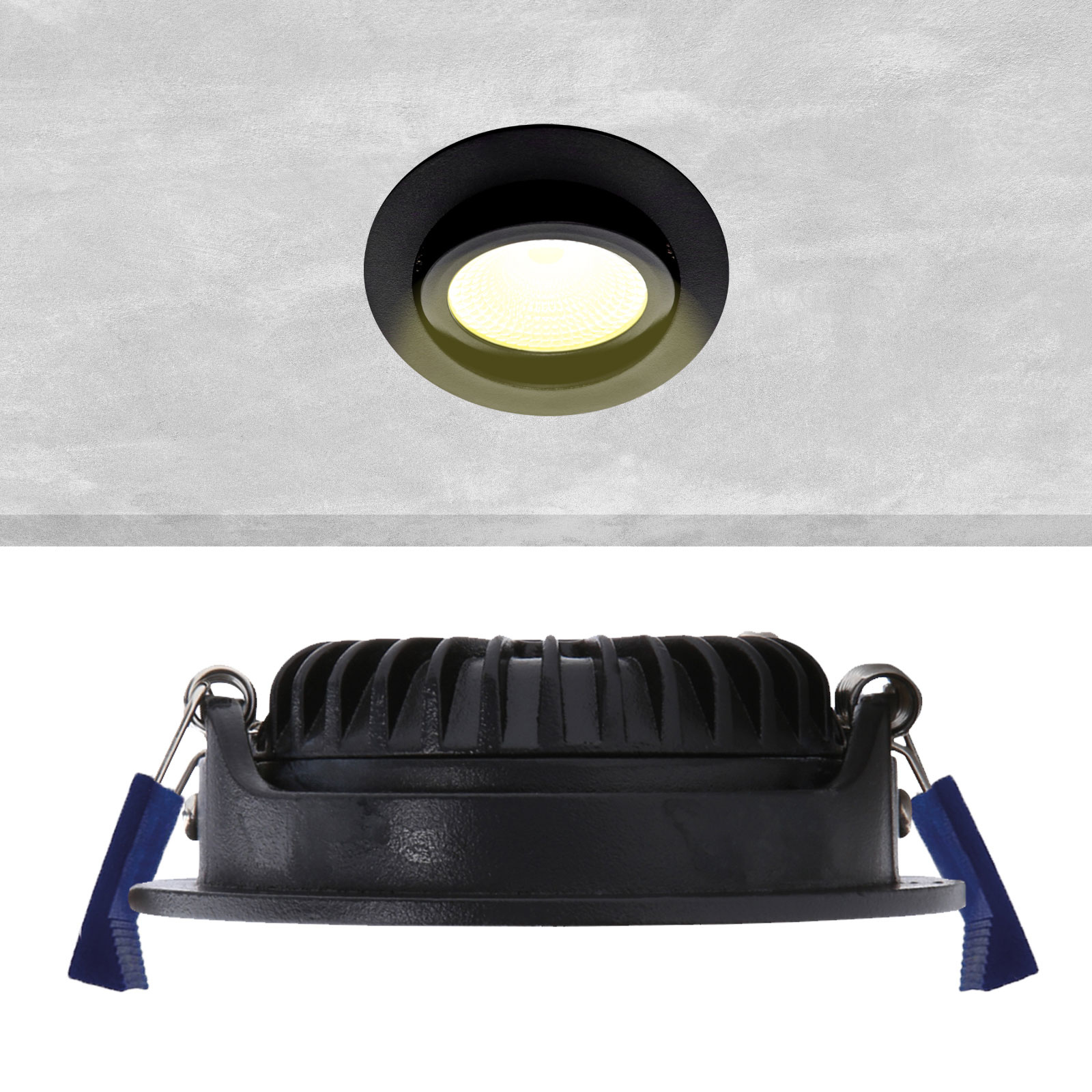

Recessed depth: 23mm

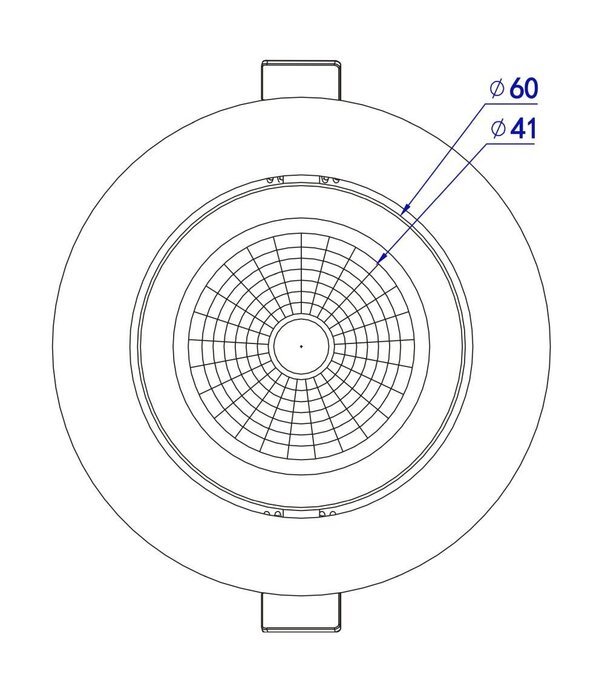

Spot light source: Ø45mm
Spot incl. tilting ring: Ø60mm

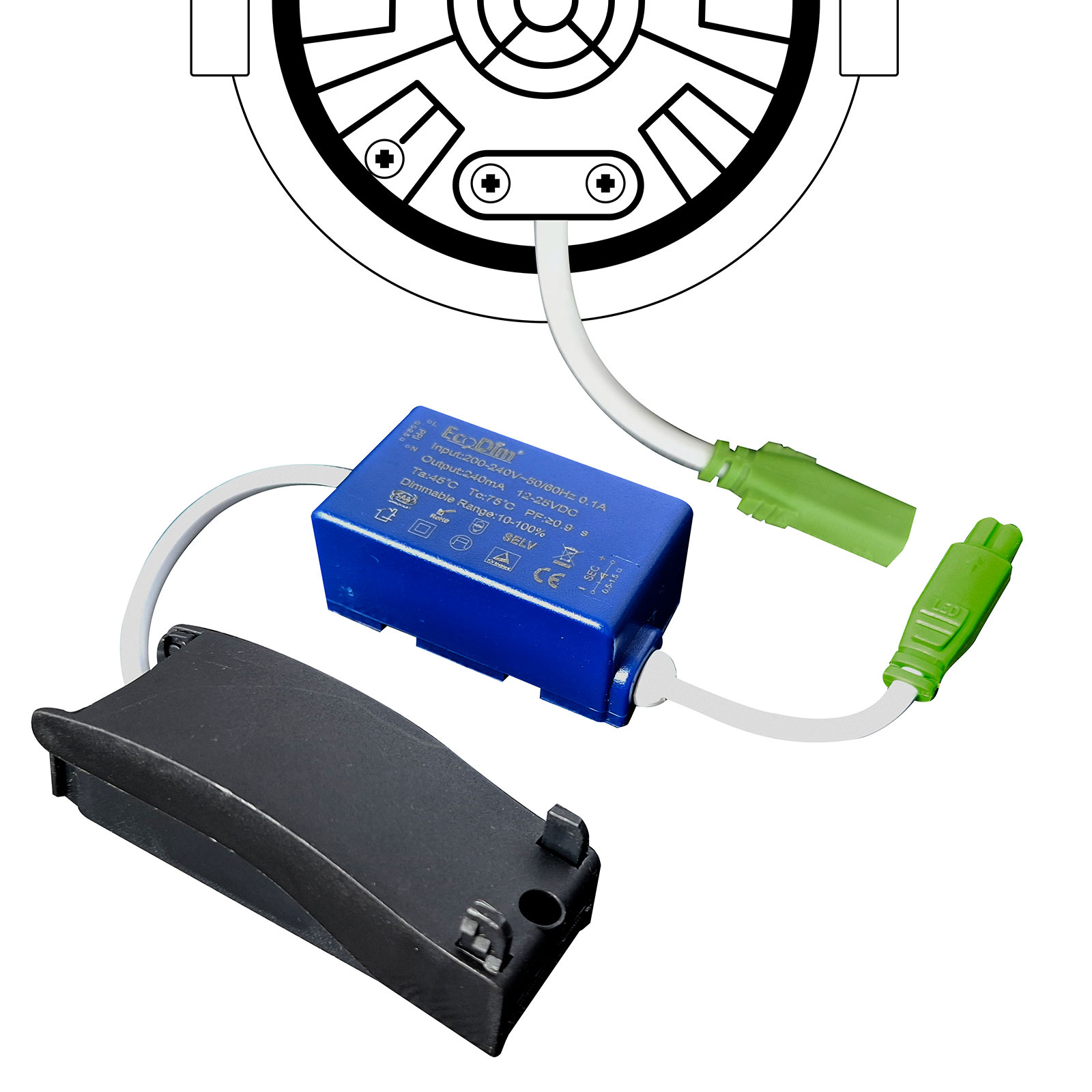

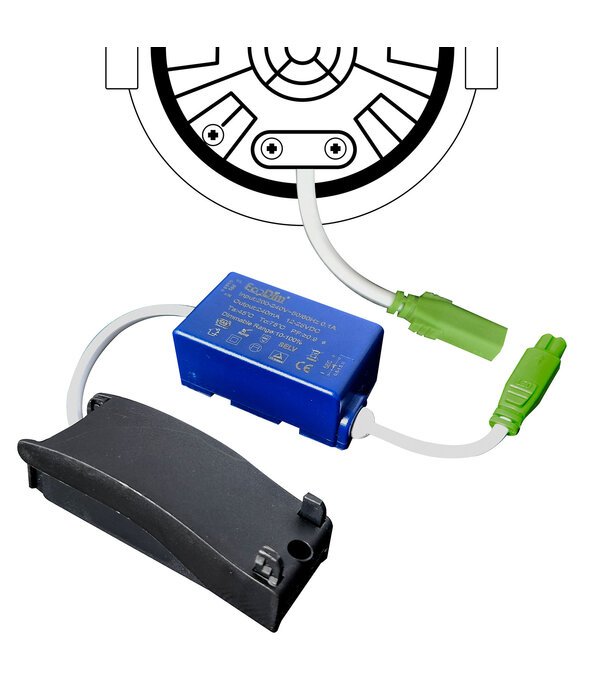

Supplied LED transformer:
Length: 95mm
Width: 38mm
Depth: 22mm

Input 220-240VAC / Output 14-25VDC
Connectable directly to 230V.

Product specifications

Brand: EcoDim
Power (wattage): 5 watts
Voltage (input): 220 - 240V
Dimming technology: Phase cut-off / RC / Tronic
Operation: N/A
Dimensions in mm (outer dimensions frame): N/A
Installation dimensions in mm (fits any flush-mounted box): N/A
Packaging: Each
Warranty: 2 years
Article number: ED-10029
Item number 2BA: ED-10029
Download manual: https://cdn.webshopapp.com/shops/68389/files/389156933/20210430-handleiding-a4-ondiepe-inbouwspots.pdf
Philips HUE manual:
Datasheet
