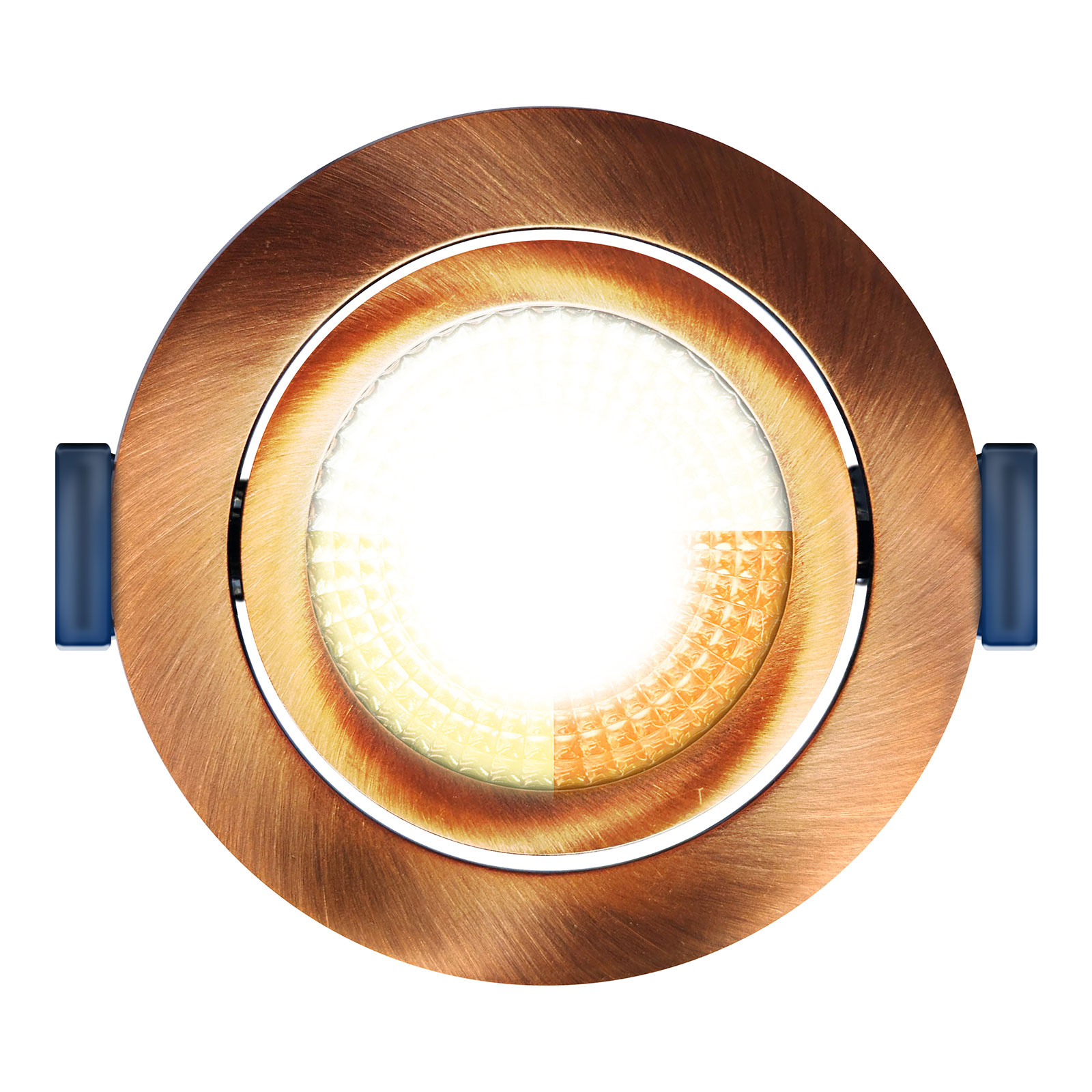

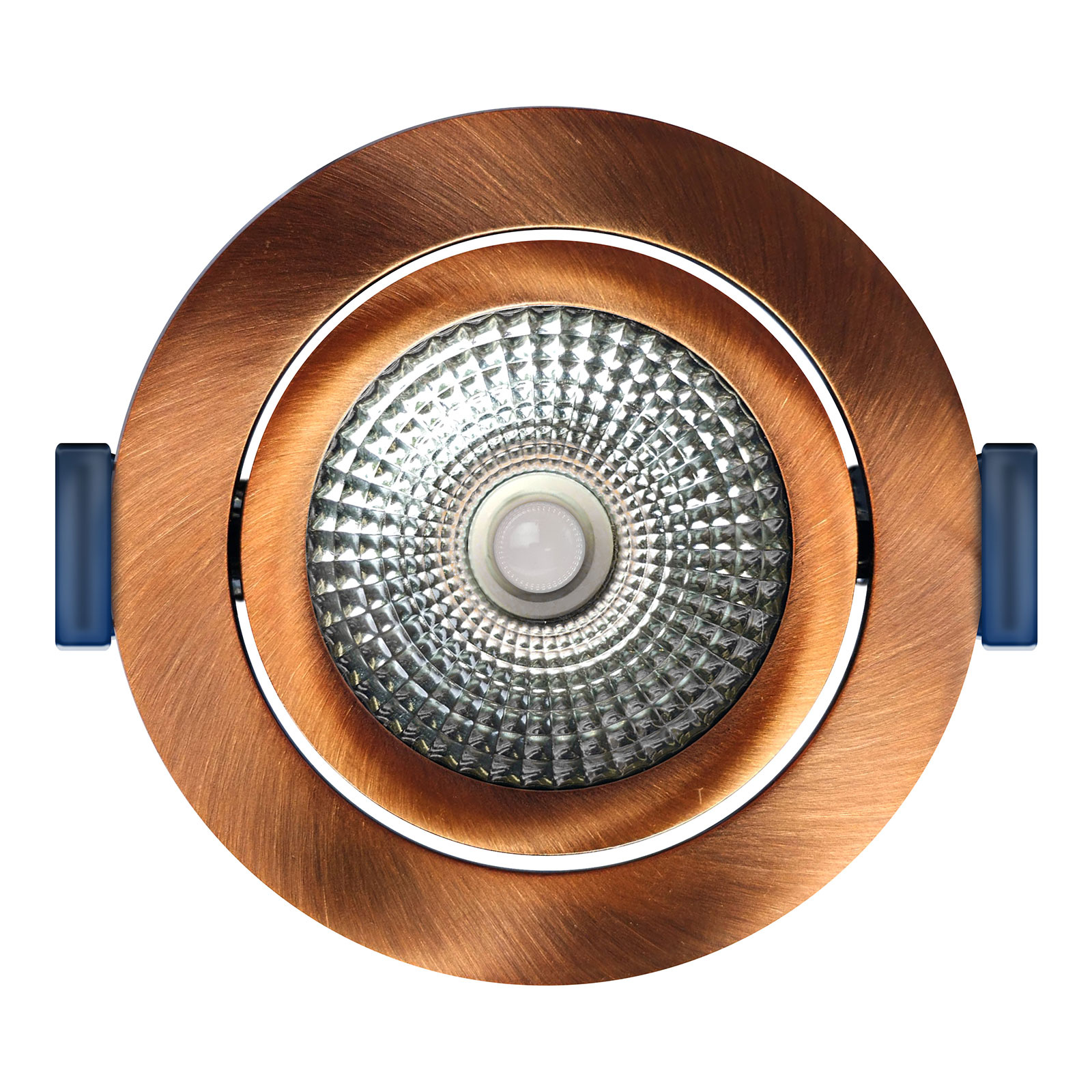

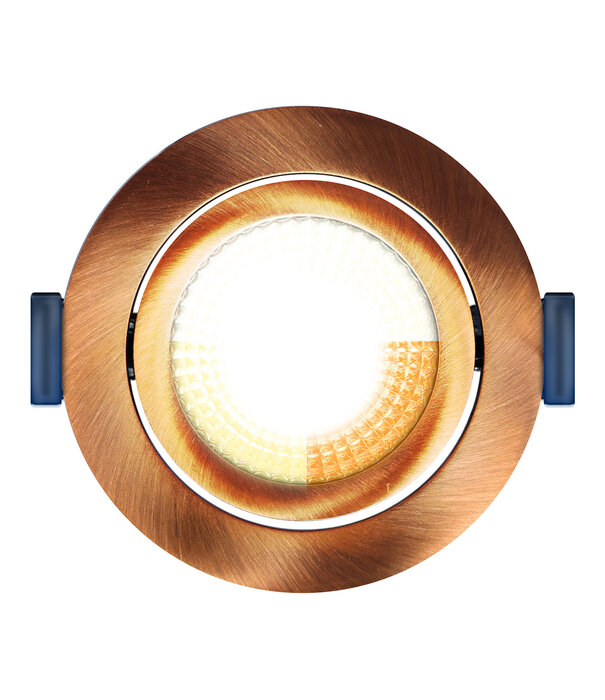

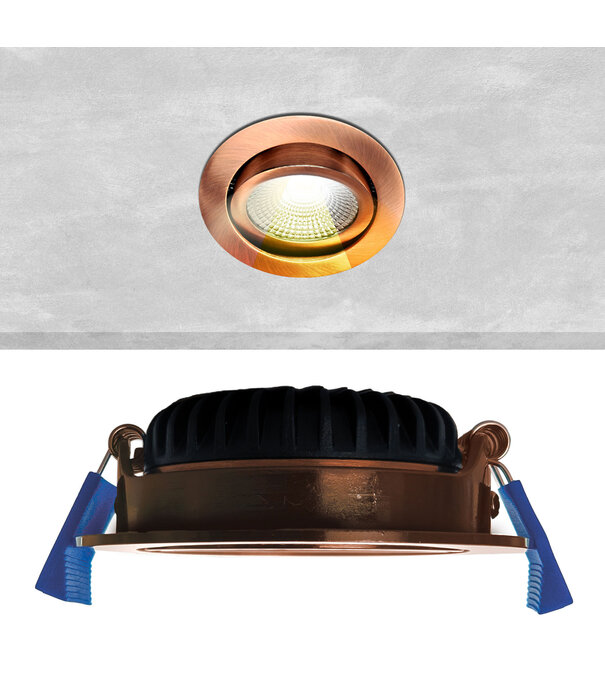

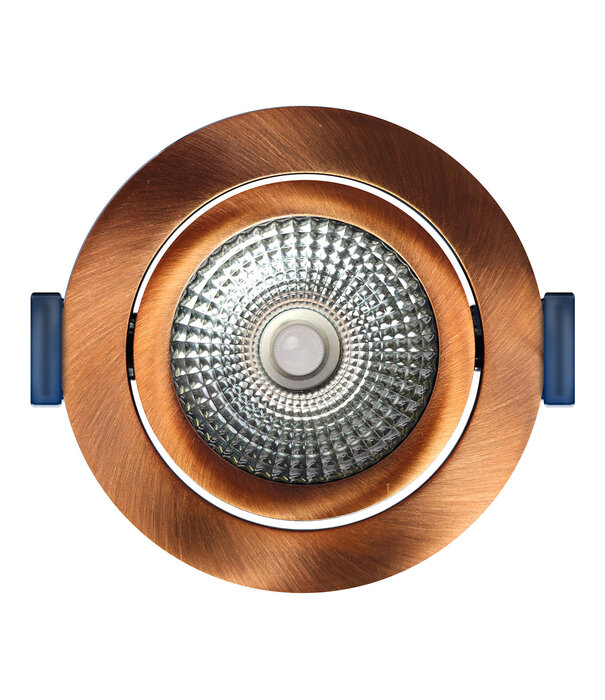

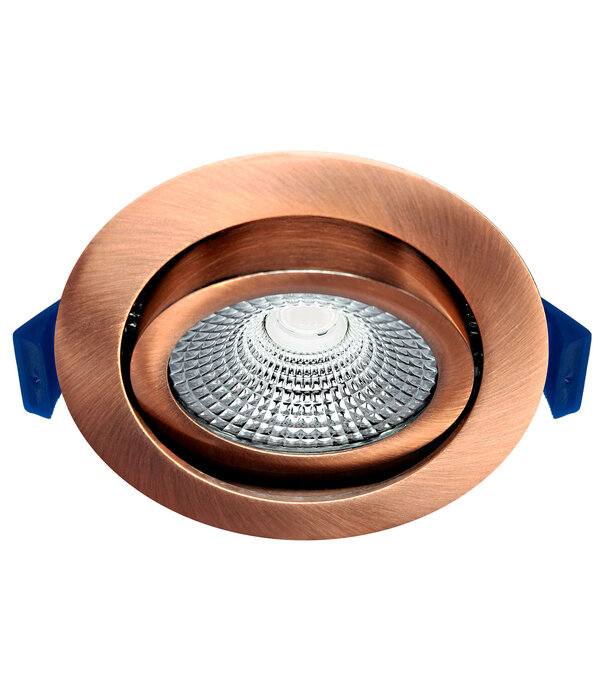

ED-10103 Led recessed spotlight small recessed depth IP54, CCT 2700K/3000K/DTW, round, brushed copper, 75mm

✓ Small built-in depth (23mm) and compact transformer (49x49x23mm)
✓ Power: 5W (450 lumens) / 7W (600 lumens) (adjustable with slider on transformer)
✓ IP54 (Splash and dust proof, Suitable for bathroom)
✓ Dimmable to 5%

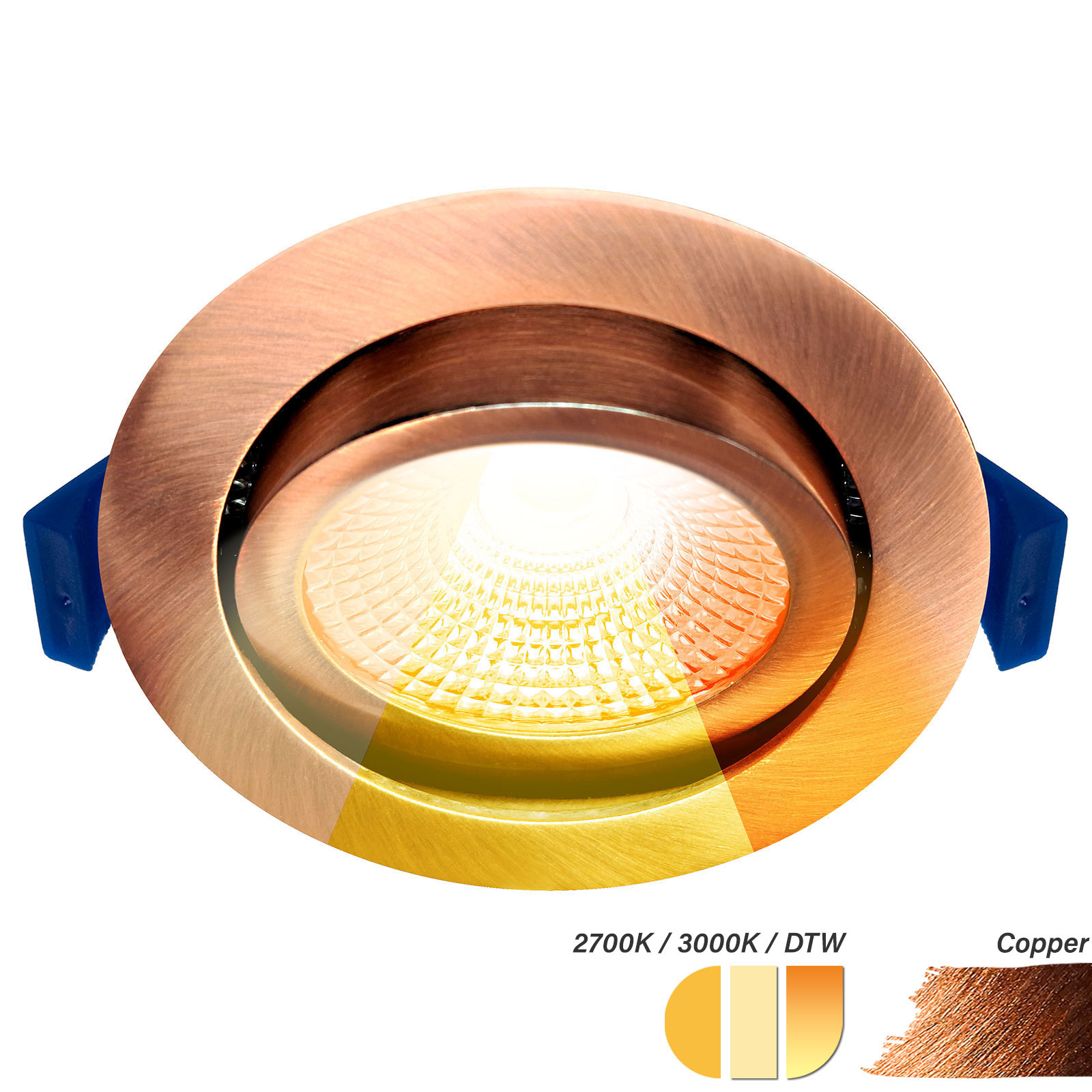

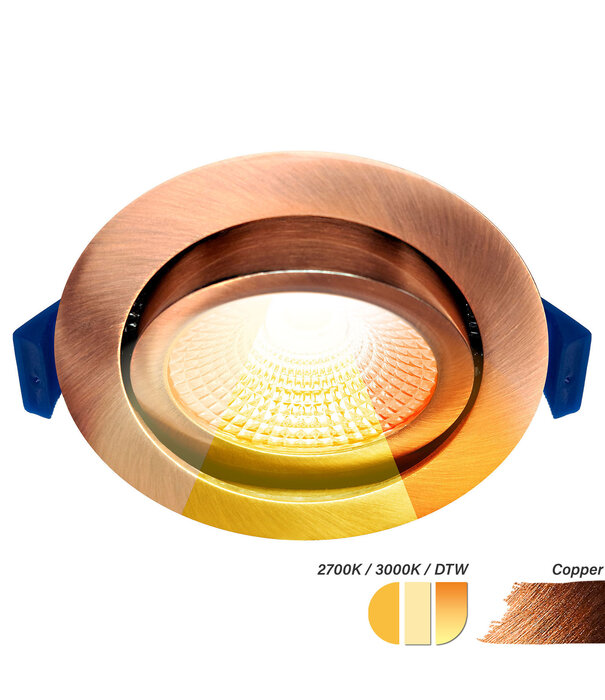

✓ 2700K, 3000K, dim to warm (3000K-2000K) (adjustable with slider on transformer)
✓ Brushed copper, round

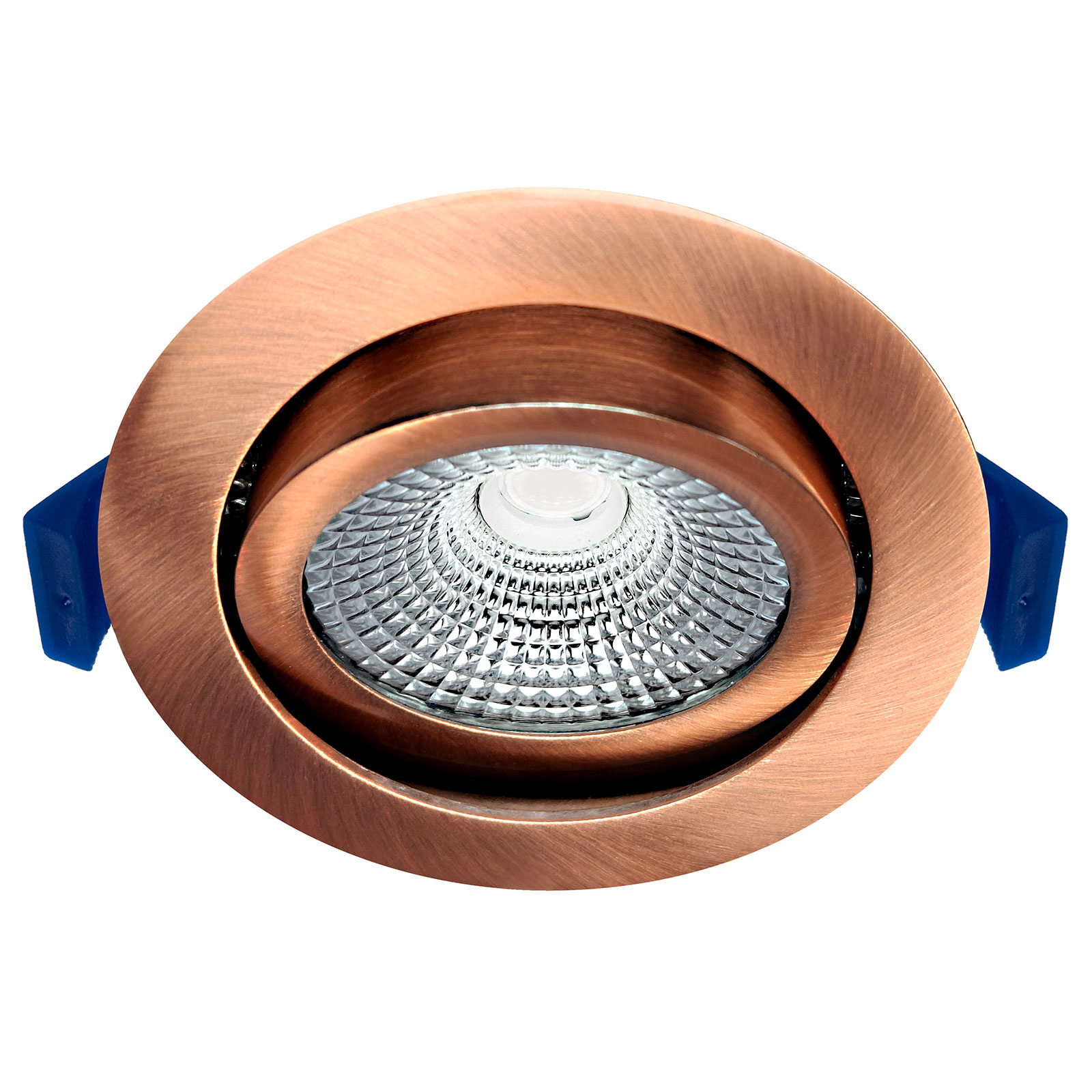

✓ Tiltable
✓ Good light distribution (60⁰)
✓ COB chip & Reflective Technology
✓ High colour fastness (CRI90)
✓ Transformer included (can be connected to 230V)
✓ Simple & safe 2-wire daisy-chaining
✓ 90% savings

Key features of this copper, round LED recessed spotlight are its IP54 rating (splash and dust proof), its small recessed depth (23 mm) and its excellent dimmability. Unique is the compact junction box with double clamp connector, which makes it easy and safe to realise a parallel connection. Excellent dimmability with all EcoDim LED dimmers. The light colour is easy to change with the slider on the LED transformer.

Cutting size: Ø75mm
Outer edge: Ø85mm

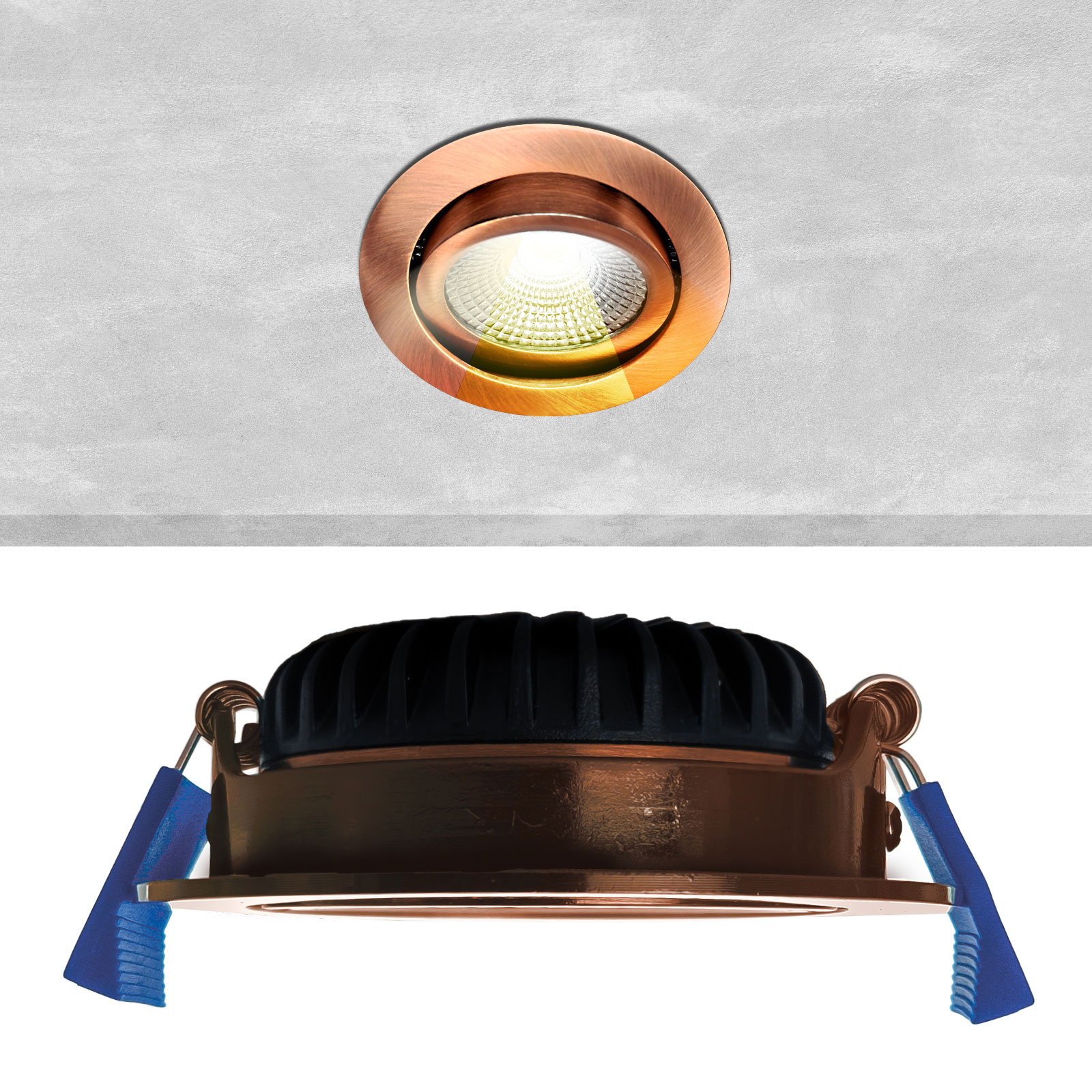

Recessed depth: 23mm

Spot light source: Ø46mm
Spot incl. tilting ring: Ø59mm

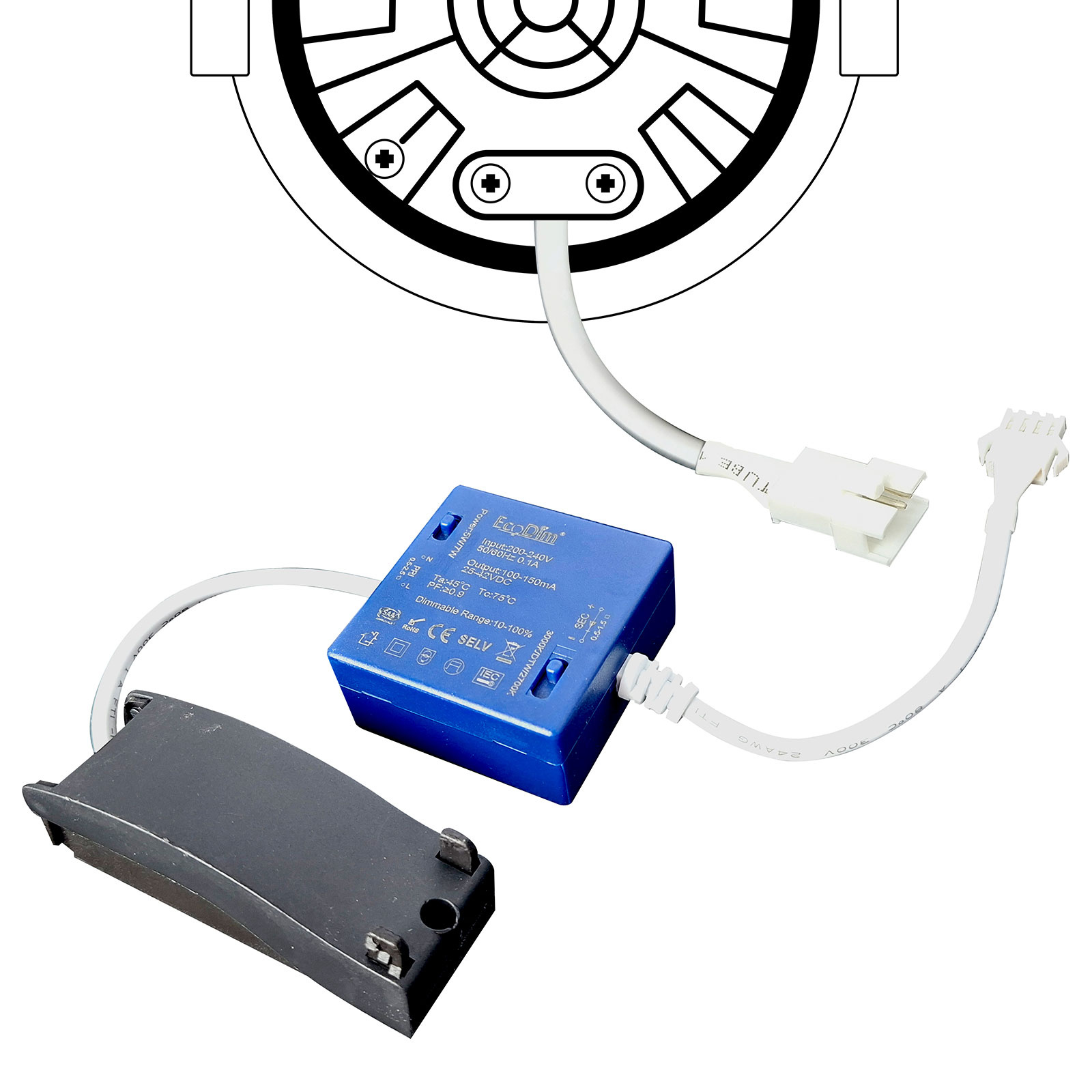

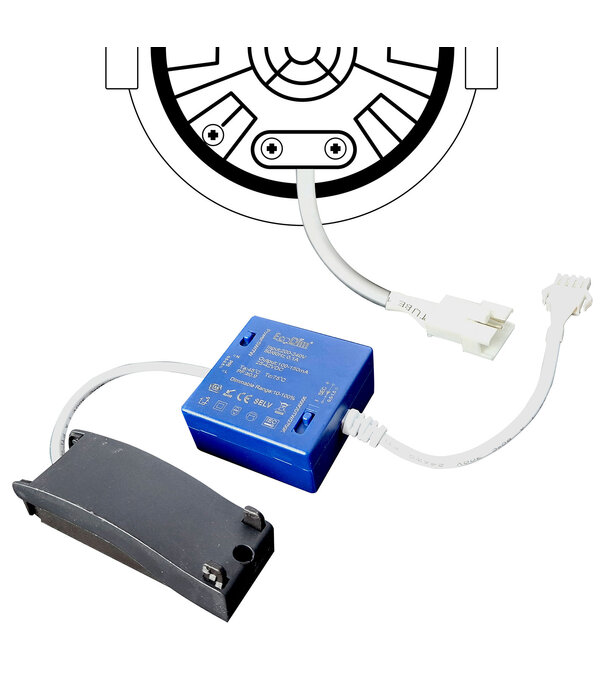

Supplied LED transformer:
Length: 49mm
Width: 49mm
Depth: 23mm

Input 220-240VAC / Output 14-25VDC
Can be connected directly to 230V.

General information

Wattage: 5W/7W
Lumen: 450 lumens/600 lumens
CRI: >90
Light angle: 60⁰
Voltage: 230V
Dimmable: Yes
Lifespan: 50,000 hours
