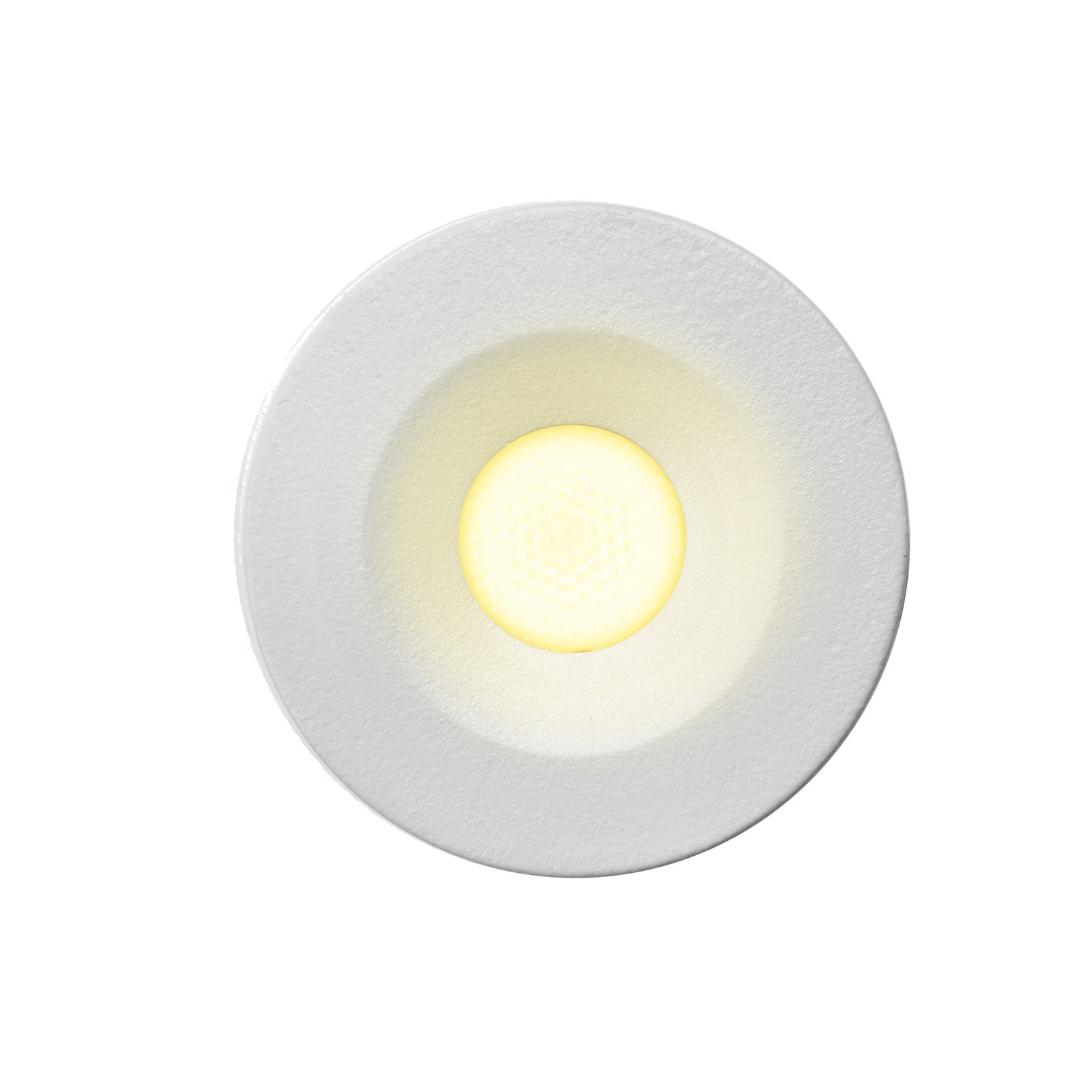

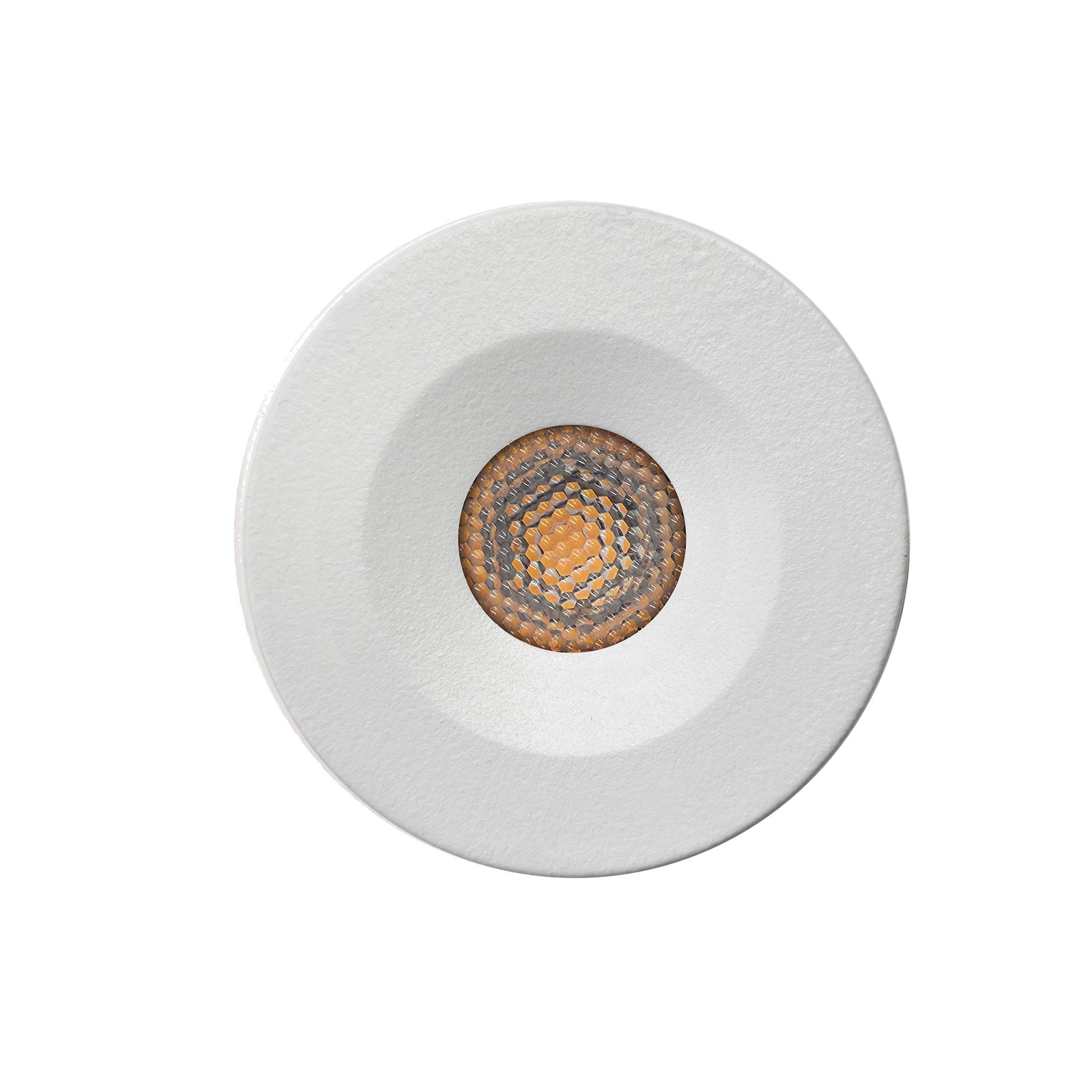

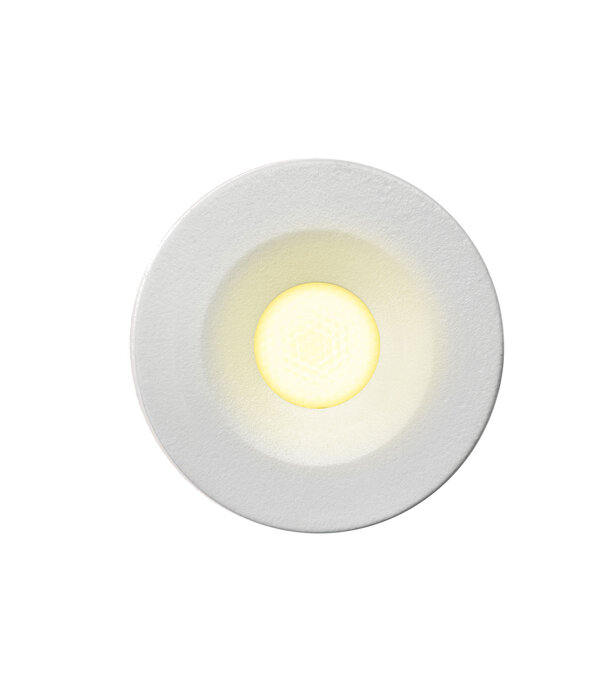

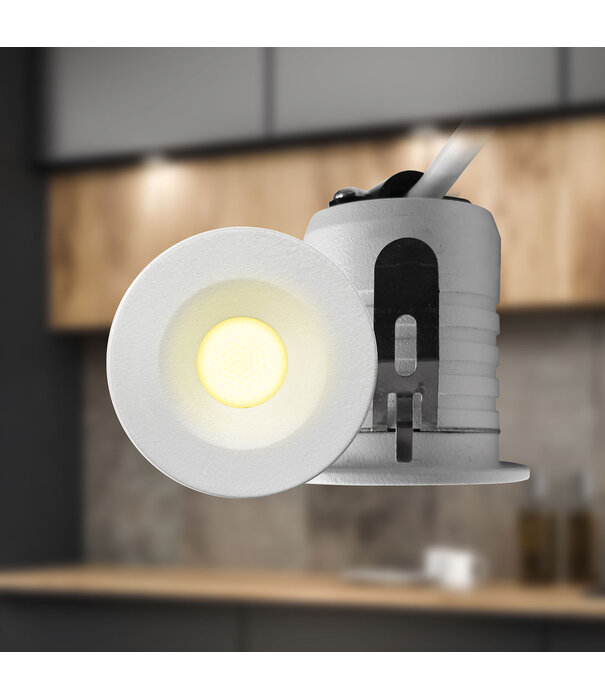

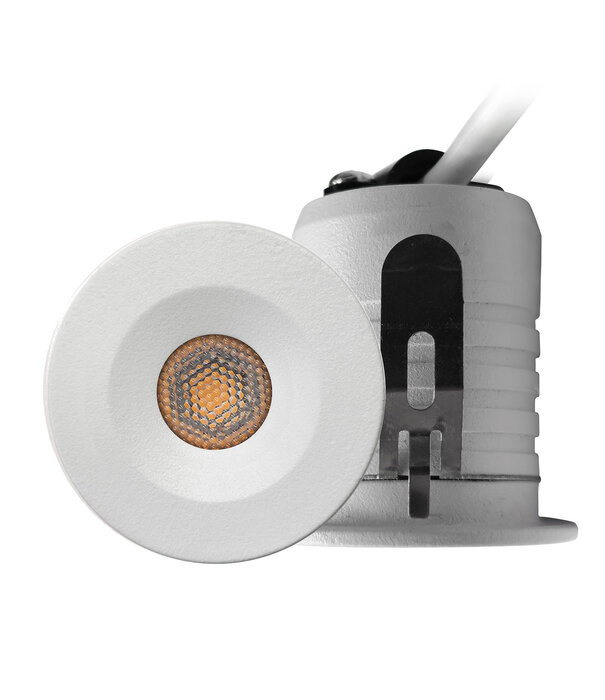

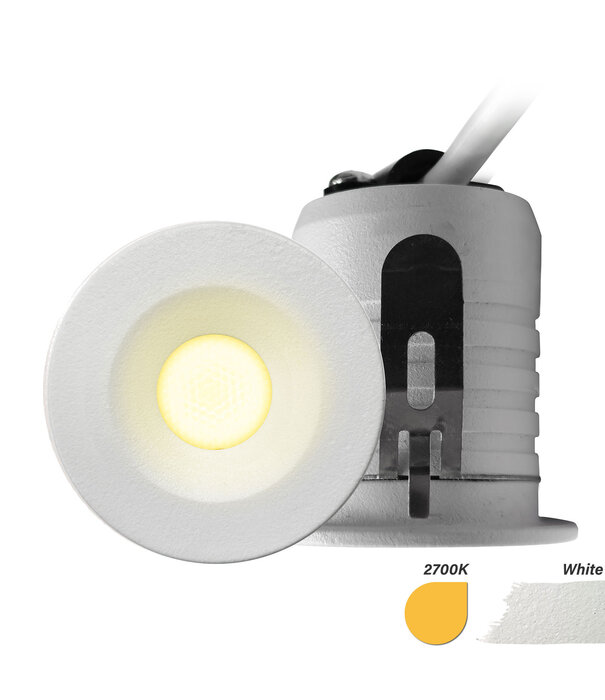

ED-10105 Led recessed spotlight mini, IP67, warm white, round, white, 28mm

  1. Home
  2. Robri ed-10039
  3. ED-10105 Led recessed spotlight mini, IP67, warm white, round, white, 28mm
Brand:
EcoDim
Article code:
ED-10105
EAN:
08719322376398
SKU:
ED-10105
Hier verkrijgbaar
Alle downloads

Product description

✓ Small installation size (Ø28mm)
✓ Power: 3W (270 lumens)
✓ IP67 (Dustproof and waterproof, suitable for bathrooms, outdoor areas, etc.)
✓ Dimmable to 5%

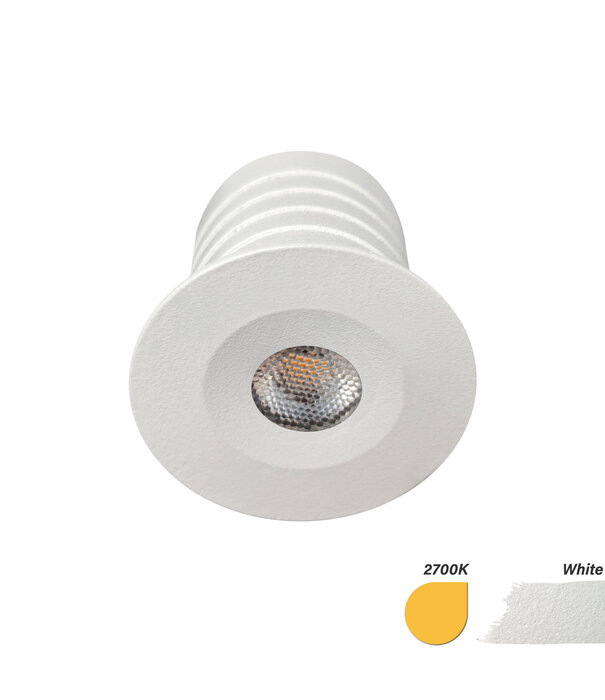

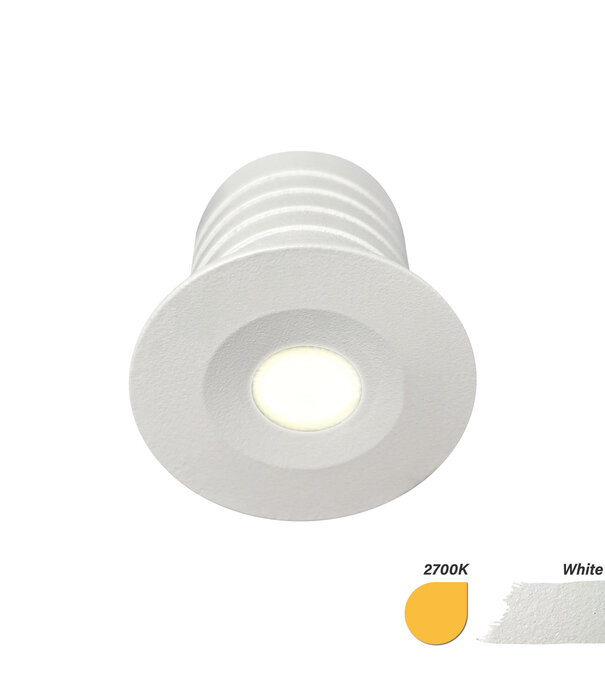

✓ 2700K (warm white)
✓ White, round
✓ Good light distribution (30⁰)
✓ High colour rendering (CRI95)
✓ Includes 2-metre connection cable (earth wire, neutral wire and live wire)
✓ 90% savings
✓ Suitable for narrow beams, such as those found on a veranda or canopy
✓ Also available in black and anthracite.

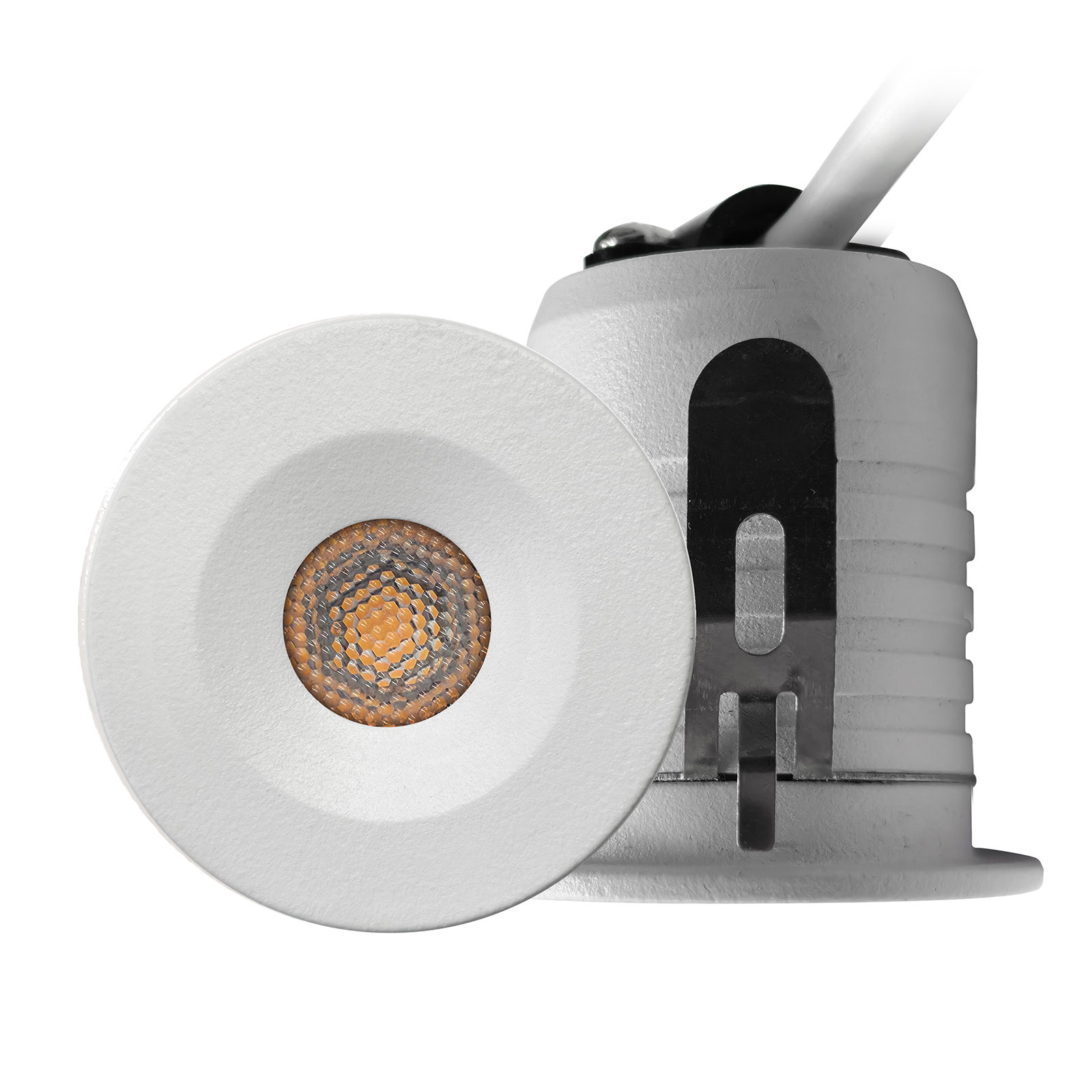

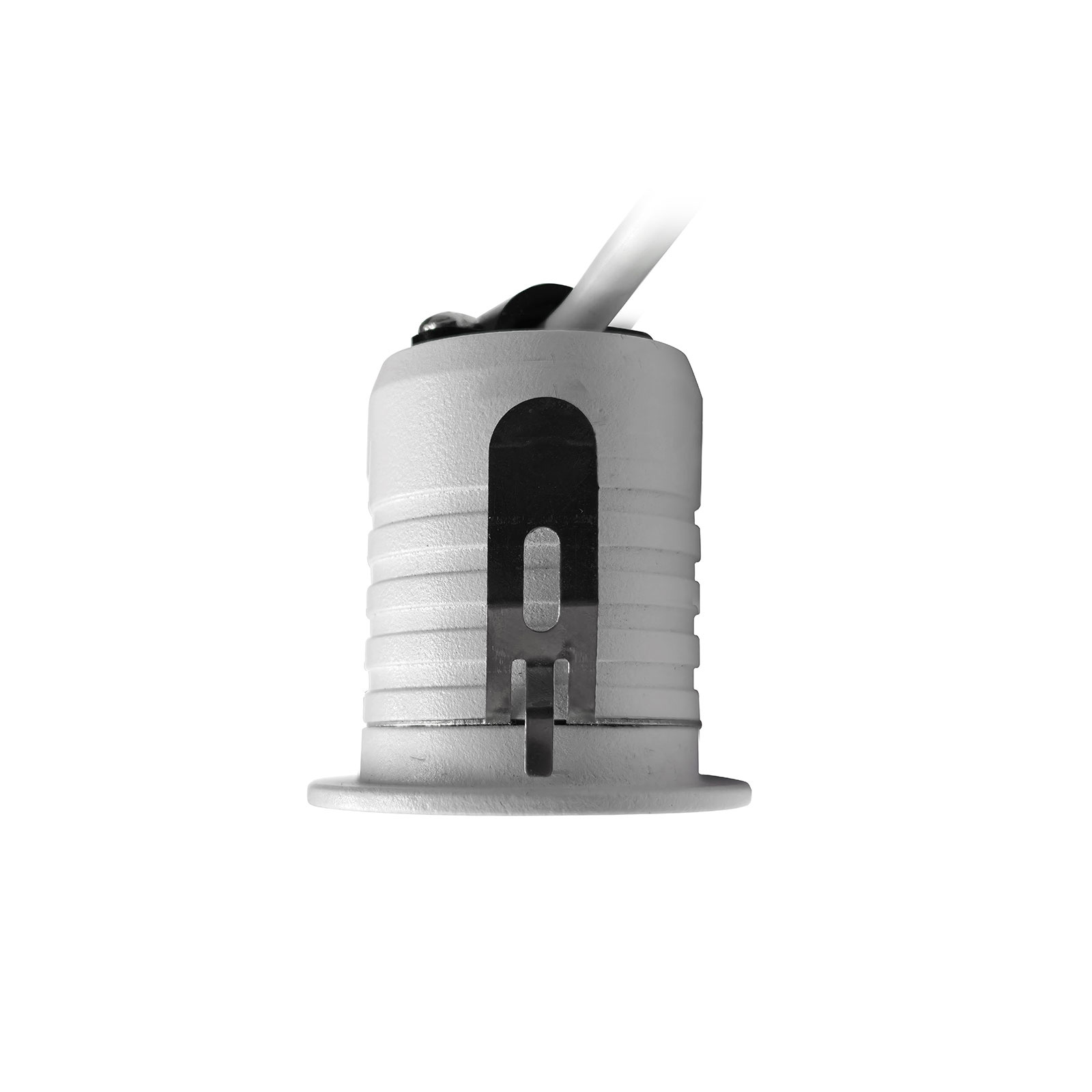

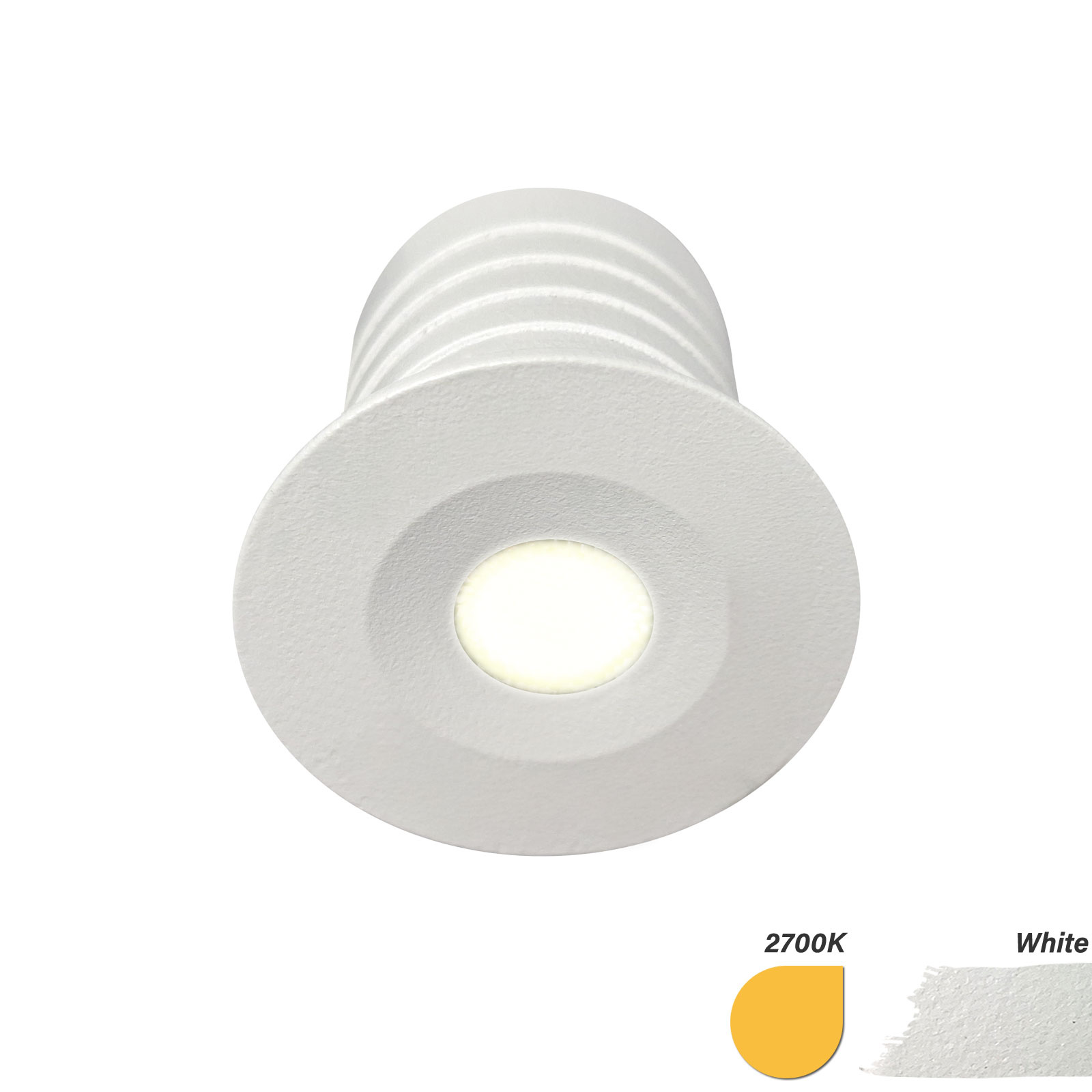

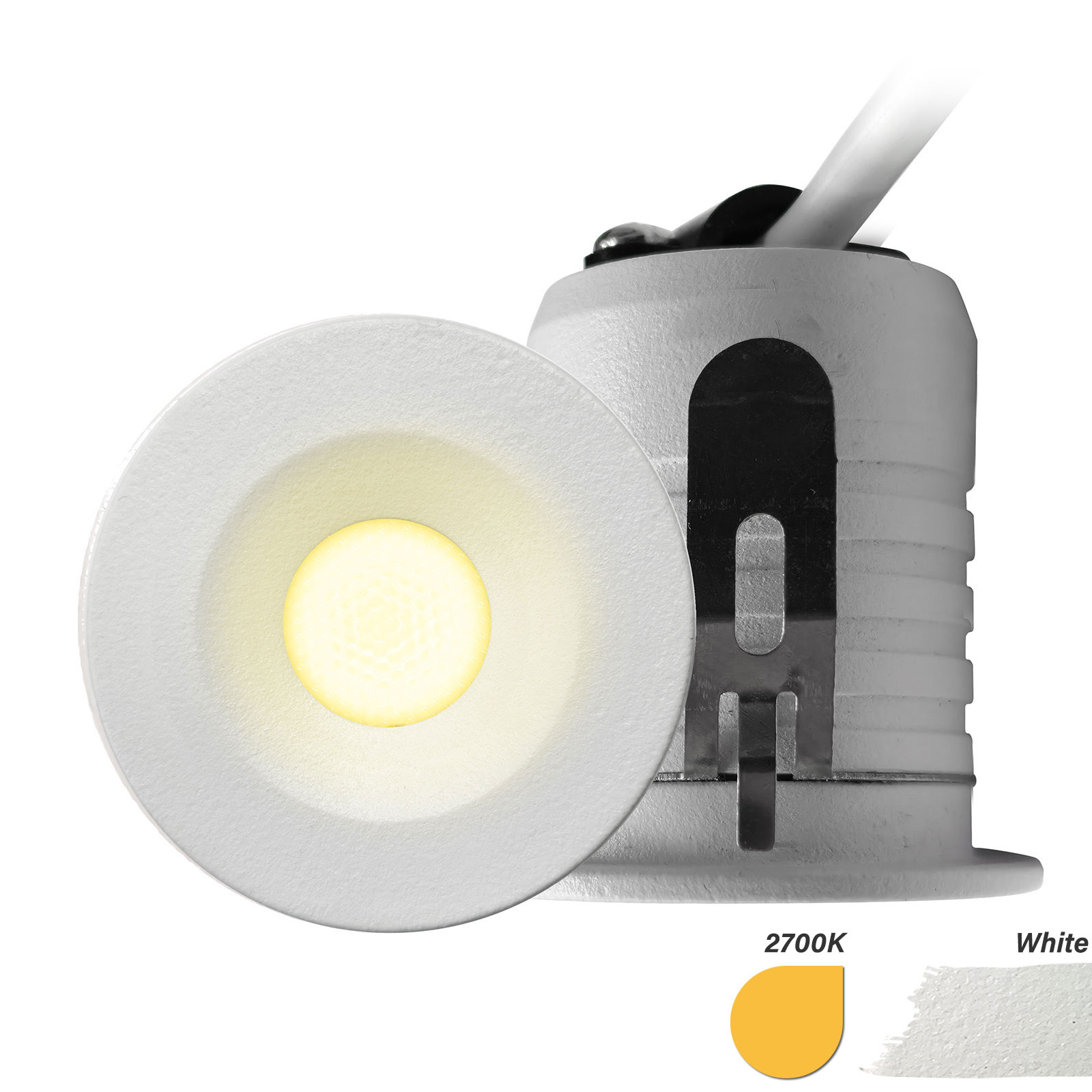

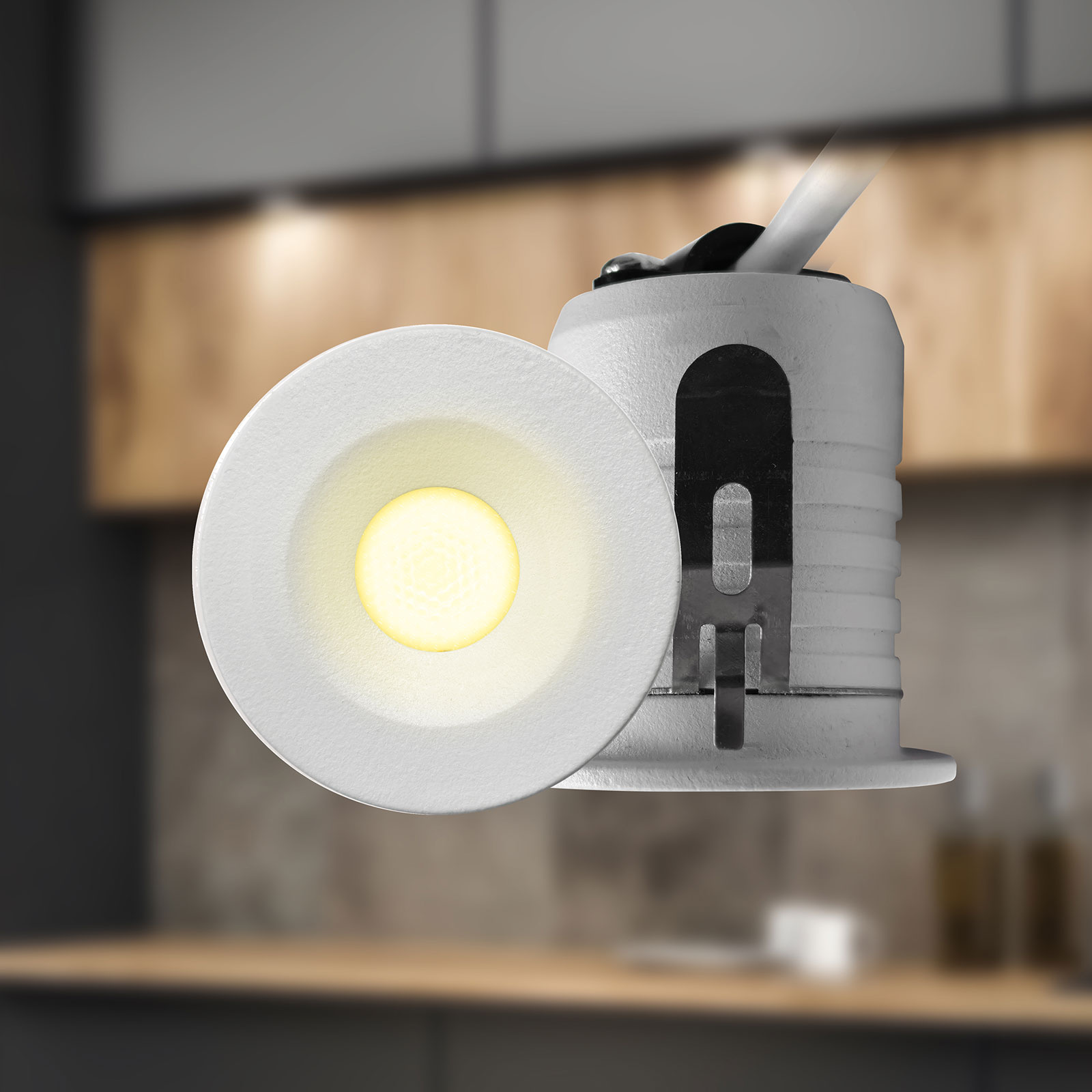

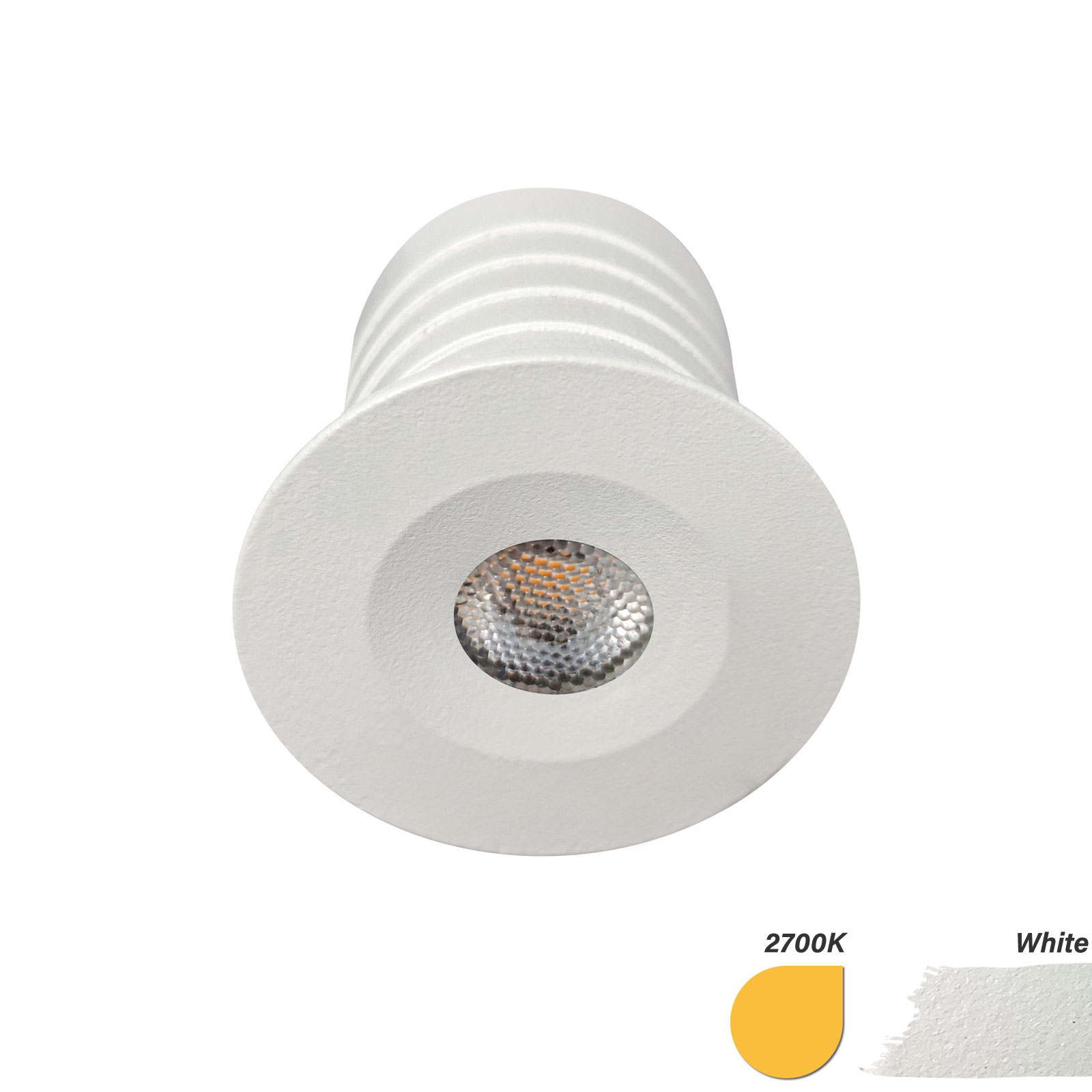

This white mini recessed spotlight is perfect for installation in places with limited space, such as narrow beams on a veranda or canopy, thanks to its small installation size (Ø28mm). The round mini recessed spotlight is dustproof and waterproof (IP67) and is excellently dimmable up to 5%. The spotlight works perfectly with EcoDim LED dimmers. The spotlight comes with a 2-metre connection cable (earth wire, neutral wire and live wire). The light colour is 2700K (warm white).

Cut-out size: Ø28mm
Outer edge: Ø35mm

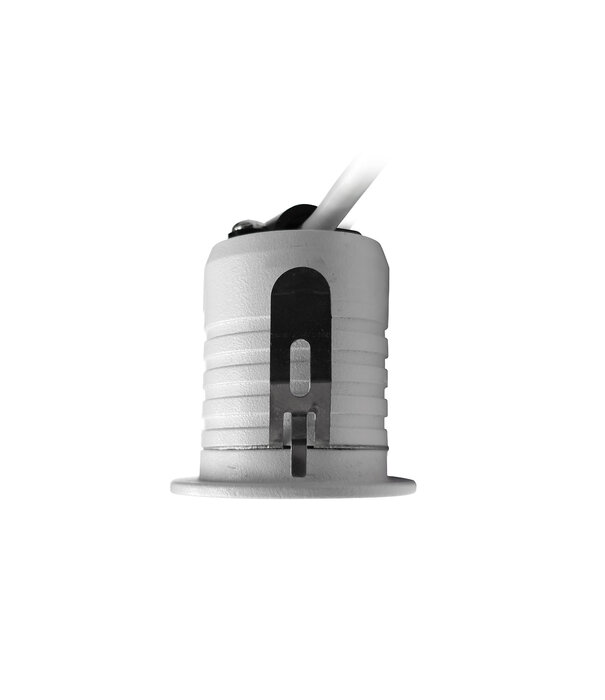

Recessed depth: 38mm

Spot light source: Ø12mm

Connection cable included: 2 metres

Input 220-240VAC
Can be connected directly to 230V.

General information

Wattage: 3W
Lumen: 270 lumen
CRI: >95
Light angle: 30⁰
Voltage: 230V
Dimmable: Yes
Lifespan: 50,000 hours

Product specifications

Brand: EcoDim
Power (wattage): 3 Watt
Voltage (input): 230V
Dimming technology: Phase cut-off (RC)
Operation: Not applicable
Dimensions in mm (outer dimensions frame): Not applicable
Installation dimensions in mm (fits any flush-mounted box): Not applicable
Packaging: Per item
Warranty: 2 years
Article number: ED-10105
Item number 2BA: ED-10105
Download manual
