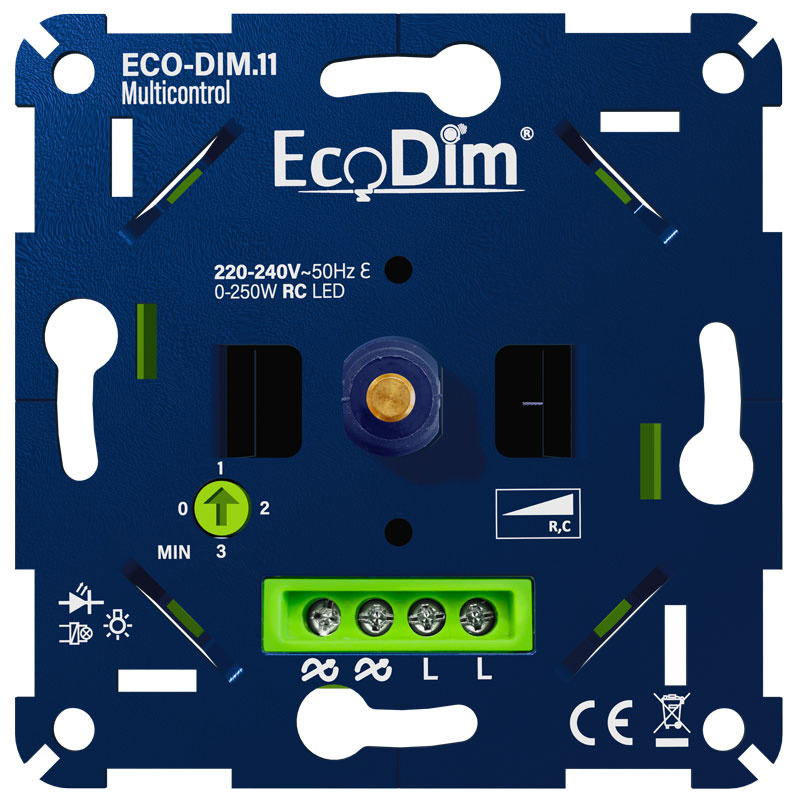

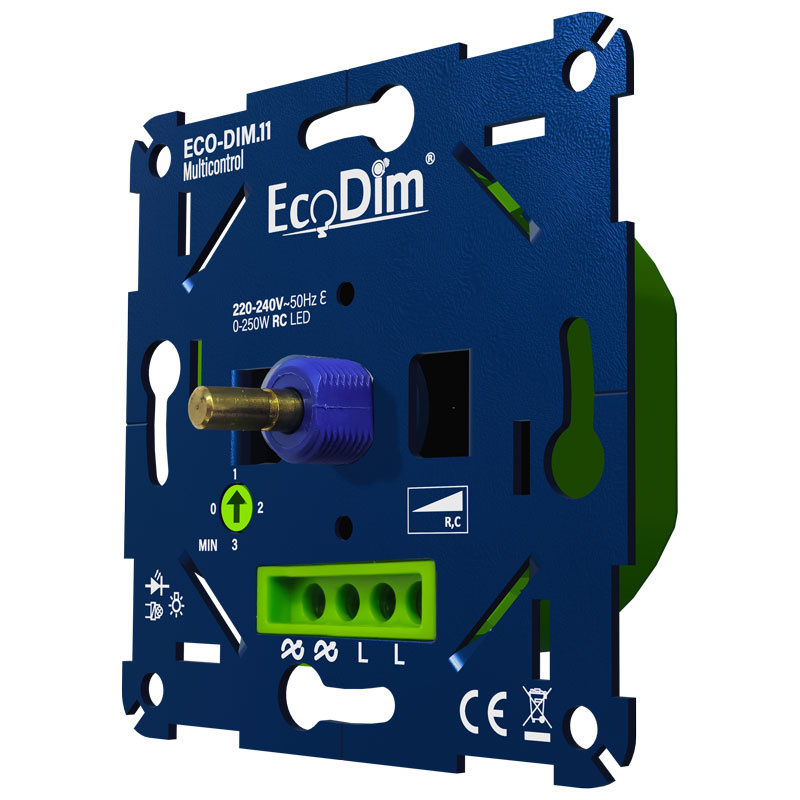

ECO-DIM.11 Multicontrol led dimmer universal 0-250W (RC)

  1. Home
  2. ECO-DIM.11 Multicontrol led dimmer universal 0-250W (RC)
Brand:
EcoDim
Article code:
ECO-DIM.11
EAN:
8719322373144
Video
Hier verkrijgbaar
Alle downloads

Product description

Suitable for two-way switching with several dimmers
0-250W LED
✓ Phase cut-off (RC)
✓ Suitable for all A-brands of cover material
Small mounting depth
Optimal dimmability & light stability
MIN adjustment & automatic MAX detection
✓ Protection against overload, overheating & interference signals
✓ Installation with existing 2 wires (no neutral wire required)
Silent dimming
Soft-start system
✓ Supplied with fittings



General information

Article number: ECO-DIM.11
Type of LED dimmer: Trailing Edge / Phase cut / R,C
Power: 0-250 Watt LED RC
Control: Push/ turn
Packaging: Individually packed
Dimensions: 71x71x23mm

Suitable brands of cover material

  • Berker by Hager
  • Busch-Jaeger
  • Gira
  • JUNG
  • Kopp
  • Merten by Schneider
  • PEHA
  • Niko

Not suitable:

  • Merten 57xx and D-Life
  • Dimmer knob with D-shaped hole, such as Wintop, Plieger, GAMMA Everest
  • Dimmer knob with click system/clamp fixing, such as Busch-Jaeger 6540-7 and Niko XXX-31003

Suitable lamps

  • Led lamps 230V (max. 250W)
  • Incandescent lamps (max. 300W)
  • Halogen lamps 230V (max. 300W)
  • Low-voltage lamps with electronic transformer, such as LED lamps with transformer (max. 250W)

Note: This dimmer is suitable for installation as standalone or in two-way switching with several ECO-DIM.11 dimmers. It is not possible to use on/off switches, pulse switches or other types of dimmers in the changeover circuit. Therefore, use an ECO-DIM.11 at all switching points.

Product specifications

Brand: EcoDim
Power (wattage): 0-250W LED (RC)
Voltage (input): 220 - 240V
Dimming technology: Phase cut-off / RC / Tronic
Operation: Push/swivel switch
Dimensions in mm (outer dimensions frame): N/A
Installation dimensions in mm (fits any flush-mounted box): 71x71x23mm
Packaging: Each
Warranty: 2 years
Article number: ECO-DIM.11
Item number 2BA: ECO-DIM.11
Download manual: https://cdn.webshopapp.com/shops/68389/files/402349842/eco-dim11-manual.pdf
Philips HUE manual:
Datasheet
