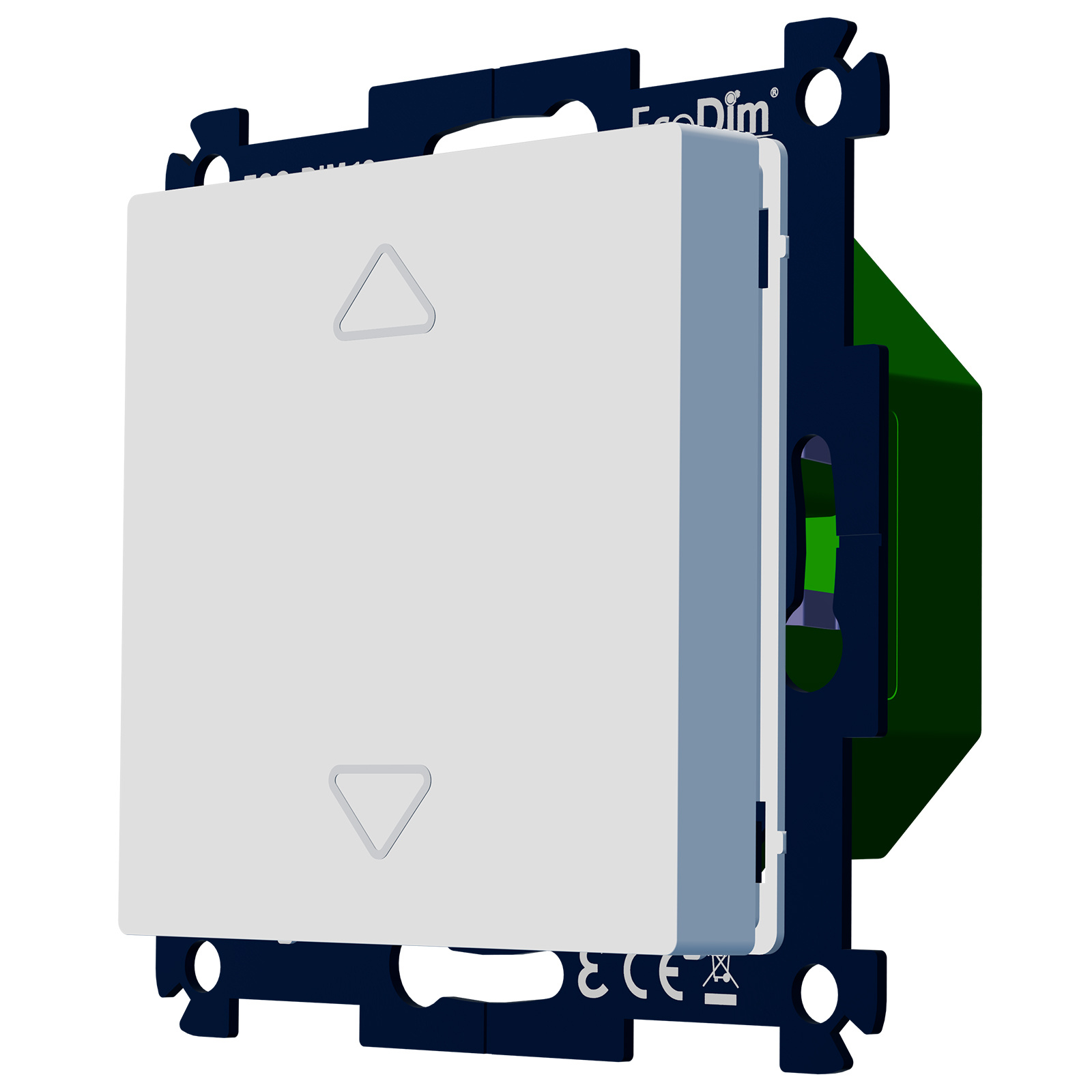

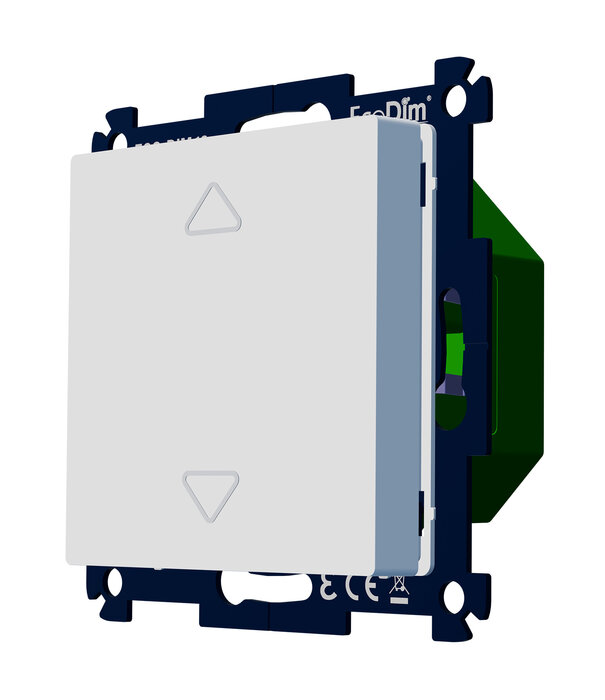

ECO-DIM.18 LED touch / push dimmer 0-250W (RLC)

✓ Touch dimmer / push dimmer
✓ 0-250W LED
✓ Universal: leading edge and trailing edge (RLC)
✓ Suitable for all pulse push buttons from well-known brands

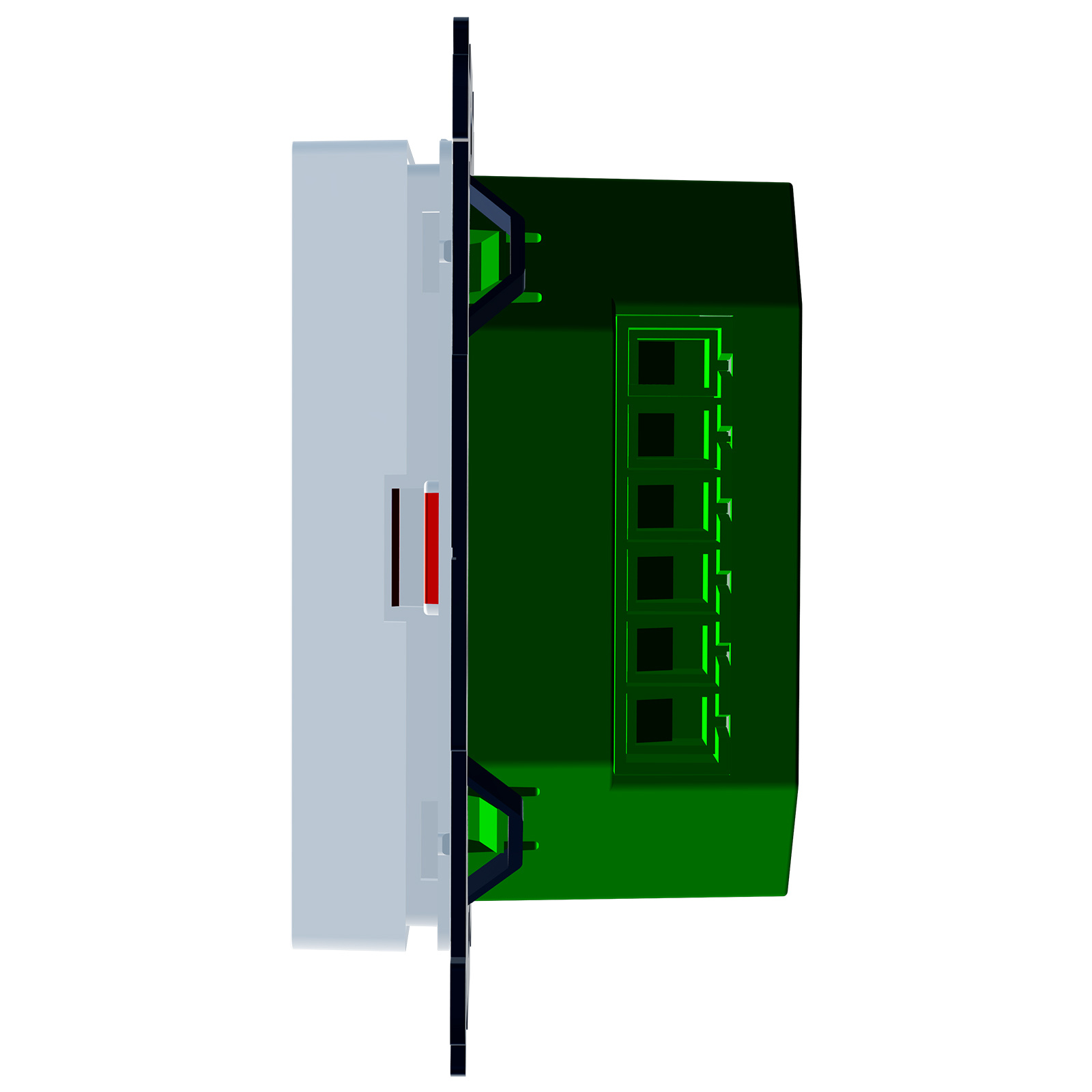

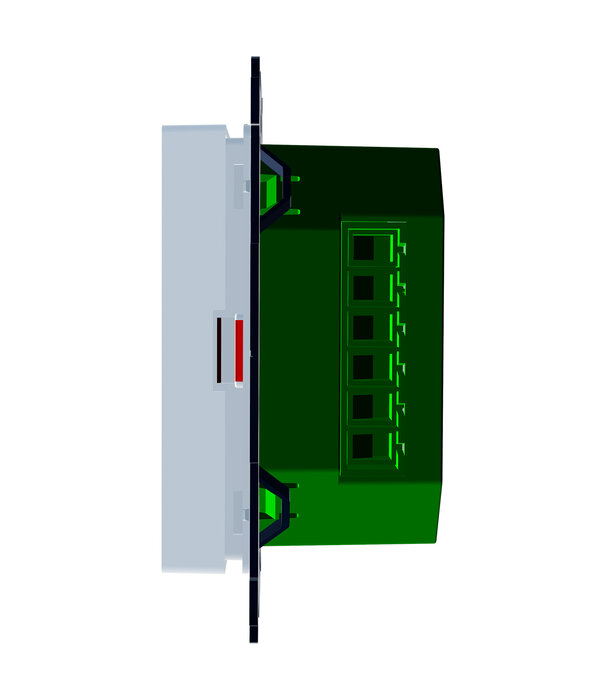

✓ Low installation depth (23 mm)
✓ Optimal dimmability and light stability

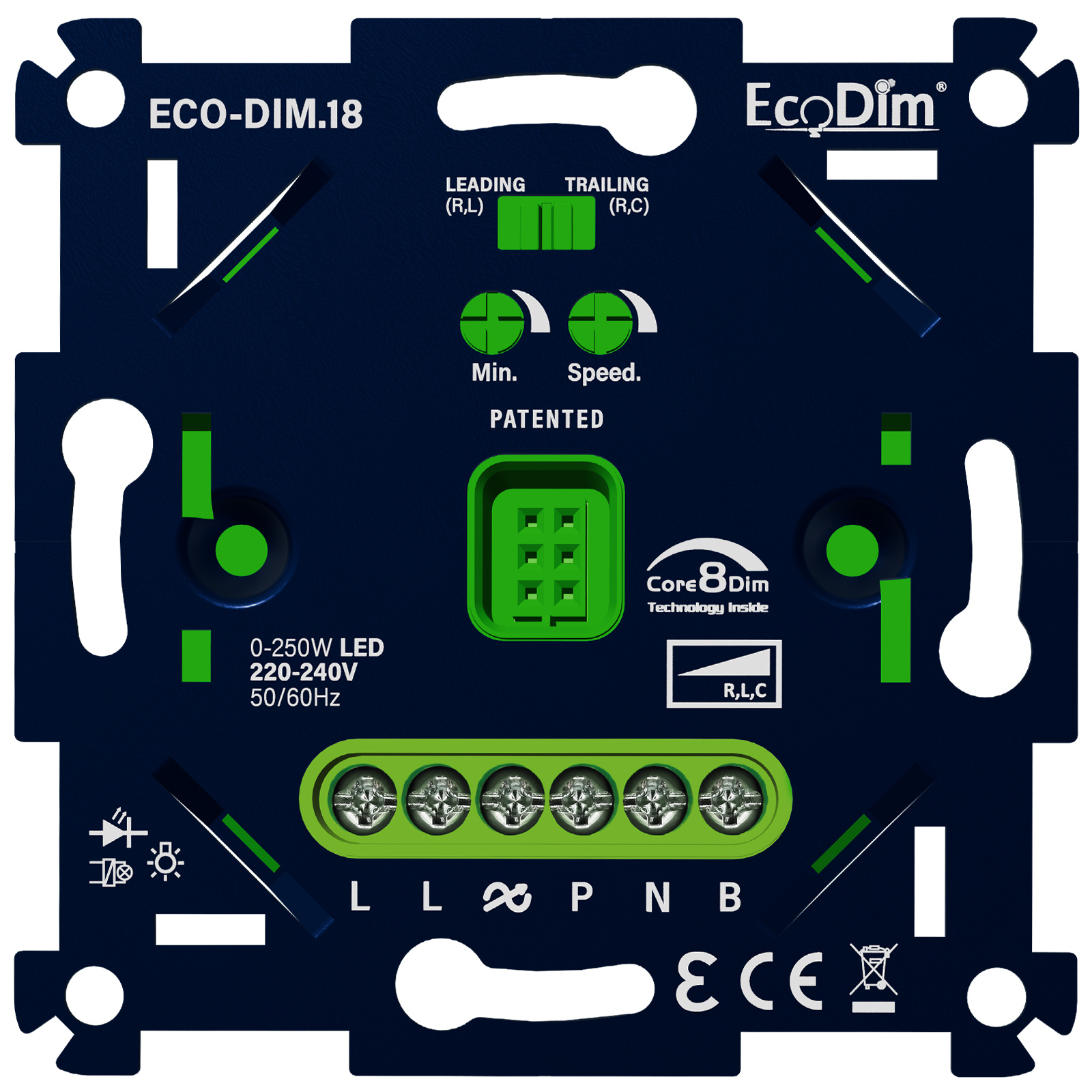

✓ MIN setting, automatic MAX detection
✓ Speed control
✓ Protection against overload, overheating and interference signals
✓ Silent dimming

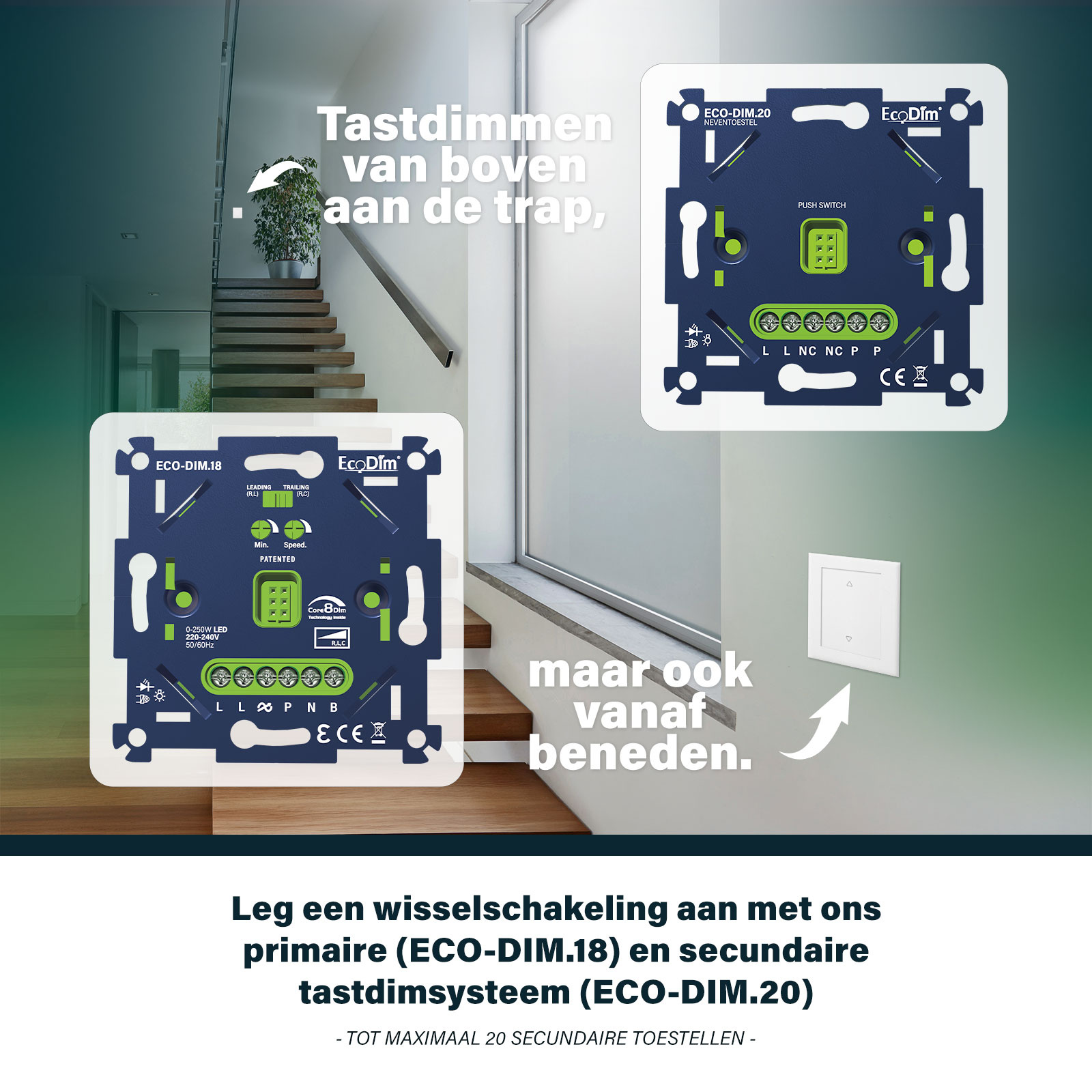

✓ Suitable for changeover and cross connection with auxiliary device (ECO-DIM.20) or pulse push button
✓ Phase conductor can be connected (double L connection)
✓ Suitable for all dimmable LED lamps
✓ Soft start system

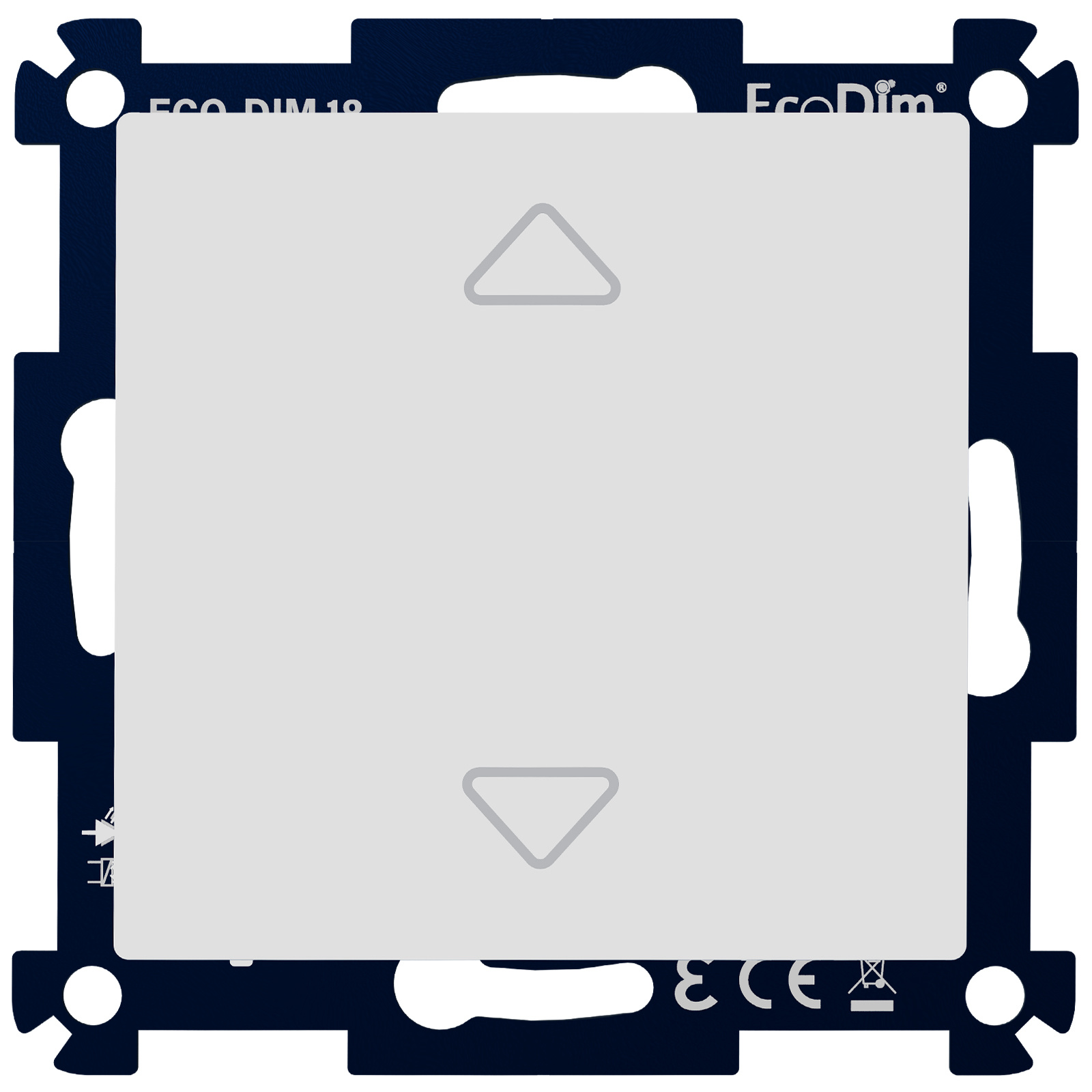

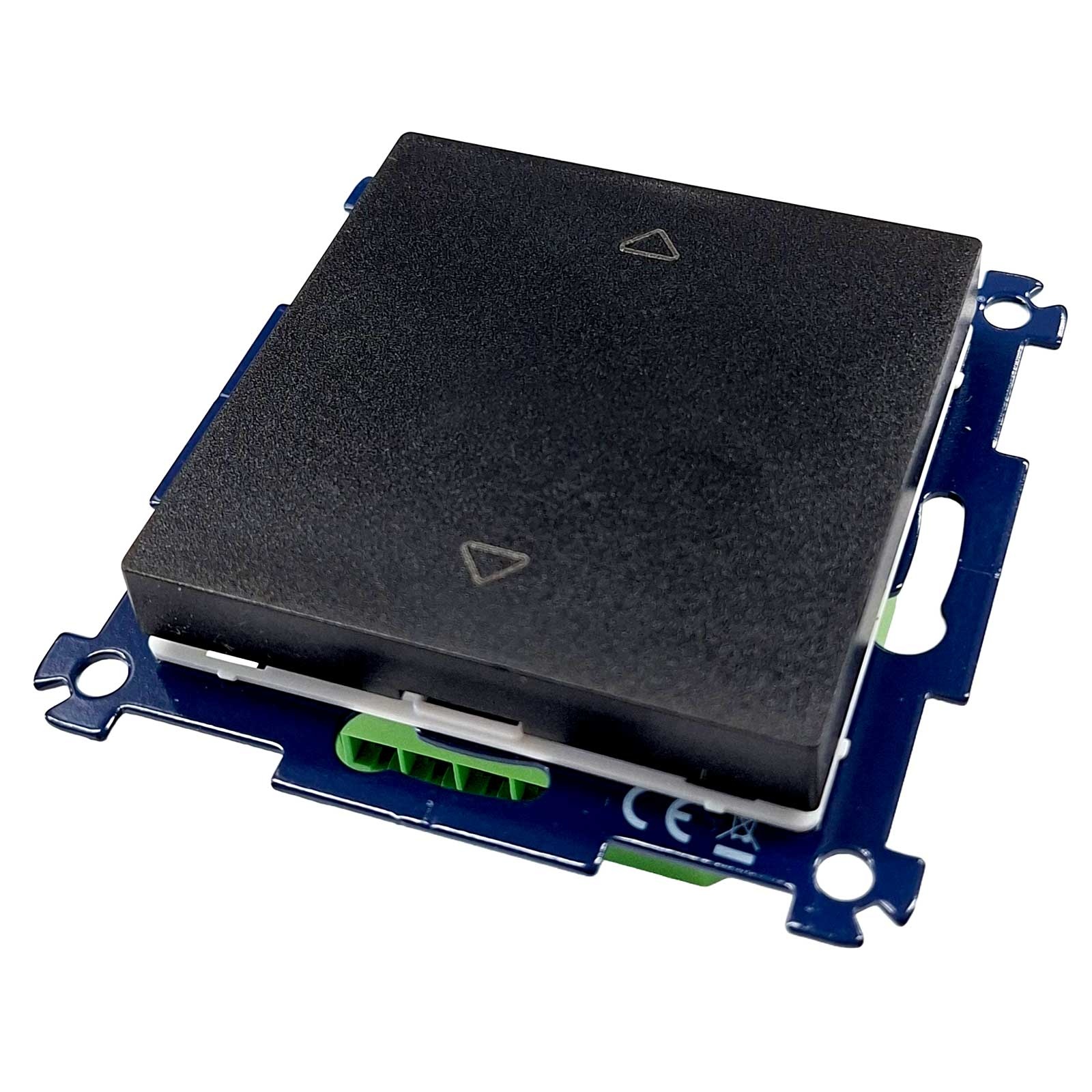

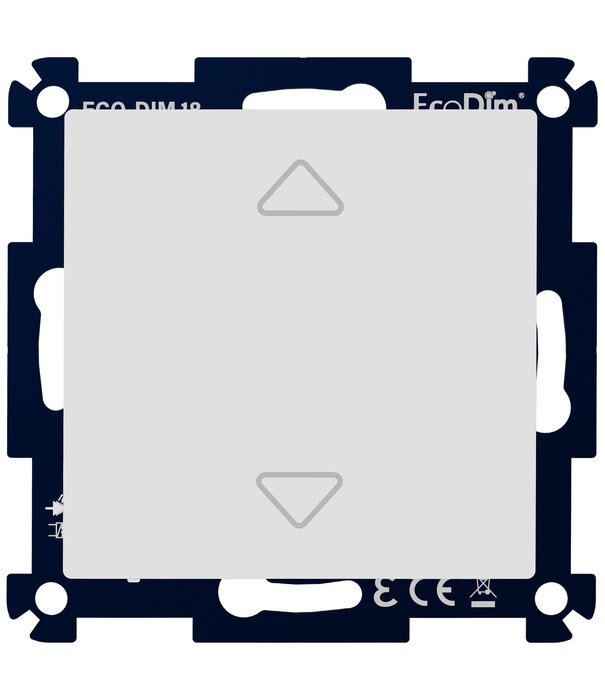

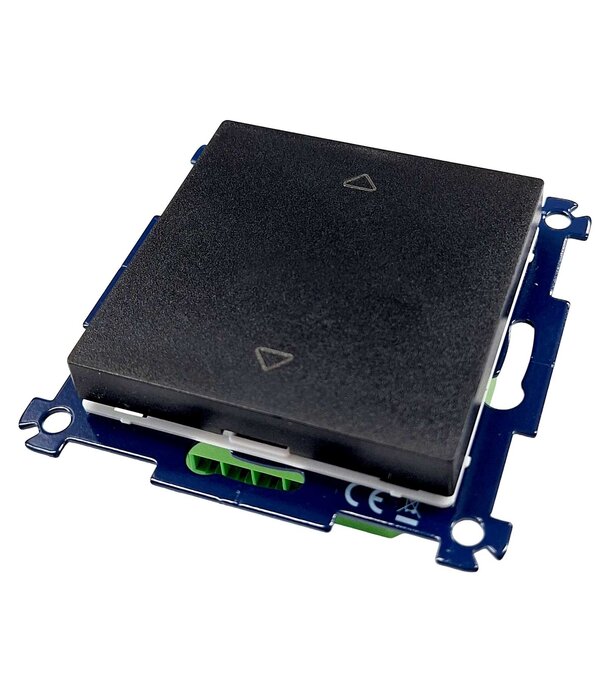

✓ Delivery includes centre plate, push button (white / RAL9016 and black / RAL9005) and adjustment adapter
✓ Frame can be ordered separately in white and black

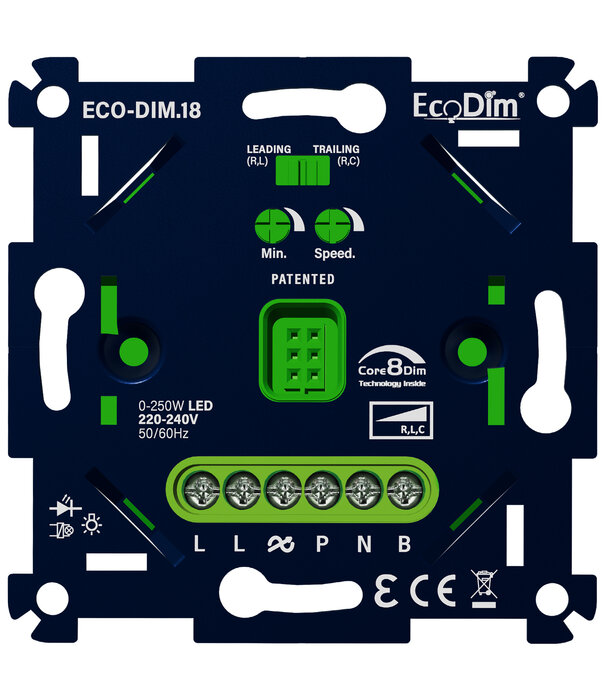

The ECO-DIM.18 is an LED touch dimmer. Touch dimming is a more luxurious way of dimming, whereby you press the button once to switch the dimmer on and off and hold it down to dim. This dimmer has a power rating of 0-250W. The MIN setting ensures that you achieve the optimum dimming range at low light levels. The automatic MAX detection controls this at high light levels. This touch dimmer can be used in a two-way/hotel/cross switch with a secondary unit (ECO-DIM.20) or a pulse switch from a leading brand of your choice. The touch dimmer has a small installation depth of 23 mm. With the supplied adjustment adapter, you can adjust the MIN and Speed while the lights are working. This dimmer also comes with a centre plate and push button (white (RAL9016) and black (RAL9005)). The centre plate and push buttons simply click onto the LED dimmer.

General information

Item number: ECO-DIM.18
Type of LED dimmer: Trailing Edge & Leading Edge / R,L,C
Power: 0-250W (RLC)
Operation: Touch dimming / push dimming
Packaging: Packaged individually

Suitable dimmable lamps

• LED lamps 230V (max. 250W)
• Incandescent lamps (max. 250W)
• Halogen lamps 230V (max. 250W)
• Low-voltage lamps with electronic transformer, such as LED bulbs with transformer (max. 250W)
