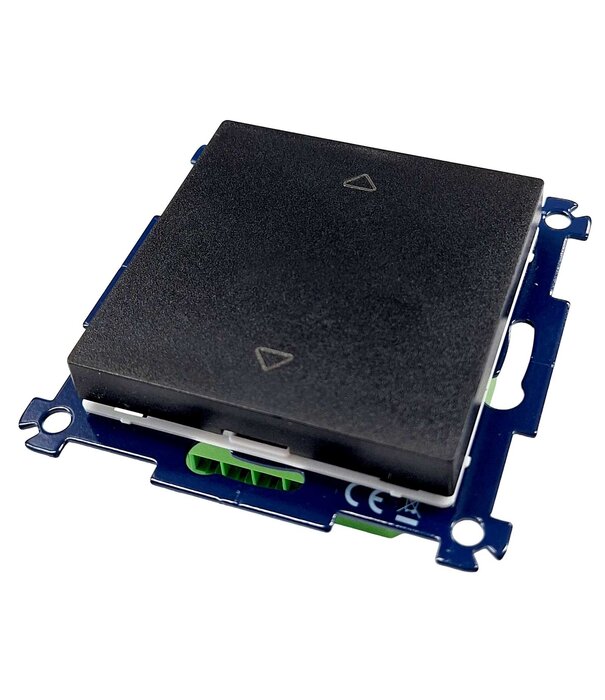

ECO-DIM.20 Secondary unit for touch dimmer / pulse switch

✓ Secondary unit touch dimmer

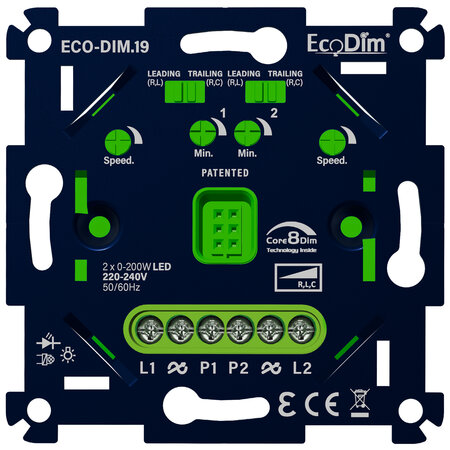

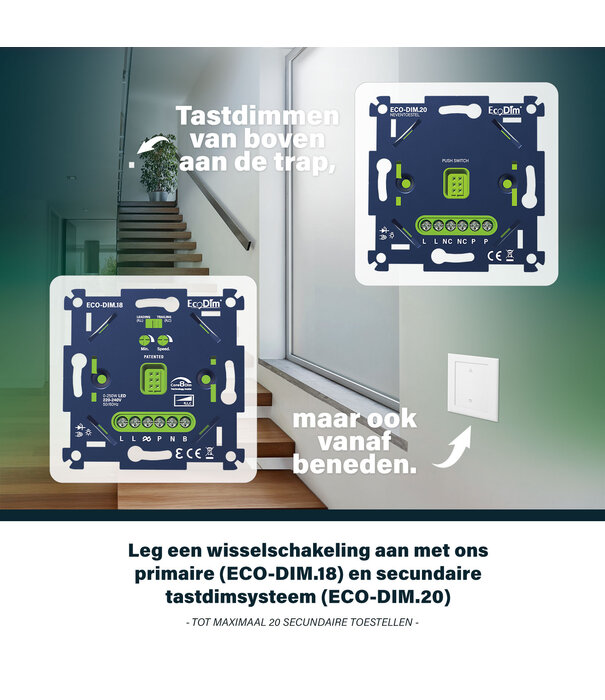

✓ Realise a two-way switch with a touch dimmer (ECO-DIM.18 or ECO-DIM.19)
✓ Can also be used as a pulse button
✓ Universal: Phase cut-on and cut-off (RLC)
✓ Up to 20 slave units on 1 group

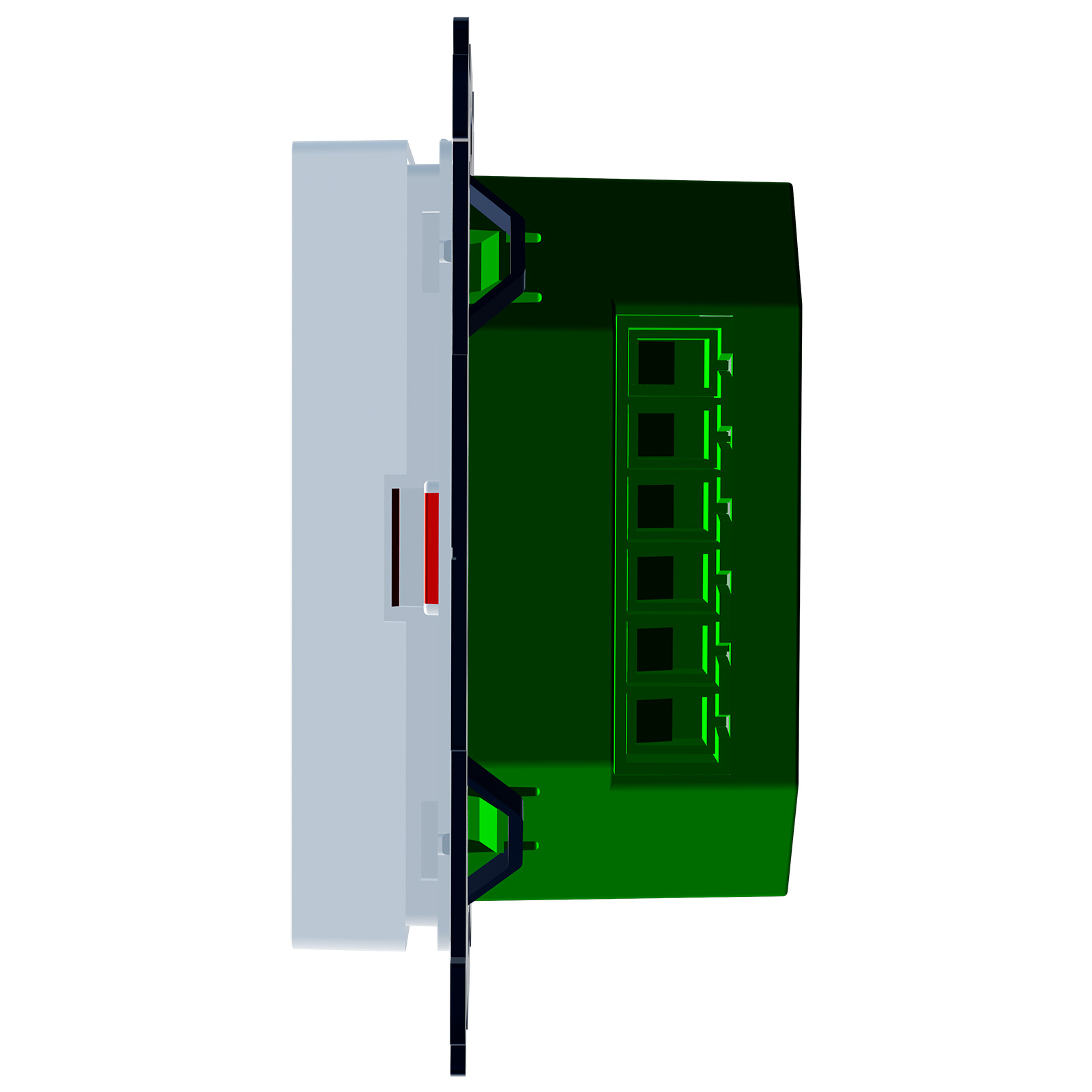

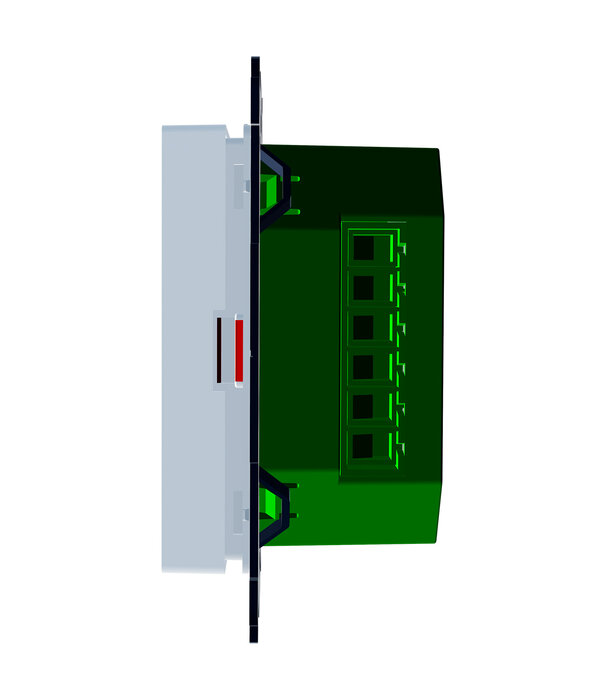

✓ Small installation depth (23 mm)
✓ Optimal dimmability & light stability
✓ Protection against overload, overheating & interference signals
✓ Silent dimming

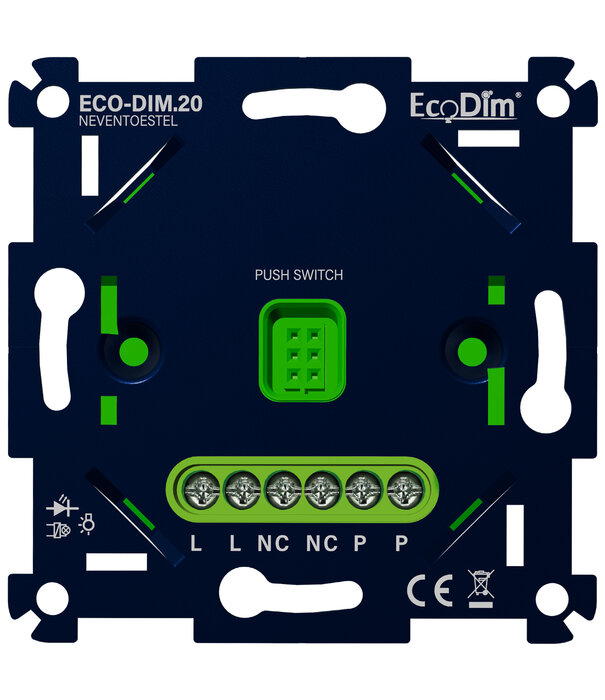

✓ Phase wire connection possible (double L-port)
✓ Suitable for all dimmable LED lamps
✓ Soft-start system

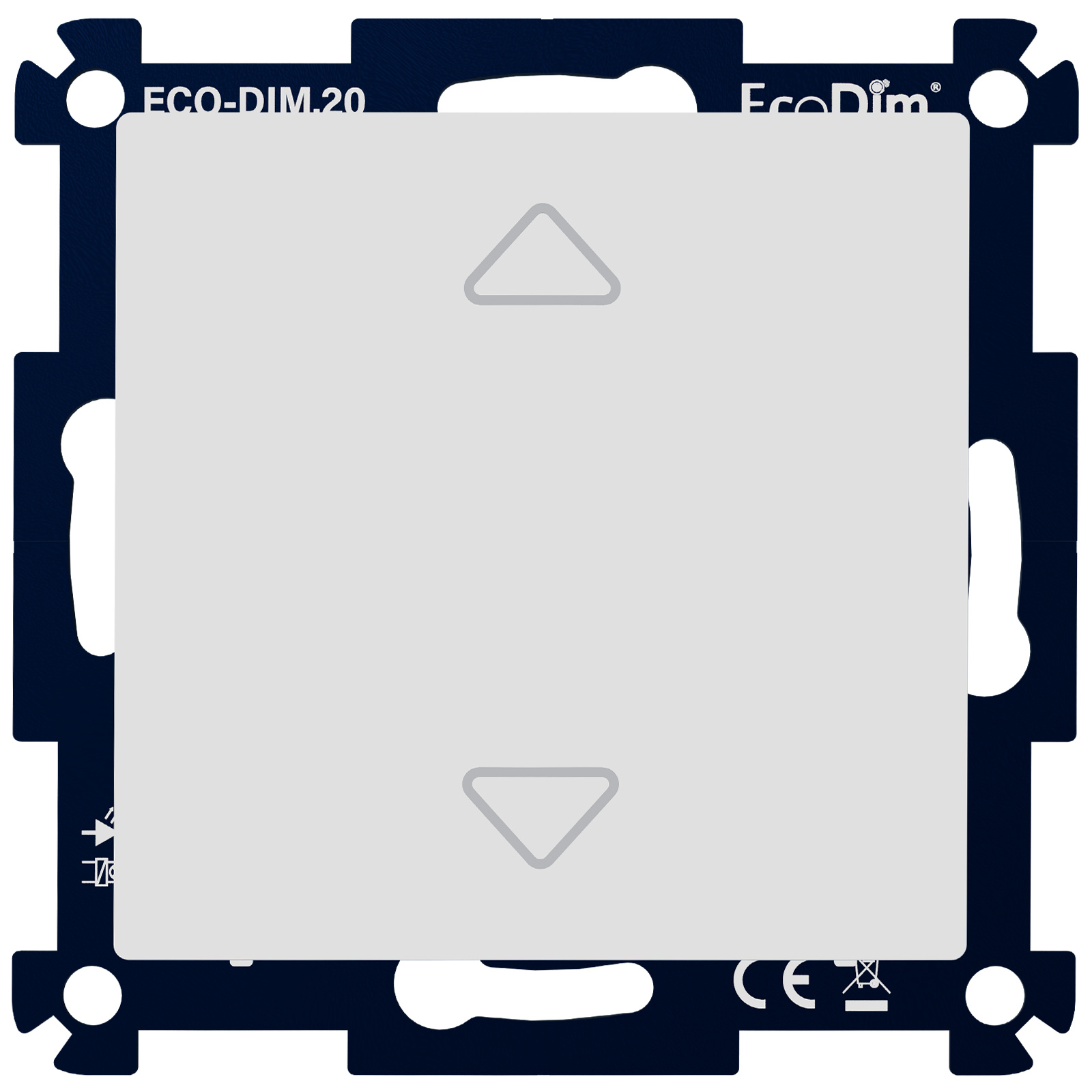

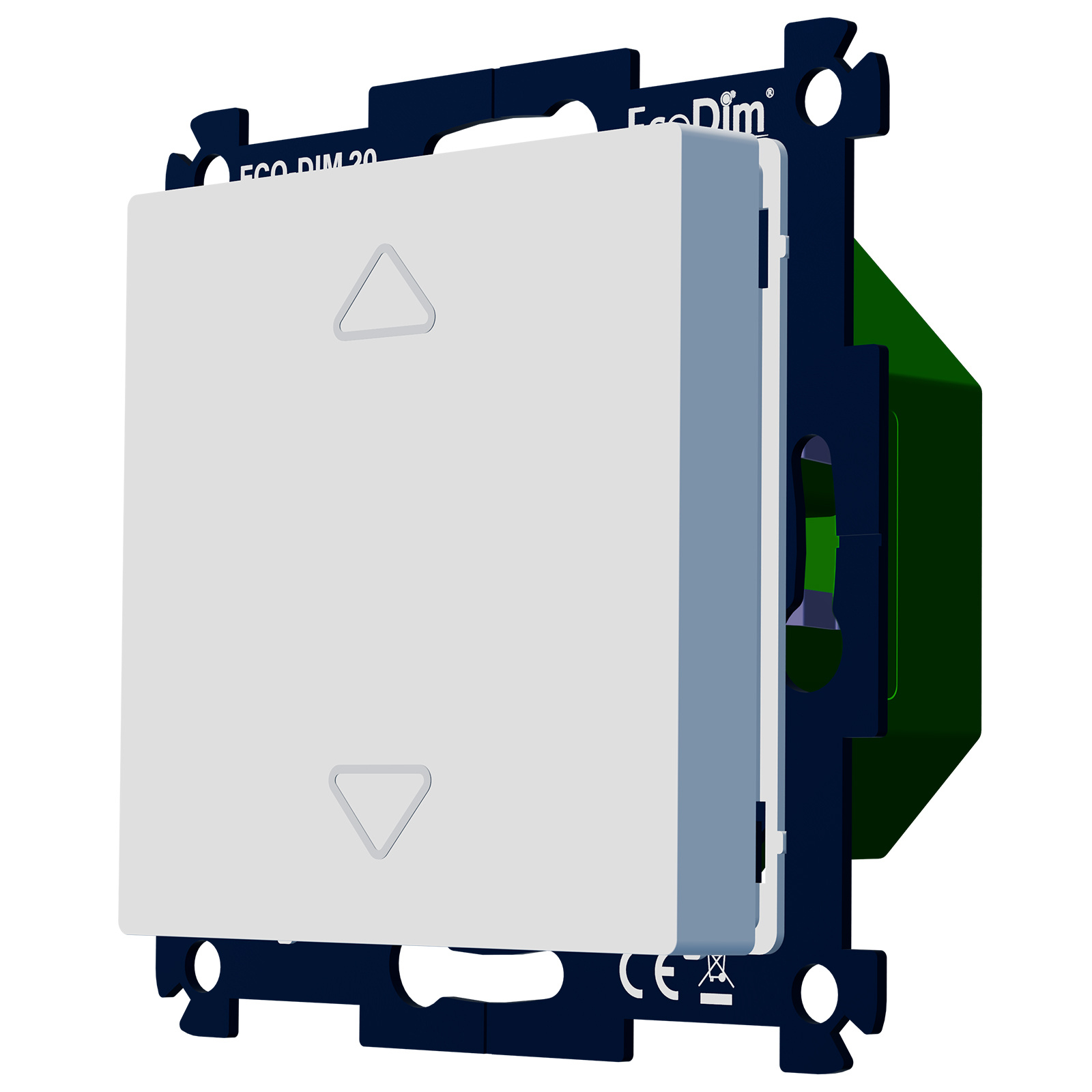

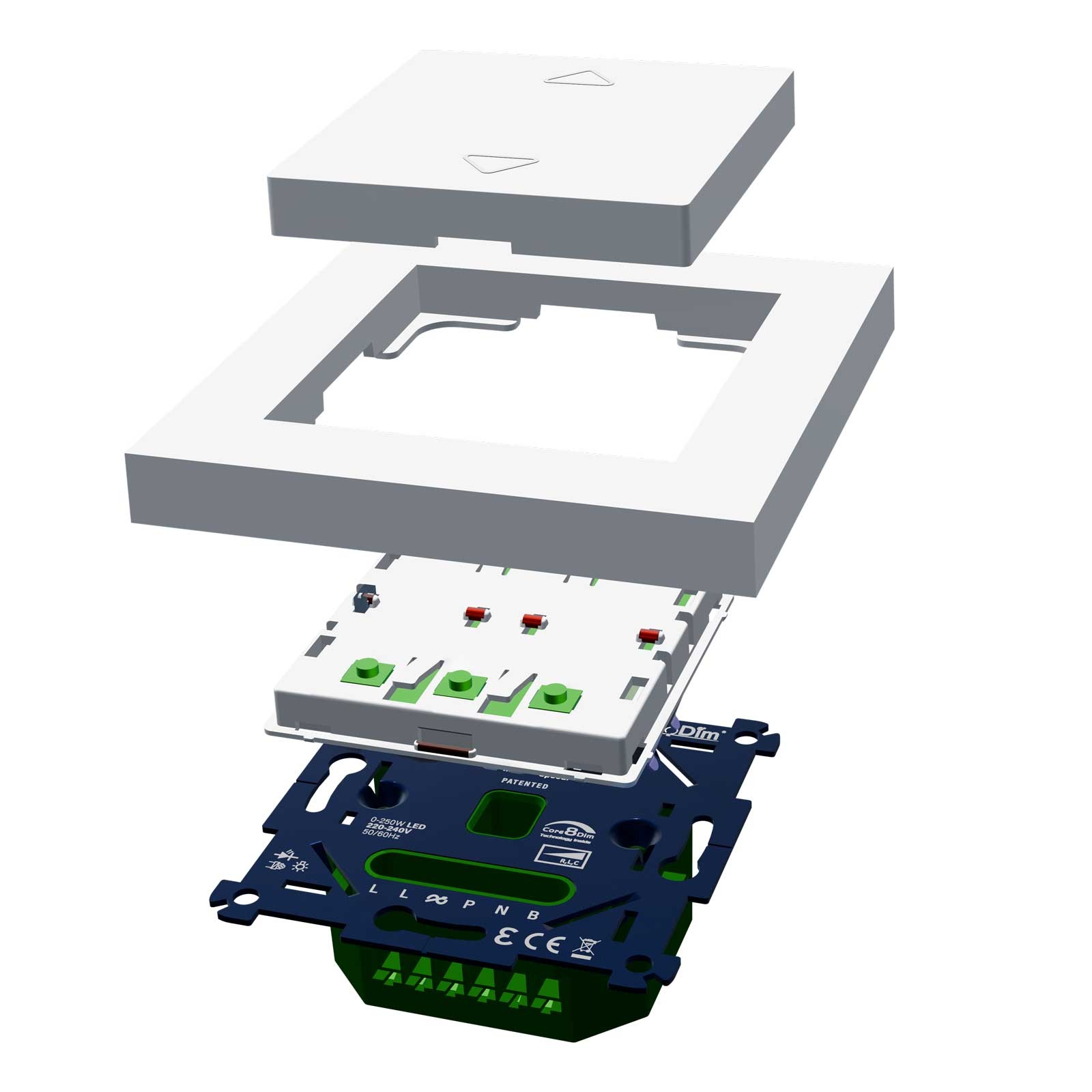

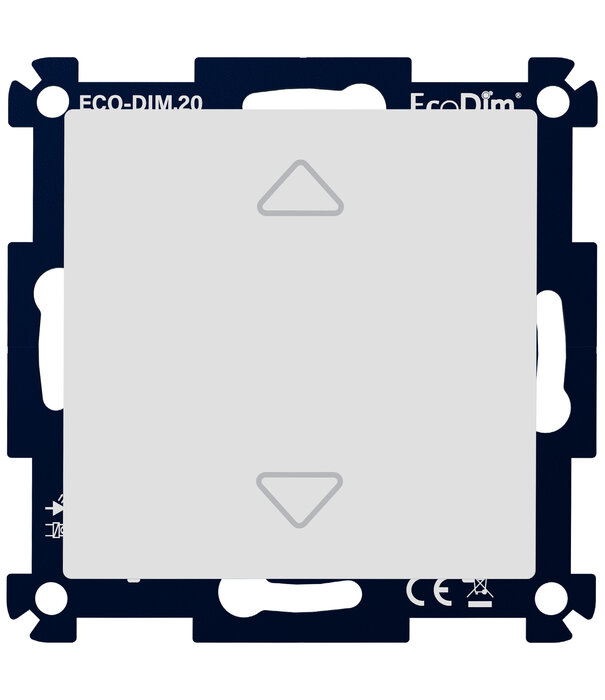

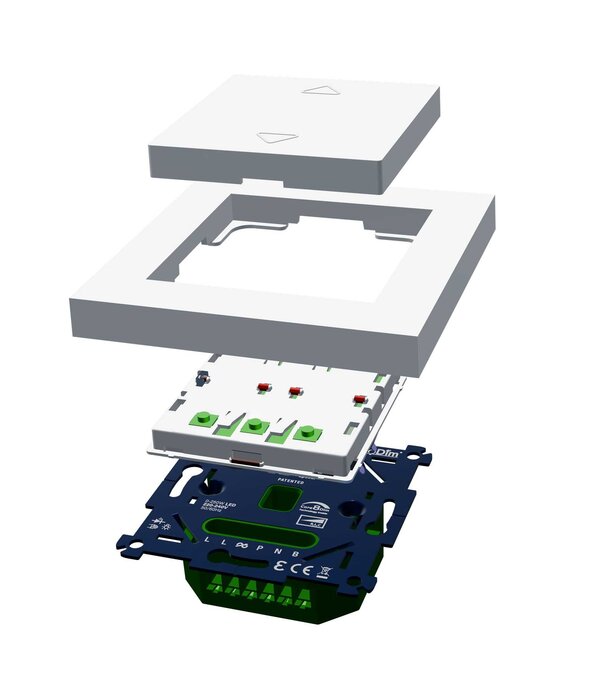

✓ Supplied with centre plate and push button (white / RAL9016 and black / RAL9005)
✓ Fits all 55x55mm frames (GIRA, JUNG and Merten)

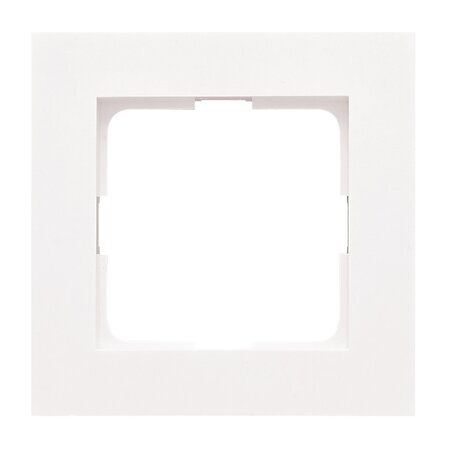

✓ Frame can be ordered separately in white and black

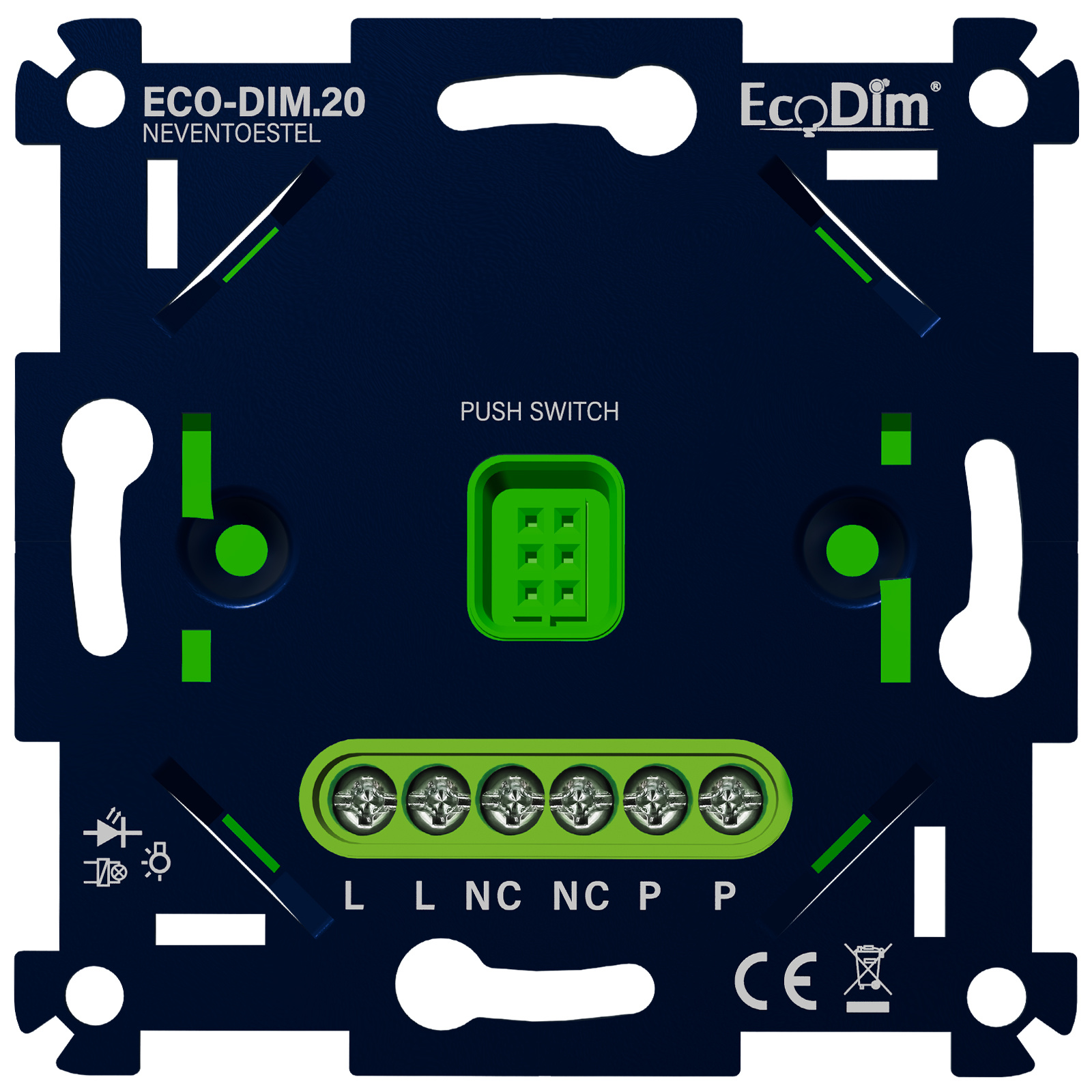

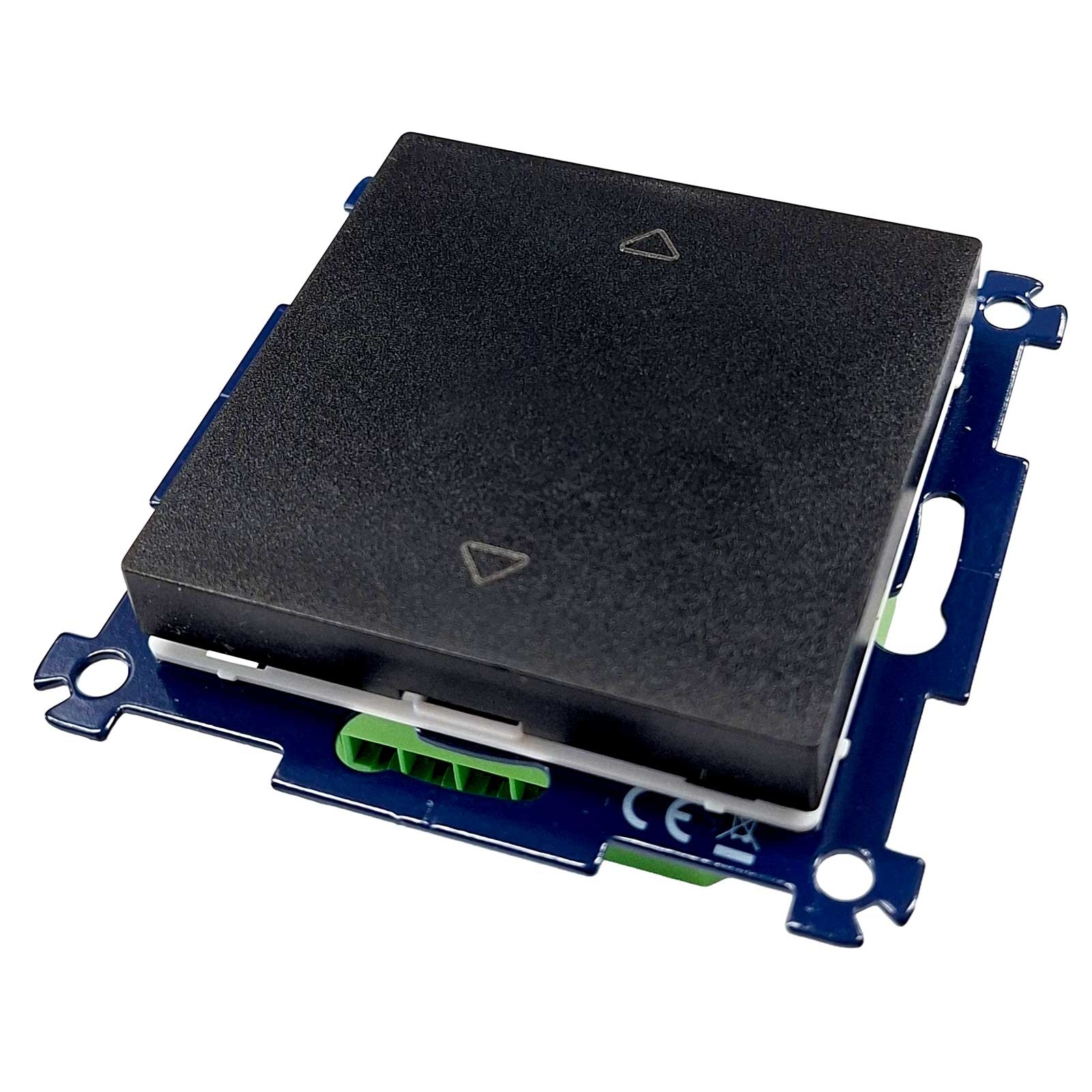

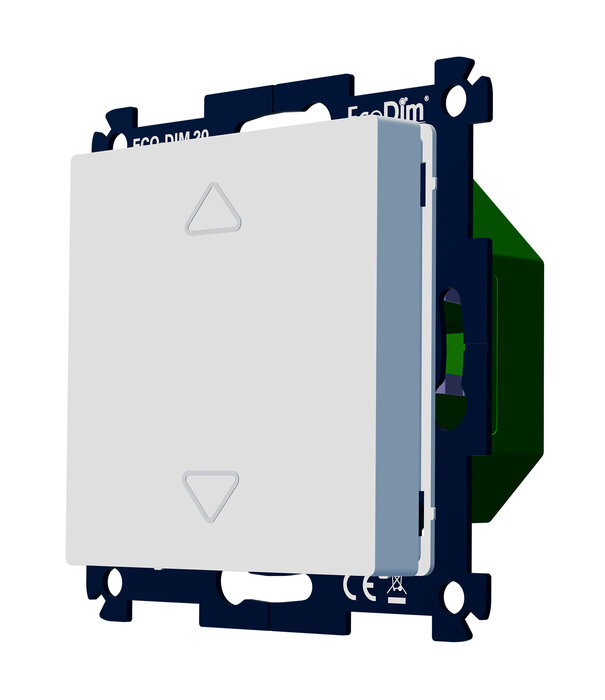

The ECO-DIM.20 is a slave unit for touch dimmers. With this slave unit, you can connect a touch dimmer in a two-way switch/hotel switch or cross switch. This dimmer can also be used as a pulse switch and therefore works with all dimmers that have a P port (including touch dimmers, various smart dimmers and dimming modules). With this pulse switch/slave unit, you can connect up to 20 units to one group. The slave unit has a small installation depth of only 23 mm and comes with a centre plate and push button (white (RAL9016) and black (RAL9005)).

General information

Item number: ECO-DIM.20
Type of LED dimmer: Trailing Edge & Leading Edge / R,L,C
Operation: Touch dimming / pulse dimming
Packaging: Packaged individually

Suitable dimmable lamps

• LED lamps 230V
• Incandescent lamps
• Halogen lamps 230V
• Low-voltage lamps with electronic transformer, such as LED bulbs with transformer
