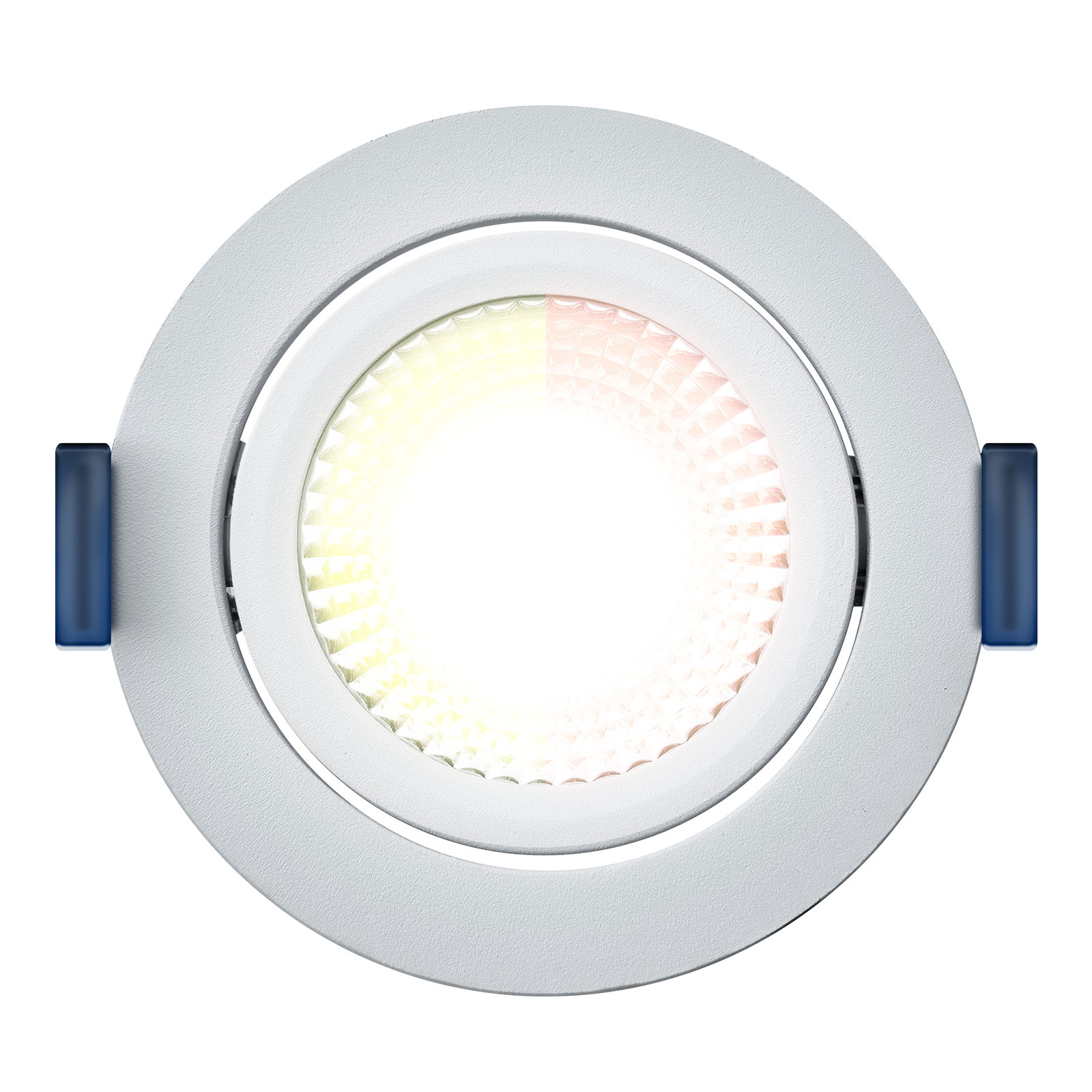

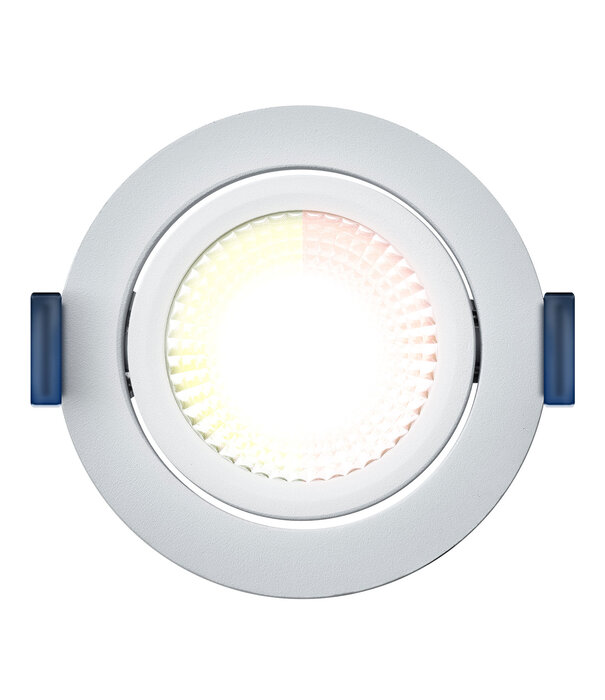

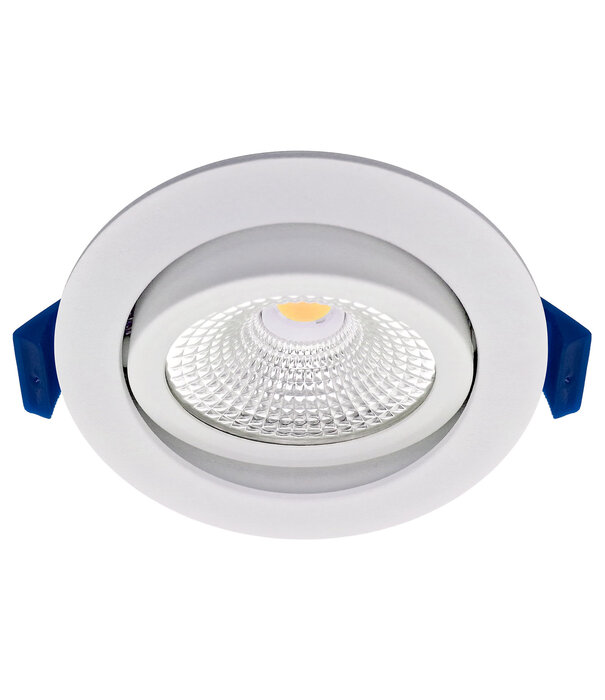

ED-10022 Led recessed spotlight small recessed depth IP54 dim to warm, round, white, 75mm

  1. Home
  2. ED-10022 Led recessed spotlight small recessed depth IP54 dim to warm, round, white, 75mm
Brand:
EcoDim
Article code:
ED-10022
EAN:
8719322372079
Hier verkrijgbaar
Alle downloads

Product description

Small mounting depth (23 mm)
IP54 (splash-proof, suitable for bathrooms)
✓ Dimmable up to 5%

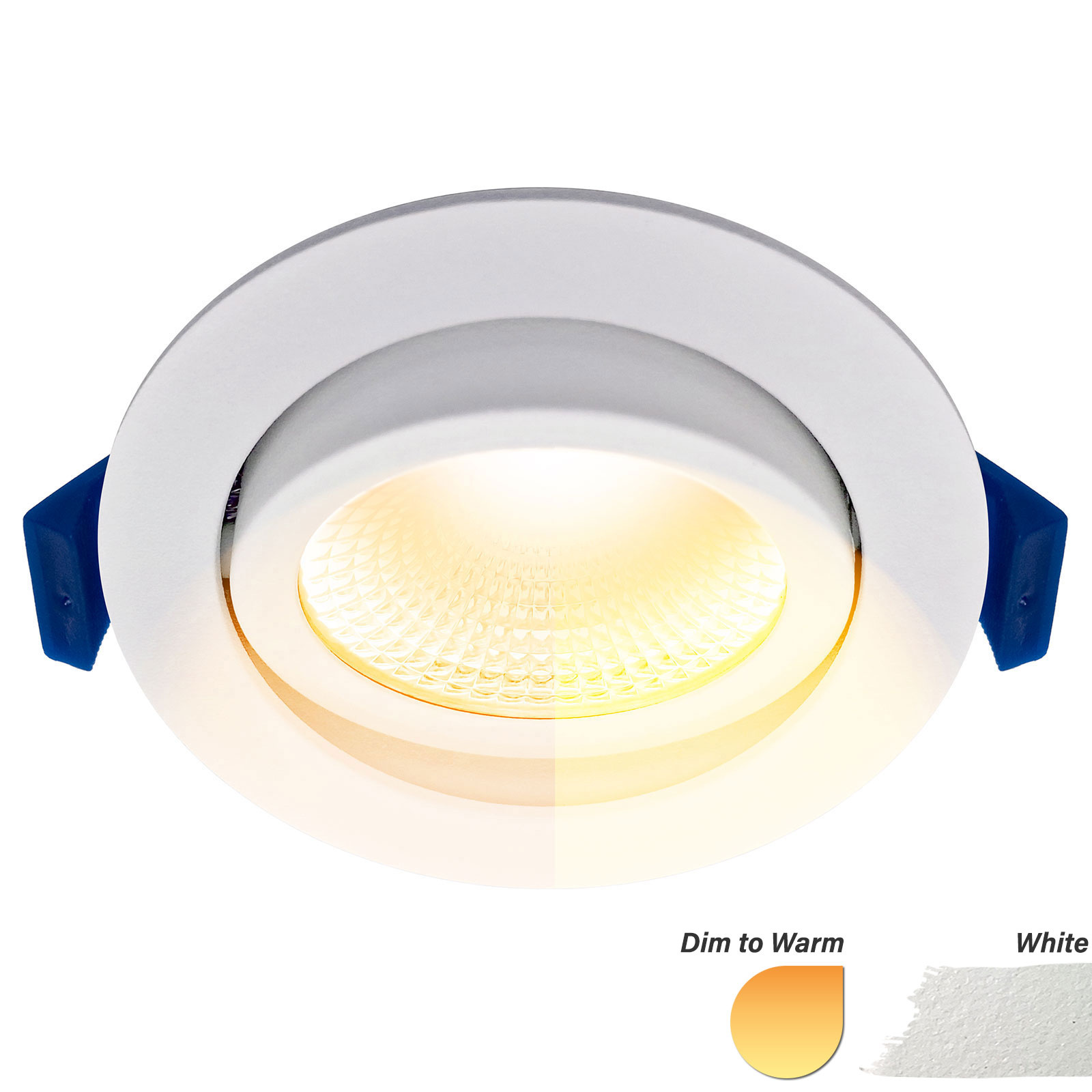

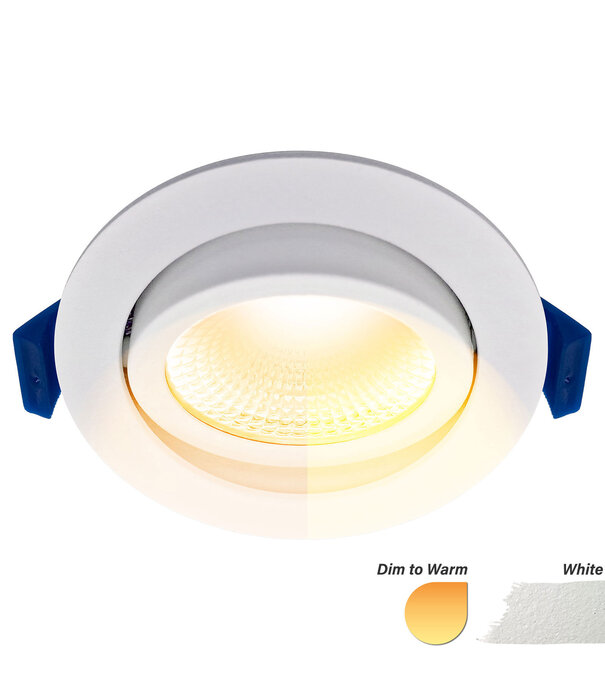

✓ Dim to warm (2000K-3000K)
Matt white, round

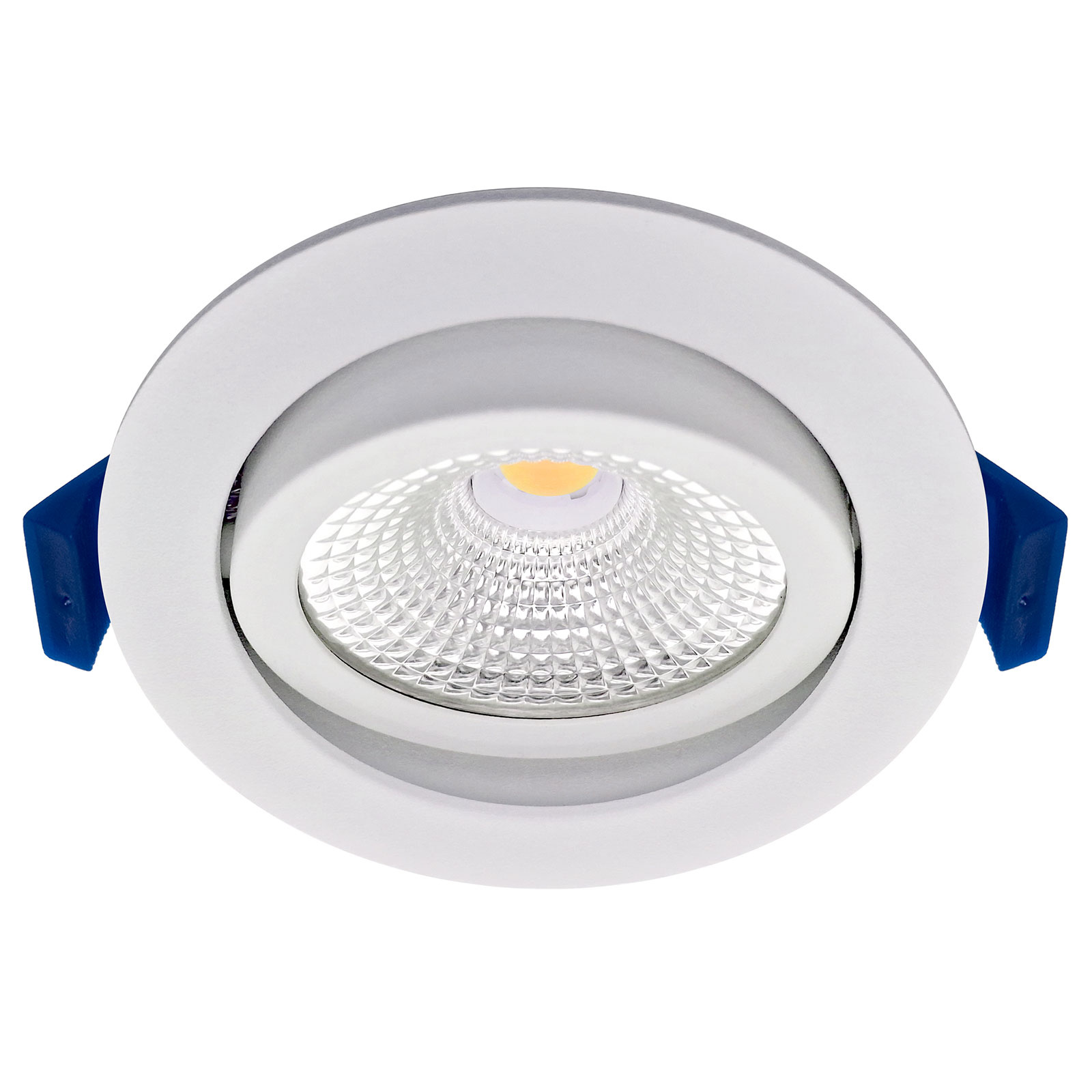

Tiltable
✓ Good light distribution (60⁰)

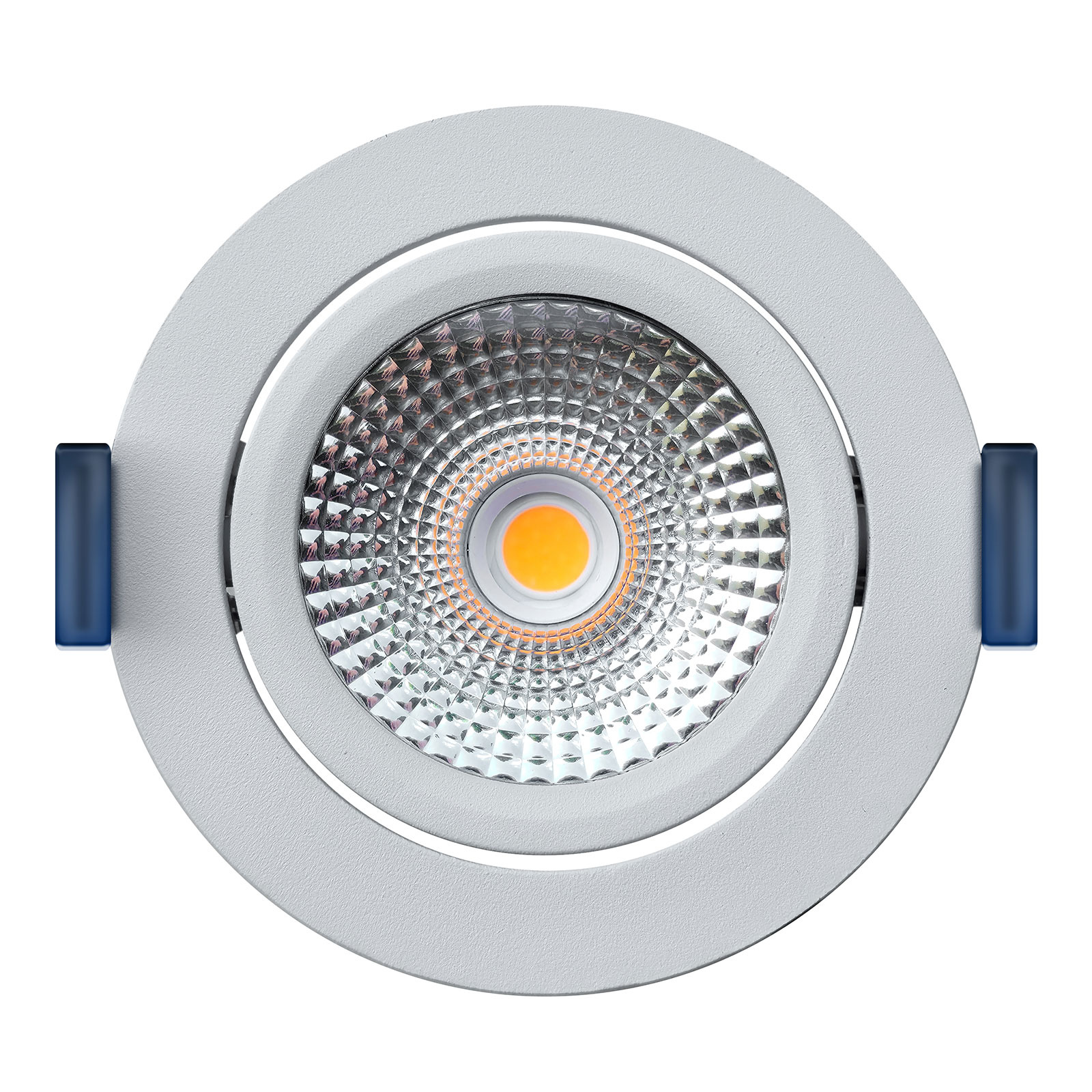

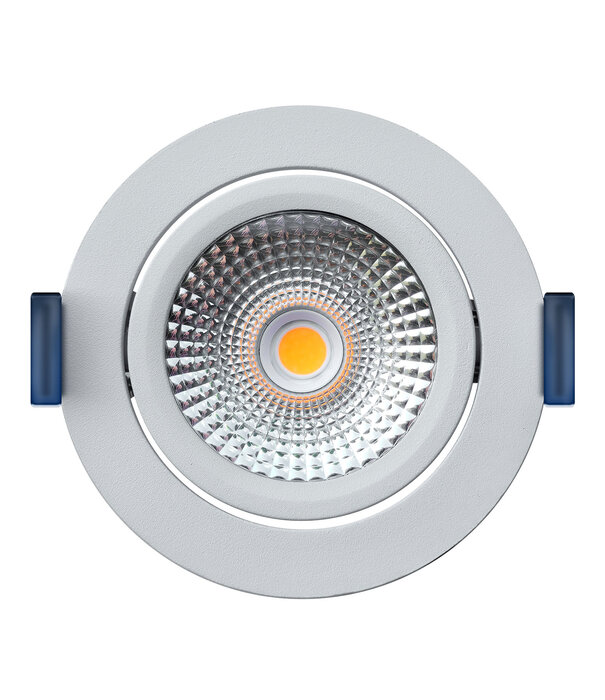

COB chip & Reflective Technology
✓ High colour fastness (CRI≥95)
✓ Transformer included (can be connected to 230V)
✓ Simple & safe 2-wire daisy-chaining
✓ 90% savings

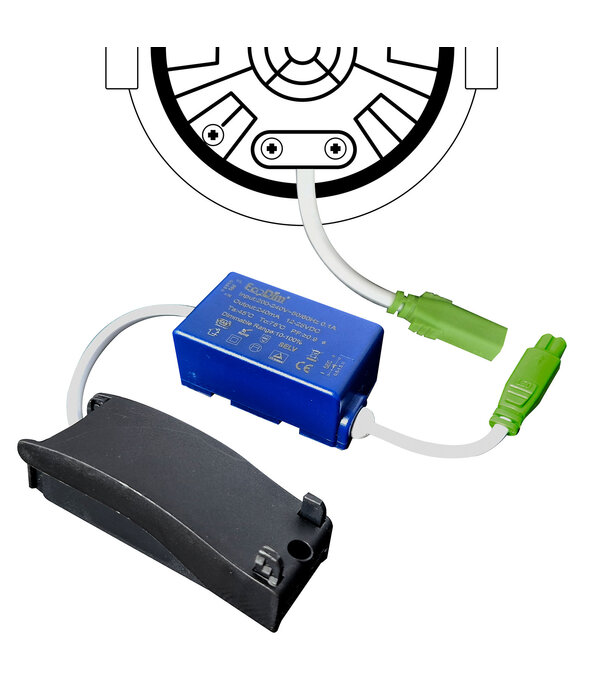

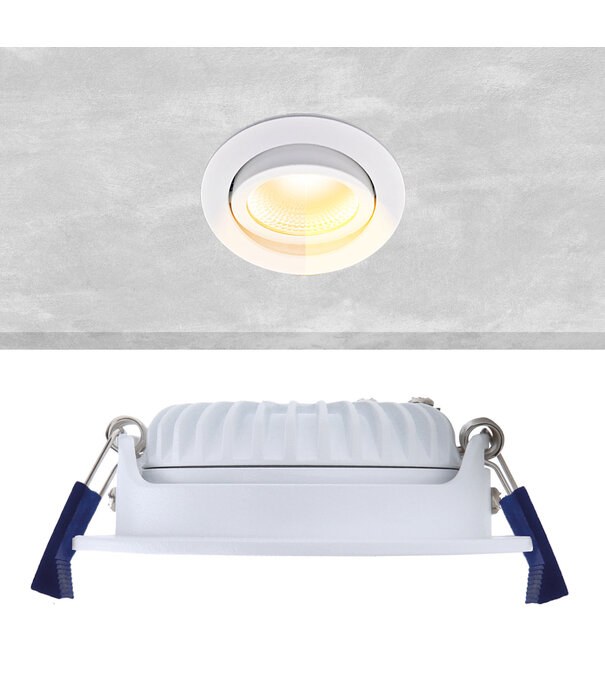

This white round LED recessed spot is splash-proof (IP54, suitable for bathroom) and a small recessed depth of only 23mm. Unique is its excellent dimmability and easy 2-wire looping thanks to the compact junction box with double clamp connector (2x phase and 2x zero wire). A special feature is the 'dim to warm' light colour. This makes the light colour 'warmer' as you dim, i.e. from 3000K-2000K.

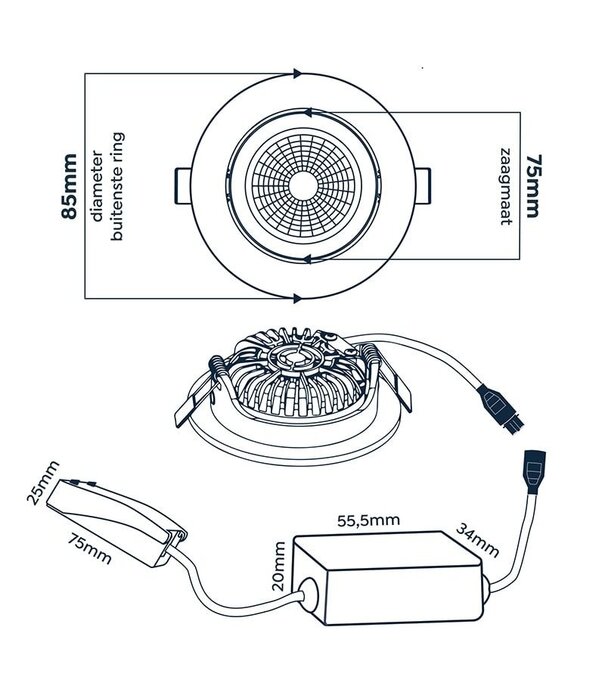

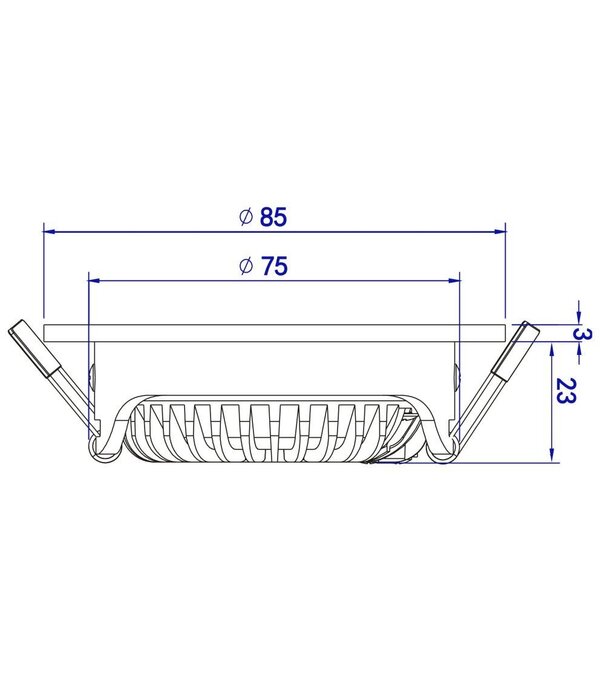

Cutting size: Ø75mm
Outer edge: Ø85mm

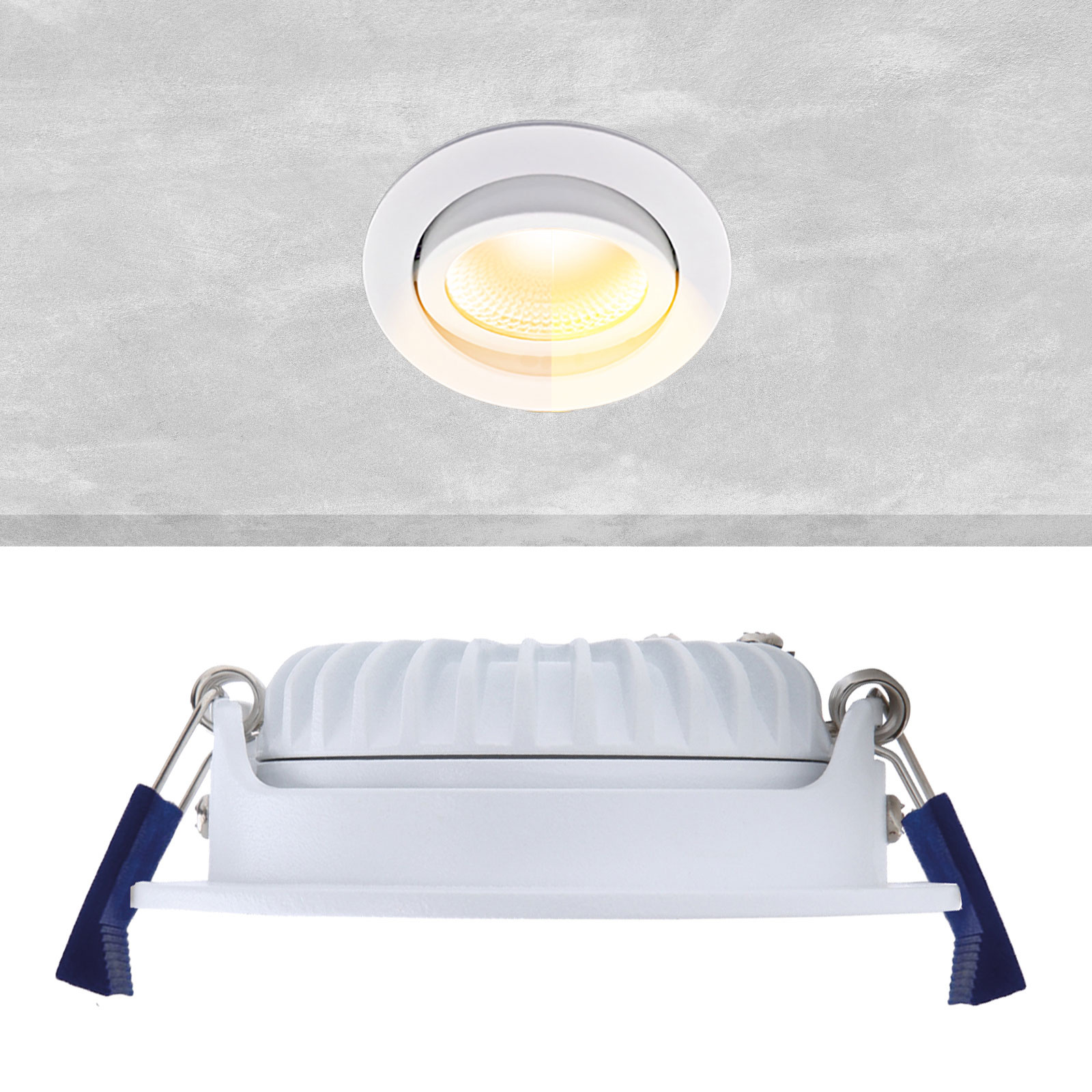

Recessed depth: 23mm

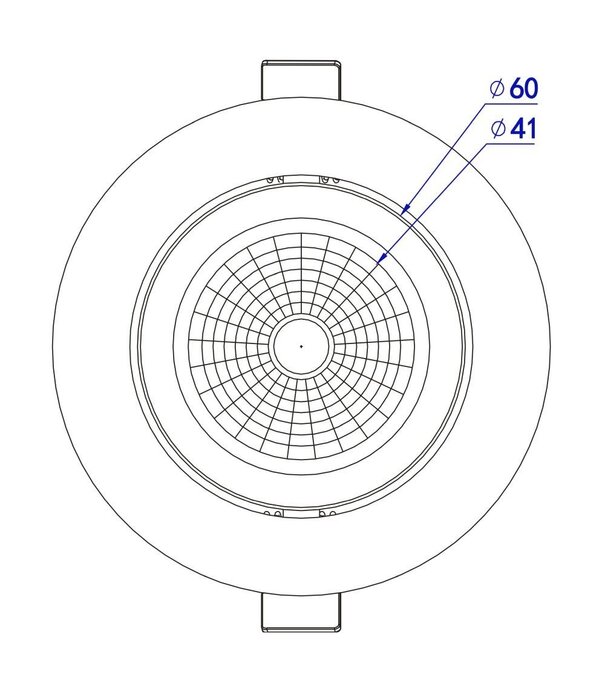

Spot light source: Ø45mm
Spot incl. tilting ring: Ø60mm

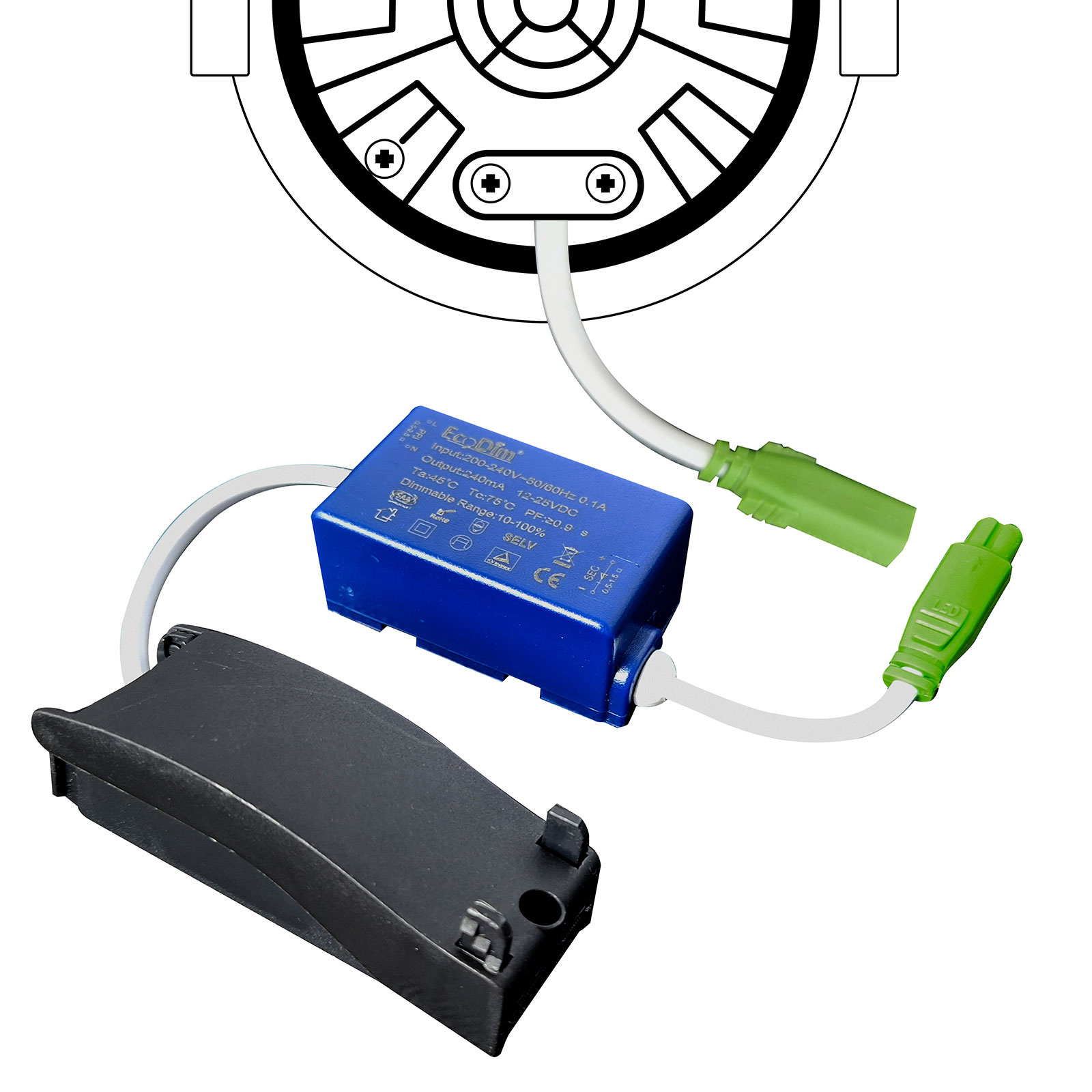

Supplied LED transformer:
Length: 95mm
Width: 38mm
Depth: 22mm

Input 220-240VAC / Output 14-25VDC
Connectable directly to 230V.

Product specifications

Brand: EcoDim
Power (wattage): 5 watts
Voltage (input): 220 - 240V
Dimming technology: Phase cut-off / RC / Tronic
Operation: N/A
Dimensions in mm (outer dimensions frame): N/A
Installation dimensions in mm (fits any flush-mounted box): N/A
Packaging: Each
Warranty: 2 years
Article number: ED-10022
Item number 2BA: ED-10022
Download manual: https://cdn.webshopapp.com/shops/68389/files/389156933/20210430-handleiding-a4-ondiepe-inbouwspots.pdf
Philips HUE manual:
Datasheet
