Surface-mounted spotlight, square, white

Brand:
EcoDim
Article code:
ED-10038
EAN:
8719322372710
SKU:
ED-10038
Hier verkrijgbaar
Alle downloads

Product description

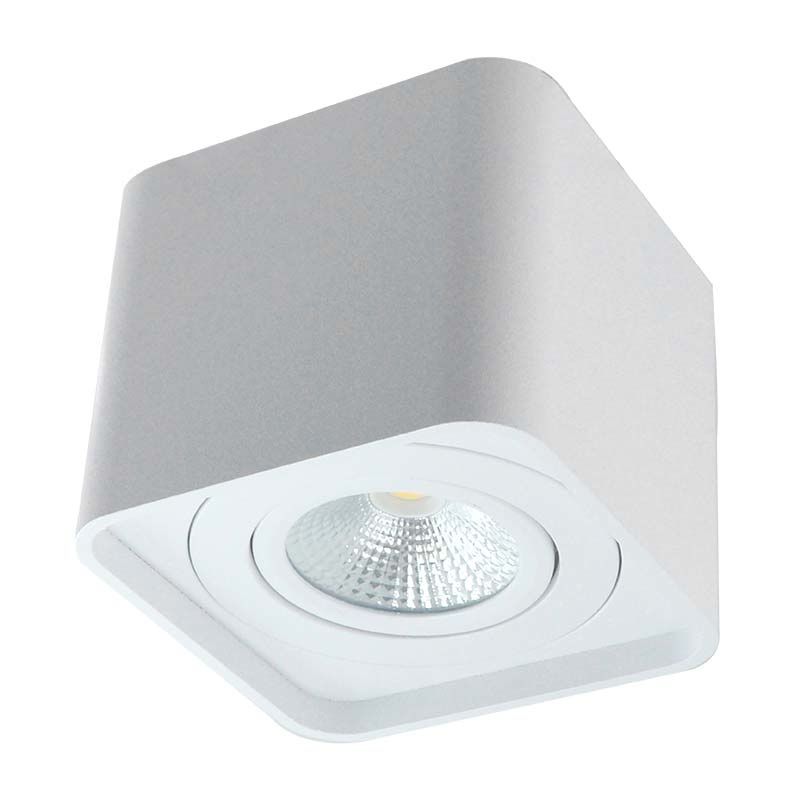

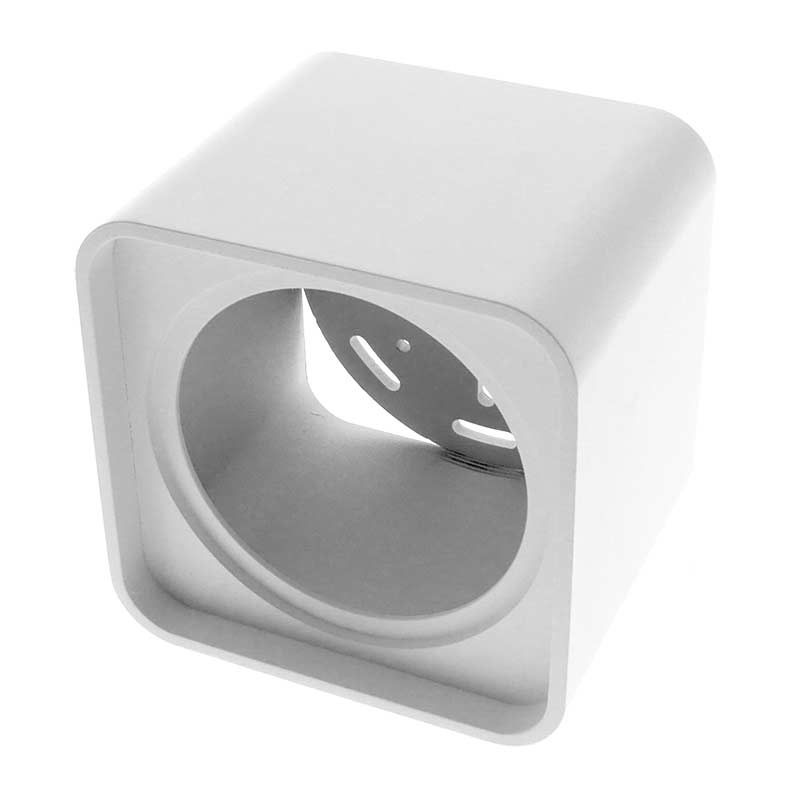

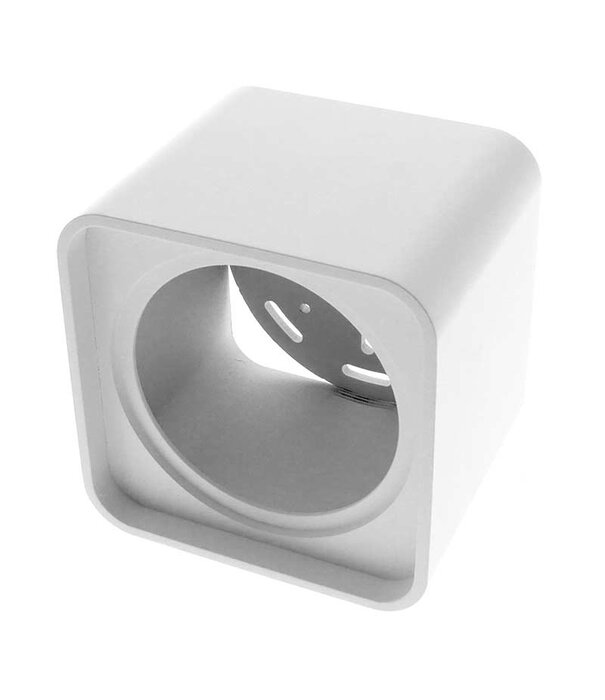

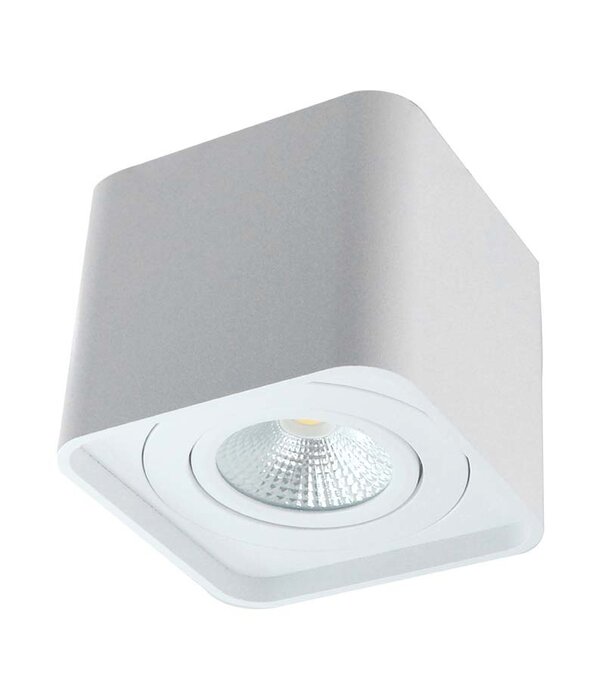

Surface-mounted luminaire
Matt white, square
Suitable for EcoDim recessed spotlights 75mm sawn size/85mm outer size and more spotlights with sawn size 75mm/outer size 85mm ✓ Suitable for EcoDim recessed spotlights 75mm sawn size/outer size 85mm
✓ Neat finish (screwless)

Please note: This product only concerns the surface-mounted luminaire itself. It is therefore supplied without spotlight or socket.

This surface-mounted luminaire is designed to use normal spotlights in a surface-mounted situation. This can be a choice for a certain interior, but is also often used for concrete ceilings, for example. There, installing LED spotlights is more difficult.

This surface-mounted luminaire is very sturdy and has a nicely finished coating. The surface-mounted led spotlight is unique because it is completely screwless. This gives the fitting a very sleek design.

The surface-mounted set has a maximum mounting depth of 70 mm. Because of this, most spot holders incl., for instance, an MR16 or GU10 spotlight incl. fitting can be placed in this surface-mounting set. These surface-mounting sets are specially made for our round shallow recessed spotlights.

This surface-mounted spotlight fitting is suitable for spot holders with an outer size of 80-85mm.

Dimensions

Maximum recessed depth: 70 mm
Suitable spotlight holder diameter: 80-85mm
External dimensions: 100x100x85mm

Installation

Once you have removed the surface-mounted luminaire from the packaging, mark on the ceiling where you want to place it.

Now drill two holes in the ceiling and insert the plugs provided.

You now screw the luminaire into the plugs you just inserted using the screws supplied.

If you cannot screw the screws into the fitting, you can also unscrew the ring at the back. When you have done this, you can place it against the ceiling first. You can then screw the fitting onto the inserted ring.

Now attach the installation wires to the light source and install the spotlight in the surface-mounted luminaire.
