Product description

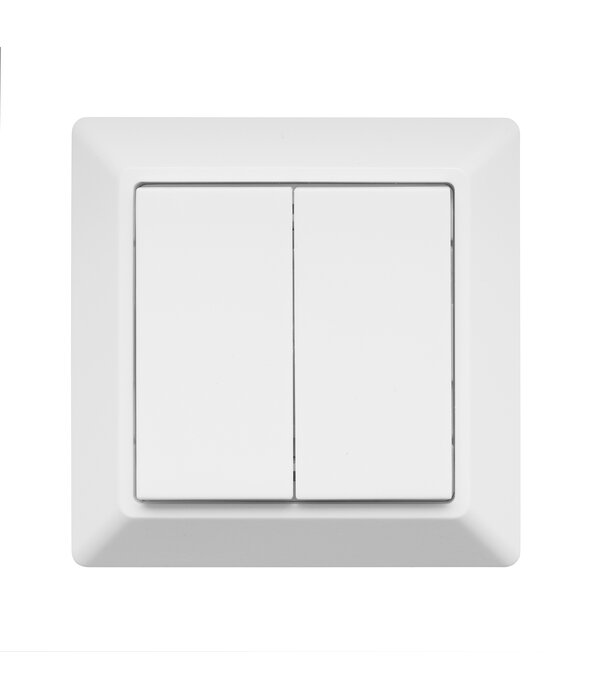

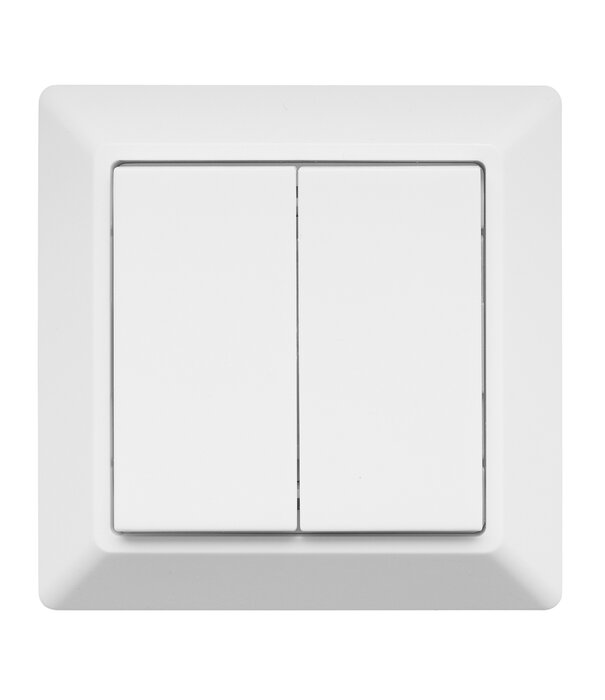

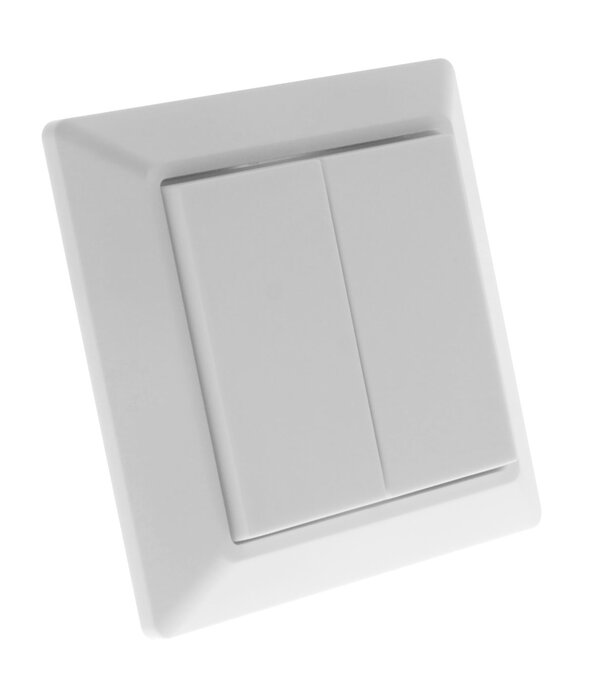

The EcoDim Zigbee friends of Hue switch is specially made for the Philips Hue smart home system. As a result, this wireless switch is also visible in the Philips Hue app. So you can load this friends with Hue switch into the app and then assign different scenes per push button.

This EcoDim wireless switch can be placed anywhere you want with double-sided tape. So you don't need any wiring for this. This wireless switch can wirelessly control two groups with an on/off function. A dimming function is also available, but the smart device this switch is connected to must support a dimming function. The smart switch is battery-powered and makes contact via a Zigbee signal.

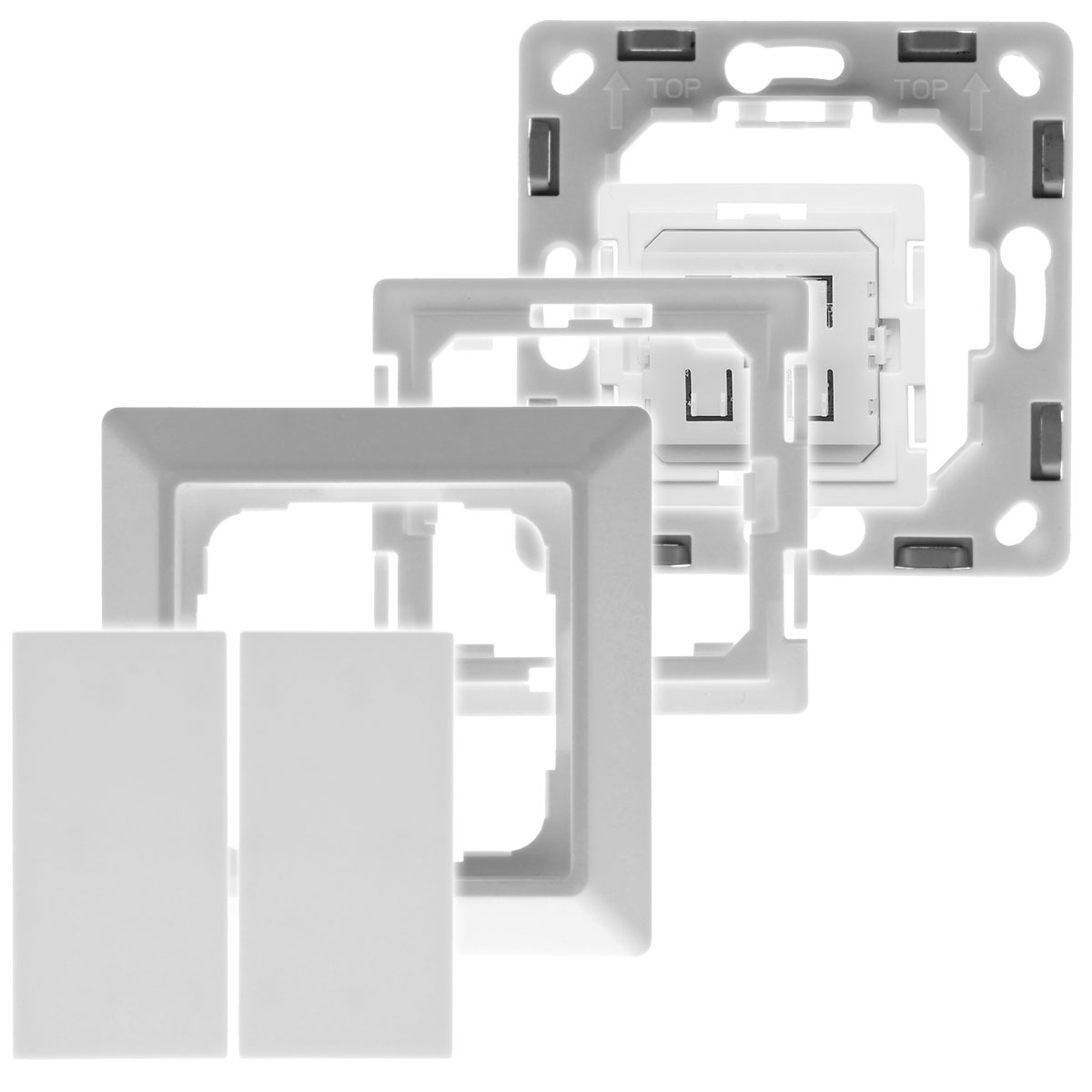

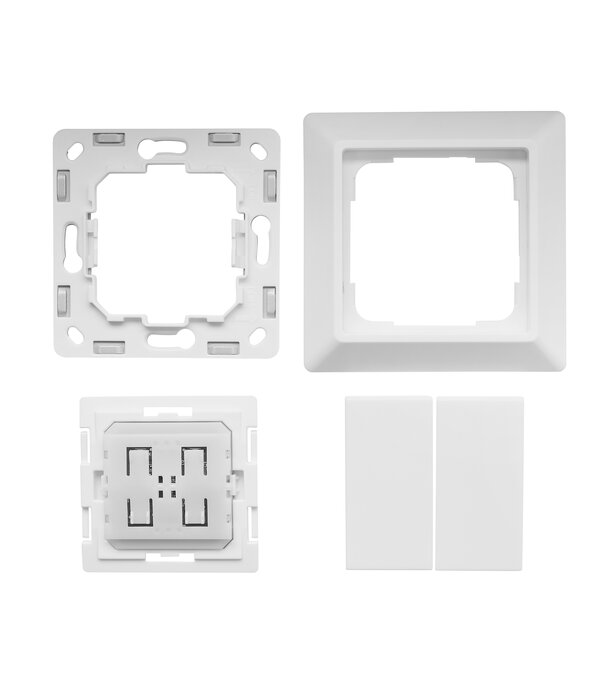

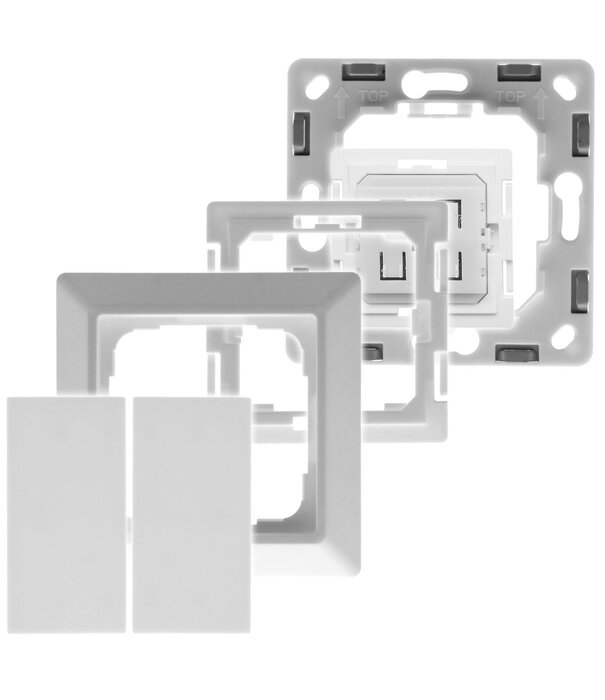

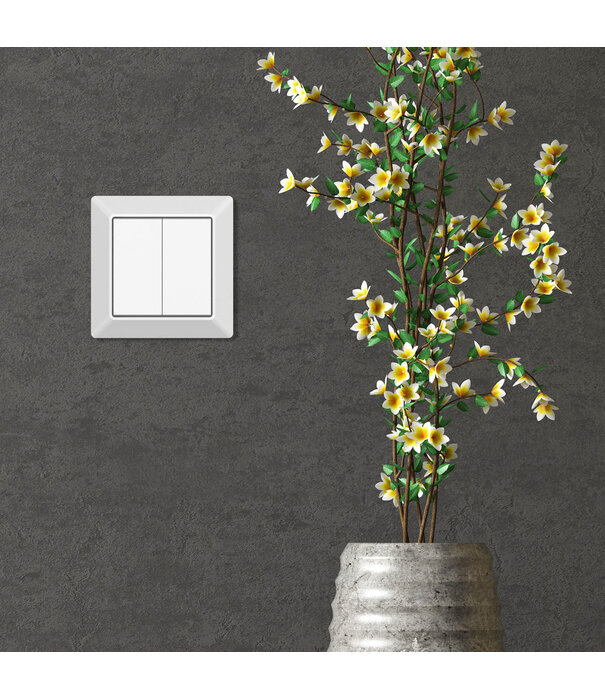

This wireless smart switch comes in the colour white and can be used in a GIRA 55 system in addition to its own recessed window.

✓ Friends of Hue (visible in the Philips Hue app)
✓ Universal design, can also be used with GIRA system 55
Long battery life
✓ Flexible to mount (with both screws and tape)

Technical specifications

  • Protocol: Zigbee
  • Chip: Zigbee 3.0

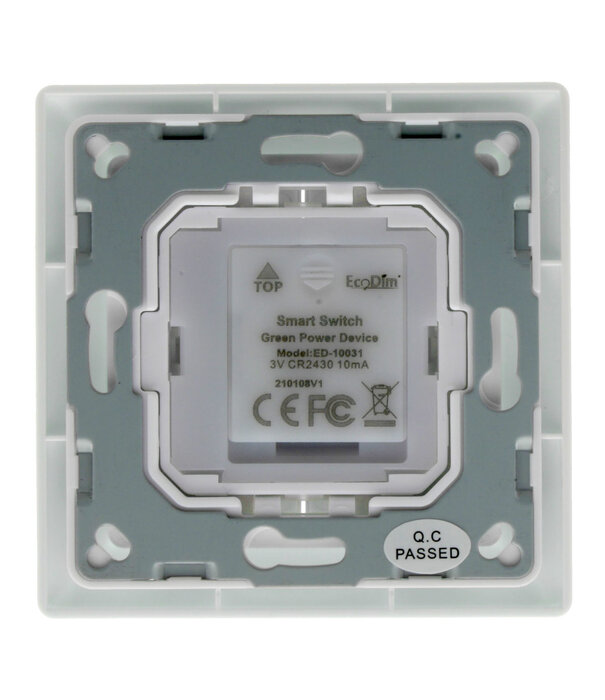

  • Power supply: wireless 1 x CR2430 battery
  • Control: four buttons
  • Workable temperature: 0 - 40°C
  • Transmission range: approximately 30 metres
  • IP value: IP 20
  • Dimensions: (LxWxH) 80,5 x 80,5 x 14,7 mm
  • Hallmarks: CE, RoHS 2011/65/EU

Product specifications

Brand: EcoDim
Power (wattage): N/A
Voltage (input): 1x CR2430 battery
Dimming technology: N/A
Operation: Four buttons / Zigbee 3.0
Dimensions in mm (outer dimensions frame): 80,5 x 80,5 x 14,7
Installation dimensions in mm (fits any flush-mounted box): N/A
Packaging: Each
Warranty: 2 years
Article number: ED-10031
Item number 2BA: ED-10031
