Product description

✓ 13-18W
✓ Dimmable LED driver/trafo for EcoDim furniture spots
✓ Incl. 6-fold cable connector

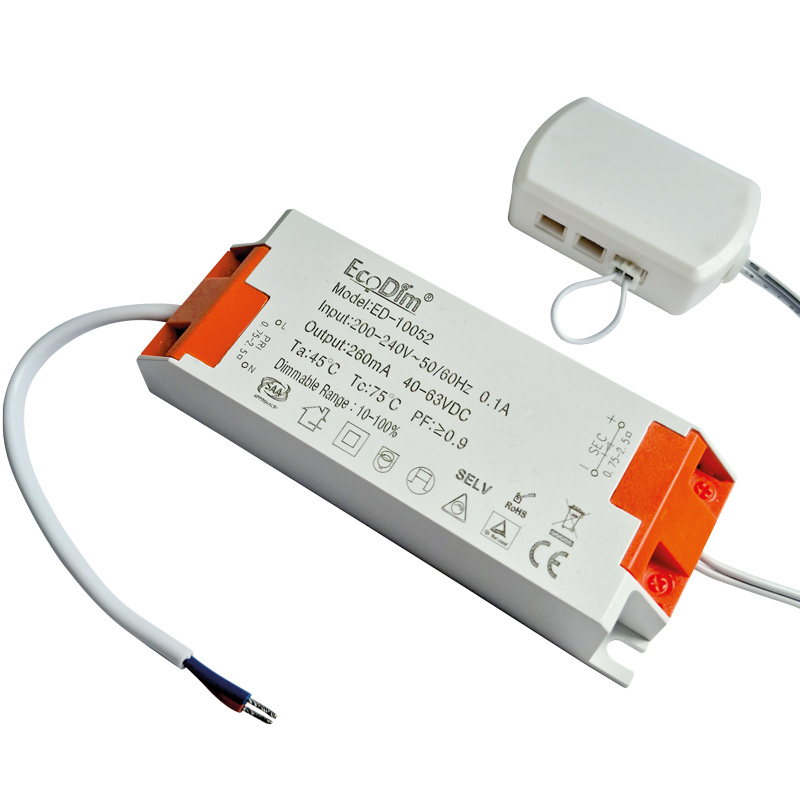

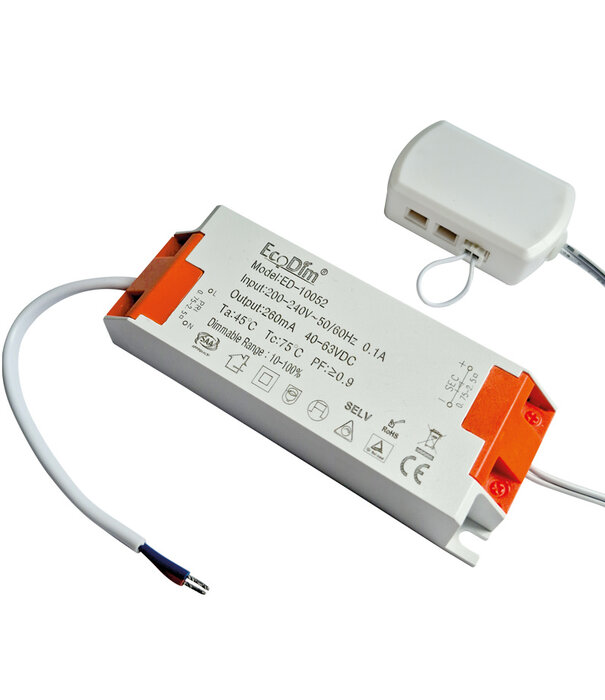

Suitable for EcoDim led furniture spots. You can connect 5-6 furniture spots with this driver/trafo. The driver comes with a coupling block. You can easily connect the plugs of the furniture spots here.

If you do not use a connection port, always put the supplied bridge in the port you are not using, so the circuit is completed again.

  • Input: 200-240V
  • Output: 240MA 40-63V (DC)
  • Connection wattage: 13-18W
  • Power factor: >0.90

This dimmable LED transformer dims best with a phase cut LED dimmer (RC).

Product specifications

Brand: EcoDim
Power (wattage): 13-18W
Voltage (input): 200 - 240V
Dimming technology: Phase cut-off (RC)
Operation: -
Dimensions in mm (outer dimensions frame): 111x41x25 (lxwxh)
Installation dimensions in mm (fits any flush-mounted box): -
Packaging: Each
Warranty: 2 years
Article number: ED-10052
Item number 2BA: ED-10052
