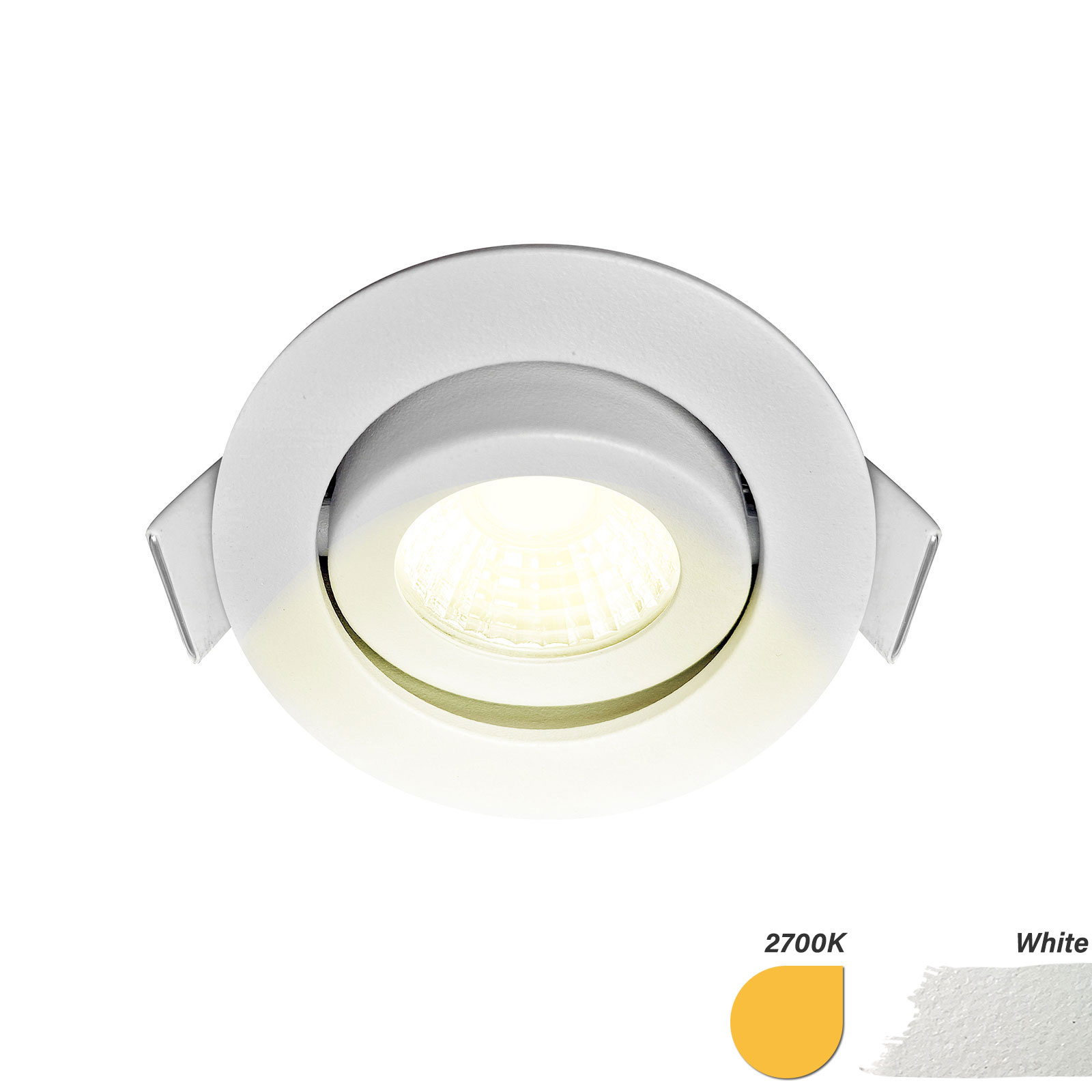

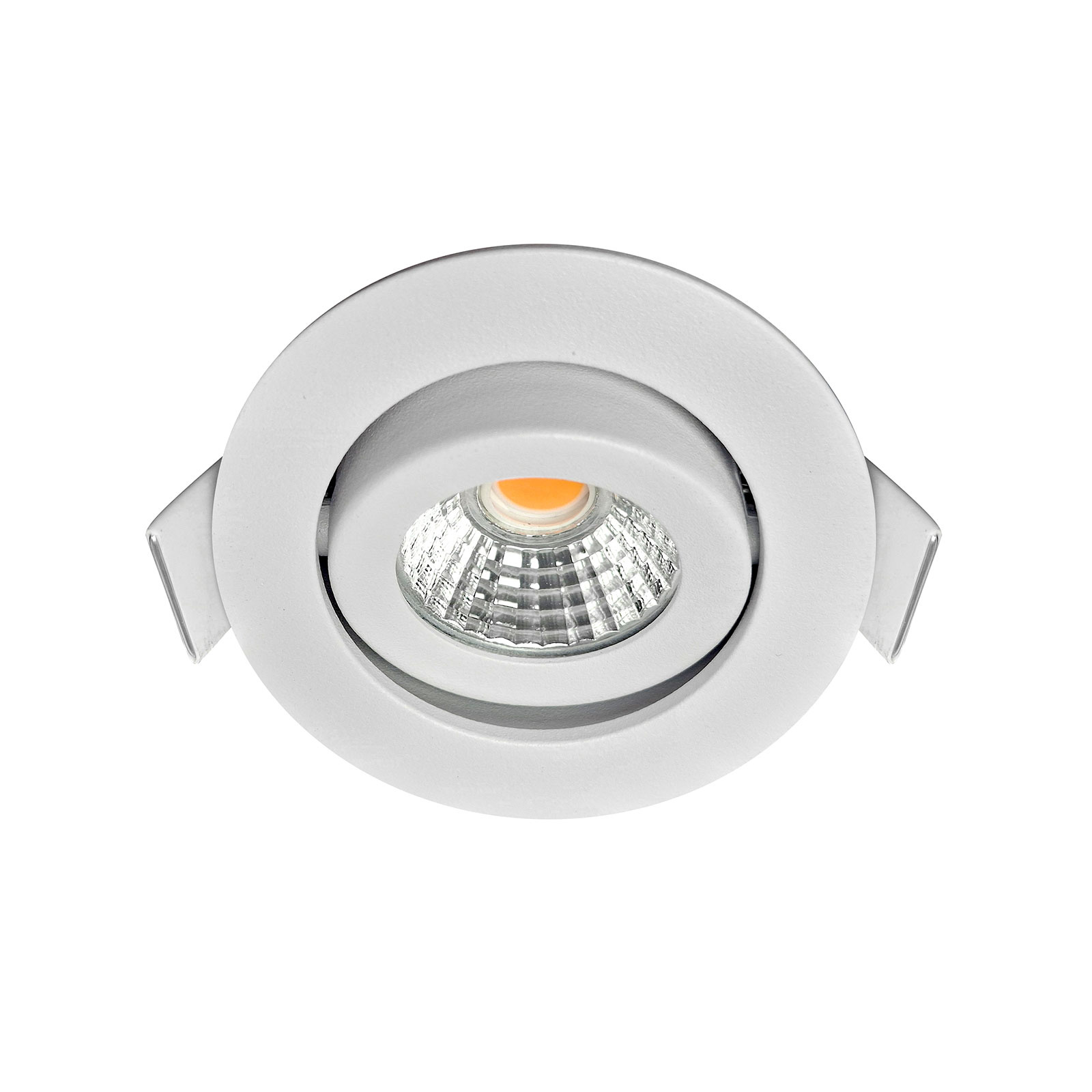

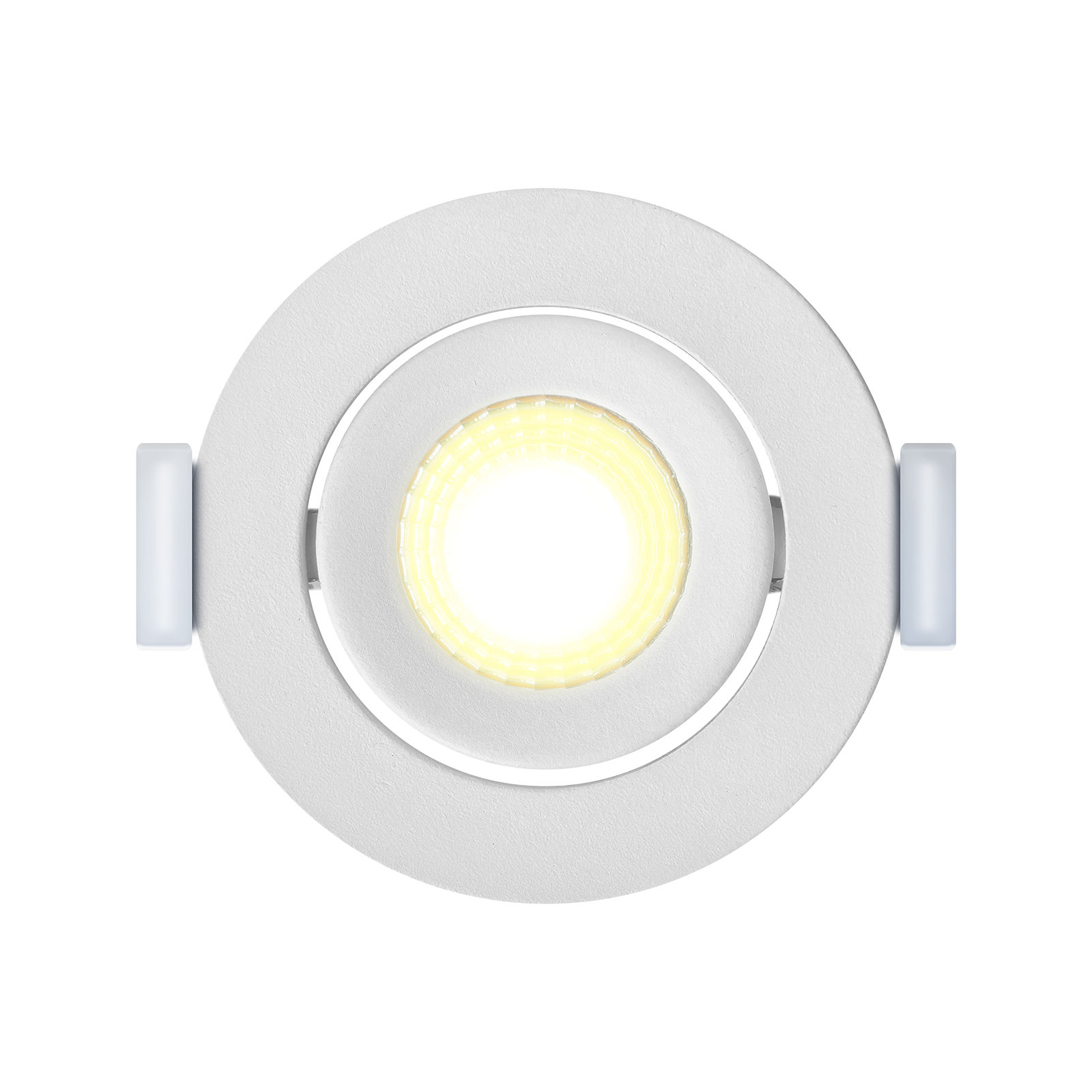

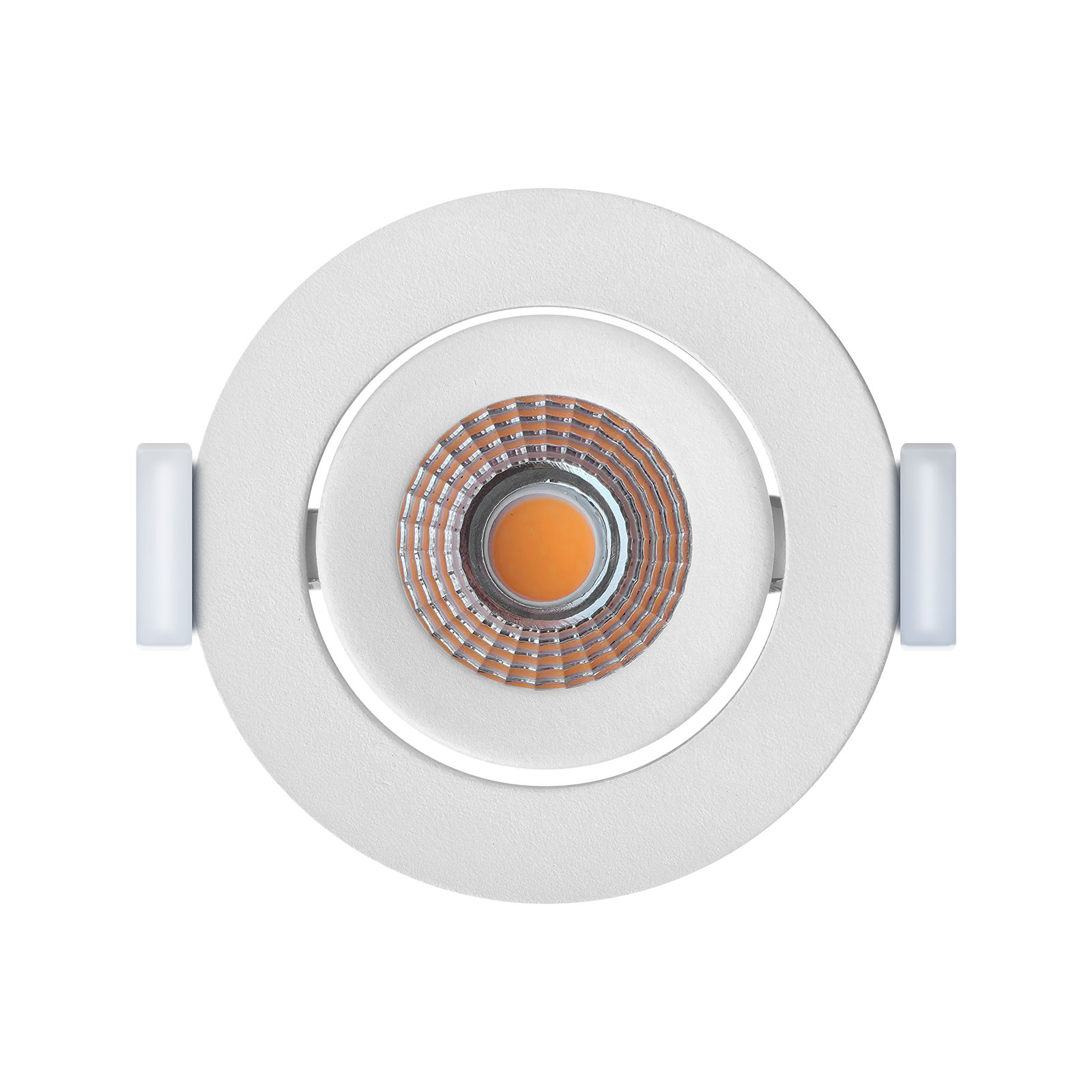

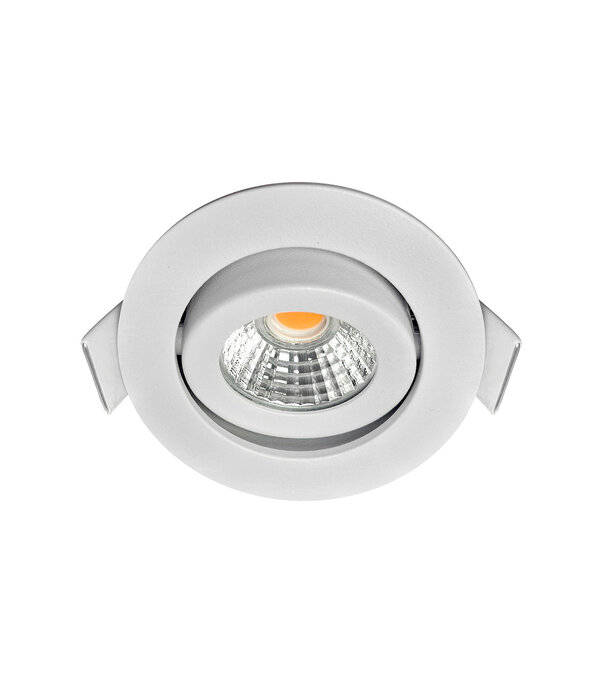

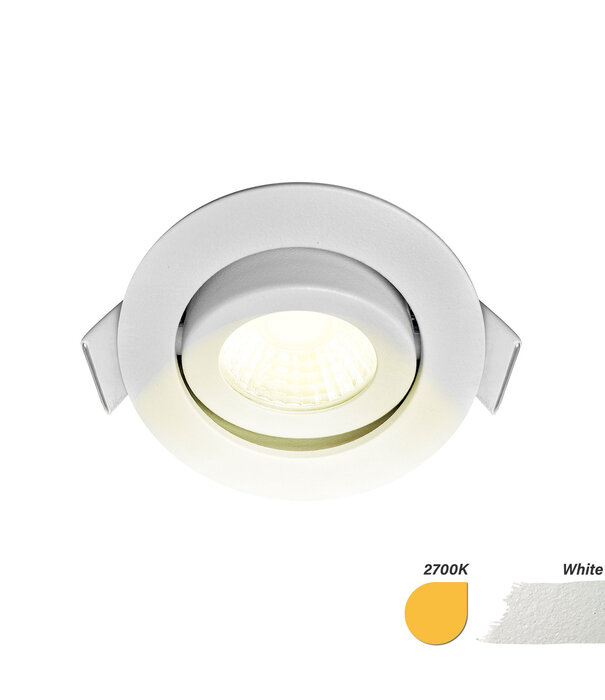

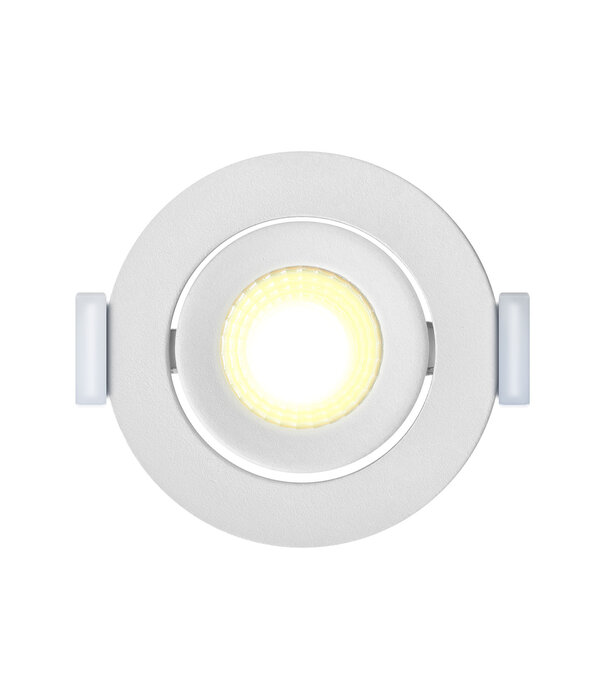

ED-10061 Led recessed spotlight small recessed depth IP54 warm white, round, white, 55mm

  1. Home
  2. ED-10061 Led recessed spotlight small recessed depth IP54 warm white, round, white, 55mm
Brand:
EcoDim
Article code:
ED-10061
EAN:
8719322373076
SKU:
ED-10061
Hier verkrijgbaar
Alle downloads

Product description

Small mounting depth (23 mm).
IP54 (splash-proof, suitable for bathrooms)
Dimmable up to 5%
Warm white (2700K)
Matt white, round
Tiltable
✓ Good light distribution (60⁰)

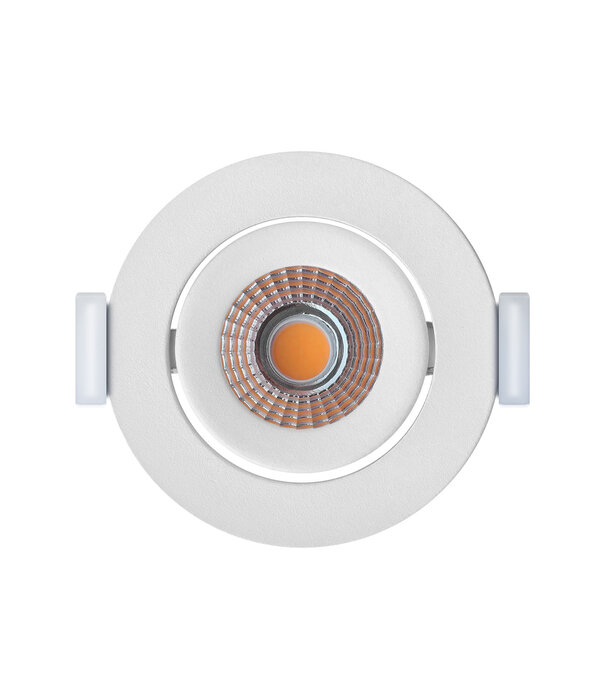

COB chip & Reflective Technology
High colour fastness (CRI95)
✓ Transformer included (can be connected to 230V)
✓ Simple & safe 2-wire daisy-chaining
✓ 90% savings

Key features of this white, round LED recessed spotlight are its IP54 value (splash-proof), its small recessed depth (23 mm) and its excellent dimmability. Unique is the compact junction box with double clamp connector, making it easy and safe to realise a parallel connection. Excellent dimmability with all EcoDim LED dimmers.

Cutting size: Ø55mm
Outer edge: Ø62mm

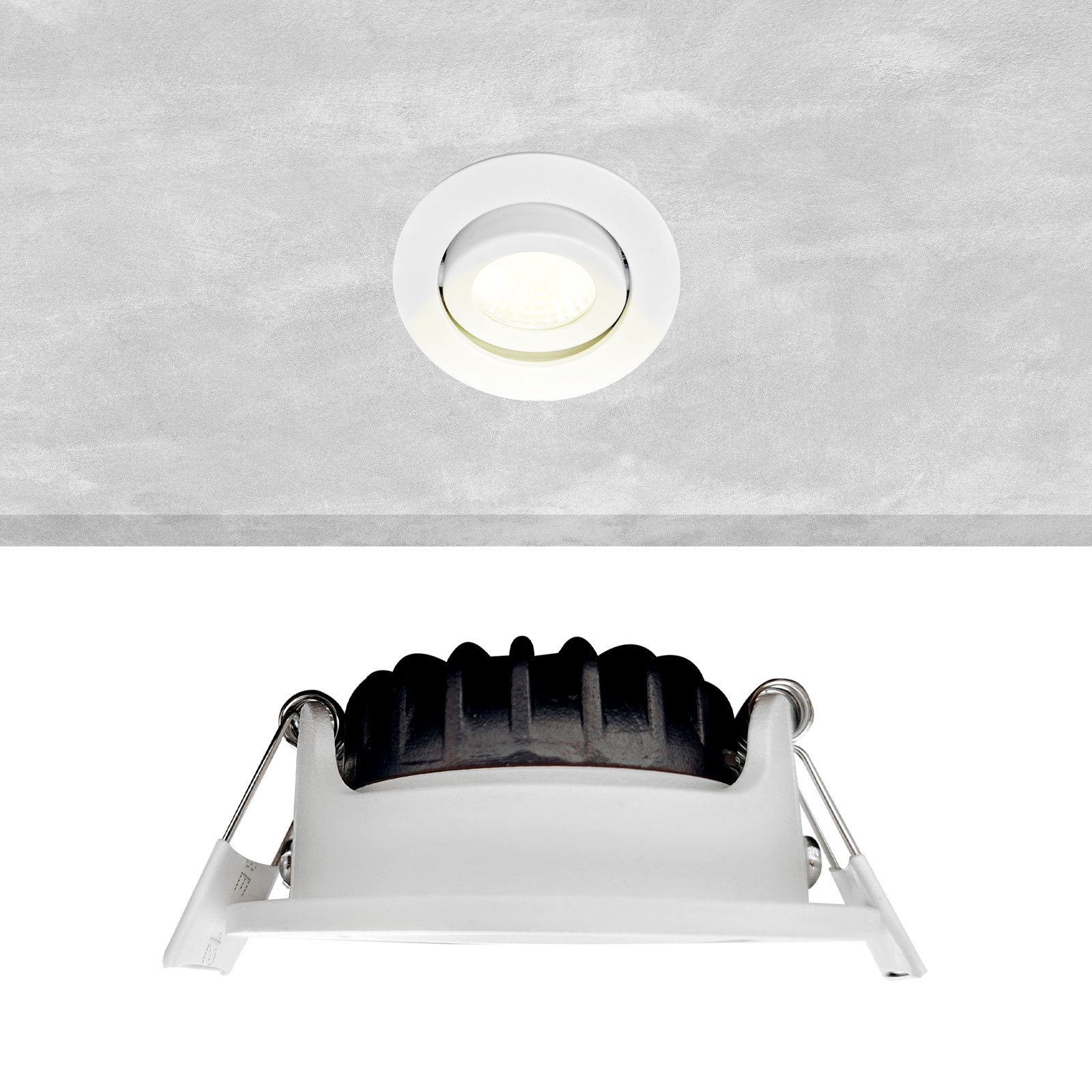

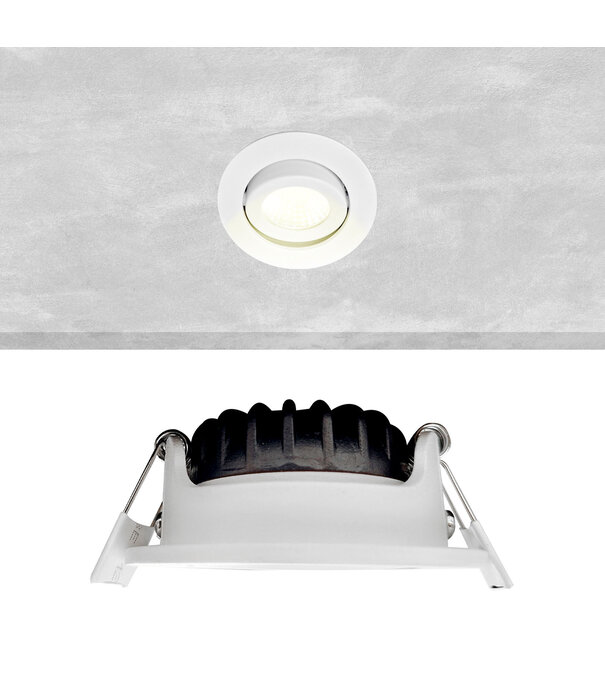

Recessed depth: 23mm

Spot light source: Ø25mm
Spot incl. tilting ring: Ø40mm

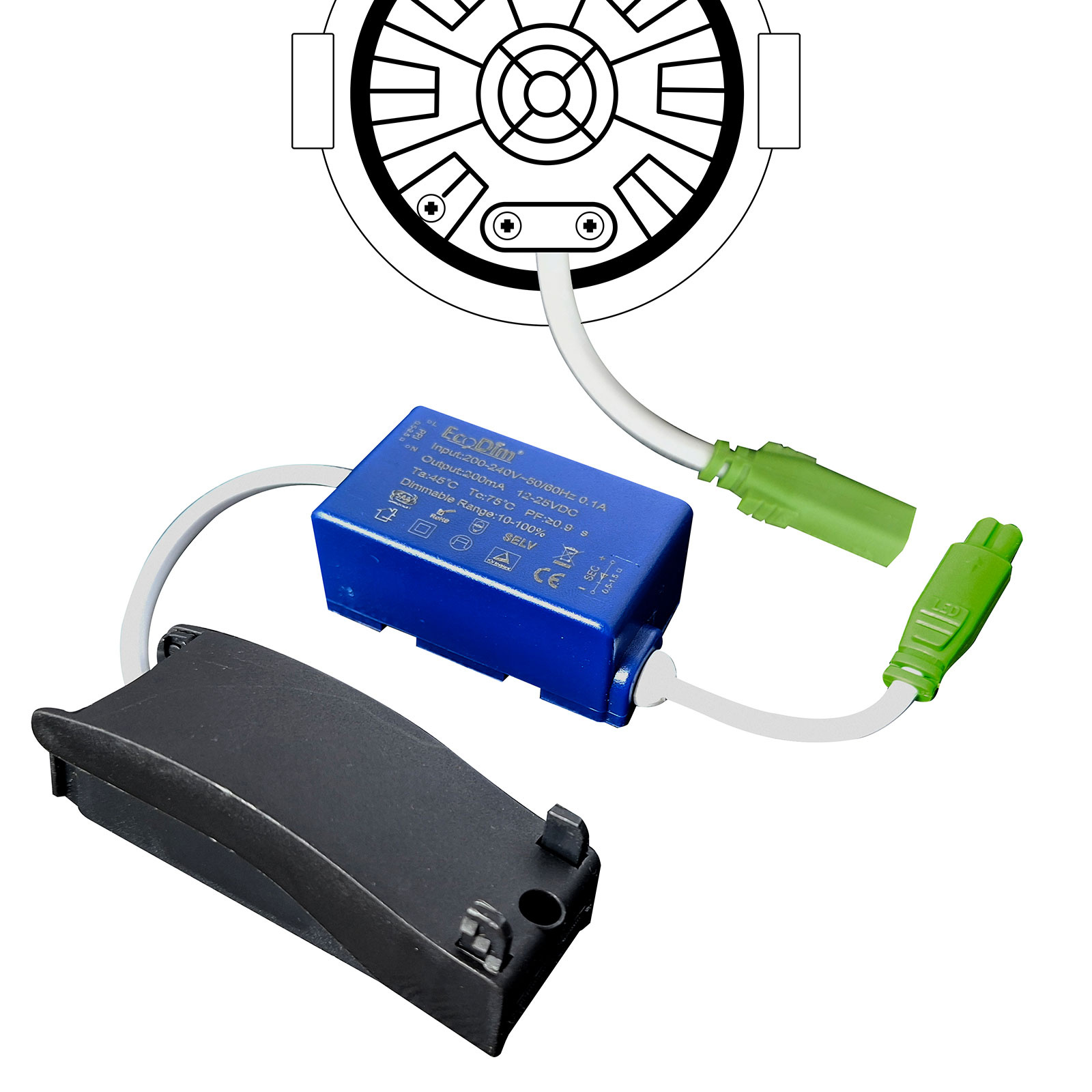

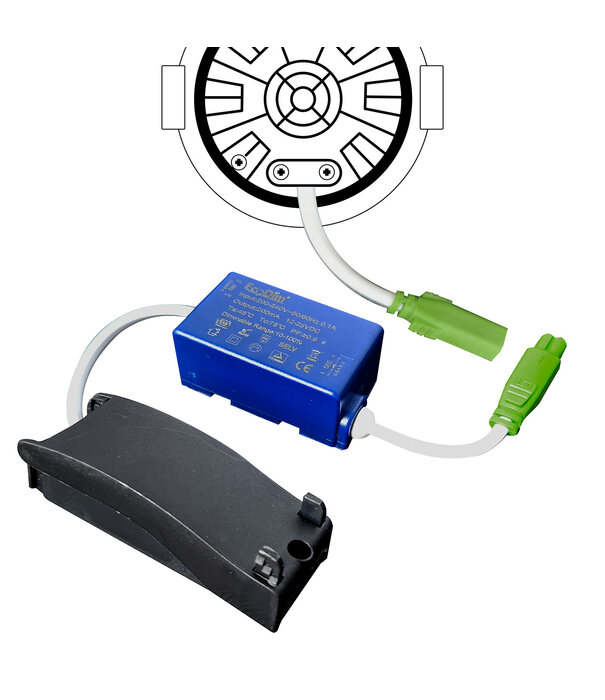

Supplied LED transformer:
Length: 95mm
Width: 38mm
Depth: 22mm

Input 220-240VAC / Output 14-25VDC
Connectable directly to 230V.

Product specifications

Brand: EcoDim
Power (wattage): 5 watts
Voltage (input): 220 - 240V
Dimming technology: Phase cut-off / RC / Tronic
Operation: N/A
Dimensions in mm (outer dimensions frame): N/A
Installation dimensions in mm (fits any flush-mounted box): N/A
Packaging: Each
Warranty: 2 years
Article number: ED-10061
Item number 2BA: ED-10061
Download manual: https://cdn.webshopapp.com/shops/68389/files/424062893/ed-10058-ed-10063-manual.pdf
Philips HUE manual:
Datasheet
