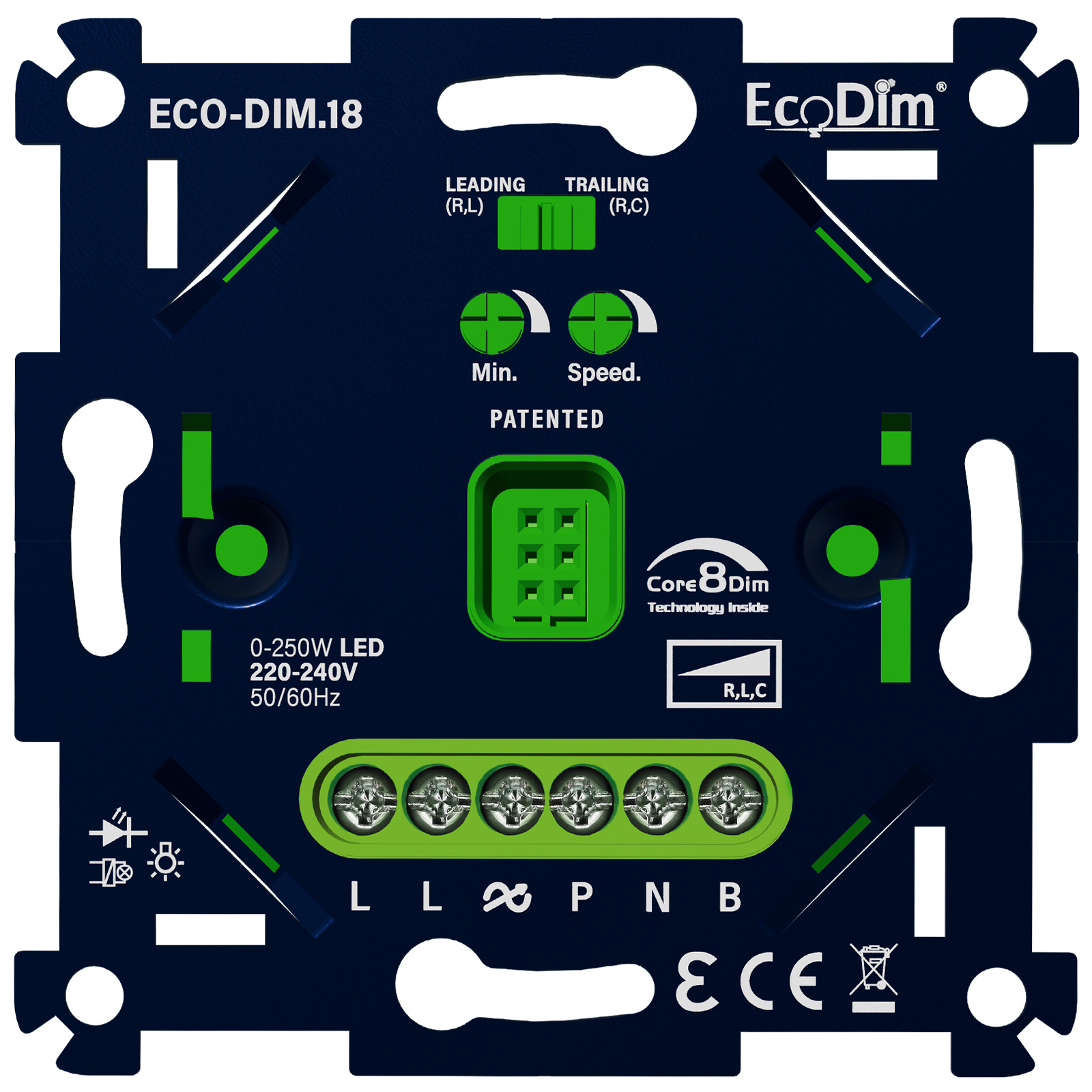

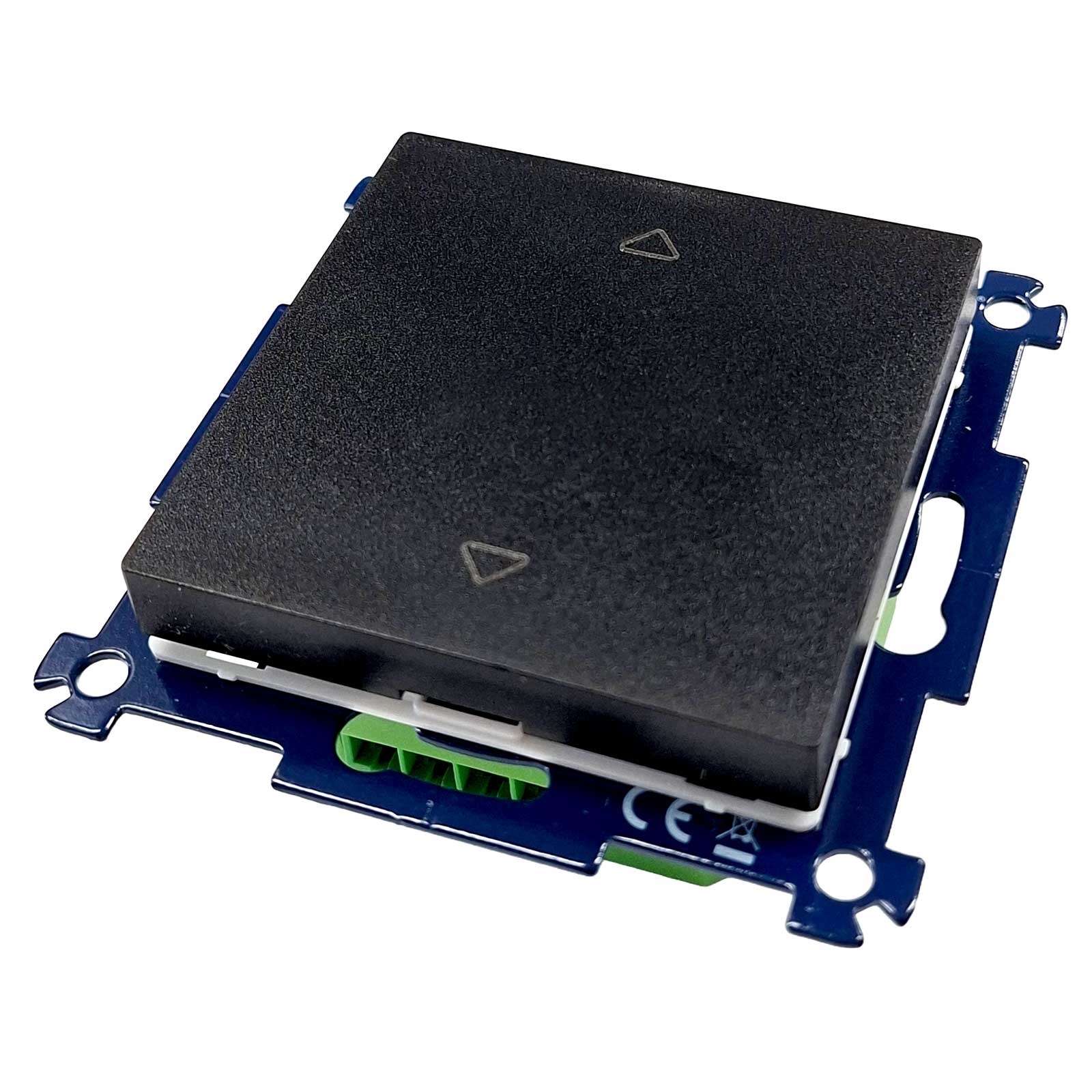

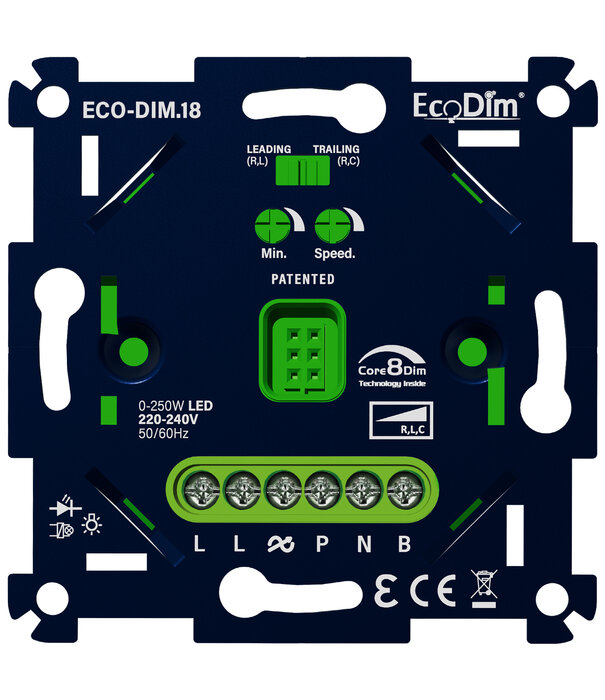

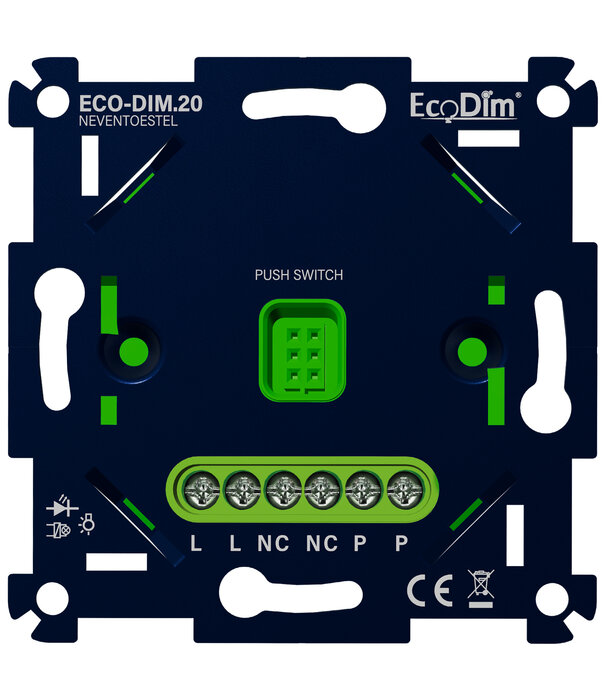

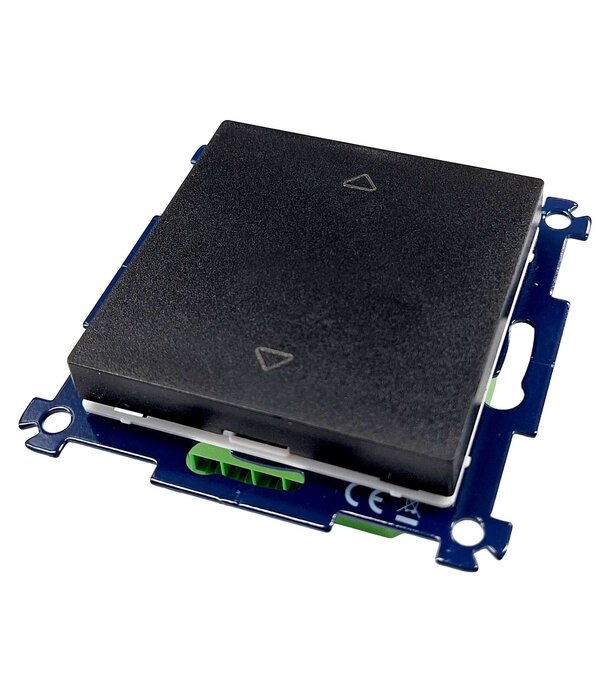

ECO-DIM.18 LED touch / push dimmer 0-250W (RLC) + ECO-DIM.20 secondary unit

✓ Touch dimmer / push dimmer + secondary unit (ECO-DIM.18 + ECO-DIM.20)
✓ 0-250W LED
✓ Universal: leading edge and trailing edge (RLC)
✓ Suitable for all pulse push buttons from well-known brands

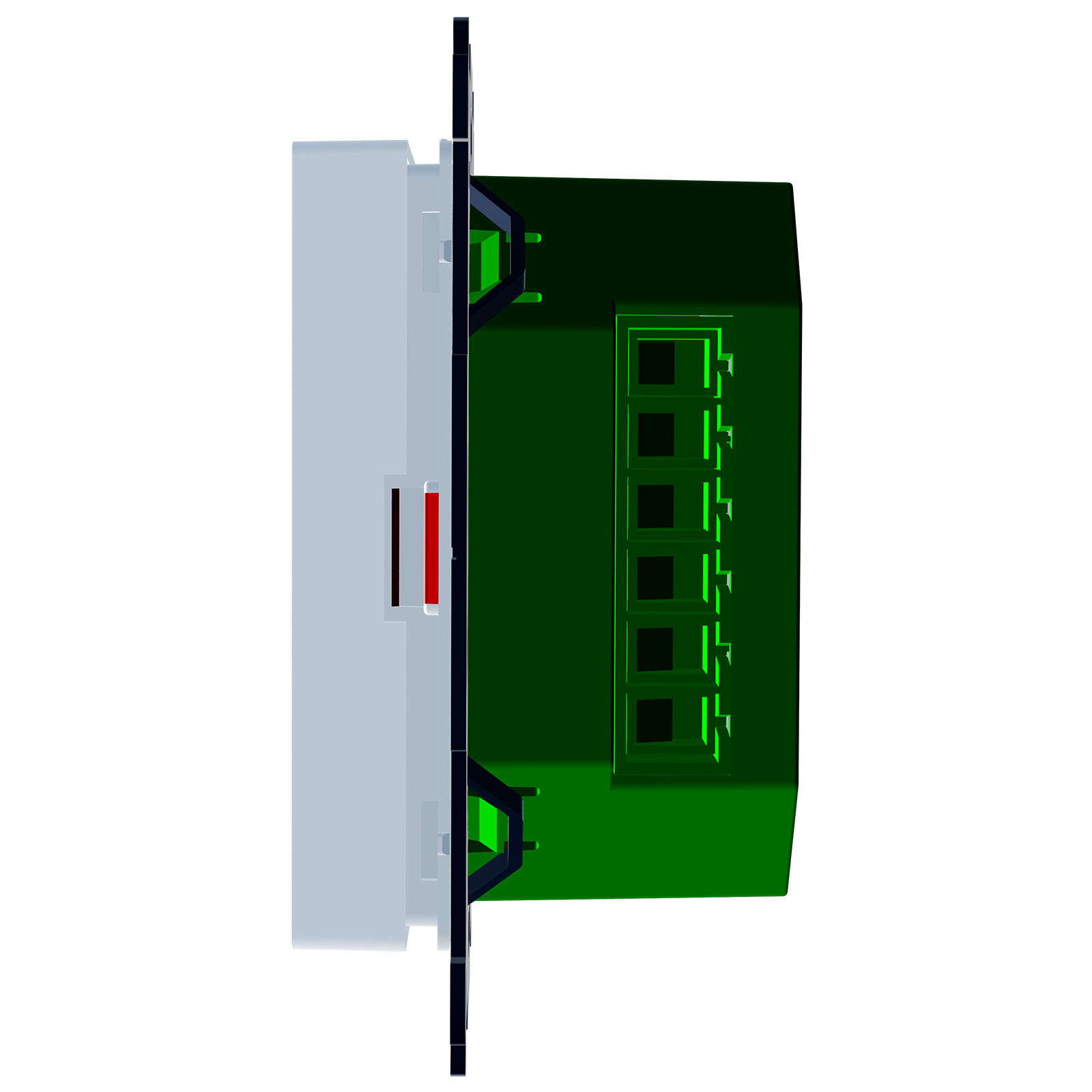

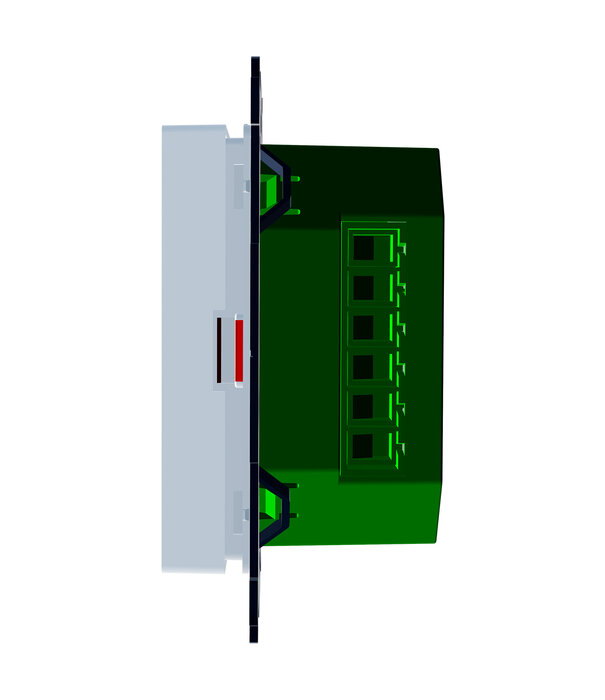

✓ Low installation depth (23 mm)
✓ Optimal dimmability and light stability
✓ MIN setting, automatic MAX detection
✓ Speed control
✓ Protection against overload, overheating and interference signals
✓ Silent dimming

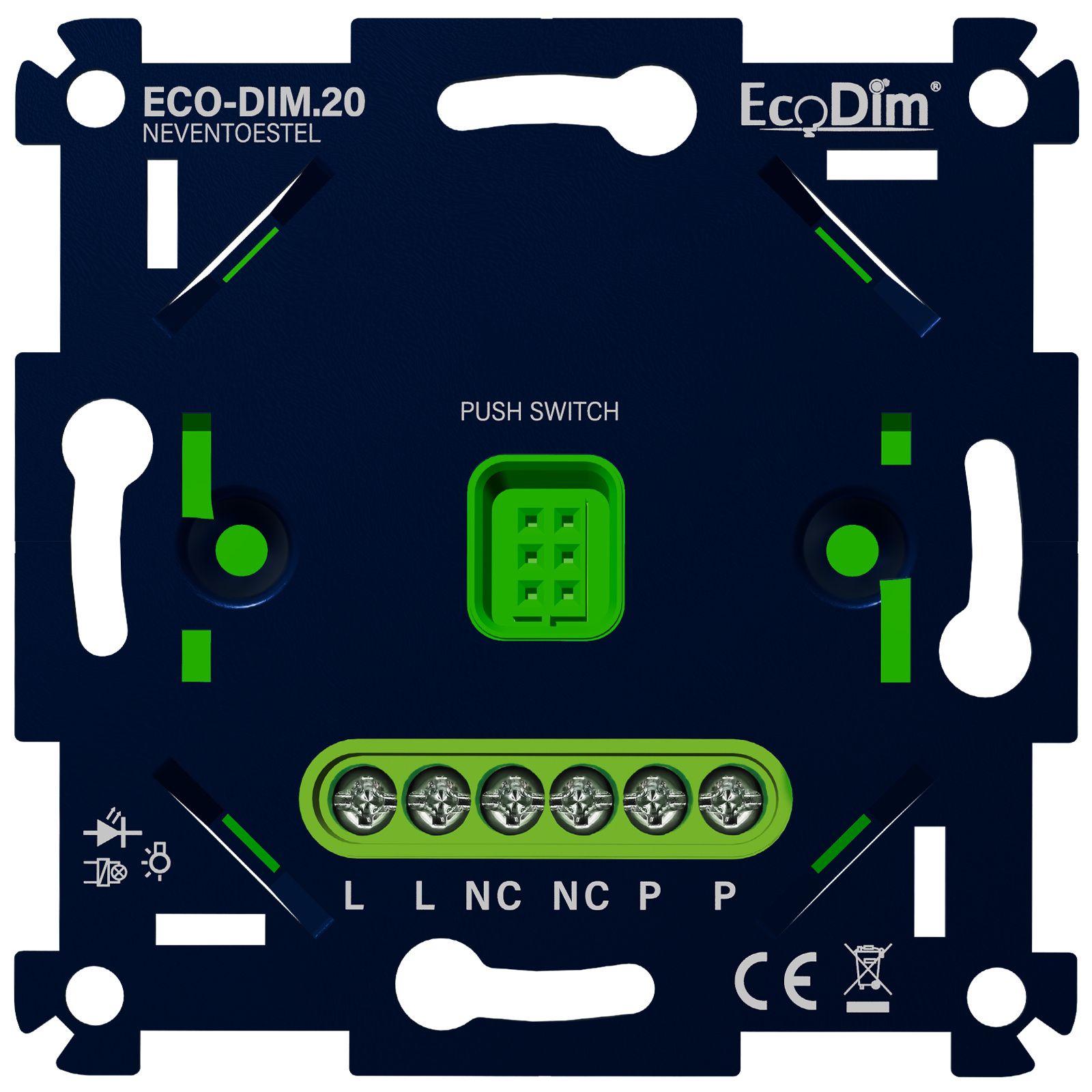

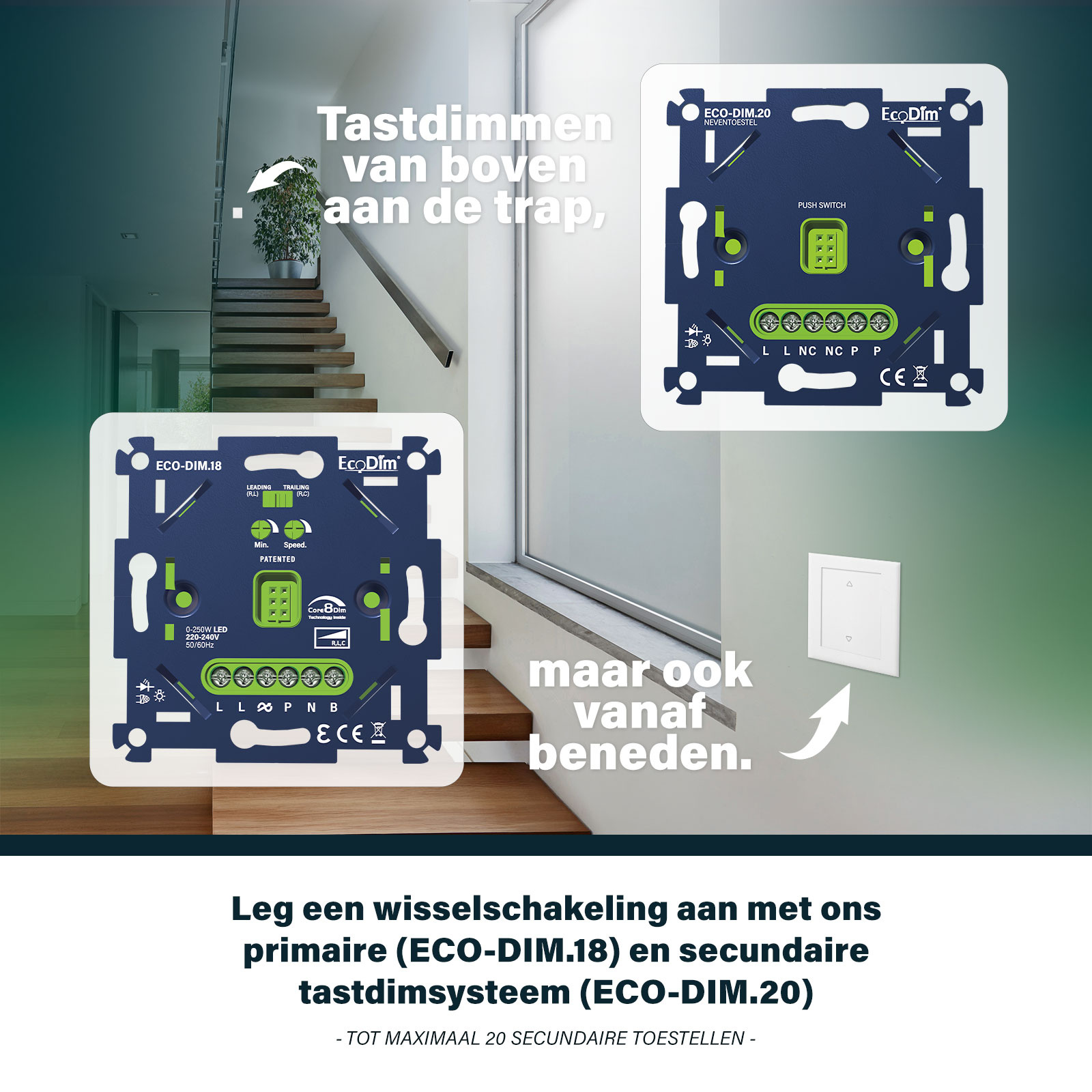

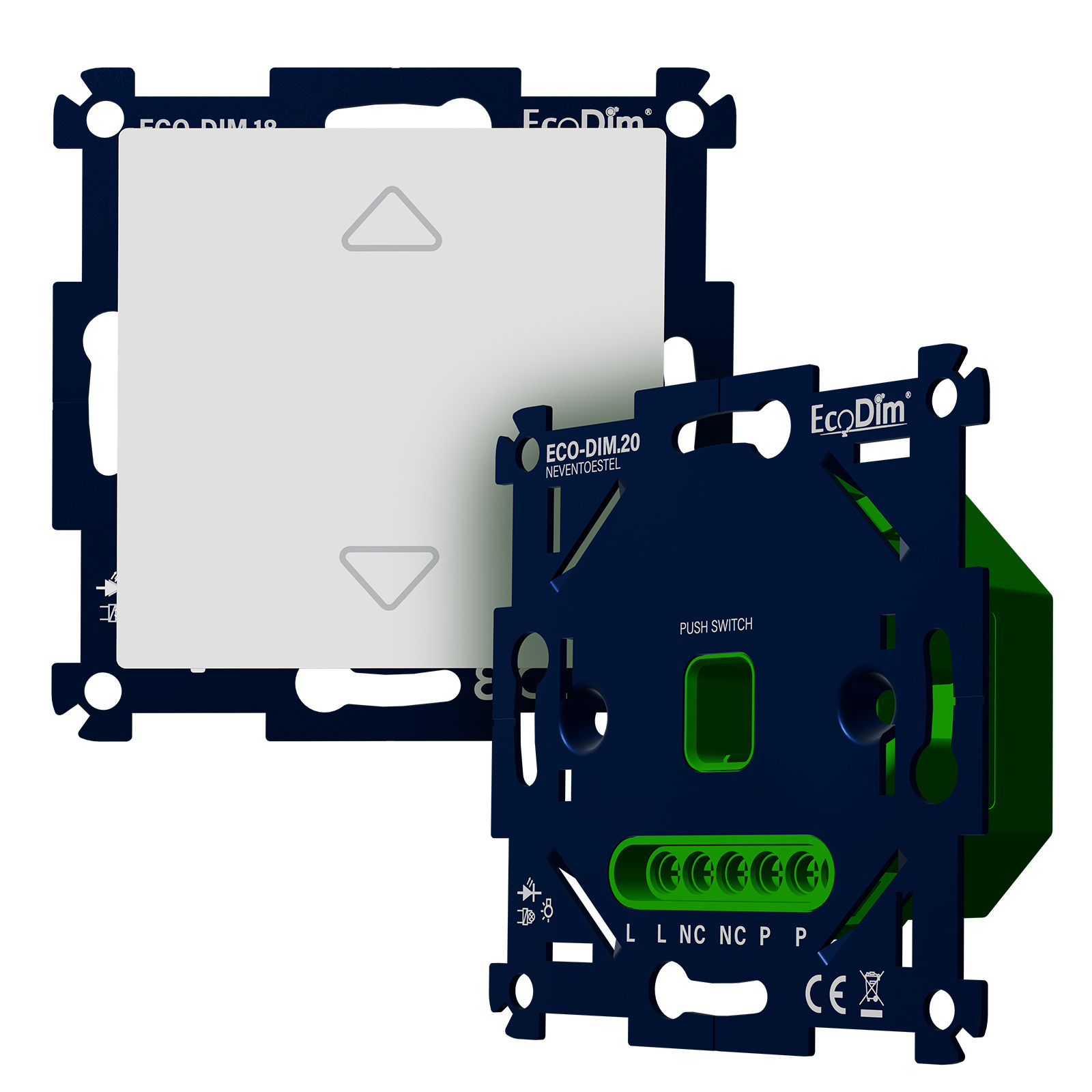

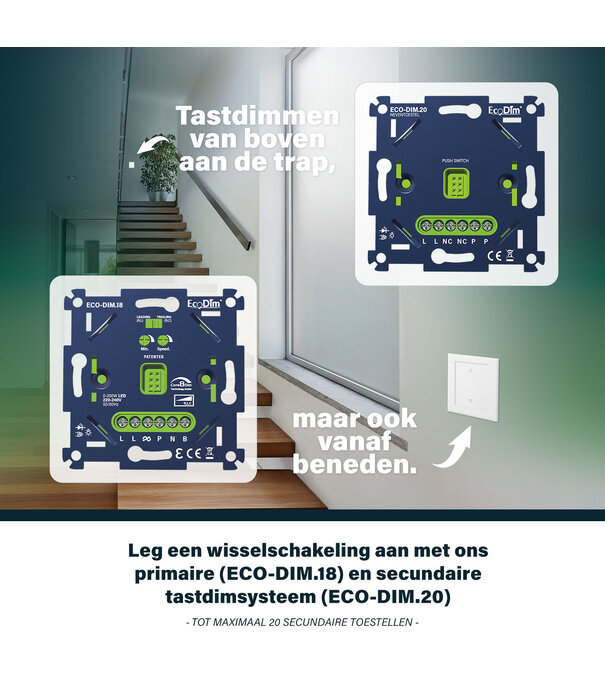

✓ Two-way switching with supplied secondary unit
✓ Can be expanded with multiple side units (ECO-DIM.20)
✓ Phase conductor can be connected (double L connection)
✓ Suitable for all dimmable LED lamps
✓ Soft start system

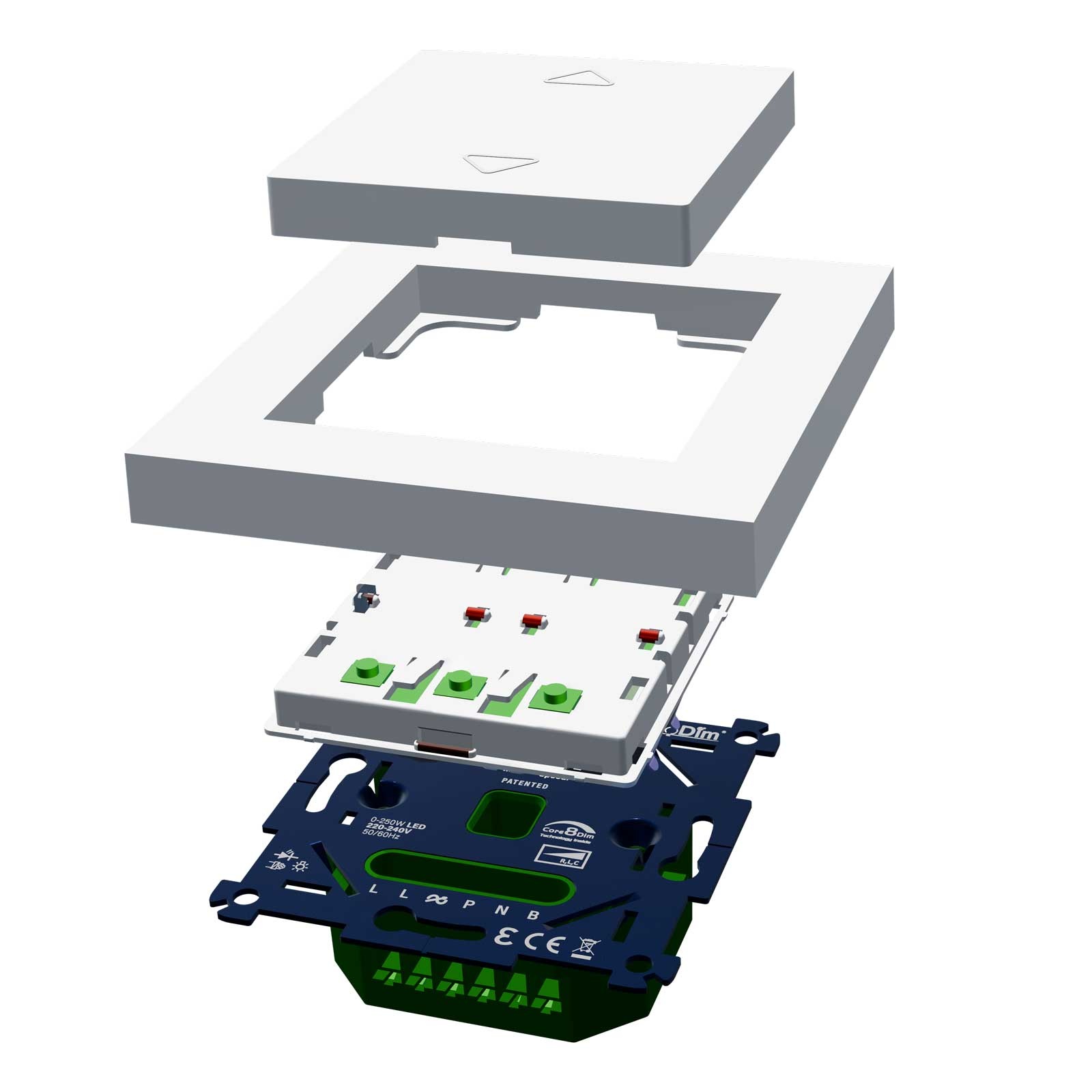

✓ Delivery includes, secondary unit, centre plates, push buttons (white / RAL9016 and black / RAL9005) and adjustment adapter
✓ Fits all 55x55mm frames (GIRA, JUNG and Merten)
✓ Frames can be ordered separately in white and black

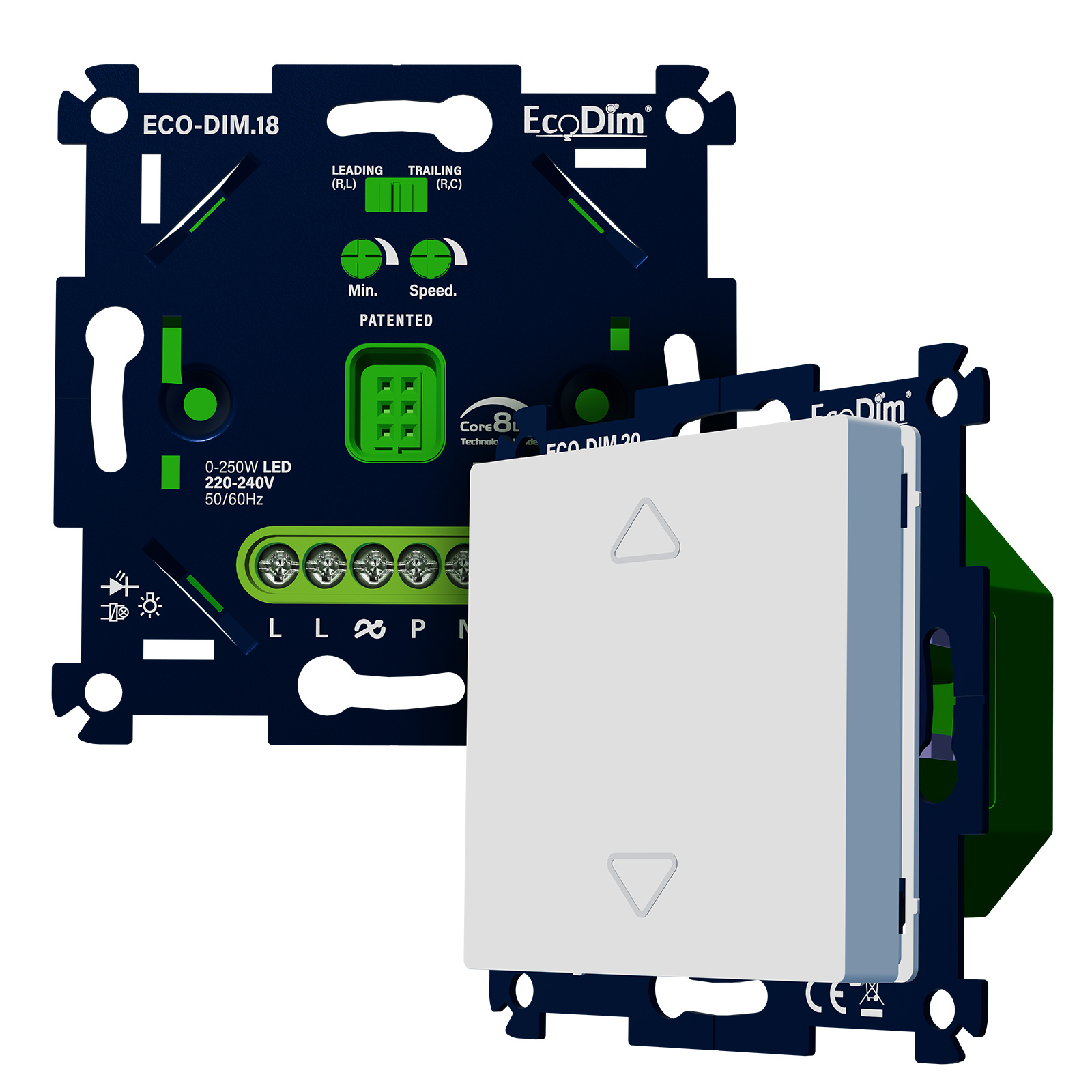

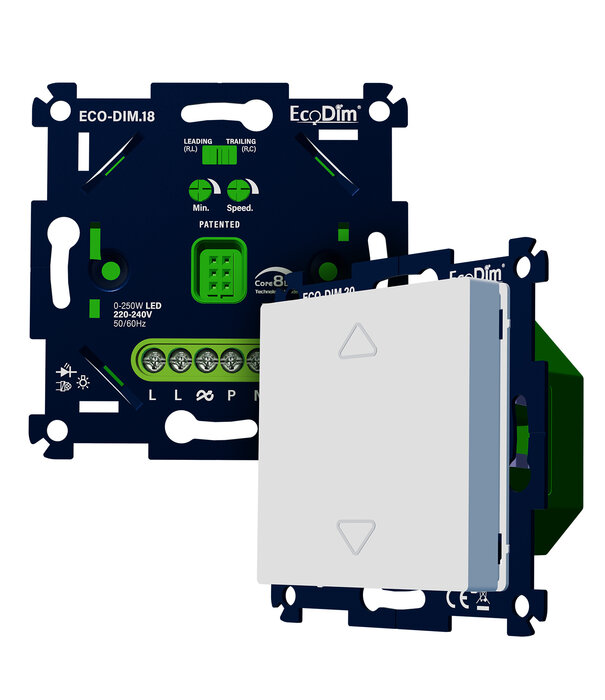

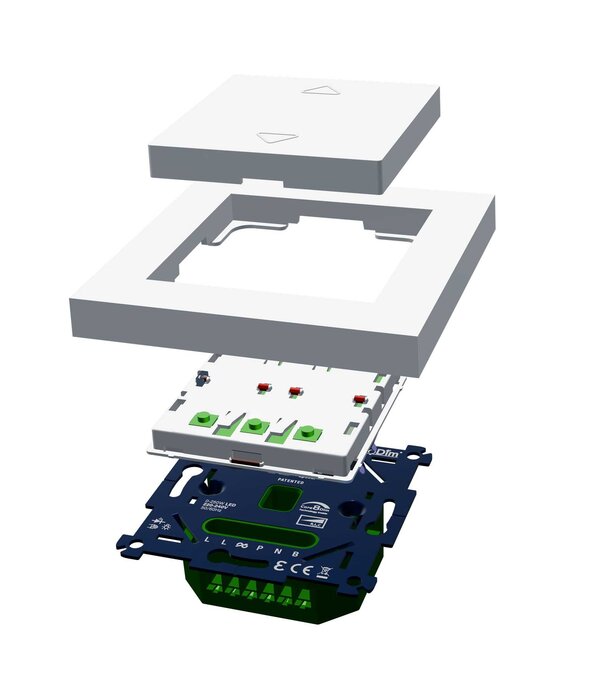

The ECO-DIM.18 DUO is an LED touch dimmer including a secondary unit (ECO-DIM.18 + ECO-DIM.20). Touch dimming is a more luxurious way of dimming, whereby you press the button once to switch the dimmer on and off and hold it down to dim. This dimmer has a power rating of 0-250W. The MIN setting ensures that you achieve the optimum dimming range at low light levels. The automatic MAX detection controls this at high light levels. This touch dimmer can be used in an alternating/hotel switch with the supplied secondary unit (ECO-DIM.20) or a pulse switch from an A-brand of your choice. The touch dimmer has a small installation depth of 23 mm. With the supplied adjustment adapter, you can adjust the MIN and Speed while the lights are working. This dimmer also comes with a centre plate, push button (white (RAL9016) and black (RAL9005)) and the secondary unit. The centre plate and push buttons simply click onto the LED dimmer.

General information

Item number: ECO-DIM.18 DUO
Item number 2BA: ECO-DIM.18-DUO
Type of LED dimmer: Trailing Edge & Leading Edge / R,L,C
Power: 0-250W (RLC)
Operation: Touch dimming / push dimming

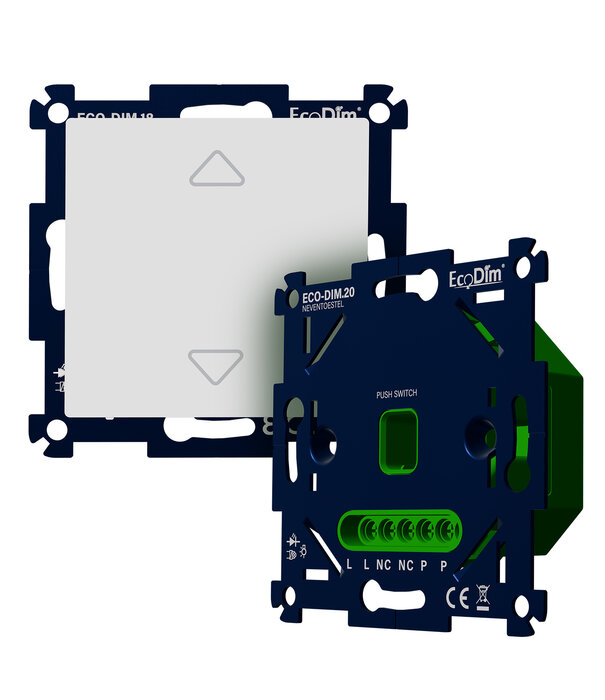

Packaging: Touch dimmer + secondary unit in one package

Suitable dimmable lamps

• LED lamps 230V (max. 250W)
• Incandescent lamps (max. 250W)
• Halogen lamps 230V (max. 250W)
• Low-voltage lamps with electronic transformer, such as LED bulbs with transformer (max. 250W)
