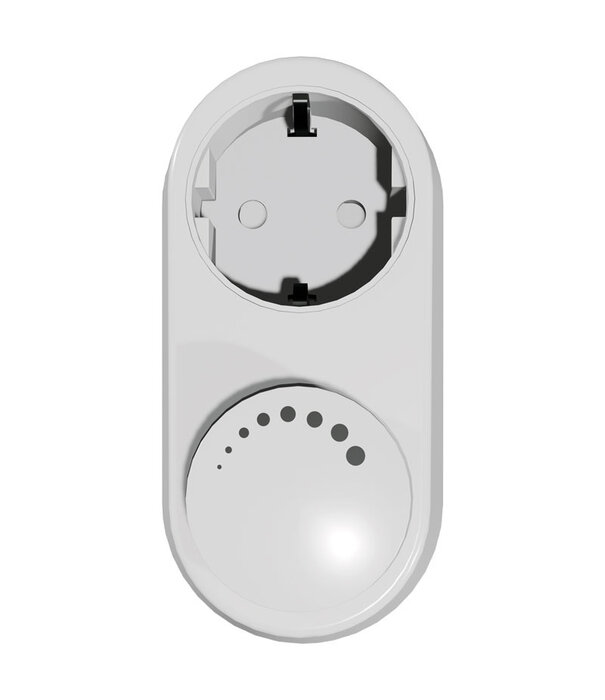

ECO-DIM.06 Zigbee Led plug dimmer 0-100W (RC)

  1. Home
  2. ECO-DIM.06 Zigbee Led plug dimmer 0-100W (RC)
Brand:
EcoDim
Article code:
ECO-DIM.06 Zigbee
EAN:
8719322372413
Hier verkrijgbaar
Alle downloads

Product description

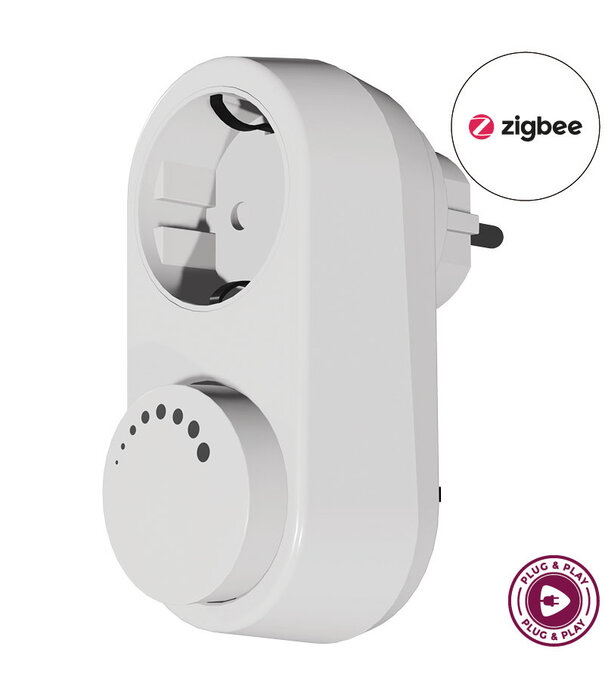

✓ Zigbee certified

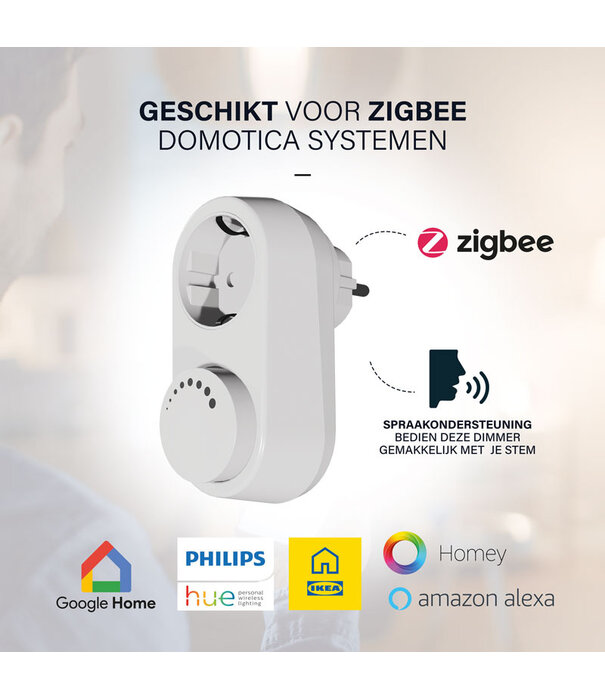

Suitable for most Zigbee home automation systems
✓ Touchlink support
✓ Voice support (via Google Assistant/Amazon Alexa)
✓ 0-100W LED
✓ Optimal dimmability & light stability

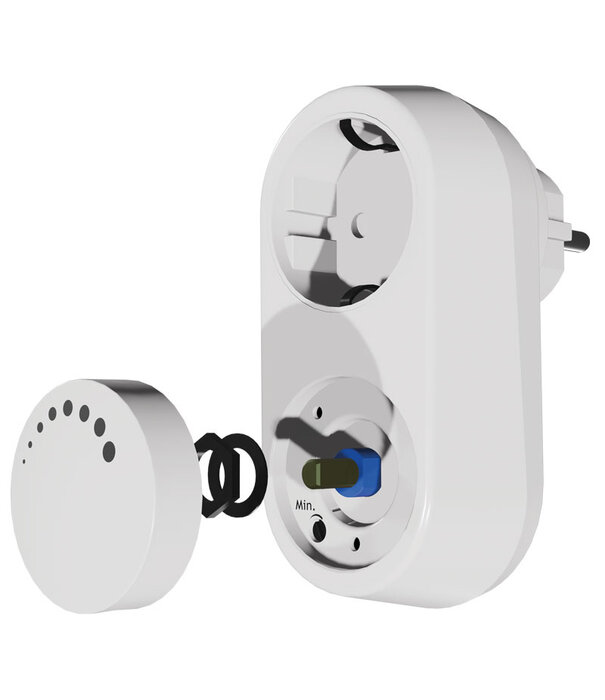

✓ MIN adjustment & Automatic MAX detection
✓ Protection against interference signals
Silent dimming
Soft-start system

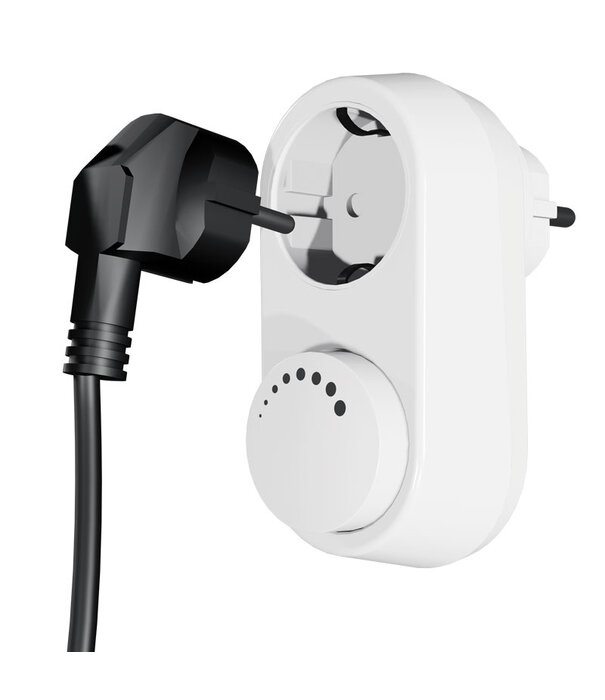

Plug & Play



General information

Article number: ECO-DIM.06 Zigbee
Article number 2BA: ECO-DIM.06-ZGB
LED dimmer type: Trailing Edge / Phase Cut / R,C
Power consumption: 0-100 Watt LED
Control: Push-to-turn and home automation system
Packaging: Individually packed

Suitable lamps

  • Led lamps 230V* (max. 100W)
  • Incandescent lamps (5-200W)
  • Halogen lamps 230V (5-200W)
  • Low-voltage lamps with electronic transformer, such as LED lamps with transformer (max. 100W)
* Provided the lamps operate on a phase cut / trailing edge led dimmer.

Product specifications

Brand: EcoDim
Power (wattage): 0-100W RC
Voltage (input): 220 - 240V
Dimming technology: Phase cut-off / RC / Tronic
Operation: Push/swivel switch

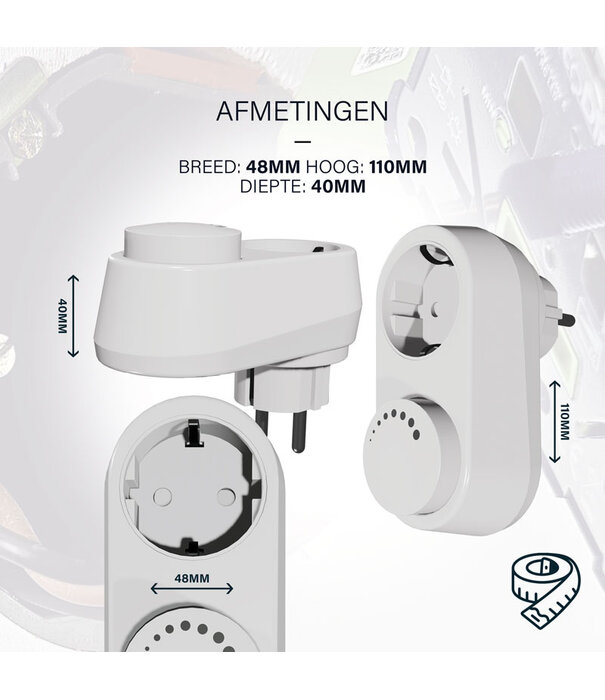

Dimensions in mm (outer dimensions frame): 110mm x 48mm x 40mm
Installation dimensions in mm (fits any flush-mounted box): N/A
Packaging: Each
Warranty: 2 years
Article number: ECO-DIM.06 Zigbee
Item number 2BA: ECO-DIM.06-ZGB
Download manual: https://cdn.webshopapp.com/shops/68389/files/357672073/eco-dim06-zigbee-handleiding.pdf
Philips HUE manual: https://cdn.webshopapp.com/shops/68389/files/374326127/handleiding-eco-dim-zigbee-dimmers-koppelen-met-ph.pdf
Datasheet
