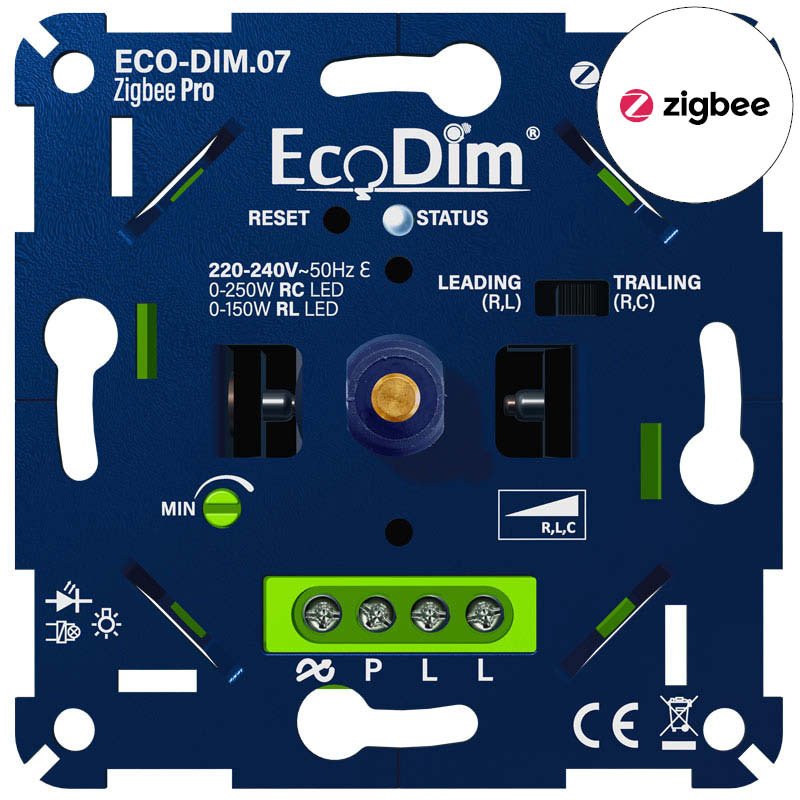

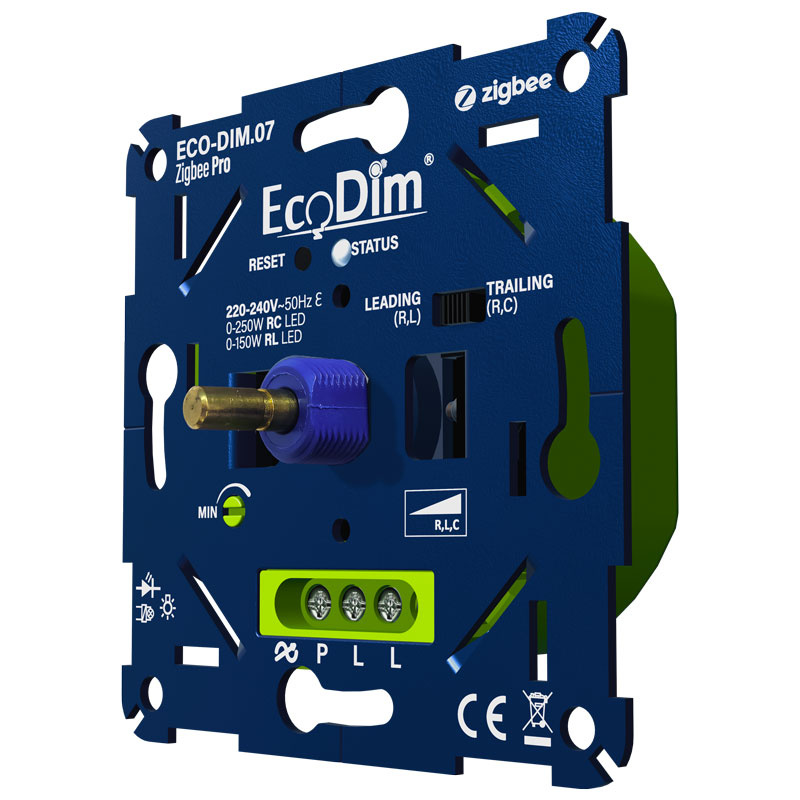

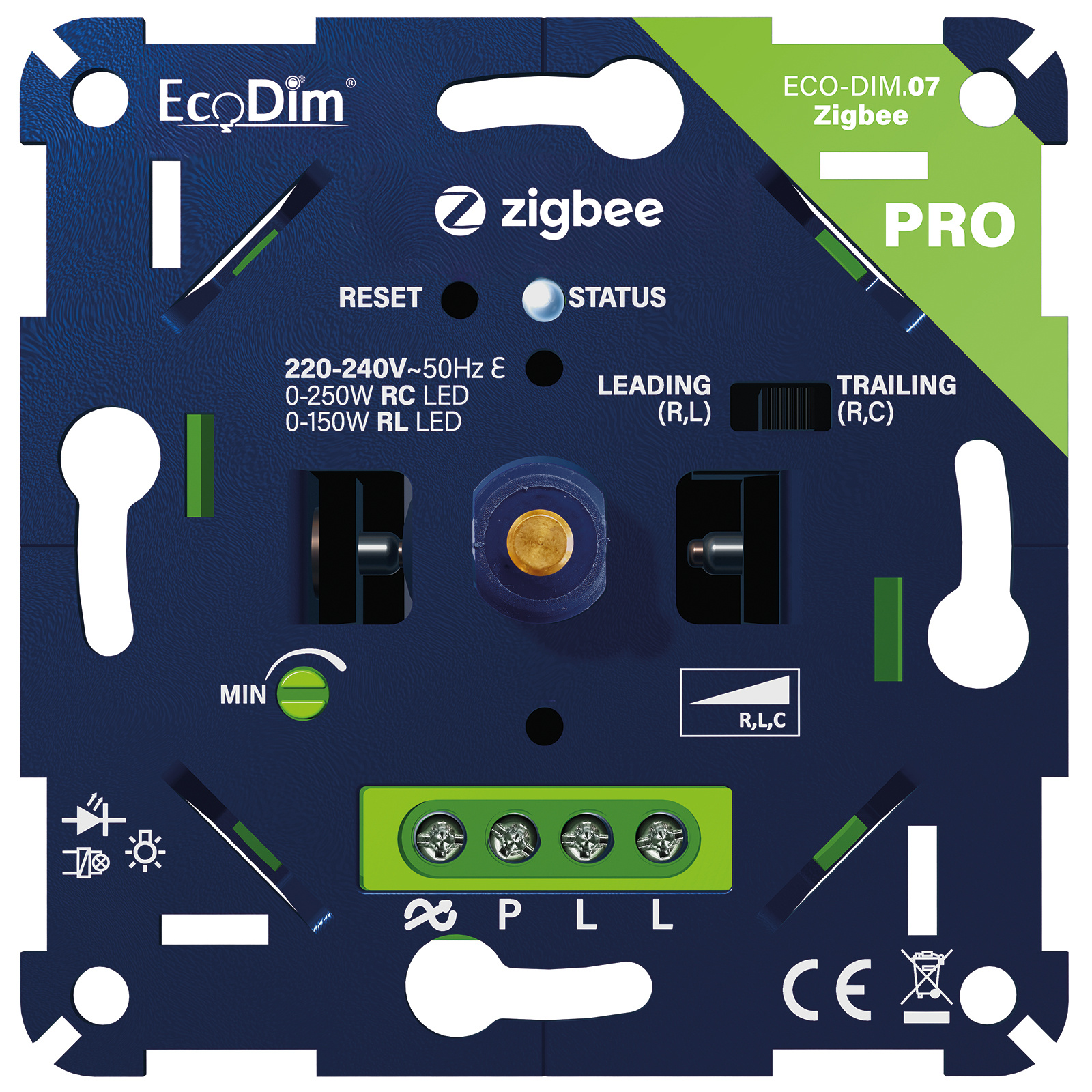

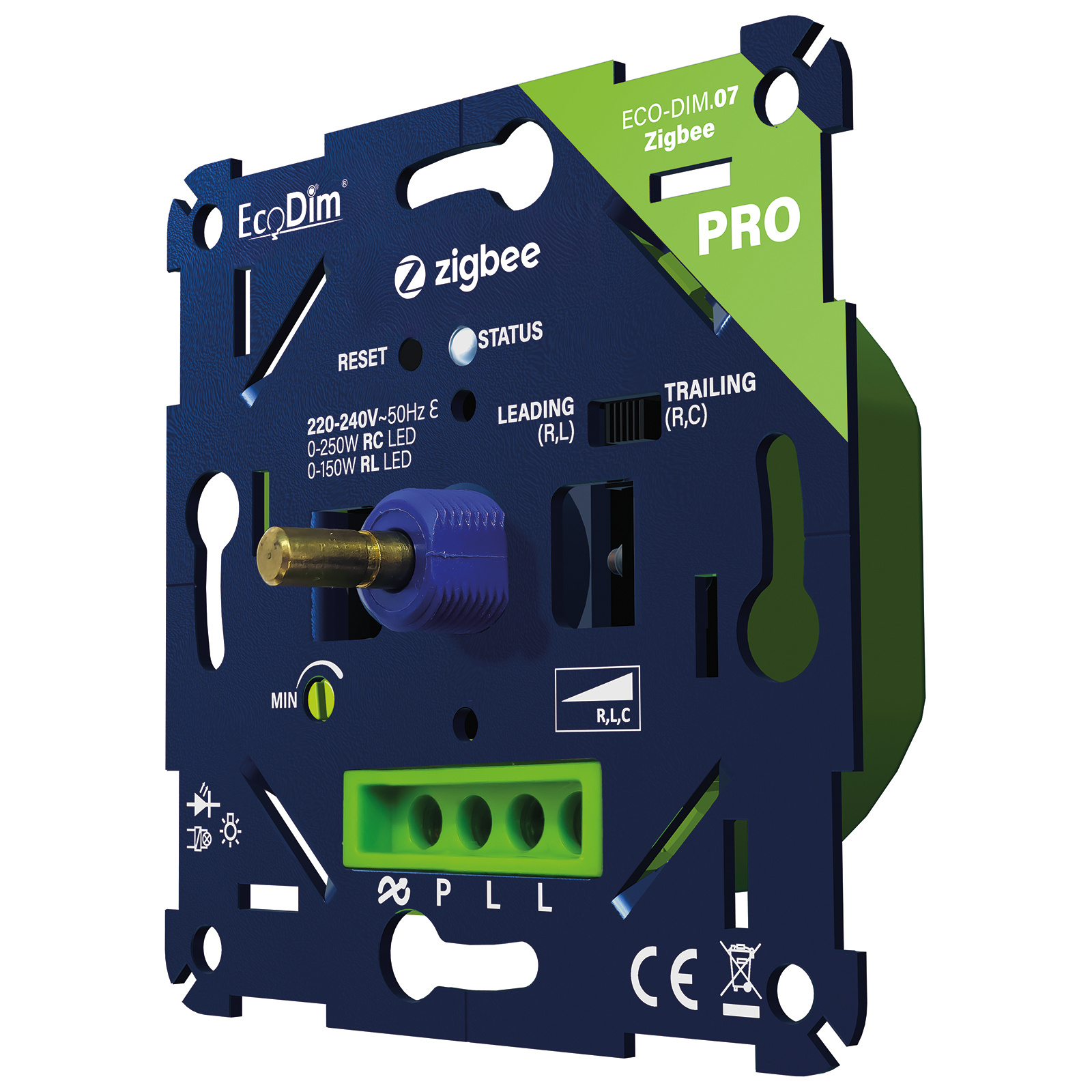

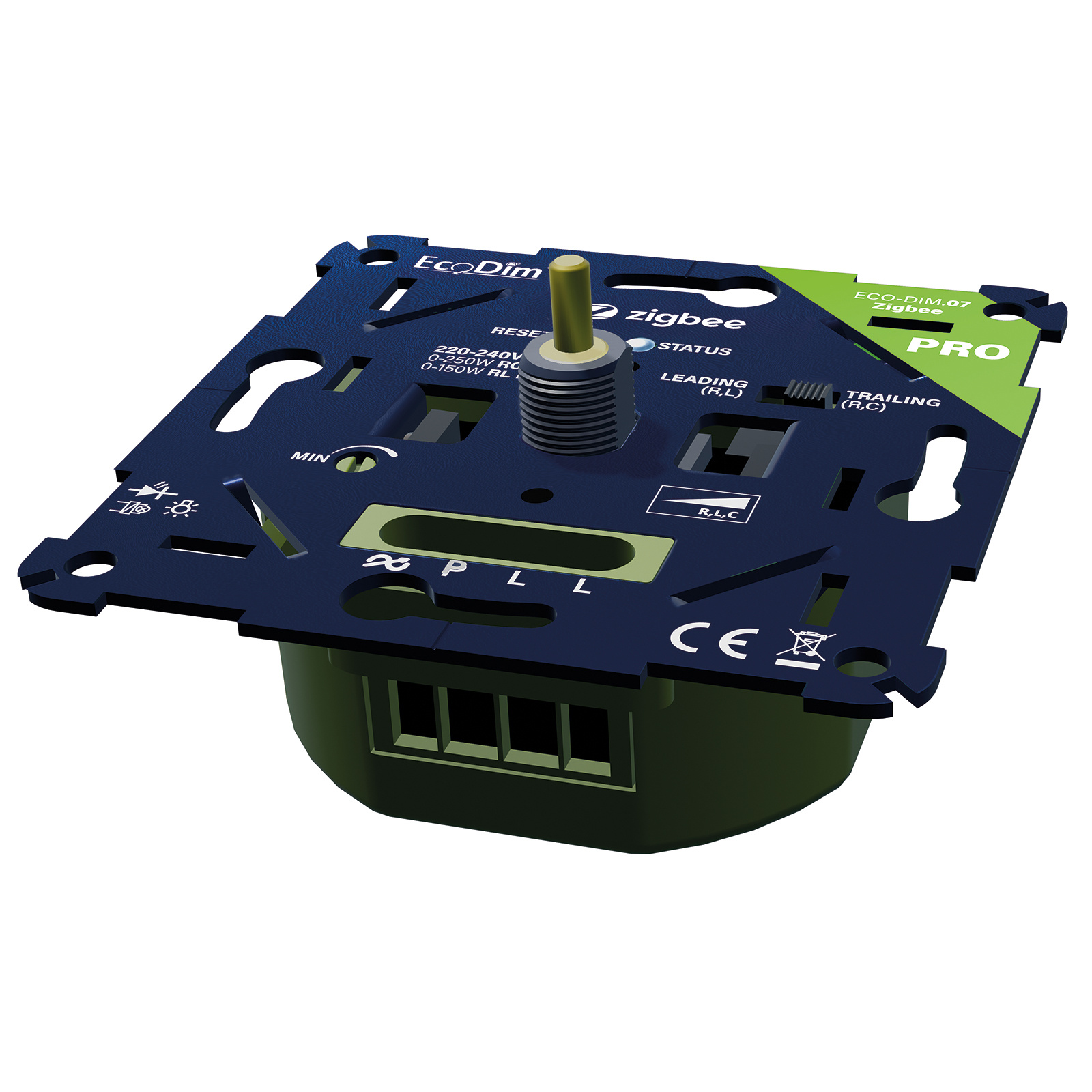

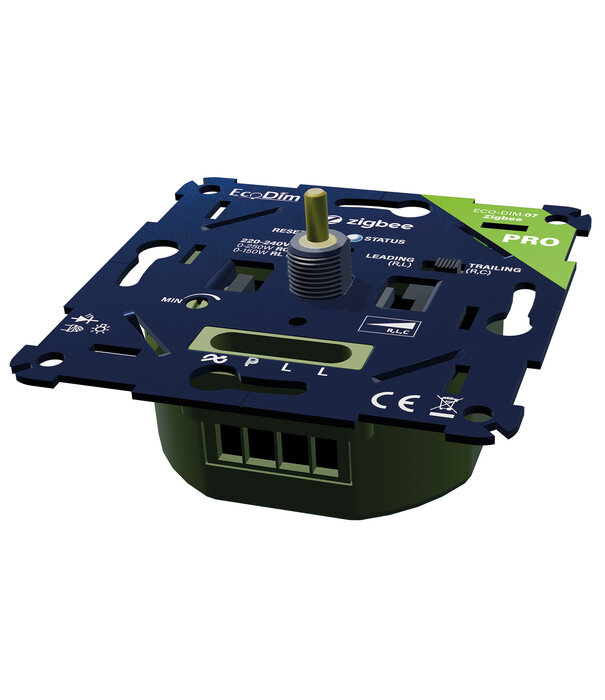

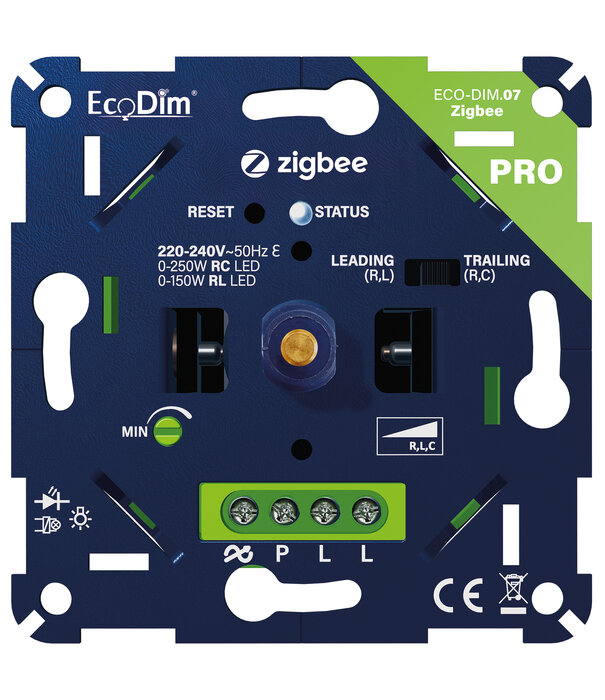

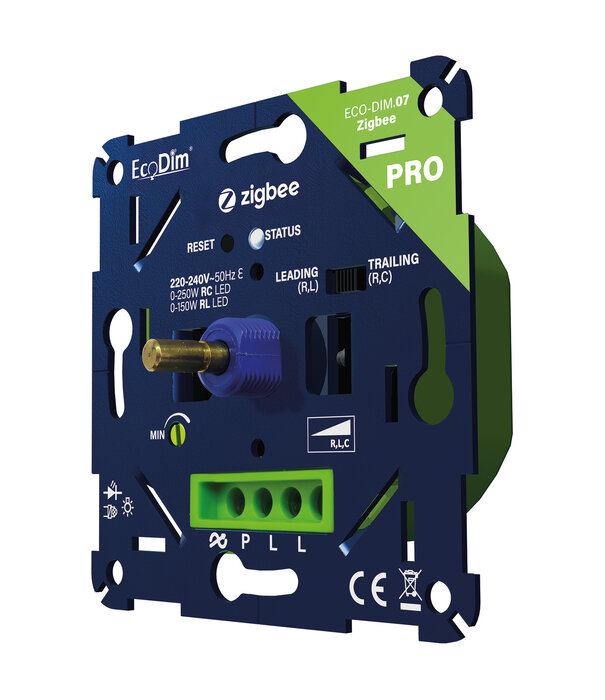

ECO-DIM.07 Led dimmer Zigbee Pro push/turn 0-250W (RLC)

  1. Home
  2. ECO-DIM.07 Led dimmer Zigbee Pro push/turn 0-250W (RLC)
Brand:
EcoDim
Article code:
ECO-DIM.07 Zigbee Pro
EAN:
8719322372895
SKU:
ECO-DIM.07 Zigbee Pro
Video
Hier verkrijgbaar
Alle downloads

Product description

Zigbee support
✓ Voice support (Amazon Alexa & Google Assistant/Home)
✓ Suitable for the popular Zigbee home automation systems
✓ Push/push button
✓ Suitable for 0-250W LED
Suitable for all known brands of cover frame
Optimal dimmability & light stability
MIN light adjustment options and automatic MAX
Suitable for 90% of all LED lamps
✓ Installation with existing 2 wires (no neutral wire required)
Soft start system
Silent dimming
Protection against overloading, overheating and short circuits

General information

  • Article number: ECO-DIM.07 Zigbee Pro
  • Article number 2BA: ECO-DIM.07-ZGB-PRO
  • LED dimmer type: Trailing Edge & Leading Edge / Phase cut & Phase on/ RLC
  • Power: 0-250 Watt RC LED / 0-150 Watt RL LED
  • Control: Push-to-turn and Zigbee home automation system
  • Packaging: Individually packed
  • Dimensions in mm: Outer dimensions of basic element: 70,9x 70,9 x 23,8 mm
  • Hallmarks: CE, RoHS, TÜV Rheinland
  • Protocol: Zigbee 3.0
  • Frequentie: 2,4 GHz, 868/915 MHz


Suitable home automation systems

  • Google Assistant/Home (via Zigbee hub)
  • Amazon Alexa
  • Philips Hue
  • Homey
  • Futurehome
  • Trust (Klikaanklikuit)
  • Aduro smart
  • Aeotec SmartThings
  • WINK
  • IKEA Dirigera

Not suitable

    • TRÅDFRI (can be linked to an IKEA remote control using Touchlink)

Suitable brands of cover material

  • Berker by Hager
  • Busch-Jaeger (except 6540-7X)
  • Gira
  • JUNG
  • Kopp
  • Merten by Schneider 51XX and System M
  • Niko XXX-31003 (provided you use Niko adapter) and XXX-31000
  • PEHA

Not suitable

  • Busch-Jaeger 6540-7
  • Merten D-Life
  • Niko PR20
  • Dimmer knob with D-shaped hole, such as Wintop, Plieger, GAMMA Everest

Suitable lamps

  • Led lamps 230V (max. 250W)
  • Incandescent lamps (max. 300W)
  • Halogen lamps 230V (max. 300W)
  • Low-voltage lamps with electronic transformer/RC, such as LED lamps with transformer (max. 300W)

Product specifications

Brand: EcoDim
Power (wattage): 0-250W LED
Voltage (input): 230V
Dimming technology: Phase cut-off & cut-on (RLC)
Operation: Push/swivel switch
Dimensions in mm (outer dimensions frame): 84 x 84
Installation dimensions in mm (fits any flush-mounted box): 70,9x70,9x23,8
Packaging: Each
Warranty: 2 years
Article number: ECO-DIM.07 Zigbee Pro
Item number 2BA: ECO-DIM.07-ZGB-PRO
Download manual: https://cdn.webshopapp.com/shops/68389/files/443414184/eco-dim07-zigbee-pro-handleiding-nl-de-en-web.pdf
Philips HUE manual: https://cdn.webshopapp.com/shops/68389/files/374326127/handleiding-eco-dim-zigbee-dimmers-koppelen-met-ph.pdf
Datasheet
