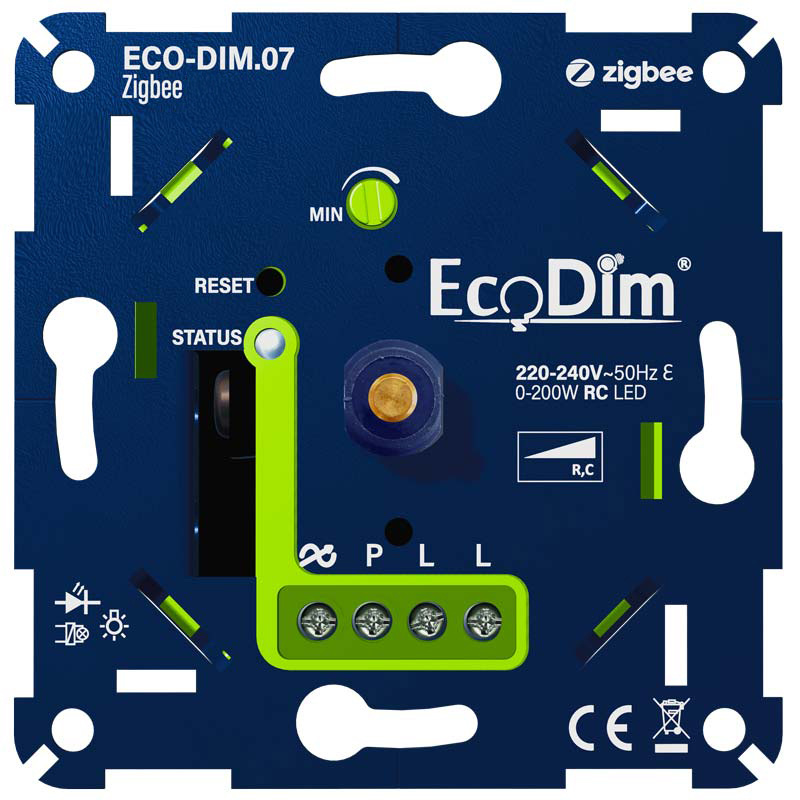

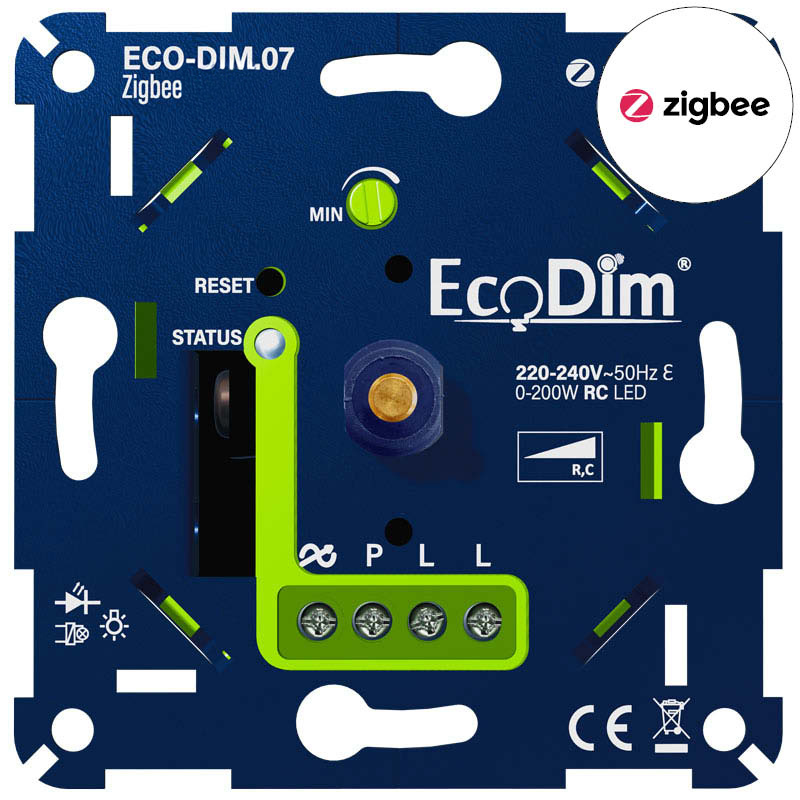

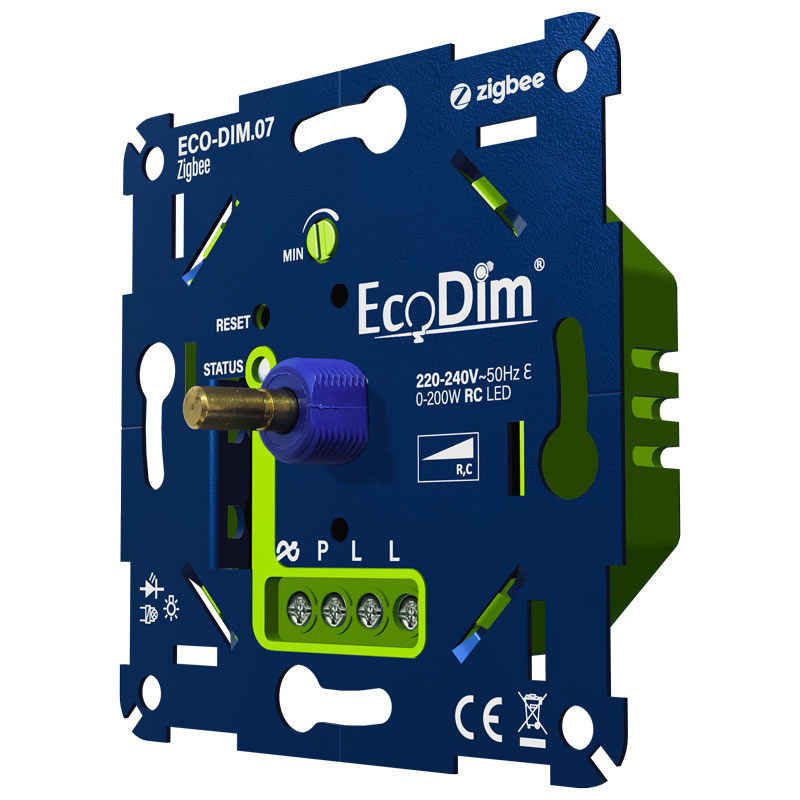

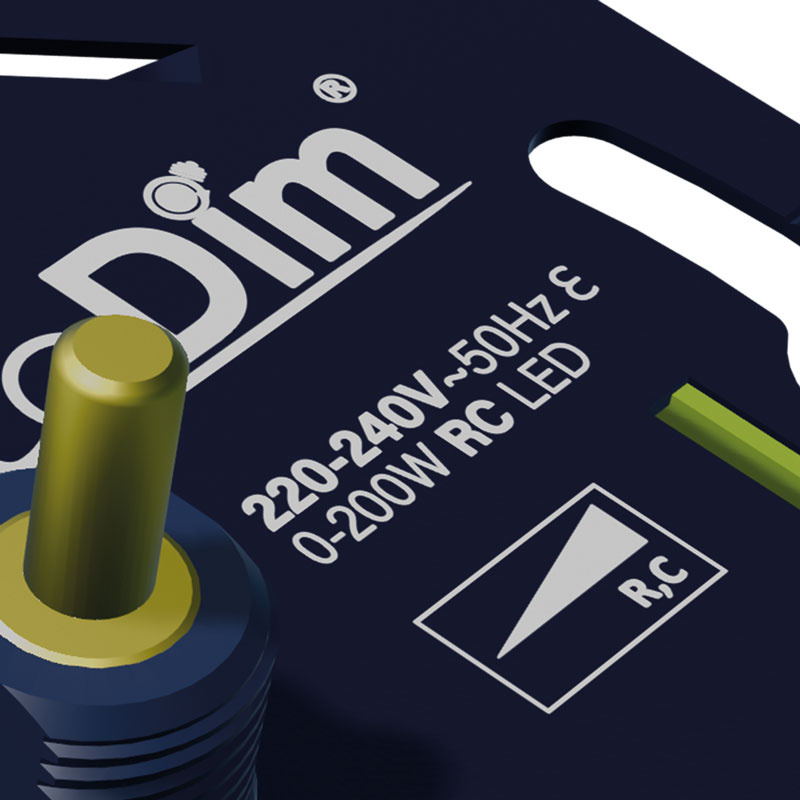

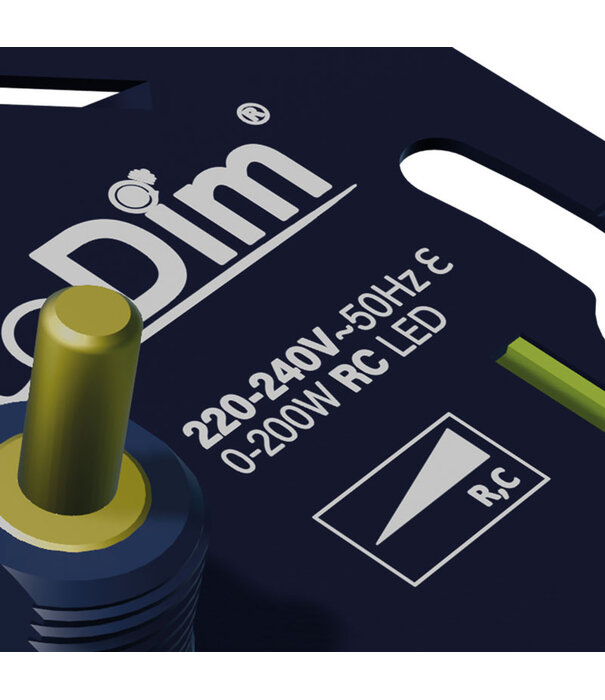

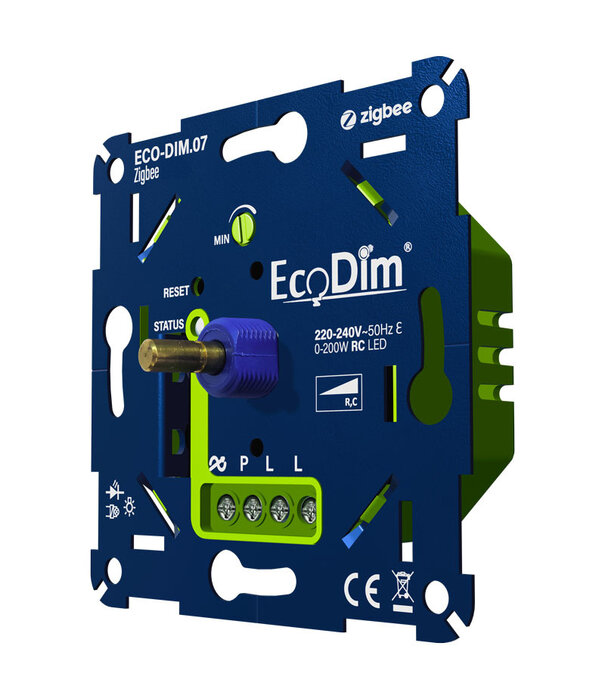

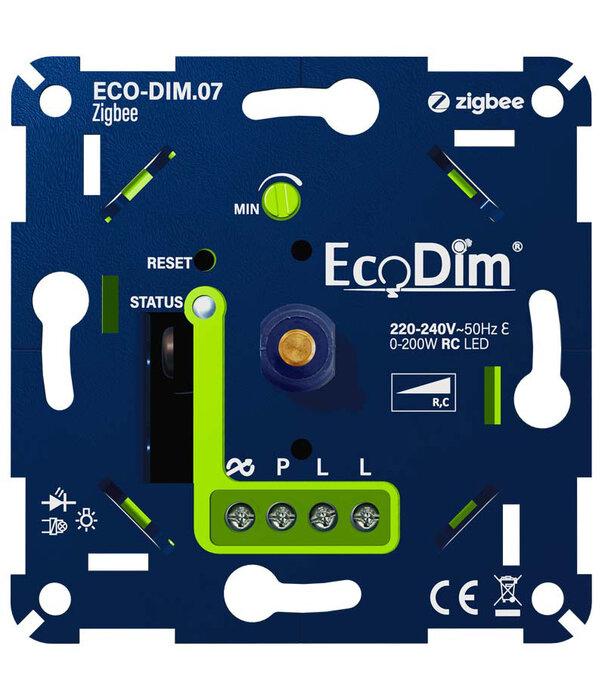

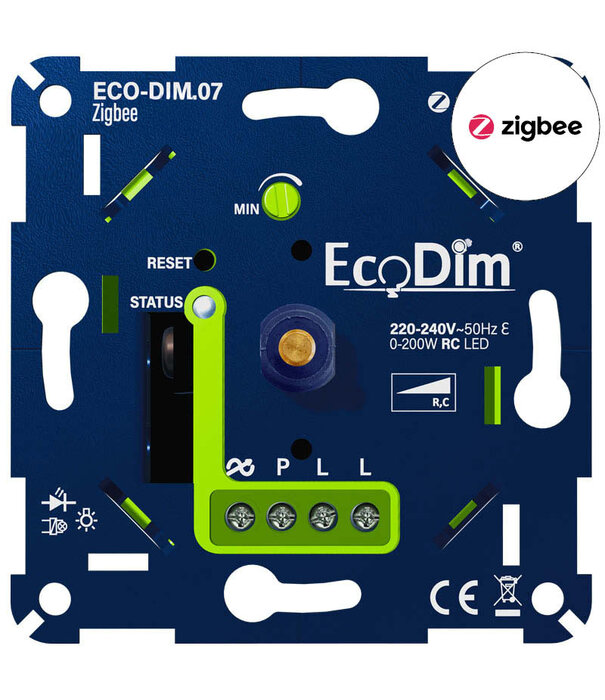

ECO-DIM.07 Led dimmer Zigbee push/turn 0-200W

✓ Zigbee-certified
✓ Suitable for most Zigbee home automation systems
✓ Touchlink support
✓ Voice support (via Google Assistant/Amazon Alexa)
✓ 0-200W LED
✓ Suitable for all A-brands of cover material
✓ Optimal dimmability & light stability
✓ MIN adjustment & Automatic MAX detection
✓ Strong metal pin
✓ Protection against overload & interference signals
✓ Installation with existing 2 wires (no neutral wire required)

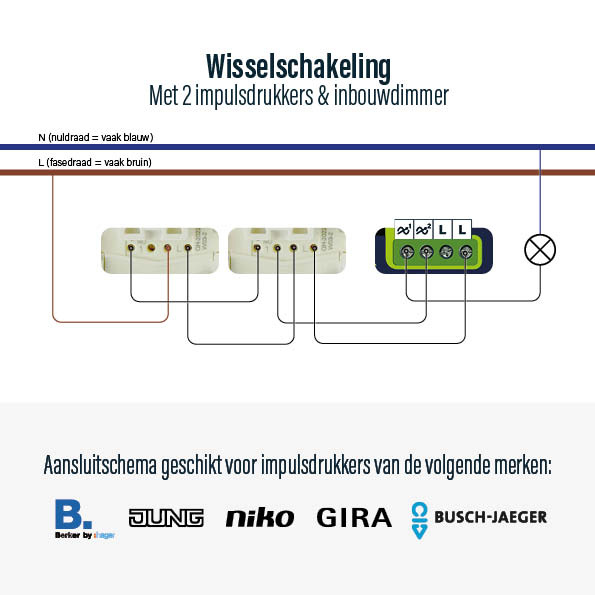

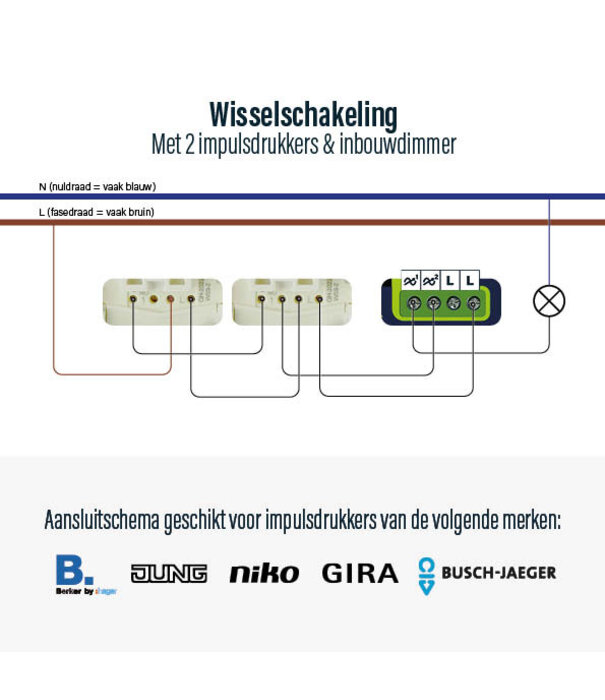

✓ Suitable for two-way switching with pulse push-button or wireless Zigbee switch
✓ Silent dimming
✓ Soft-start system
✓ Supplied with fittings

General information

• Article number: ECO-DIM.07 Zigbee
• Article number 2BA: ECO-DIM.07-ZGB
• Type of LED dimmer: Trailing Edge / R,C
• Power: 0-200 Watt LED
• Control: Push and turn and Zigbee home automation system
• Packaging: Individually packed

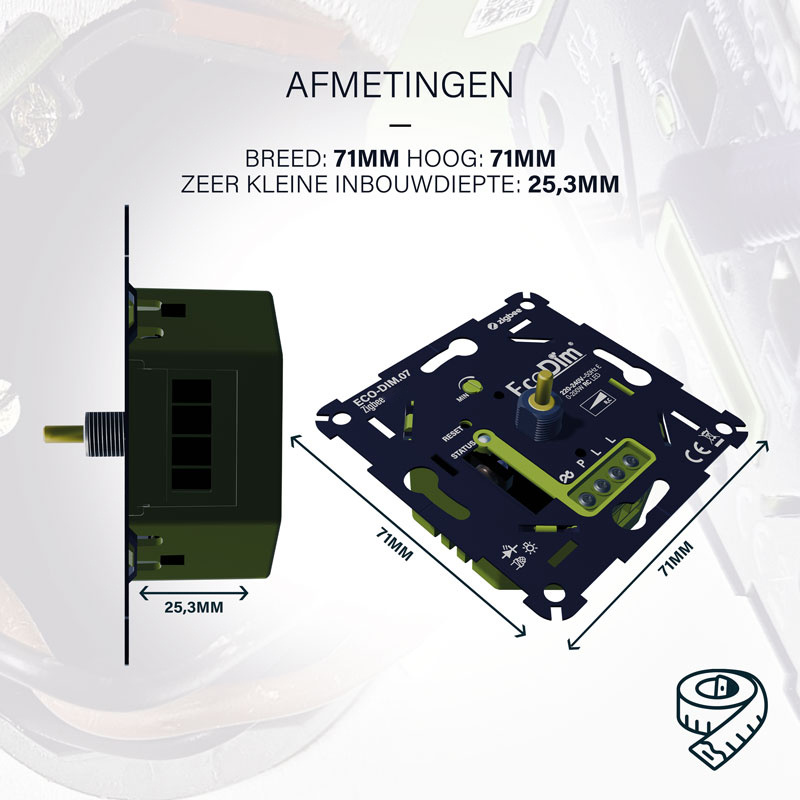

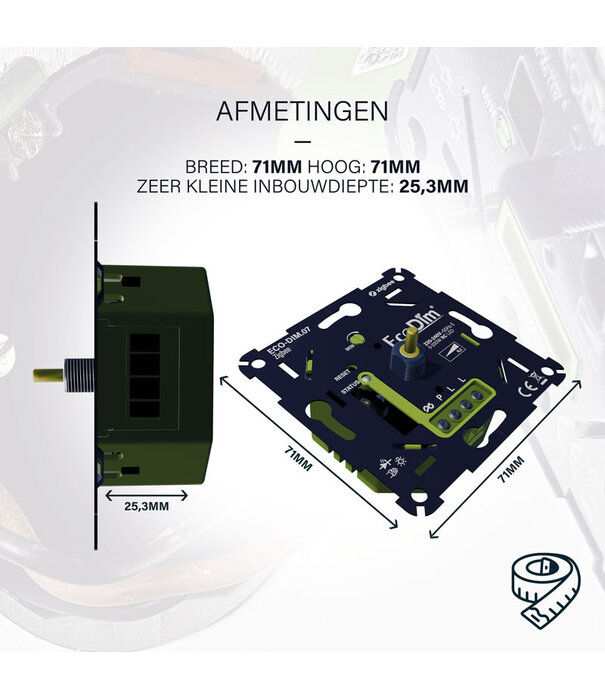

• Dimensions in mm: outer size of basic element: 70,9 x 70,9 x 25,3mm
• Hallmarks: CE, RoHS
• Protocol: Zigbee 3.0
• Frequentie: 2,4 GHz, 868/915 MHz

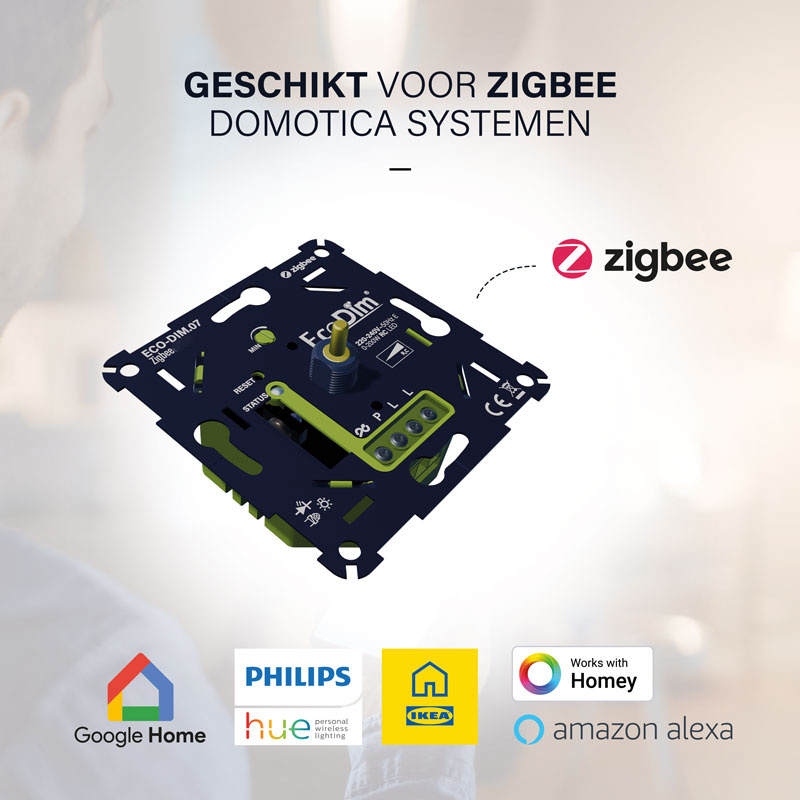

Suitable home automation systems

• Google Home/Nest (via Zigbee hub)
• Amazon Alexa
• Philips Hue
• Homey
• Futurehome
• KlikAanKlikUit
• Aduro smart
• Samsung SmartThings
• WINK
• IKEA Dirigera
• FRITZ!Smart Gateway

Not suitable

• • TRÅDFRI (can be linked to an IKEA remote control using Touchlink)

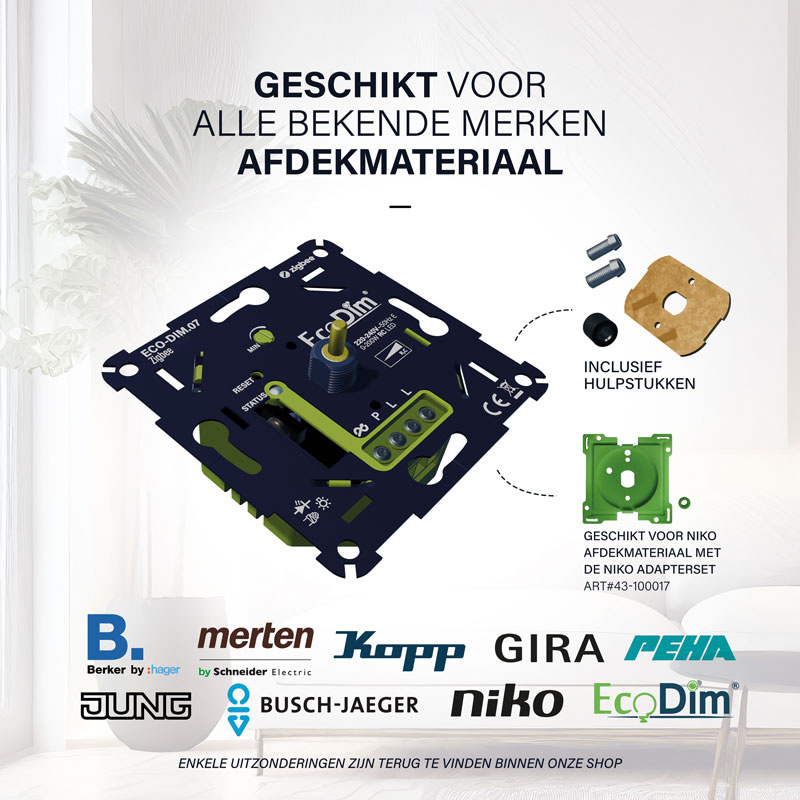

Suitable brands of cover material

• Berker by Hager
• Busch-Jaeger (except 6540-7X)
• Gira
• JUNG
• Kopp
• Merten by Schneider 51XX and System M
• Niko XXX-31003 (provided you use Niko adapter) and XXX-31000
• PEHA

Not suitable:

• Busch-Jaeger 6540-7
• Merten D-Life
• Niko PR20
• Dimmer knob with D-shaped hole, such as Wintop, Plieger, GAMMA Everest

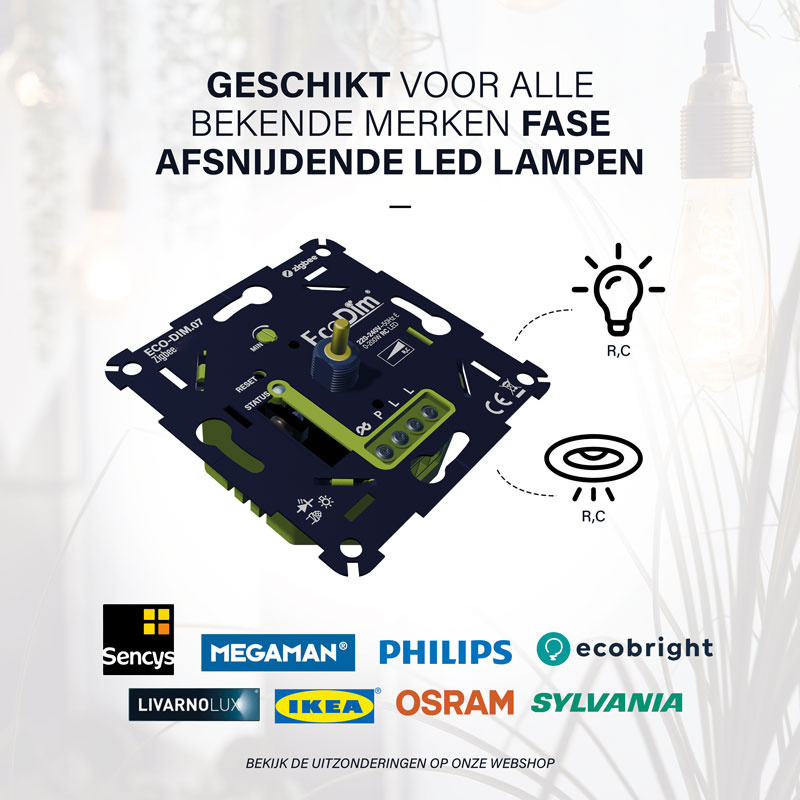

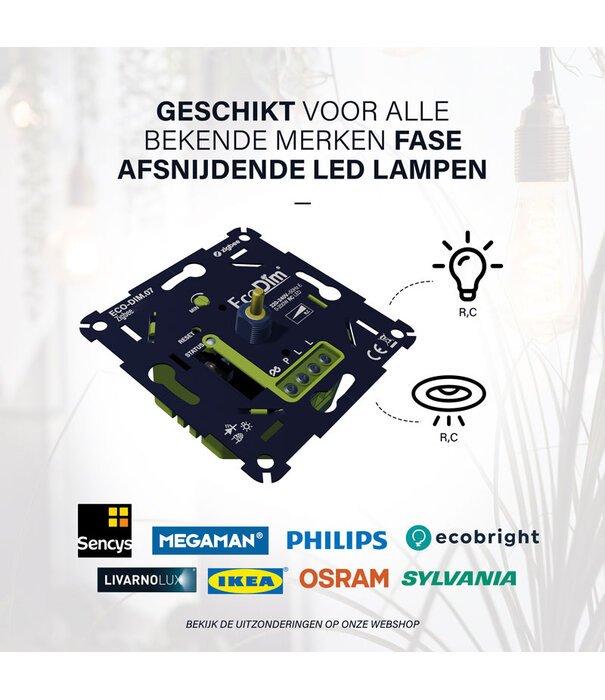

Suitable lamps
