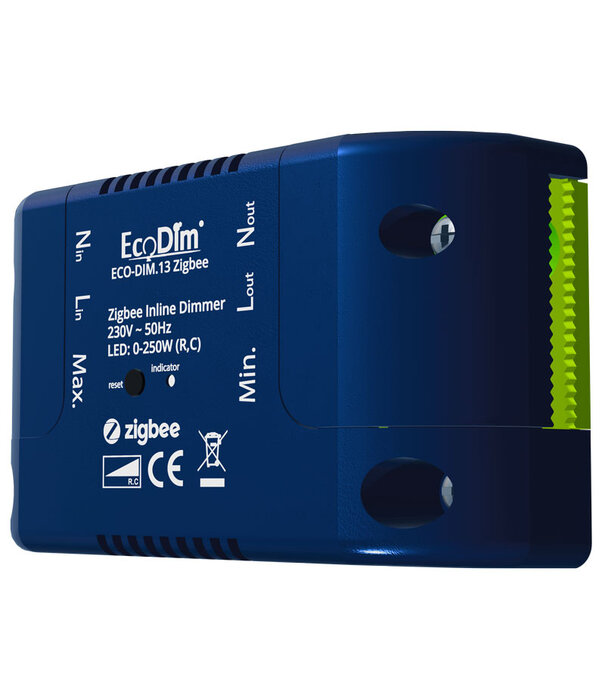

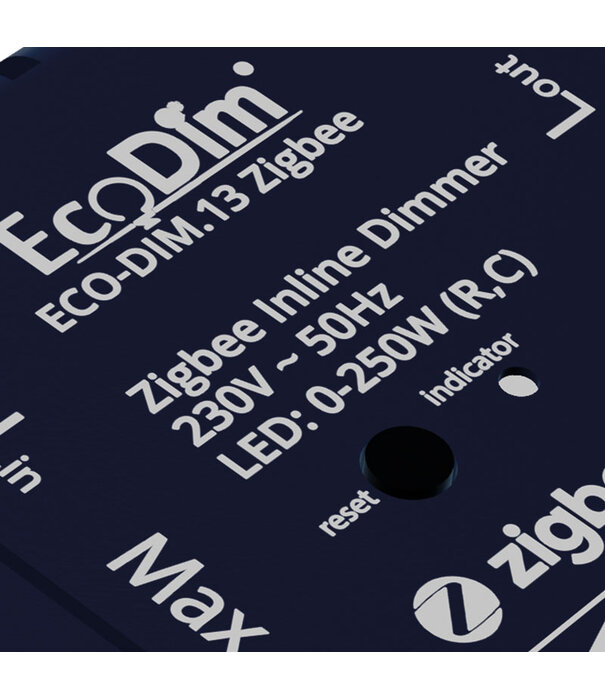

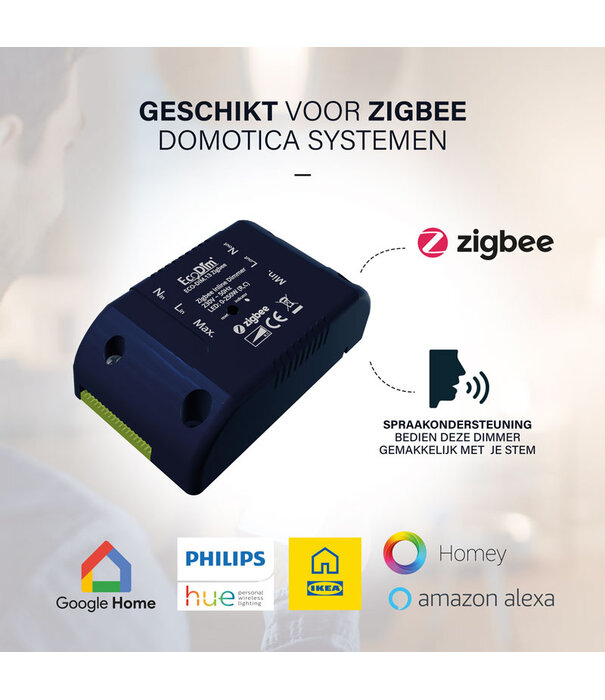

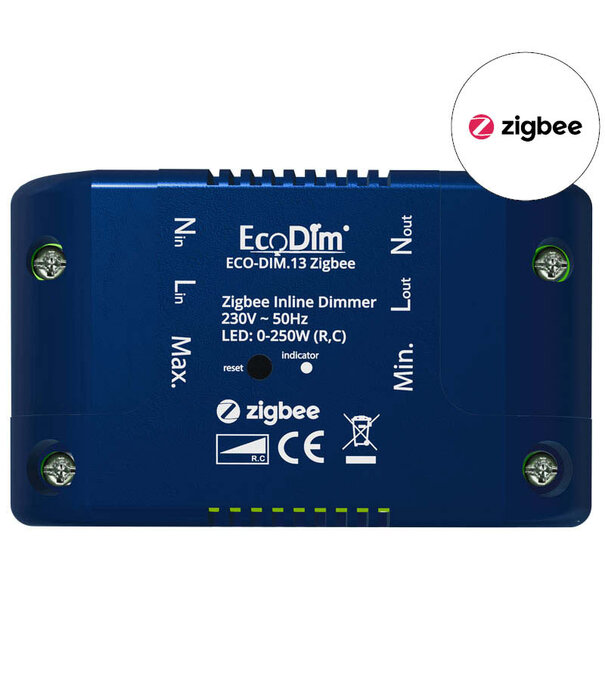

ECO-DIM.13 inline dimmer Zigbee 250W

Brand:

EcoDim

Article code:

ECO-DIM.13 Zigbee

EAN:

8719322373540

SKU:

ECO-DIM.13 Zigbee

Hier verkrijgbaar

Alle downloads

Product description

✓ Zigbee certified
✓ Smart control of various LED luminaires
✓ Touchlink support
✓ Suitable for most Zigbee home automation systems
✓ 0-250W LED
✓ RC (phase cut-off)
✓ Optimal dimmability & light stability
✓ MIN & MAX adjustment
✓ Protection against overload & interference

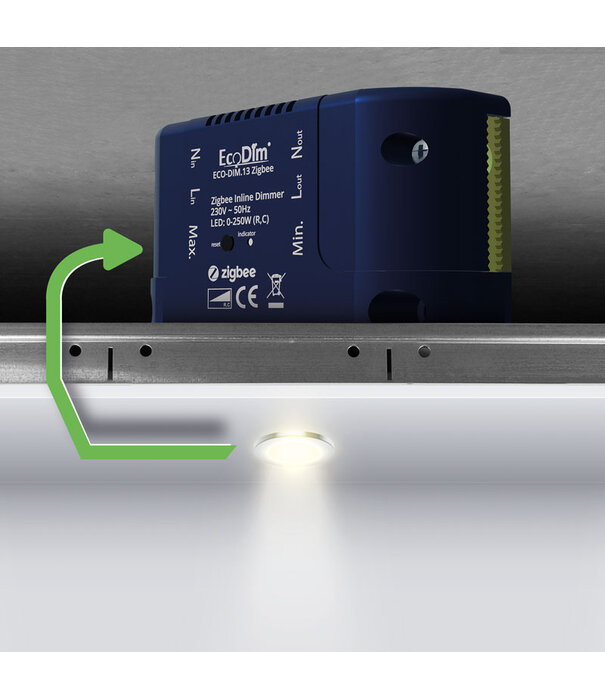

✓ Easy to install above ceiling
✓ Silent dimming
✓ Soft-start system

General information

Article number: ECO-DIM.13 Zigbee

Article number 2BA: ECO-DIM.13-ZGB
LED dimmer type: Trailing Edge / Phase cut / R,C
Power: 0-250W (RC) LED
Control: Zigbee home automation
Packaging: Individually packed

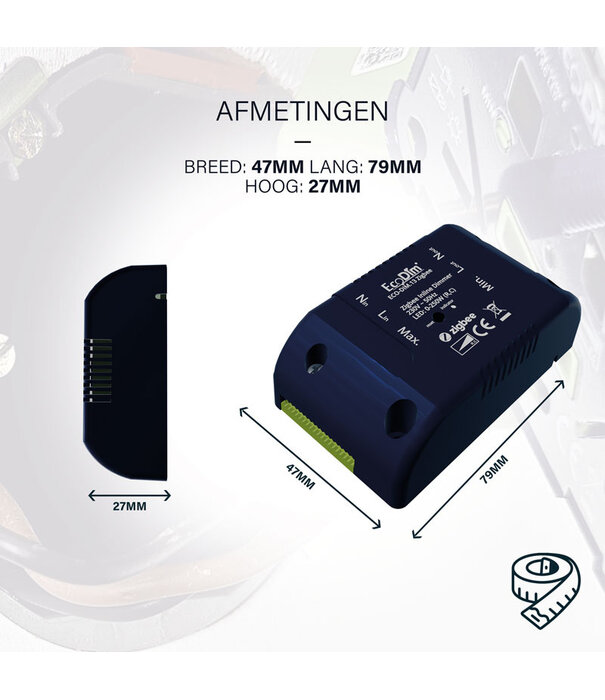

Dimensions in mm: 79x47x27
Hallmarks: CE
Protocol: Zigbee 3.0

Suitable home automation systems

Google Assistant/Home
Amazon Alexa
Philips Hue
Homey
Futurehome
Trust (Klikaanklikuit)
Aduro smart
Aeotec SmartThings
WINK
IKEA Dirigera

Not suitable

TRÅDFRI (can be linked to IKEA remote control using Touchlink)

Suitable lamps

LED lamps 230V* (max. 250W, minimum 2 pieces)
Incandescent bulbs (max. 300W)
Halogen lamps 230V (max. 300W)
Low-voltage lamps with electronic/RC transformer, such as LED lamps with transformer (max. 250W)

*Provided the lamps operate on phase cut/trailing edge.

Product specifications

Brand:	EcoDim
Power (wattage):	0-250W LED
Voltage (input):	230V
Dimming technology:	Smart dimmer Trailing Edge / Phase cut / R,C
Operation:	Home automation system
Dimensions in mm (outer dimensions frame):	79.3x47.3x26.6
Installation dimensions in mm (fits any flush-mounted box):	-
Packaging:	Each
Warranty:	2 years
Article number:	ECO-DIM.13 Zigbee
Item number 2BA:	ECO-DIM.13-ZGB
Download manual:	https://cdn.webshopapp.com/shops/68389/files/418435238/ecodim13-inline-zigbee-manual.pdf
